ICP DAS USA MP-8 43 Series Manual de usuario

MP-8x43 Getting Started

V 1.0

http://www.icpdas.com MP-8x43 Getting Started V1.0 1

A English Version

1.1 hardware setup and basic setting

In this section we will introduce for basic setting for WinCE and use the

EzConfig tools to test the digital IO.

1.1.1 MP-8x43 wire connection

The main hardware of MP-8343 is showed as below. It includes VGA,USB,

Compact Flash, COM Port, Ethernet and interface for I/O modules。

The picture is for MP-8343. It has standard 15 pin VGA port ,USB,

Ethernet and RS232/485(COM2~5) communication port.

Overview Item

Descriptions

1. Power LED Indicator

2. Rotary Switch

3. Ethernet Port 1

4. USB 2.0 Ports

5. COM Port 5 (RS-232)

6. COM Port 4 (RS-232/RS-485)

7. Power Switch

8. COM Port 2 (RS-232)

9. Power and Ground

10. COM Port 3 (RS-485)

11. Redundant Power and

Ground

12. Relay Output R.COM and .NO

13. Frame Ground

14. Ethernet Port 2

15. CF (Compact Flash) Card Slot

16. VGA Port

17.Slot1~Slot3

18.DIPSwitch

For more information of dimension, please refer to Appendix A.

http://www.icpdas.com MP-8x43 Getting Started V1.0 2

1.1.2 Quick hardware setup

What’s on your package?

Item Quantity Model No. Description

MP-8343

MP-8343: 3 slots

MP-8000 1 MP-8743: 7 slots

MP-8743

Manual 1 -

Quick Start Guide

(this manual)

CF Card 1 - Rescue CF Card

CD 1 -

Software and

documents

included.

2.4 mm Screw

driver

Screw Driver 1 1C016

Preparing for start-up your MP-8000:

1. Power Supply: +10 ~ +30 V (Ex: DP-1200)

http://www.icpdas.com/products/Accessories/power_supply/power_list.htm

2. Monitor: 640 x 480 ~ 1024 x 768 (or above)

3. USB mouse and USB keyboard

4. Ethernet Switch (Ex:NS-205), and Ethernet Cable

5.I-8000 High profile I/O modules

http://www.icpdas.com MP-8x43 Getting Started V1.0 3

6. Setup:

1. Plug the USB mouse into USB interface.

2. Plug the I/O Modules into I/O slot, and make sure that was installed

correctly.

3. Connect the monitor VGA cable to MP-8000 VGA port, and connect

monitor power cable to properly power source and turn it on .

4. Connect the Ethernet port to the Ethernet Switch with Ethernet Cable.

5. Connect the DC 24V power from the power supply, and make sure

that was installed correctly.

6. Turn on the DC 24V power supply。

USB

mouse/ke

board

2. install modules

1. Plug USB mouse

5. conect the DC 24V

ower

4. connect Etherne

3. connect the VAG

Ethernet

i8K I/O

modules

http://www.icpdas.com MP-8x43 Getting Started V1.0 4

After power-on and boot up the monitor will show as below:

1.1.3 Windows CE system basic setting

zSetting the Date and time :

1. use the mouse select

“start” ÆSetting(S) Æ

Control Panel(C)，

Open the Control

Panel。

2. Double click

“Date/Time” icon，

Open the dialog。

3. After setting the date

and time, please click

the “Apply＂

http://www.icpdas.com MP-8x43 Getting Started V1.0 5

zSetting the IP address for Ethernet:

If use the DHCP you don’t need to read this section.

1. Setect “Start” ÆSetting(S) Æ

Network and dial-up

Connections (N).

2. Double click “PCI-FETCE5B1/2”

icon，show the Ethernet Adapter

setting dialog.

3. selected “Specify an IP

Address(S)”,and set the IP

Address位址(A),Subnet

Mask(U

zMP-8000 's System setting will be saved automatically. The next

booting up will become effective.

),default gateway(G).

4. select “Name Servers” Tab,and

setting the Primary

DNS(D),Secondary DNS(N).

5. Click “OK” for finishing this

setting。

http://www.icpdas.com MP-8x43 Getting Started V1.0 6

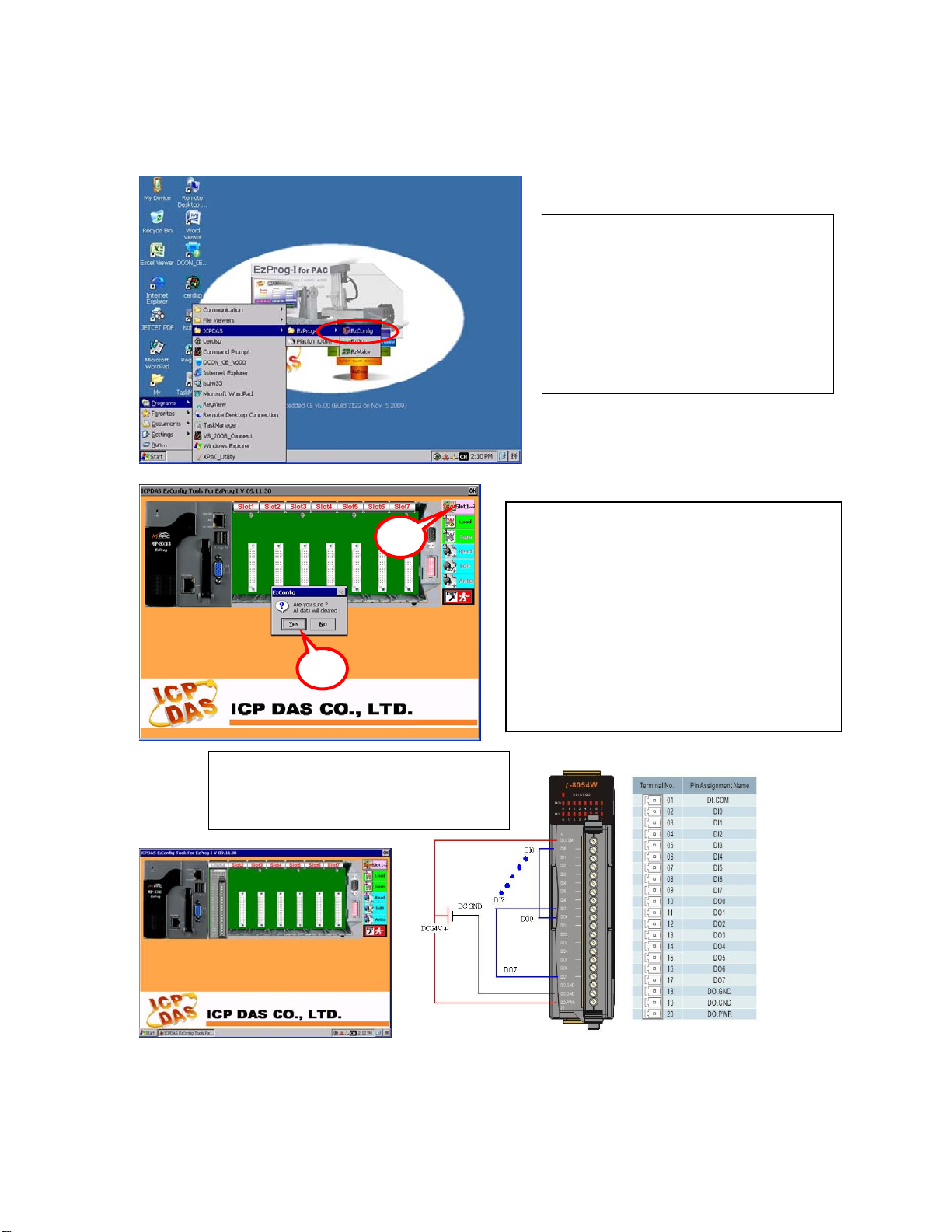

1.2 Easy test for digital IO module

Open the EzConfig

Click the

Start->programs->ICPDAS->E

zProg-I->EzConfig

Will show the EzConfig main

dialog:

1 => click the Scan Slot button

12 => and select “Yes”

EzConfig will find out all modules

that had been plugged in the slots

automatically.

This demo for I-8054W module,

Connect DI 0~7 to DO 0~7 one

by one

http://www.icpdas.com MP-8x43 Getting Started V1.0 7

3 => use the mouse click the

module in monitor. That will

show the module IO status.

3 4 => The Y(DO) that you can click

that to control the output

on/off status.

Show I-8054W as below:

5 =>Click the Y0,Y1,Y2,Y3 as ON

6 6 => the DI X0,1,2,3 show ON,

8And the module’s LED DO

0,1,2,3 will show ON at the

same time, DI 0,1,2,3 show ON,

Click the Y0,Y1,Y2,Y3 to OFF

7 =>after test, please click the “ok”

8 =>Click the Save button and click

the “OK” to confirm to save the

system setting

In this sample, we can easily control the IO by using the EzConfig tool. For

more information please refer to related manuals.

http://www.icpdas.com MP-8x43 Getting Started V1.0 8

B中文版

1.1硬體安裝與設定

在這個章節將介紹設定 PAC 的一些工具，你可以使用控制台改變系統時間或

網路的設定，及一些關於 WinCE 的設置與使用 EzConfig 監控 IO。

1.1.1 MP-8x43 外觀介紹

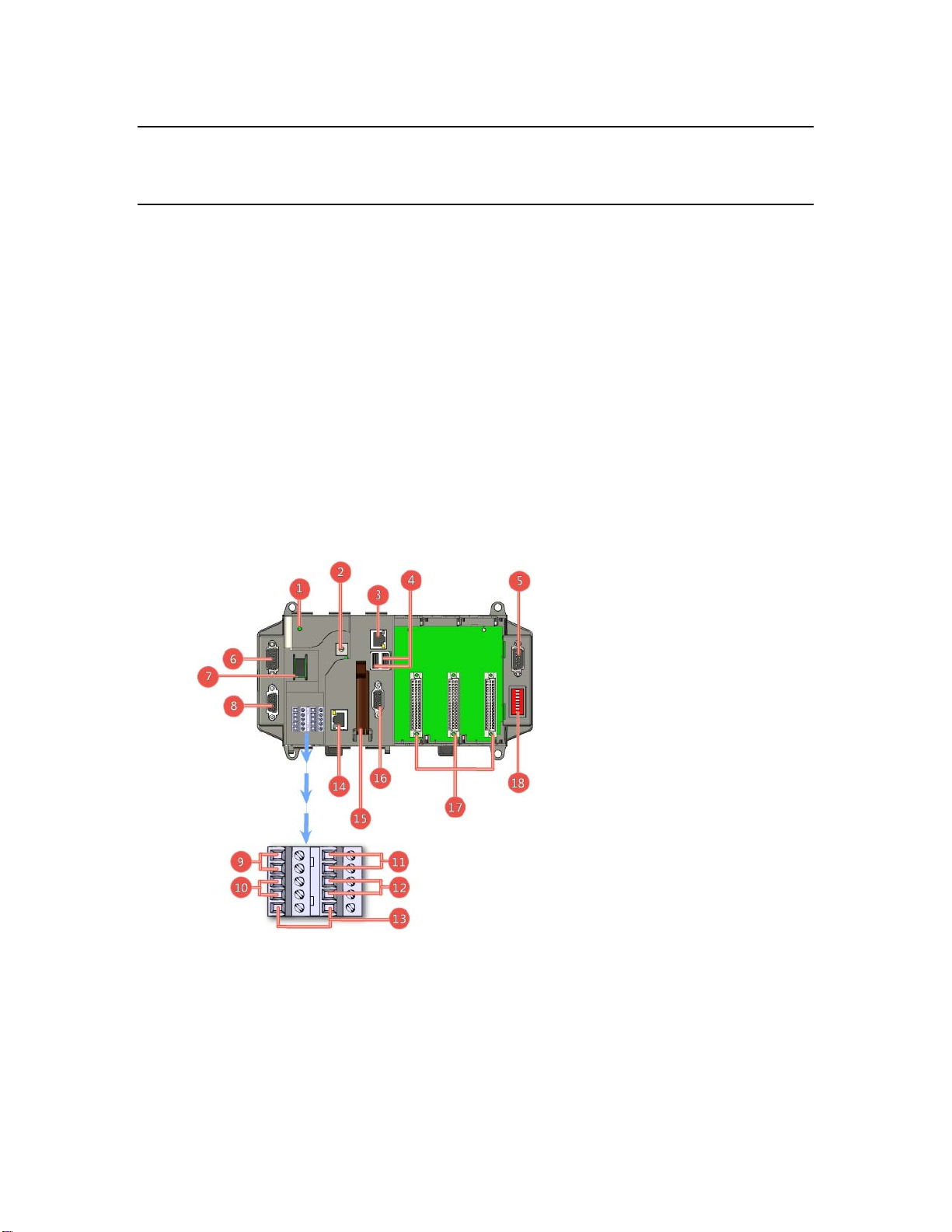

MP-8343 主要的硬體描述如下圖，其中包括了 VGA、USB、Compact Flash、

COM Port、Ethernet 和基本的 I/O 插槽介面。

圖中是 MP-8343 硬體的樣本，15 pin VGA port 是電腦螢幕標準介面，並且能

配合 USB 或RS232 支援觸控螢幕。COM2~5 是RS232/485 通訊埠，包含標準

Ethernet 網路。

安裝接線說明

1. Power LED Indicator

2. Rotary Switch

3. Ethernet Port 1

4. USB 2.0 Ports

5. COM Port 5 (RS-232)

6. COM Port 4 (RS-232/RS-485)

7. Power Switch

8. COM Port 2 (RS-232)

9. Power and Ground

10. COM Port 3 (RS-485)

11. Redundant Power and round

12. Relay Output R.COM and .NO

13. Frame Ground

14. Ethernet Port 2

15. CF (Compact Flash) Card Slot

16. VGA Port

17.Slot1~Slot3

18.DIPSwitch

詳細外觀安裝尺寸請參閱附錄 A

http://www.icpdas.com MP-8x43 Getting Started V1.0 9

1.1.2 快速硬體安裝

拆開包裝後您應該可以發現下列物品:

項目數量型號說明

MP-8343 硬體模組

MP-8000 MP-8343: 3 槽

MP-8743 MP-8743: 7 槽

手冊 ( )

1 -

快速安裝指南本文件

CF Card 1 - 系統回復,

CD 1 - 內含軟體手冊

螺絲起子 1 1C016

2.4 mm ㄧ字螺絲起子

安裝準備事項:

1. 電源供應器: +10 ~ +30 V (例如: DP-1200)

http://www.icpdas.com/products/Accessories/power_supply/power_list.htm

2. 有D-SUB 15針接頭的標準VGA螢幕,與電源

3. 標準 USB 滑鼠

4. 網路集線器(如NS-205),與網路線

5. PAC 支援的 I-8000 高卡IO 模組

6. 安裝步驟: (如下圖)

USB 到USB插孔。

1. 插入滑鼠

2. 找空的插槽位置，將IO 對準插入插槽,並確認已正確插到底。模組

VGA 源。

3. 連接螢幕與螢幕電

4. 。連接網路線到集線器

5. 24V 源, 正負不要接反了。正確接上直流電小心

認正確後開啟24V 源,與源約 60 秒後即可開機完成。

6. 確直流電螢幕電

http://www.icpdas.com MP-8x43 Getting Started V1.0 10
