IBM 5U Rackmount Server Chassis YY-R5xx Manual de usuario

ZZ17-W2001-B

YY-W2xx

Pedestal Server Chassis

YY-R5xx

5U Rackmount Server Chassis

Installation Guide

2005.04. Version B

ZZ17-W2001-B

INDEX

1. Introduction

2. Hardware Packing List

3. System Installation

3.1.Chassis Open

3.2.Motherboard Installation

3.3.Add-on Card Installation

3.4.CD–ROM Drive/FDD Installation.

3.5.Fixed HDD Cage , HDD Installation

3.6.Instructions for Switches and LED Indicators on front panel

3.7.Instructions for cooling fan assembly

3.8.Rack Mount Sliding Rails Installation

4.1 System Assembly

4. Introduction of IDE/SCSI/SATA multi-bay backplane

modules

5. How to change versatile as Rackmount Chassis (5U)

All brand names and trademarks are the property of their respective owner.

Specifications are subject to change without prior notice.

ZZ17-W2001-B

1. INTRODUCTION

YY-W2 series Server Chassis is designed in compliant with EEB3.0

specification (refer to www.ssiforum.org) and ATXV2.1 (refer to

www.formfactors.org)

Mother Board:

z YY-W2 is designed for extended ATX (12"x13"), in compliant

with ATX spec, CEB and EEB3.0 spec.

z Storage:

The chassis supply drive bays with flexible configuration:

z A type : Supply 8 x 5.25" + 2 x 3.5” HDD drive bays

z B type: Supply 5 x 5.25"drive bays and 7 x 3.5" HDD drive

bays, i.e. A type plus HDD fixed cage

z C type: Supply flexible and expandable drive configuration

with multi bay backplane module, support for SCSI/SATA/IDE

HDD, well performed thermal solution and HDD indicators.

I/O Expansion Slots:

z 7 slots

Power Supply, Optional:

z Single Power Supply of 420W~650W

z Redundant power supply of 320W~600W

Operating Temperature:

z 5кto 40к(41л~ 104л)

ZZ17-W2001-B

Thermal Solution:

z One(1) 120x120mm Cooling Fan is installed, rear mounted

z Options of two (2) 60*60*25mm, rear mounted.

Switches and LED Indicators on front panel

z Power Switch (Push Switch)

z Reset Button (Push Switch)

z Power On LED (Green)

z HDD LED (Orange flash)

z FAN ALARM (Red)

z LAN LED (Green/Flash) X 2

z Power Fail LED [optional /reserved for Power Failure Signal]

z USB Ports X 4, Audio ports [Optional]

Rack Mount Rail: (Optional)

z 24Inch Sliding Rails

Chassis Dimensions & Weight

z Depth 600 mm* Width 220 mm* Height 427mm

(23.6-in * 8.66-in * 16.8in)

Net Weight with Single Power Supply is 15Kg(33lbs)

z Material for Chassis: SECC sheet metal

ZZ17-W2001-B

2. Hardware Packing List

When you unpack your YY-W2 Server Chassis, check that all the

items that you ordered are present in good condition. Review the

inventory checklist below to be sure that the components and

optional components that you ordered are included. If anything is

missing or damage, contact your retailer as soon as possible. Don’t

use any uncertified material or components in this system.

zChassis

ϭA type

ϭB type

ϭC type ϭATA I DE ϭSCSI ϭSATA Raid Module

Power Supply (Optional)

ϭSingle Power Supply ϭRedundant Power Supply

Power Watts: _____________

zOptional Accessories:

ϭAC Cord

ϭUSA ϭJapan ϭGermany ϭOthers

ϭCard Clamp Holder

ϭFoot Stands (two pairs)

ϭRack Mount Sliding Rails 24-inch

ϭIntrusion switch

ϭManual

ZZ17-W2001-B

3. System Installation

3.1 Chassis Open

To release two (2) screws on

the rear side of chassis, pull

the side cover with handle.

3.2 Motherboard Installation

Check mounting holes of

motherboard, to screw the

standoffs required to chassis.

Put the Motherboard into the

chassis, than screw in for

fixing.

Next step is to plug the DC

ATX-20(or EPS-24) pin

connector on the Power Supply to Motherboard and insert the power

switch connector properly.

Finally, plug the IDE cable connector to IDE interface connector on

the motherboard. In order to reduce the interference of cooling fans’

airflow, please adjust all cables to proper positions.

ZZ17-W2001-B

3.3 PCI Add-on Card Installation

Remove the tail gate bracket,

install PCI card into

motherboard, and screw in

bracket to rear window of

chassis.

The chassis could be

optional required A Card

Clamp Holder which is used

to clamp the Add-on Card

for avoiding any popping

issue.

To remove The Clamp

Holder first, install Add-on

Cards as usual; adjust the

holder's height for clamping

well the Add-on Cards.

3.4 CDROM/HDD Installation -

YY-W2 Server Chassis is designed to install drive peripherals by

rails, it allow integrator to pre-assembly peripherals for fasten

system assembly as module feed in.

ZZ17-W2001-B

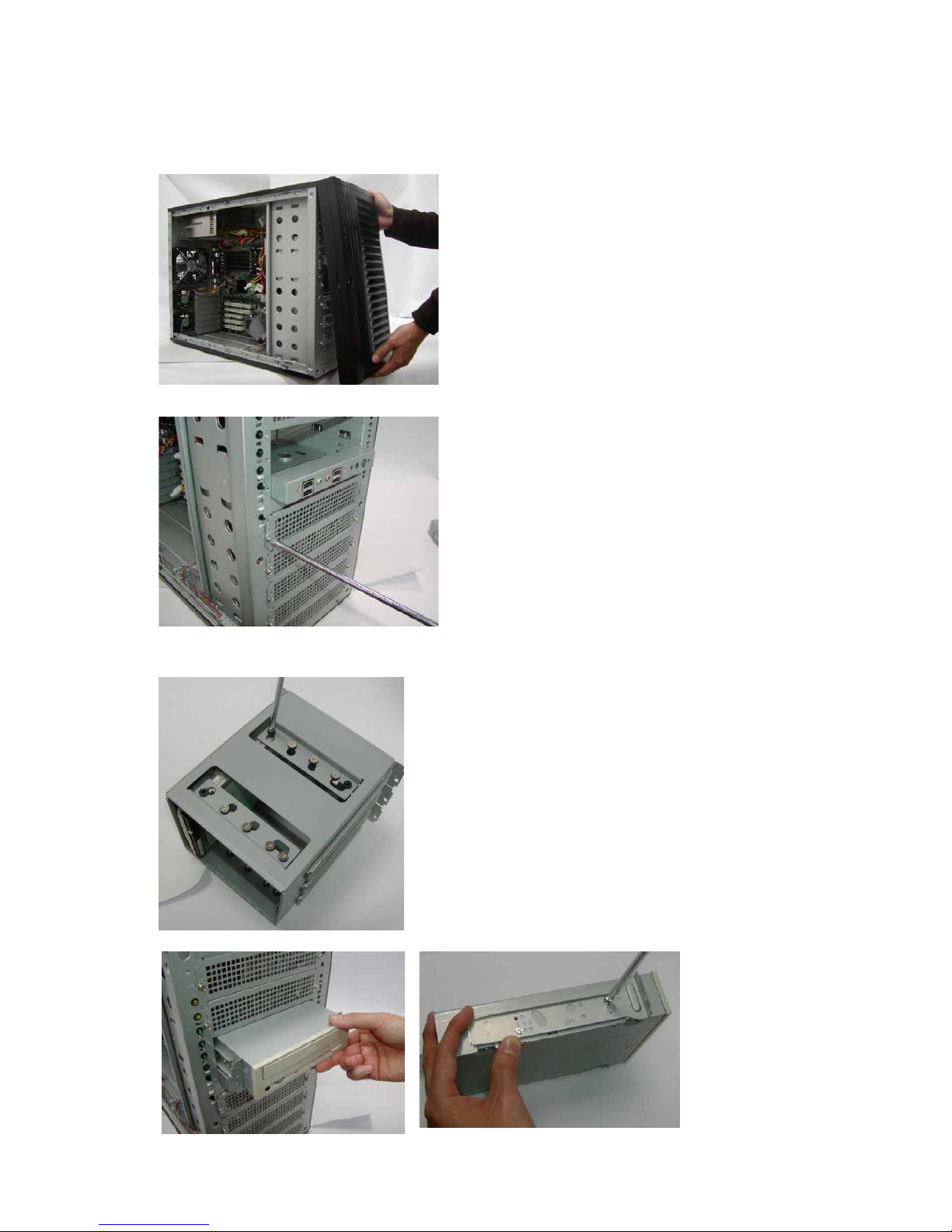

To remove the front panel fist, the

front panel is snap in chassis with

hocks (or/and screw on by 4pcs

screws), please screw off the screws

and pull the front panel forward.

z To remove the metal covers

(vented panel).

z Screw a pair of rails to drive.

z Slide in the drive install

chassis.

z Screw in two (2) 6#32 on the

front plate.

3.5 Hard Disk Drive Installation

-How to use Fixed HDD Cage

YY-W2 Server Chassis is optional

could be built with HDD cage for

5-devices HDD, and the cage designed

with anti-vibration pads for each HDD.

i.e. the YY-W201 B type.

ZZ17-W2001-B

To screw off four (4) screws in the

front plate of chassis, the HDD

cage could be removed from

chassis, install HDD into cage.

The cooling fan of HDD cage

could be easy swap, release two

thumb screws in the front of HDD

cage, lift off the fan holder, swap

fan and assembly again into cage.

How to use HDD brackets

YY-W2 Server Chassis is built

in two sets of HDD mounting

bracket for 2-devices HDD

assembly at side of 5.25” drive

bay; mounting brackets are

packed into the accessory box.

ZZ17-W2001-B

3.6 Instructions for Switches and LED Indicators on front panel

The switches and led indicators on front panel have the functions as

following:

POWER SW: Push Switch, The system power on/off, connects

toM/B.

Reset SW: Push switch, connect to M/B

x POWR LED: The system power LED (green), connect to M/B.

x POWER FAILURE LED: Reserved and optional requested,

it may connected with the Power TTL signal wire supplied by PSU

RED: The power module is in abnormal operation

FAN ALARML LED: Reserved, it may connect with optional

control board or M/B.

RED: Fan is in abnormal Operation

LAN LED: GREEN - Linked

GREENFlash-Active

HDD LED: ORANGE FLASH: HDD-OS ACCESS

USB PORT (Cable is optional attached to kits box)

Security Lock: The front door is lockable.
