Merchandisers

Note: Changed items have been underlined.

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 9W End Compartment Fan Assembly (1)

0441749 Fan Motor, Standard (MO.4410575)

0377253 Fan Blade (FB.4780616)

embossing away from motor

B. 0398558 Standard Non-Adjustable (2)

Defrost Thermostat (CT.4481088)

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

C. 0135966 Ballast, Electronic (3)

1 lamp (BA.4480883)

D. 0039764 Lamp Starter (EP.4481081) (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

CW2-EGE

Technical Data Sheet

P/N 0399452_C

NSF®Certified

July 2007

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

CW2-EGE

General

Maximum O/S dimension of case back to front (includes bumper) 40 3/4 (1035)

Total width of case 81 1/2 (2070)

Width at front of case 28 (711)

Front of case to O/S edge of front base rail 12 3/8(314)

Back of case to O/S edge of front base rail 28 3/8 (721)

RH edge of case to O/S edge of LH base rail 69 1/2 (1765)

LH edge of case to O/S edge of LH base rail 12 (305)

Rear to front of canopy 10 3/4 (273)

Width of canopy 25 1/2 (648)

Width of base rail 2 1/8 (54)

Access area between front base rail and splashguard 8 1/8 (206)

Electrical Service (Electrical Field Wiring connection point)

Center of Electrical service to O/S edge of front base rail 7 (178)

RH edge of case to center of knockout 46 7/8(1191)

Length of electrical raceway 21 3/8 (543)

Waste Outlet

Front RH edge of case to the center of waste outlet 11 7/8 (301)

Center of waste outlet to outside of front base rail 3 7/8 (98)

Water Seal

Center of case to center of pipe connection 32 (813)

Outside diameter of the drip pipe 1 1/4 (32)

Water seal outlet must clear front skid rail.

CW2-EGE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

2 of 6

Front of

Case

81 1/2(2070)

69 1/2(1765)

25 1/2

(648)

32 (813)

(305)

Waste Outlet

& Water Seal

46 7/8

(1191)

Access Area

(813) 35 1/8

(892)

40 3/4

(1035)

11 7/8

(301)

(711)

CW2-EGE

29 1/2

(749)

28 1/2

(724)

Convertible Island End

05-2003

Engineering

Plan Views

Dimensions shown as inches and (mm).

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H.

CW2-EGE

Discharge Air (°F) 28

Evaporator (°F) 21

Unit Sizing (°F) 19

Btu/hr/case CW2-EGE

Parallel 4600

Conventional 5100

DEFROST DATA

CW2-EGE

Frequency (hr) 6

Defrost Water (lb/case/day) 8

(± 15% based on a case configuration and

product loading).

OFFTIME CW2-EGE

Temp Term (°F) 48°

Failsafe (minutes) 45

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CW2-EGE

CI/CO (Temp °F)*17°/ 7°

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)* 48°

*Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)** CW2-EGE

1.7

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by:

Each End/Partition (in.) 1 1/2

3 of 6P/N 0399452_C

(1219)

Front

Case

16 in. Shelf

12 in. Shelf

10 3/4

(273)

(127) 32 (813)

6 3/8(162)

(660)

(178)

3 7/8

(98)

8 1/2

(216)

12 3/8

(314)

28 3/8

(721)

40 3/4

(1035)

FAN

COIL

30 1/8(765)

5 (127)

(533)

9 (229)

Dimensions shown as inches and (mm).

Convertible Island End, 2 Display Levels

Impact CW2-EGE

Convertible Island End

CW2-EGE

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

CW2-EGE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

4 of 6

Electrical Data

Number of Fans CW2-EGE

Refrigeration – 9W 2

Merchandiser Amperes Watts

Fans (Refrigeration)

Standard (120V 60Hz) 0.76 50

Energy Efficient (120V 60Hz) (See Note 1 below)

Cycling Anti-sweat Heaters NA NA

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 0.96 NA

With Energy Efficient Fans (120V 60Hz) (See Note 1 below)

Maximum Over Current Protection 120V 20

Electric Defrost Heaters (208V) NA NA

Standard Lighting

1 Row Canopy 0.80 40

Optional Lighting

2 Rows Canopy (See Note 2 below)

Optional Shelf Lighting

1 Row of Shelves 0.80 40

2 Rows of Shelves 1.60 80

Note 1: All CW2 end compartments are equipped with energy efficient fan motors as standard.

Note 2: CW2 end compartments are not available with 2 row canopy lighting due to space constraints.

Impact C2W-EGE

Convertible Island End

5 of 6P/N 0399452_C HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

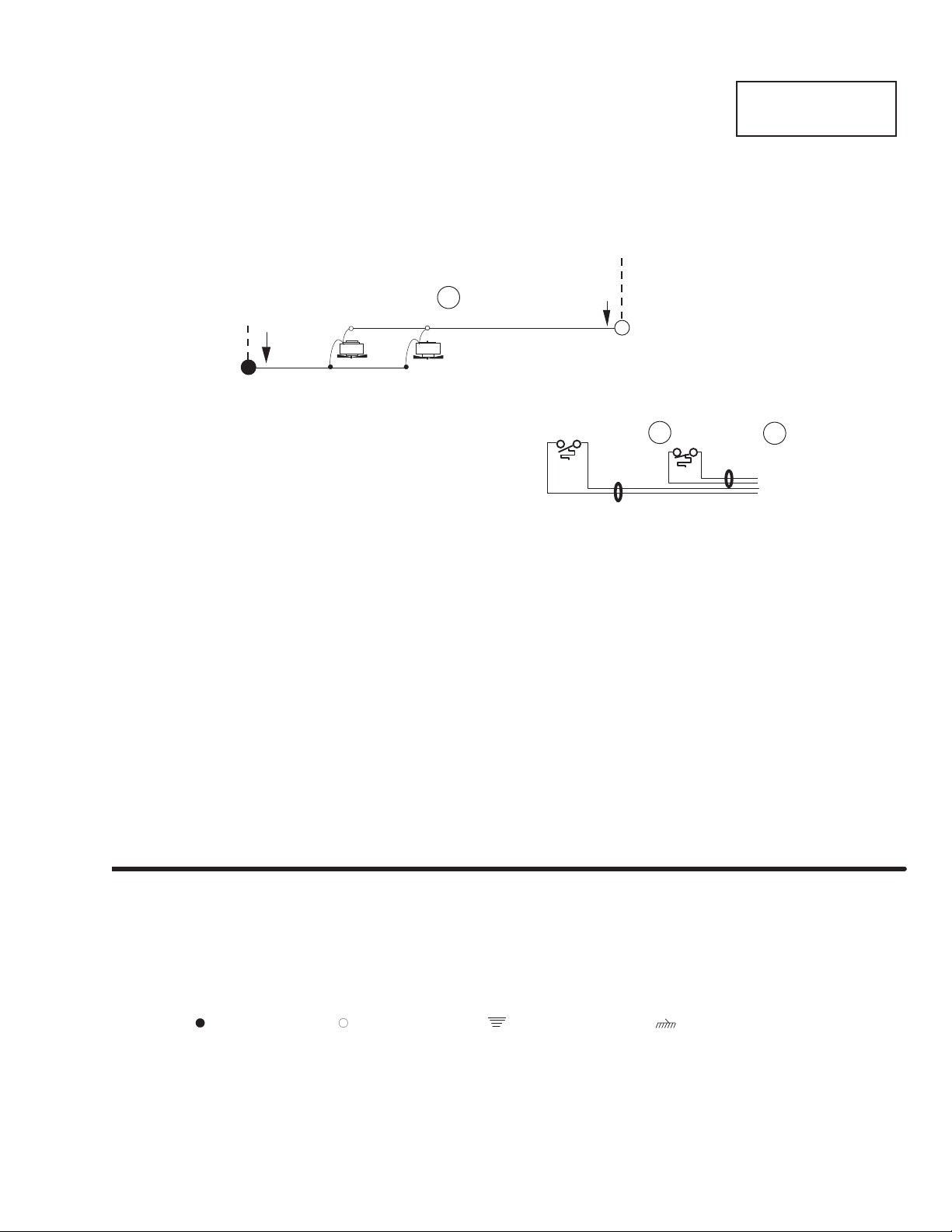

Fan Wiring

Offtime Defrost

= Case GROUND

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue To

Condensing

Unit

}

Light Blue

2 Fans 120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

CW2-EGE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

6 of 6

Light Circuits

CW2-EGE END COMPARTMENT

LIGHTING SCHEMATIC

(Standard canopy lighting and

optional shelf lighting are shown)

= 120V POWER = 120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Grayed components in 12 ft models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
