Q1-DC/DS

Technical Data Sheet

P/N Q1-DC/DS

Rev B

ecialt

Products

Q-Series

ETL Listed

40427

ETL Sanitation

40427

ETL Sanitation

These merchandisers are manufactured to meet ANSI/National Sanitation

Foundation Standard #7 requirements.

We reserve the right to change or revise specifications and

roduct design in connection with any feature of our

roducts. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75F and 55% R.H.

Deli

Discharge Air (F) 26

Evaporator (F) 20

ote: Not recommended to control temp by regulating

coil temp allow t-stat to cycle and control temp.

tu/hr/

Parallel 450

Conventional 518

*For all refrigeration equipment other than Hussmann,

use conventional Btu values.

DEFROST DATA

Frequency Hrs 6

OFFTIME

Temp Term °F 54

Failsafe Minutes 40

ELECTRIC or GAS Not Recommended

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 5/8

Estimated Charge (lb)***

4ft 1.2

5ft 1.5

6ft 1.8

*** This is an average for all refrigerants types. Actual

refrigerant charge may vary by approximately half a

ound. GLYCOL REQUIREMENTS

GPM PSI

3ft 0.5 1.6

4ft 0.6 3.1

5ft 0.8 4.9

6ft 1.0 1.9

8ft 1.3 3.5

10ft 1.6 5.4

12ft 1.9 3.8

2 of 26

Q1-DC/DS

Technical Data Sheet

P/N Q1-DC/DS

Rev B

ecialt

Products

Q-Series

Engineering

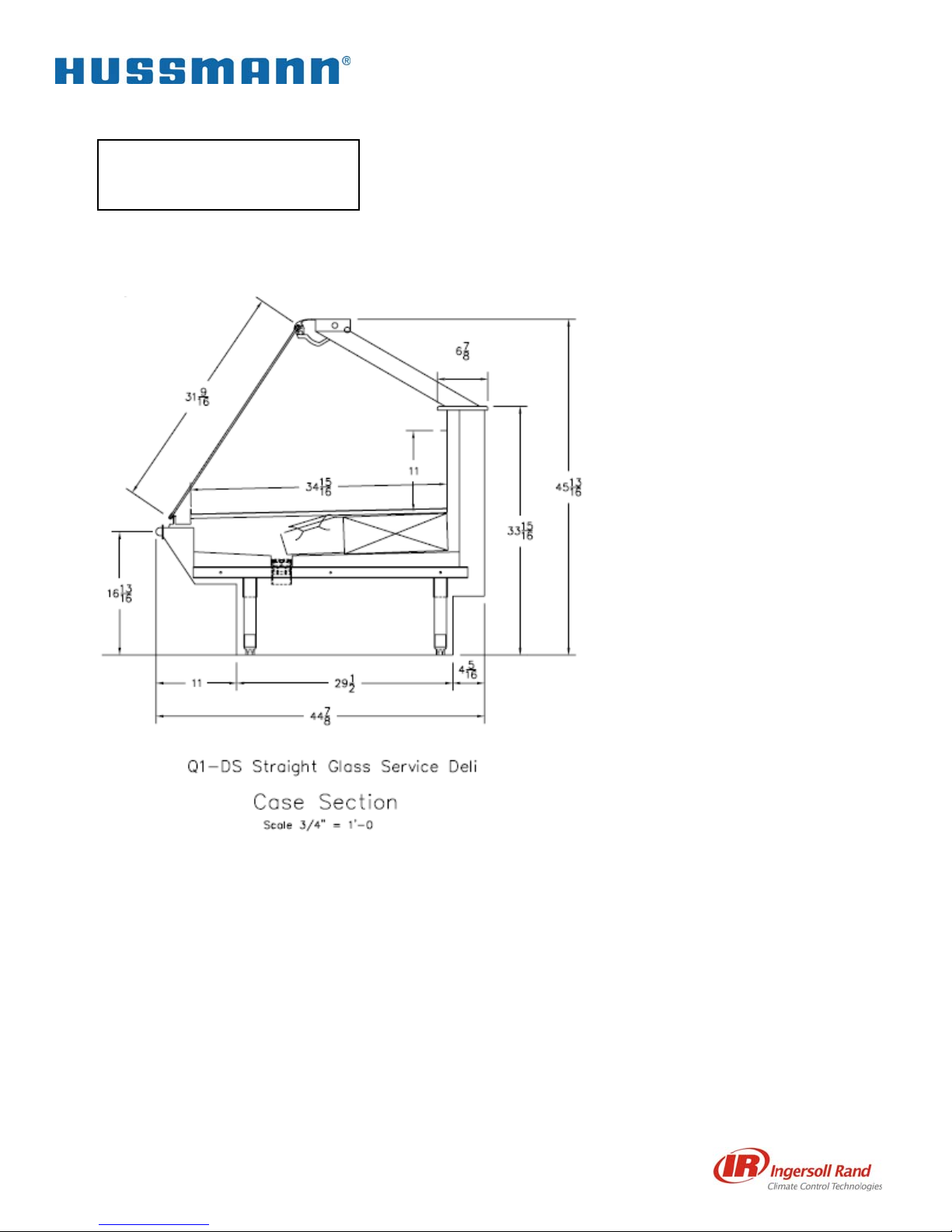

CROSS SECTION

3 of 26

Q1-DC/DS

Technical Data Sheet

P/N Q1-DC/DS

Rev B

ecialt

Products

Q-Series

Q1-DC Curved Glass Service Deli

Engineering

CROSS SECTION

4 of 26

Q1-DC/DS

Technical Data Sheet

P/N Q1-DC/DS

Rev B

ecialt

Products

Q-Series

Engineering

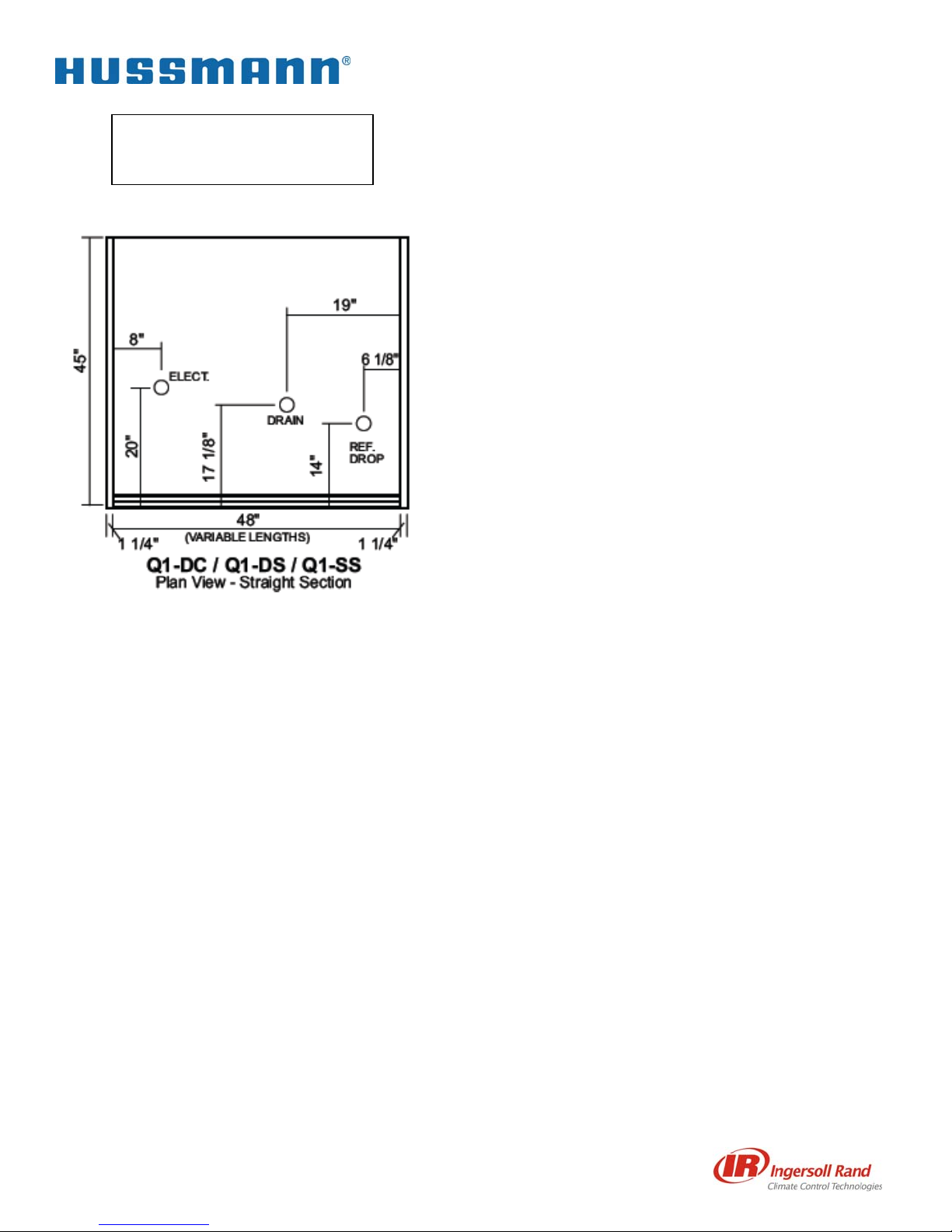

PLAN VIEW

5 of 26

Q1-DC/DS

Technical Data Sheet

P/N Q1-DC/DS

Rev B

ecialt

Products

Q-Series

Q1-DC Q1-DC-4R 4' W1750001

Deli-Curve Glass Q1-DC-6R 6' W1750002

RJ-45,Ledge Lights Q1-DC-8R 8' W1750003

12' W1750005

Q1-DC Q1-DC-4R 4' W1750006

Q1-DC-5R 5' W1750026

Deli-Curve Glass Q1-DC-6R 6' W1750007

Standard Case Q1-DC-8R 8' W1750008

Q1-DC-9R 9' W1750009

Q1-DC-10R 10' W1750009

Q1-DC-12R 12' W1750010

Q1-DC-S Q1-DC-3S 3' W1750034-01

Q1-DC-4S 4' W1750034-02

Q1-DC-5S 5' W1750034-03

Q1-DC-6S 6' W1750034-04

Q1-DC-7S 7' W1750034-05

Q1-DC-8S 8' W1750034-06

Q1-DC-9S 9' W1750034-07

Q1-DC-10S 10' W1750034-08

Q1-DC-11S 11' W1750034-09

Q1-DC-12S 12' W1750034-10

Q1-DS-S Q1-DS-3S 3' W1750034-01

Q1-DS-4S 4' W1750034-02

Q1-DS-5S 5' W1750034-03

Q1-DS-6S 6' W1750034-04

Q1-DS-7S 7' W1750034-05

Q1-DS-8S 8' W1750034-06

Q1-DS-9S 9' W1750034-07

Q1-DS-10S 10' W1750034-08

Q1-DS-11S 11' W1750034-09

Q1-DS-12S 12' W1750034-10

6 of 26

Q1-DC/DS

Technical Data Sheet

P/N Q1-DC/DS

Rev B

ecialt

Products

Q-Series

7 of 26

Q1-DC/DS

Technical Data Sheet

P/N Q1-DC/DS

Rev B

ecialt

Products

Q-Series

8 of 26

Q1-DC/DS

Technical Data Sheet

P/N Q1-DC/DS

Rev B

ecialt

Products

Q-Series

9 of 26

Q1-DC/DS

Technical Data Sheet

P/N Q1-DC/DS

Rev B

ecialt

Products

Q-Series

10 of 26

Q1-DC/DS

Technical Data Sheet

P/N Q1-DC/DS

Rev B

ecialt

Products

Q-Series
