Hussmann CID Manual de instrucciones

1 of 7

CID

Technical Data Sheet

Rev A

ecialt

Products

CID

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75F and 55% R.H.

Discharge Air (F) 26

Evaporator (F) 15

ote: Not recommended to control temp by regulating

coil temp allow t-stat to cycle and control temp.

Center

tu/hr/

Parallel 1950

Conventional 2243

Crown

tu/hr/

Parallel 3000

Conventional 3450

*For all refrigeration equipment other than Hussmann,

use conventional Btu values.

DEFROST DATA

Frequency Hrs 8

OFFTIME

Temp Term °F 54

Failsafe Minutes 46

ELECTRIC or GAS Not Recommended

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 ½*

Merchandiser Liquid Line (in.) 3/8*

Merchandiser Suction Line (in.) 5/8*

Estimated Charge (lb)***

4ft 1.2

5ft 1.5

6ft 1.8

*Dependent on case length and refrigerant type.

*** This is an average for all refrigerants types. Actual

refrigerant charge may vary by approximately half a

ound. GLYCOL REQUIREMENTS

GPM PSI

NA NA

Engineering

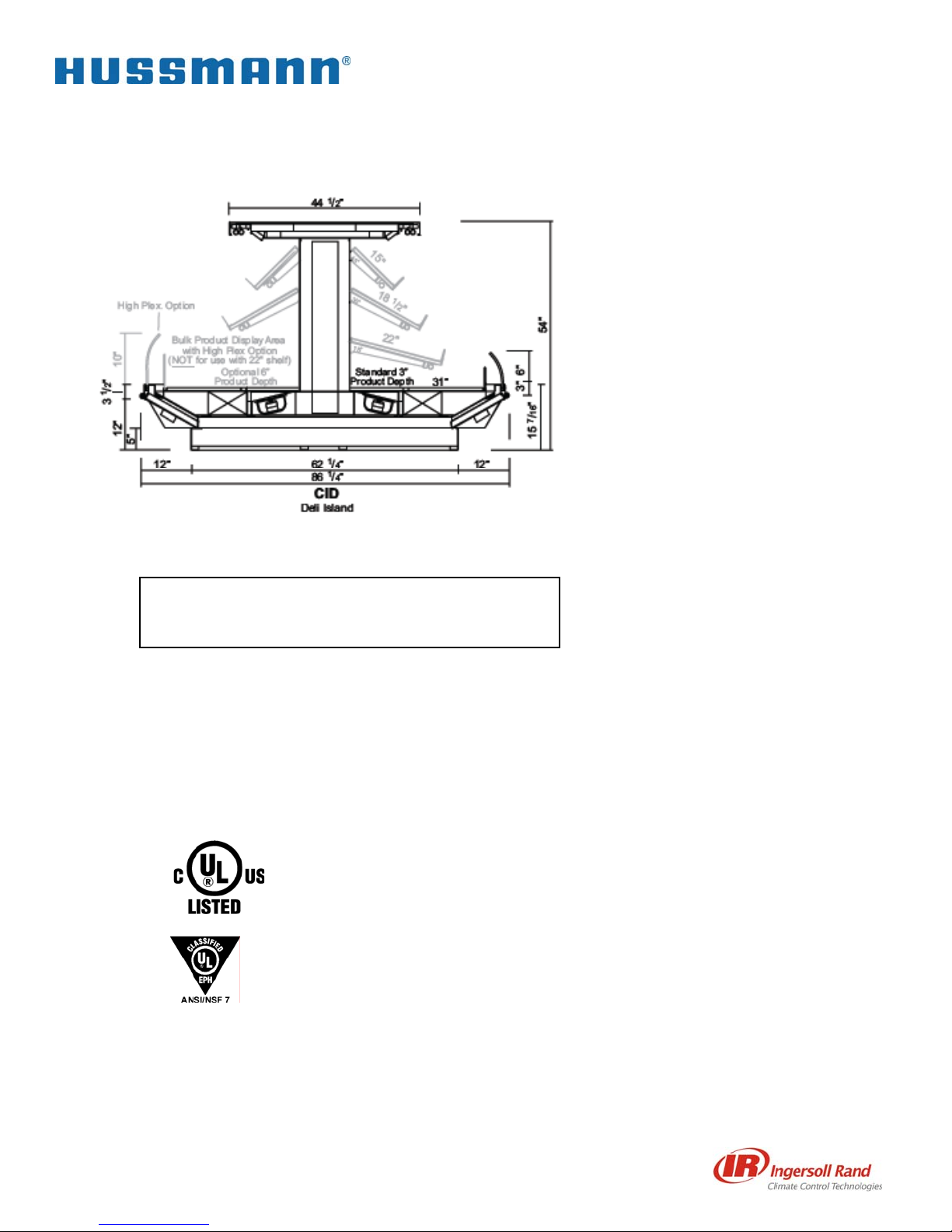

CROSS SECTION

These merchandisers are manufactured to meet ANSI/National Sanitation

Foundation Standard #7 requirements.

We reserve the right to change or revise specifications and

roduct design in connection with any feature of our

roducts. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

CUL Listed

UL Sanitation

2 of 7

CID

Technical Data Sheet

Rev A

ecialt

Products

CID

Engineering

Plan View

3 of 7

CID

Technical Data Sheet

Rev A

ecialt

Products

CID

06/18/01

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

CAP UNUSED

RED LEAD

LIGHT SWITCH

BUNDLE COLOR

ORANGE

~ 115 VAC - 50 / 60 Hz.

BUNDLE COLOR

BROWN

~ 115 VAC - 50 / 60 Hz.

BUNDLE COLOR

BLACK/WHITE

EVAPORATOR FAN

MOTORS (3)

GE - 9 W - ~115 VAC

SUCTION SOLENOID

(OPTIONAL)

T-STAT

(OPTIONAL)

CANOPY LIGHTS

(6) F25T8-SPX30 SHELF LIGHTS

(3) F25T8-SPX30 + (6) F17T8-SPX30 LAMP ARRANGEMENT:

7 4 1 3 6 9

SHELVES

A B C D E F 7 8 9

1 2 3 4 5 6 E F

A B

CANOPY

H:\WIRESCHEMATICS\NEWWIRES

W0300001

CID CASES

5' CROWN - WIRING DIAGRAM

4 of 7

CID

Technical Data Sheet

Rev A

ecialt

Products

CID

06/18/01

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

CAP UNUSED

RED LEAD

LIGHT SWITCH

BUNDLE COLOR

ORANGE

~ 115 VAC - 50 / 60 Hz.

BUNDLE COLOR

BROWN

~ 115 VAC - 50 / 60 Hz.

BUNDLE COLOR

BLACK/WHITE

EVAPORATOR FAN

MOTORS (3)

GE - 9 W - ~115 VAC

SUCTION SOLENOID

(OPTIONAL)

T-STAT

(OPTIONAL)

CANOPY LIGHTS

(2) F25T8-SPX30 + (4) F32T8-SPX30 SHELF LIGHTS

(2) F32T8-SPX30 + (5) F25T8-SPX30 + (2) F17T8-SPX30 LAMP ARRANGEMENT:

7 4 1 3 6 9

SHELVES

E F

A B

CANOPY

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

A B E F

C D

7 9

8 1 2 3 6

2 5

H:\WIRESCHEMATICS\NEWWIRES

W0300002

CID CASES

6' CROWN - WIRING DIAGRAM

5 of 7

CID

Technical Data Sheet

Rev A

ecialt

Products

CID

06/18/01

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

LIGHT SWITCH

BUNDLE COLOR

ORANGE

~ 115 VAC - 50 / 60 Hz. ~ 115 VAC - 50 / 60 Hz.

BUNDLE COLOR

BROWN

~ 115 VAC - 50 / 60 Hz.

BUNDLE COLOR

BLACK/WHITE

EVAPORATOR FAN

MOTORS (2)

GE - 9 W - ~115 VAC

SUCTION SOLENOID

(OPTIONAL)

T-STAT

(OPTIONAL)

CANOPY LIGHTS

(4) F32T8-SPX30 SHELF LIGHTS

(6) F32T8-SPX30 LAMP ARRANGEMENT:

A B C D 1 2 3 4 5 6

C DA B

CANOPY

4 5 6

1 2 3

SHELVES

BALLAST 125-01-3266

FULHAM LH3-120-L

H:\WIRESCHEMATICS\NEWWIRES

W0300003

CID CASES

4' CENTER - DOUBLE SIDE MODULE - WIRING

6 of 7

CID

Technical Data Sheet

Rev A

ecialt

Products

CID

06/18/01

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

LIGHT SWITCH

BUNDLE COLOR

ORANGE

~ 115 VAC - 50 / 60 Hz. ~ 115 VAC - 50 / 60 Hz.

BUNDLE COLOR

BROWN

~ 115 VAC - 50 / 60 Hz.

BUNDLE COLOR

BLACK/WHITE

EVAPORATORFAN

MOTOR (1)

GE - 9 W - ~115 VAC

SUCTION SOLENOID

(OPTIONAL)

T-STAT

(OPTIONAL)

CANOPY LIGHTS

(2) F32T8-SPX30 SHELF LIGHTS

(3) F32T8-SPX30 LAMP ARRANGEMENT:

A B

BALLAST 125-01-3266

FULHAM LH3-120-L

A B

CANOPY

1 2 3

SHELVES

CAP UNUSED

RED LEAD

1 2 3

H:\WIRESCHEMATICS\NEWWIRES

W0300004

CID CASES

4' CENTER - SINGLE SIDE MODULE - WIRING

7 of 7

CID

Technical Data Sheet

Rev A

ecialt

Products

CID

06/18/01

LIGHT SWITCH

BUNDLE COLOR

ORANGE

~ 115 VAC - 50 /60 Hz.

BUNDLE COLOR

BROWN

~ 115 VAC - 50 / 60 Hz.

BUNDLE COLOR

BLACK/WHITE

EVAPORATOR FAN

MOTORS (3)

GE - 9 W - ~115 VAC

SUCTION SOLENOID

(OPTIONAL)

T-STAT

(OPTIONAL)

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

BALLAST 125-01-3266

FULHAM LH3-120-L

CAP UNUSED

RED LEAD

CANOPY LIGHTS

(2) F25T8-SPX30

SHELF LIGHTS

TOP

MIDDLE

BOTTOM SHELF LIGHTS:

(1) FP21T5/830

(1) FP28T5/830

(1) FP35T5/830

H:\WIRESCHEMATICS\NEWWIRING

W0300005CID CASES

CID - DELI END CAP - WIRING DIAGRAM
