Hussmann IMPACT M5NGE Manual de usuario

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P/N 0404844A

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 9W Fan Assembly 1

0047000 Fan Motor, Evaporator

0315470 Fan Blade

embossing toward motor

B. 0411744 Standard Non-adjustable 2

Thermostat

C. 0137880 Optional Adjustable 3

Refrigeration Thermostat

Note: Changed items have been underlined.

Merchandisers

M5NGE

Data Sheet Set

P/N 0404844A

NSF®Certified

August 2004

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0428648 Ballast, Electronic

2 lamps 4

D. 0428649 Ballast Electronic

3 lamps 4

E. Fluorescent Lamp 5

Replace with like fixtures

8 Ft 12 ft

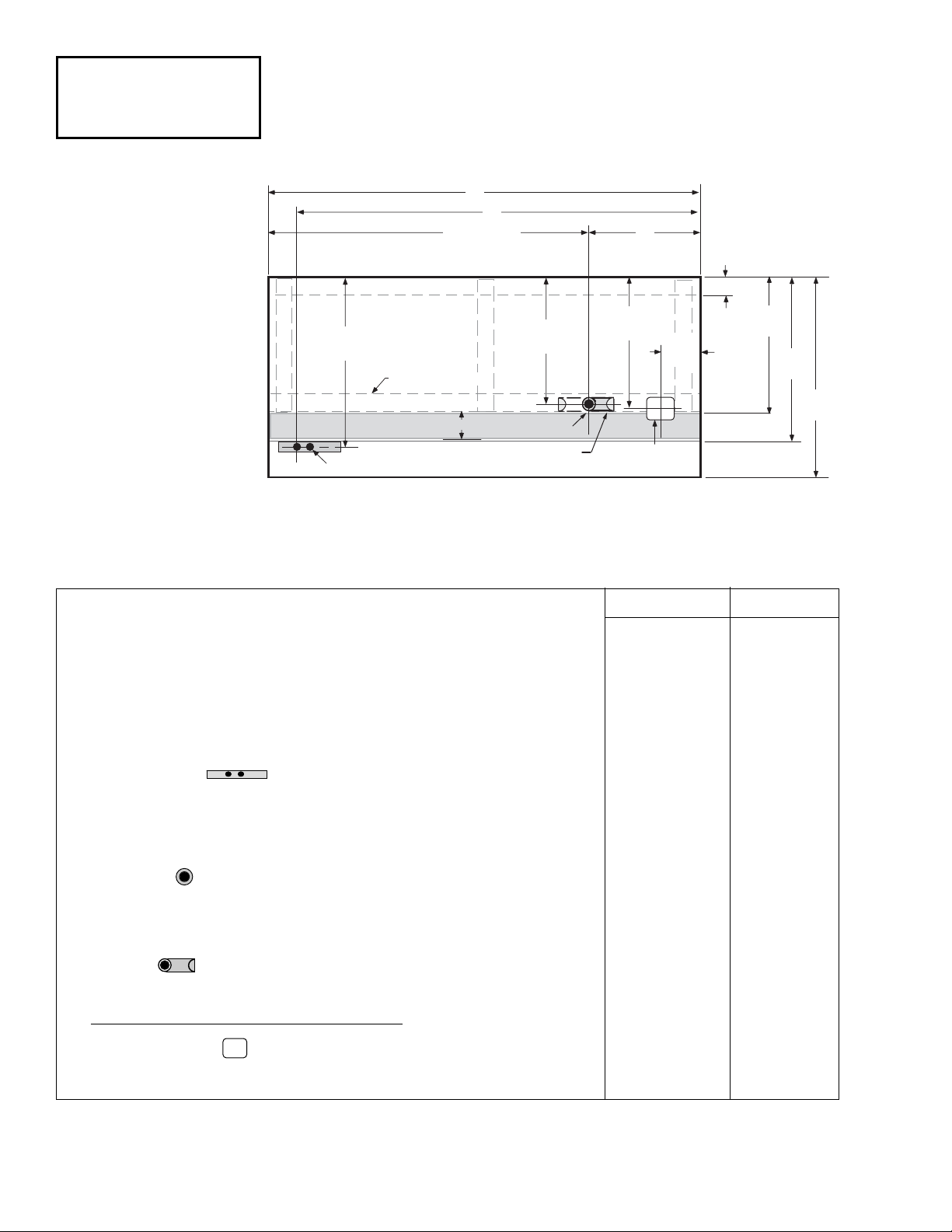

General

(A) Length of Case (without ends or partitions) 96 3/8(2448) 144 1/2(3670)

Maximum outside dimensions of case back to front (includes bumper) 40 1/2(1030) 40 1/2(1030)

Back of case to front of splashguard 33 1/2 (851) 33 1/2 (851)

Back of case to outside edge of rear skidrail 4 3/8 (111) 4 3/8 (111)

Back of case to outside edge of front skidrail 29 1/2 (749) 29 1/2 (749)

Width of skidrail 4 1/2 (114) 4 1/2 (114)

Stub-up area between front skidrail and splashguard 4 (102) 4 (102)

Electrical Service

(B) Right end of case to center of farthest knockout 88 3/8 (2245) 136 1/2 (3467)

Back outside of case to center of knockout 31 (787) 31 (787)

Length of electrical raceway 34 1/2 (878) 34 1/2 (878)

*Note: Electrical Field Wiring Connection Point

Waste Outlet

Left end of case to center of waste outlet 72 1/4 (1835) 72 1/4 (1835)

Back outside of case to center of waste outlet 27 (686) 27 (686)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102)

Outside diameter of drip pipe 1 1/2 (38) 1 1/2 (38)

*Note: Water seal outlet must clear front skid rail.

Refrigeration Outlet

Right end of case to center of refrigeration outlet 9 (230) 9 (230)

Back outside of case to center of refrigeration outlet 27 1/2 (699) 27 1/2 (699)

2 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. M5NGE Data Sheet

4(102)

(230)

27 1/2

(699)

(686)

Skid/ External Base

72 1/4 (1835)

43/8 (111)

Refrigeration

Outlet

Waste Outlet

Water Seal

Electrical

(787)

Access Area

40 1/2

(1030)

Front

(See Note*)

29 1/2

(749)

33 1/2

(851)

Dimensions shown as inches and (mm).

Engineering

Plan View

Narrow

Meat and Delicatessen

09-2003

P/N 0404844A 3 of 6

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

5 5/8 (142)

FAN

M5NGE 38

(966)

(762)

7 1/2

(190)

53 5/8

(1363)

24 1/4

(617)

(406)

(356)

42 1/4

(1074)

18 1/8

(461)

9 1/4

(234)

4 3/8

(111)

27 (686)

27 1/2 (699)

29 1/2 (748)

33 7/8 (861)

40 5/8 (1031)

77 7/8

(1978)

Refrigeration Outlet

18 1/8

(461)

REFRIGERATION DATA

Note: This data is based on store

temperature and humidity that does not

exceed 75°F and 55% R.H.

M5NE

Discharge Air °F 29

Evaporator °F 21

Unit Sizing °F 19

Btu/hr/ft** M5NE

Parallel 1470

Conventional 1575

**For all refrigeration equipment other than

Husssmann, use conventional BTU values.

DEFROST DATA

M5NE

Frequency (hr) 6

Defrost Water (lb/ft/day) 9

(±15% based on case configuration and

product loading.

OFFTIME M5NE

Temp Term °F 48°F

Failsafe Minutes 30

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F – open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO** 14/4°F

Indoor Unit Only, Pressure Defrost

Termination** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

M5NE

Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lbs)***

M5NE

8 ft 2.7

12 ft 3.9

***This is an average for all refrigerant

types actual refrigerant charge may vary

by approximately half a pound.

Length (in.) Added to Lineup

by Each End or Insulated

Partition 1 1/2

Impact M5NGE

Narrow

Meat and Delicatessen

Multi-deck, 5 Display Levels and Front Glass

Dimensions shown as inches and (mm).

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

4 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. M5NGE Data Sheet

Impact M5NGE

Narrow

Meat and Delicatessen

Electrical Data

8 Ft 12 Ft

Number of Fans — 9W 2 3

Amperes Watts

Merchandiser 8 Ft 12 Ft 8 Ft 12 Ft

Fans

Standard (120V 60Hz) 1.40 2.10 110 165

Energy Efficient (120V 60Hz) 0.76 1.14 50 75

Export (230V 50Hz) 0.76 1.14 114 171

Constant on Anti-sweat Heaters NA

Cycling Anti-sweat Heaters NA

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 1.60 2.30

Export (230V 50Hz) 0.96 1.34

With Energy Efficient Fans (120V 60Hz) 0.96 1.34

Maximum Over Current Protection 120V 20 20

Maximum Over Current Protection 230V 15 15

Supplemental Gas Heaters NA

208V 1ΦΦElectric Defrost NA

Standard Lighting

1 Row Canopy 0.51 0.77 59 85

Optional Lighting

1 Row Canopy and 1 Rail 1.02 1.54 118 170

2 Rows Canopy 1.02 1.54 118 170

2 Rows Canopy and 1 Row Rail 1.53 2.31 177 255

Optional Shelf Lighting

1 Row of Shelves 0.51 0.77 59 85

2 Rows of Shelves 1.02 1.54 118 170

3 Rows of Shelves 1.53 2.31 177 255

P/N 0404844A 5 of 6

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

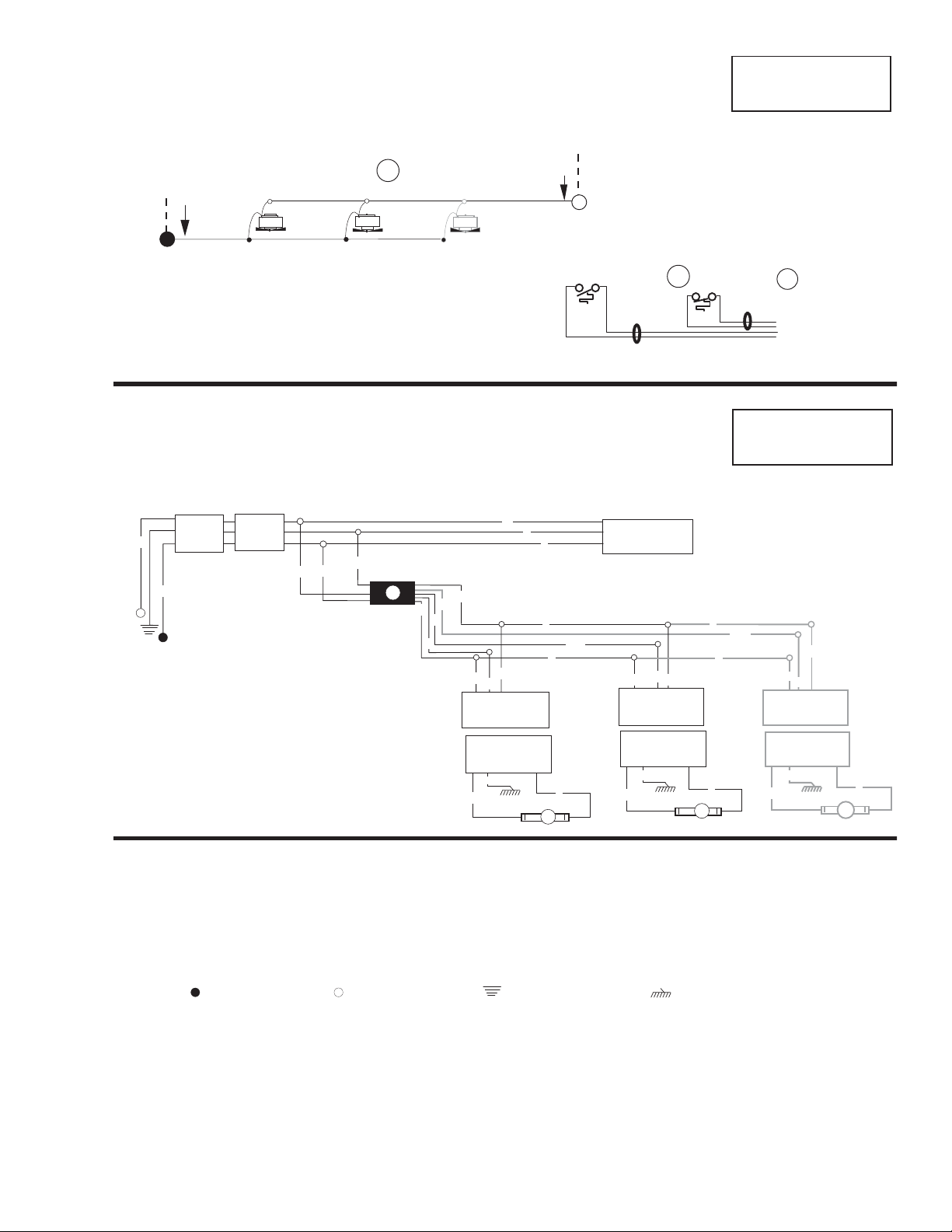

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Fan Wiring

Offtime Defrost

2 & 3 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

= Case GROUND

Connector

Connector Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Shelf Lighting

G G

Connector

M5NGE Data Sheet

6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

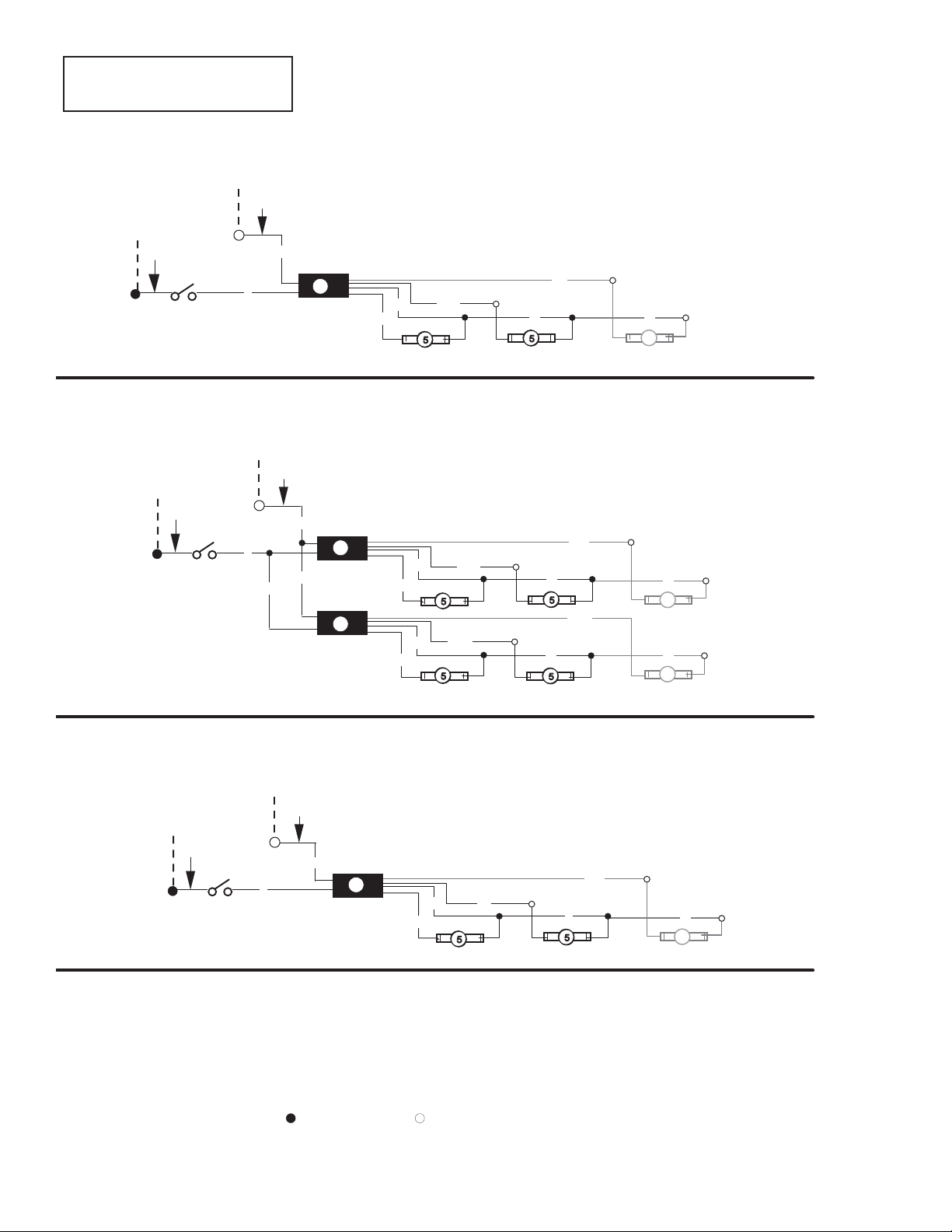

Standard Lighting 1 Row Canopy

Light Circuits

Optional Lighting 2 Row Canopy

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

= 120V POWER = 120V NEUTRAL

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Optional Lighting 1 Row Rail

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND
