Hussmann IMPACT M1DE Manual de usuario

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. P/N 0457109

Merchandisers

M1DE

Data Sheet Set

P/N 0457109

NSF®Certified

November, 2003

Item Part # Description Wiring Item #

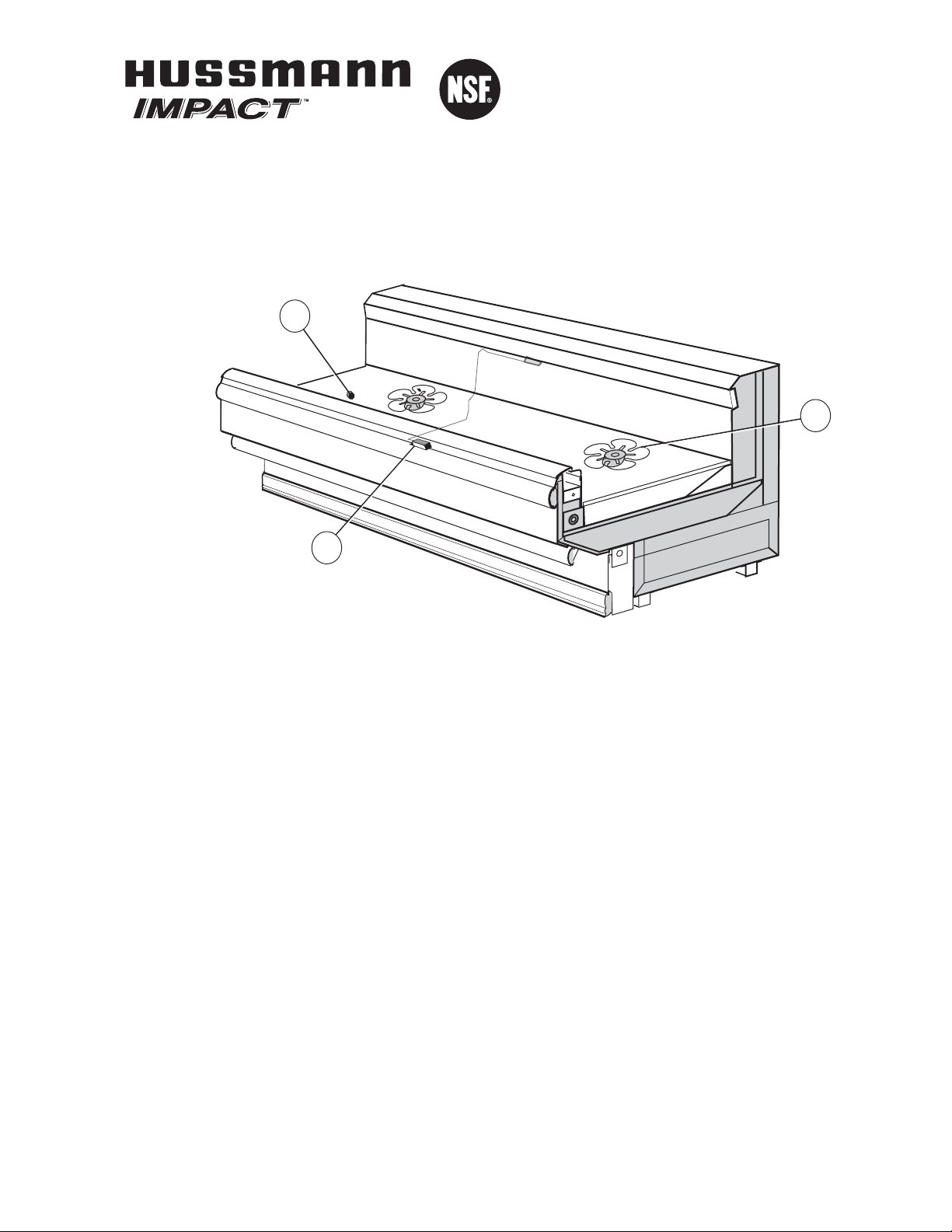

FAN ASSEMBLIES, AND THERMOSTATS

A. 6W Fan Assembly (1)

0058698 Fan Motor, Evaporator

0382383 Fan Blade

embossing toward motor

B. 0382028 Standard Non-adjustable (2)

Thermostat

C. 0137880 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

None

2 of 4 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. M1DE Data Sheet

Electrical Refrigeration

4 1/8(105)

D5 1/2(140)

1 3/8(35)

4 1/2(114)

29 1/2

(749)

35 1/8

(891)

46 1/4

(1174)

(230)

30 5/8

(778)

27 1/2

(699)

40 5/8

(1032)

4 (102)

Water Seal

(See Note*)

Waste Outlet

4(102)

40 5/8

(1032)

30 1/2

(775)

Front

Dimensions shown as inches and (mm).

8 Ft 12 ft

General

(A) Length of Case (without ends or partitions) 96 3/8(2448) 144 1/2(3670)

Maximum outside dimensions of case back to front (includes bumper) 46 1/4(1174) 46 1/4(1174)

Back of case to front of splashguard 35 1/8 (891) 35 1/8 (891)

Back of case to outside edge of front skidrail 29 1/2 (749) 29 1/2 (749)

Width of skidrail 4 1/2 (114) 4 1/2 (114)

Right end of case to inside edge of external support 5 1/2 (140) 5 1/2 (140)

Distance between inside edges of external support and center support 40 5/8 (1032) 40 5/8 (1032)

Distance between inside edges of center supports NA 44 (1118)

Width of external support 4 1/8(105) 4 1/8(105)

Stub-up area between front skidrail and splashguard 4 (102) 4 (102)

Electrical Service (Electrical Field Wiring connection point)

(B) Right end of case to center of farthest knockout 88 3/8 (2245) 136 1/2 (3467)

Back outside of case to center of knockout 30 1/2 (775) 30 1/2 (775)

Length of electrical raceway 34 1/2(878) 34 1/2(878)

Waste Outlet

(D) Right end of case to center of waste outlet 24 1/8 (613) 72 1/4 (1835)

Back outside of case to center of waste outlet 27 1/2 (699) 27 1/2 (699)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102)

Outside diameter of drip pipe 1 1/2 (38) 1 1/2 (38)

*Note: Water seal outlet must clear front skid rail.

Refrigeration Outlet

Right end of case to center of refrigeration outlet 9 (230) 9 (230)

Back outside of case to center of refrigeration outlet 30 5/8 (778) 30 5/8 (778)

Engineering

Plan Views

Meat and Produce

11-2003

3 of 4

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

P/N 0457109

30 3/8

(772)

46 5/8 (1183)

35 1/4 (896)

38 1/2

(978)

25 1/2

(648)

FAN

4 1/2 (114)

27 1/2 (699)

29 1/2 (749)

(102)

M1DE

13 3/8

(340)

30 3/8

(773)

9 5/8

(245)

REFRIGERATION DATA

Note: This data is based on store tempera-

ture and humidity that does not exceed

75°F and 55% R.H. M1DE

Discharge Air °F 27

Evaporator °F 18

Unit Sizing °F 16

Btu/hr/ft** M1DE

Parallel 495

Conventional 530

**For all refrigeration equipment other than

Hussmann, use conventional BTU values.

DEFROST DATA M1DE

Frequency (hr) 6

Defrost Water (lb/ft/day) 2

(±15% based on case configuration and

product loading.)

OFFTIME M1DE

Temp Term °F 43°F

Failsafe Minutes 35

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 43°F — open 33°F

CONVENTIONALCONTROLS

Low Pressure Backup Control M1DE

CI/CO** 14/8°F

Indoor Unit Only, Pressure Defrost

Termination** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 5/8

Estimated Charge (lbs)*** M1DE

8 ft 1.7

12 ft 2.3

***This is an average for all refrigerant

types actual refrigerant charge may vary by

approximately half a pound.

Length (in.) Added to Lineup by Each

End or Insulated Partition 1 1/2

Impact M1DE

Meat/Delicatessen

Precut & Packaged Produce

Single Deck, 1 Display Level

Dimensions shown as inches and (mm).

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

4 of 4 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. M1DE Data Sheet

Impact M1DE

Meat/Delicatessen

Precut & Packaged Produce

Electrical Data 8 ft 12 ft

Number of Fans — 6W 2 3

Amperes Watts

8 ft 12 ft 8 ft 12 ft

Merchandiser

Fans

Standard (120V 60Hz) 1.00 1.50 78 117

Export (230V 50Hz) 0.56 0.84 88 132

Energy Efficient (120V 60Hz) 0.52 0.78 36 54

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 1.20 1.70

Export (230V 50Hz) 0.76 1.04

With Energy Efficient Fans (120V 60Hz) 0.72 0.98

Maximum Over Current Protection 120V 20 20

Maximum Over Current Protection 230V 15 15

Supplemental Gas Heaters NA

208V 1ΦΦElectric Defrost NA

Standard Lighting Optional Lighting Optional Shelf Lighting

None None None

Defrost

Termination

Thermostat 2

Condensing

Unit

}

Dark Blue

= 120V POWER = 120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS GRAYED COMPONENTS IN 12FOOT MODELS ONLY.

Fan Wiring

Offtime Defrost 2 & 3 Fans

120V NEUTRAL

BROWN BAND

120V POWER Fans 1

BROWN BAND

Light Blue

Refrigeration

Thermostat
