Hussmann P1X50-EP Manual de instrucciones

P/N 0499799_B

P1X50-EP

Technical Data Sheet

P/N 0499799_B

NSF®Certified

March 2008

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

Item Part # Description Wiring Item #

FAN ASSEMBLIES

4 Ft, 8 Ft & 12 Ft

A. 4W Standard Fan Assembly (1)

0392457 Fan Motor, Evaporator

(MO.4410101)

0464847 Fan Blade (FB.4780649)

4W Energy Efficient Fan Assembly (1)

0477653 Fan Motor, Evaporator

(MO.4410544)

0464847 Fan Blade (FB.4780649)

6 Ft Only

A. 4W Standard Fan Assembly (1)

0392457 Fan Motor, Evaporator

(MO.4410101)

0252116 Fan Blade (FB.4780611)

4W Energy Efficient Fan Assembly (1)

0477653 Fan Motor, Evaporator

(MO.4410544)

0252116 Fan Blade (FB.4780611)

Item Part # Description Wiring Item #

THERMOSTATS

B. Optional Adjustable

Refrigeration Thermostat (2)

LAMPS AND BALLASTS

None

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

This display refrigerator is not for the

display of potentially hazardous foods.

Note: Revision B adds capacity and weight (Page 5).

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

2 of 5 P1X50-EP Technical Data Sheet

Engineering

Plan Views

Dimensions shown as in. and (mm).

Bulk Produce

09-2005

NOTE: Case-to-Case Electrical Connections

are made IN FRONT OF SPLASHGUARD.

4 3/4 (120)

Splashguard

31 5/8

(804)

(1064)

41 1/2

(1054)

3 In.

(77 mm)

Required

Air Gap

Refrigeration

Outlet

Electrical

Stub Up Area

6 x 6

(152x152) Waste Outlet

Waste Outlet

FRONT

26 1/4

(665)

8(203)

4 1/2 (115)

12 1/8 (307)

41 1/2

(1054)

43 7/8

(1114)

Wireway

4 3/4 (120)

26 1/2

(673)

4 1/4 (108)

(612)

33 1/2

(851)

Electrical

Field

Connection

30 1/4

(768)

P1X50-EP

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front

(includes bumper) 42 (1064) 42 (1064) 42 (1064) 42 (1064)

Back of case to front of splashguard 33 1/2 (851) 33 1/2 (851) 33 1/2 (851) 33 1/2 (851)

Back of case to O/S edge of front leg 30 1/4 (768) 30 1/4 (768) 30 1/4 (768) 30 1/4 (768)

Distance between edges of external legs and center legs NA 29 1/2 (750) 41 1/2 (1054) 41 1/2 (1054)

Distance between edges of center legs NA NA NA 43 7/8 (1114)

Distance between front legs and splashguard 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

Back of case to center of stub up area 24 (612) 24 (612) 24 (612) 24 (612)

Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)

Waste Outlets (One each end)

(D) RH End of case to the center of LH waste outlet 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)

Back O/S of case to center of waste outlets 31 5/8 (804) 31 5/8 (804) 31 5/8 (804) 31 5/8 (804)

Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

Back of case to center of refrigeration outlet 26 1/4 (665) 26 1/4 (665) 26 1/4 (665) 26 1/4 (665)

RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203)

Wireway

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 5/8

3 of 5P/N 0499799_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

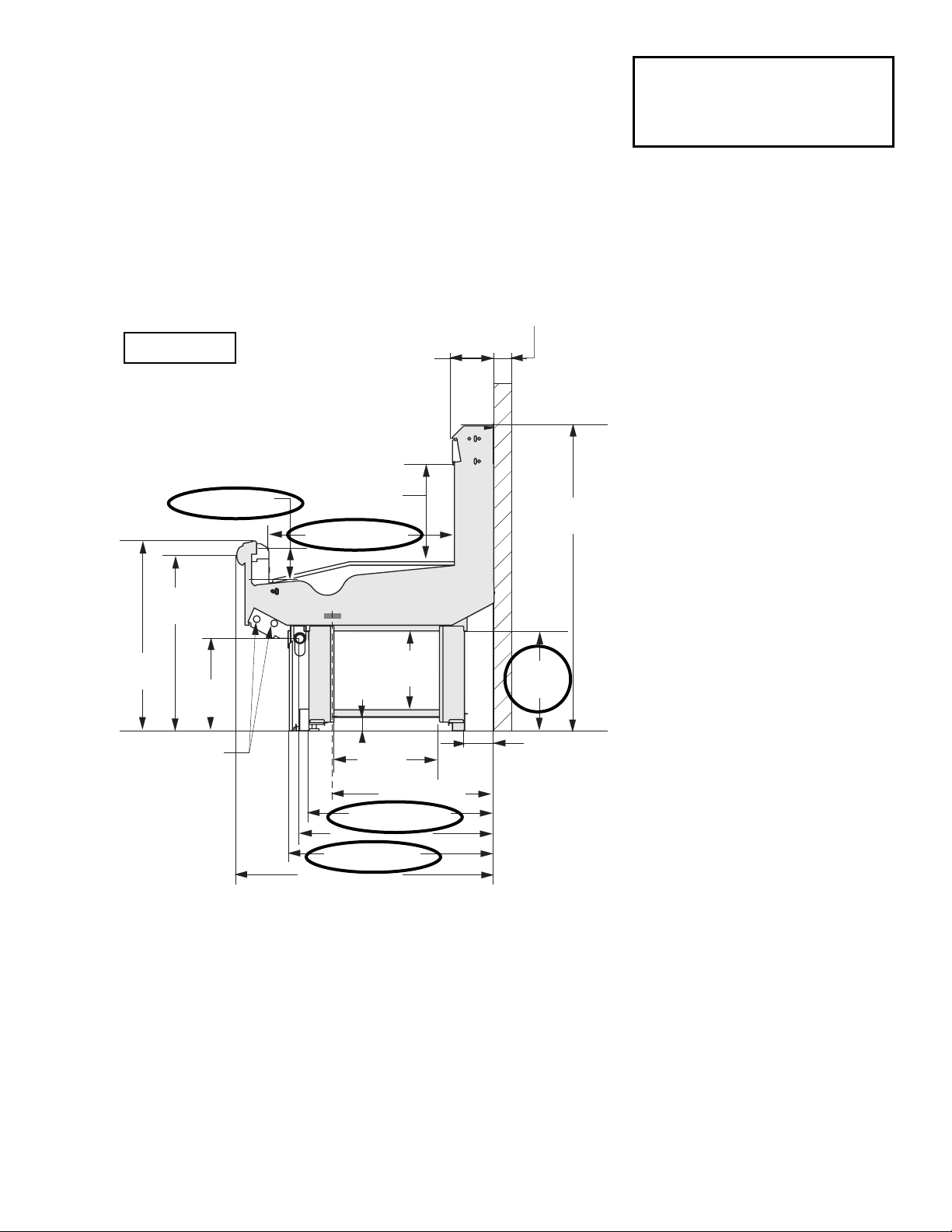

49 3/4

(1264)

31 5/8 (804)

4 3/4

(120)

30 1/4 (768)

42 (1064)

33 1/2 (851)

26 1/4 (665)

Electrical

Case to Case

Connections

FAN

3 In. (77 mm)

Required

Air Gap

Refrigeration

Outlet

28 5/8

(727)

(787) 15

(381)

17 1/8

(436)

16 1/4

(413)

6 7/8

(175)

16 3/8

(416)

30 1/4 (768)

2 1/8

(54)

12 7/8

(327)

5 1/8 (130)

Dimensions shown as inches and (mm).

Single Deck, 1 Display Level

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

*As a Bulk Produce display refrigerator, it is not designed for

critical temperature requirements. The merchandiser is labeled:

“This display refrigerator is not for the display of potentially

hazardous foods”.

Impact

Excel

P1X50-EP

Bulk Produce*

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

P1X50-EP

Discharge Air (°F) 31

Evaporator (°F) 28

Unit Sizing (°F) 26

Btu/hr/ft P1X50-EP

Parallel 559

Conventional 594

DEFROST DATA

P1X50-EP

Frequency (hr) 8

Defrost Water (lb/ft/day) 4

(± 15% based on case configuration and

product loading).

OFFTIME P1X50-EP

Time (minutes) 35

ELECTRIC OR GAS Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

P1X50-EP

CI/CO** 21°F / 11°F

Indoor Unit Only, Pressure Defrost

Termination** 48°F

**Use a Temperature Pressure Chart to

determine PSIG conversions.

Estimated Charge (lb)*** P1X50-EP

4 ft 1.0

6 ft 1.4

8 ft 2.0

12 ft 2.6

***This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

P1X50-EP

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans—4W 1 2 2 3

Amperes Watts

4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 0.31 0.62 0.62 0.93 24 48 48 72

120V 50Hz Standard 0.38 0.76 0.76 1.14 27 54 54 81

230V 60Hz Export 0.15 0.30 0.30 0.45 24 48 48 72

230V 50Hz Export 0.18 0.36 0.36 0.54 27 54 54 81

120V 60Hz Energy Efficient 0.12 0.24 0.24 0.36 8 16 16 24

230V 60Hz Energy Efficient 0.06 0.12 0.12 0.18 8 16 16 24

Minimum Circuit Ampacity

120V 60Hz Standard 0.51 0.82 0.82 1.13

120V 50Hz Standard 0.58 0.96 0.96 1.34

230V 60Hz Export 0.35 0.50 0.50 0.65

230V 50Hz Export 0.38 0.56 0.56 0.74

120V 60Hz Energy Efficient 0.32 0.44 0.44 0.56

230V 60Hz Energy Efficient 0.26 0.32 0.32 0.38

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

P1X50-EP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

4 of 5

Impact

Excel

P1X50-EP

Bulk Produce

5 of 5P/N 0499799_B HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Excel

P1X50-EP

Bulk Produce

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 12 ft (each)

lb (kg) 500 (227) 700 (318) 900 (408) 1000 (454) 50 (23)

5Actual weights will vary according to optional kits included.

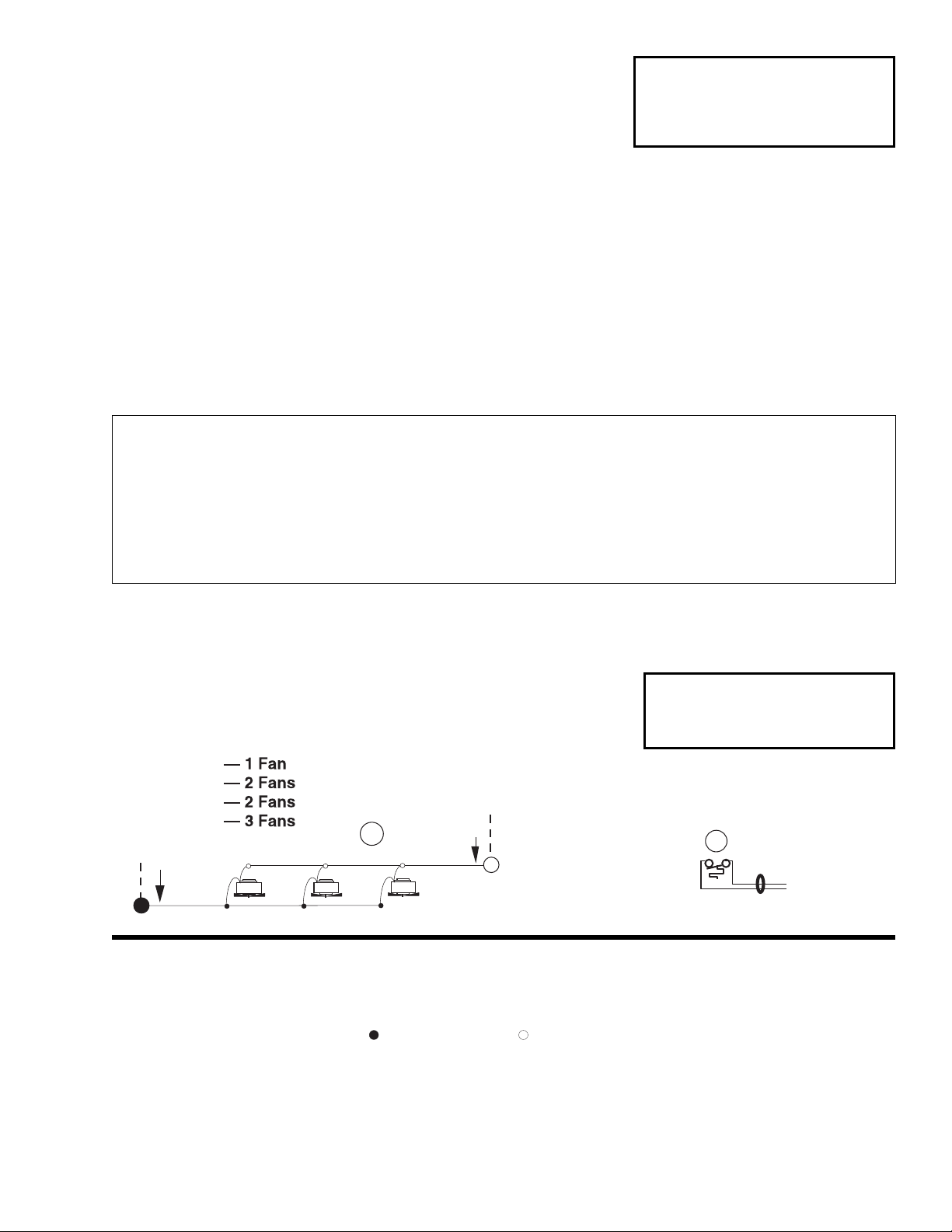

Condensing

Unit

}

Light

Blue

Refrigeration

Thermostat

= 120V POWER = 120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS GRAYED COMPONENTS IN 12 FOOT MODELS ONLY.

120V

NEUTRAL

120V

POWER Fans 1

BROWN BAND

4 ft

6 ft

8 ft

12 ft

Fan Wiring

Offtime Defrost

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 2.08 ft3/ft (0.19 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 1.75 ft3 /ft (0.16 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 2.80 ft2/ft (0.85 m2 /m)

Shelf Area 4(Sq Ft/Ft) 2.53 ft2/ft (0.77 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann

Product Reference Guide. The standard shelf complement for this model is NONE.
