Hussmann Impact C5-LE Manual de instrucciones

P/N 0407832C

Merchandisers

C5-LE

Technical Data Sheet

P/N 0407832C

NSF®Certified

September 2006

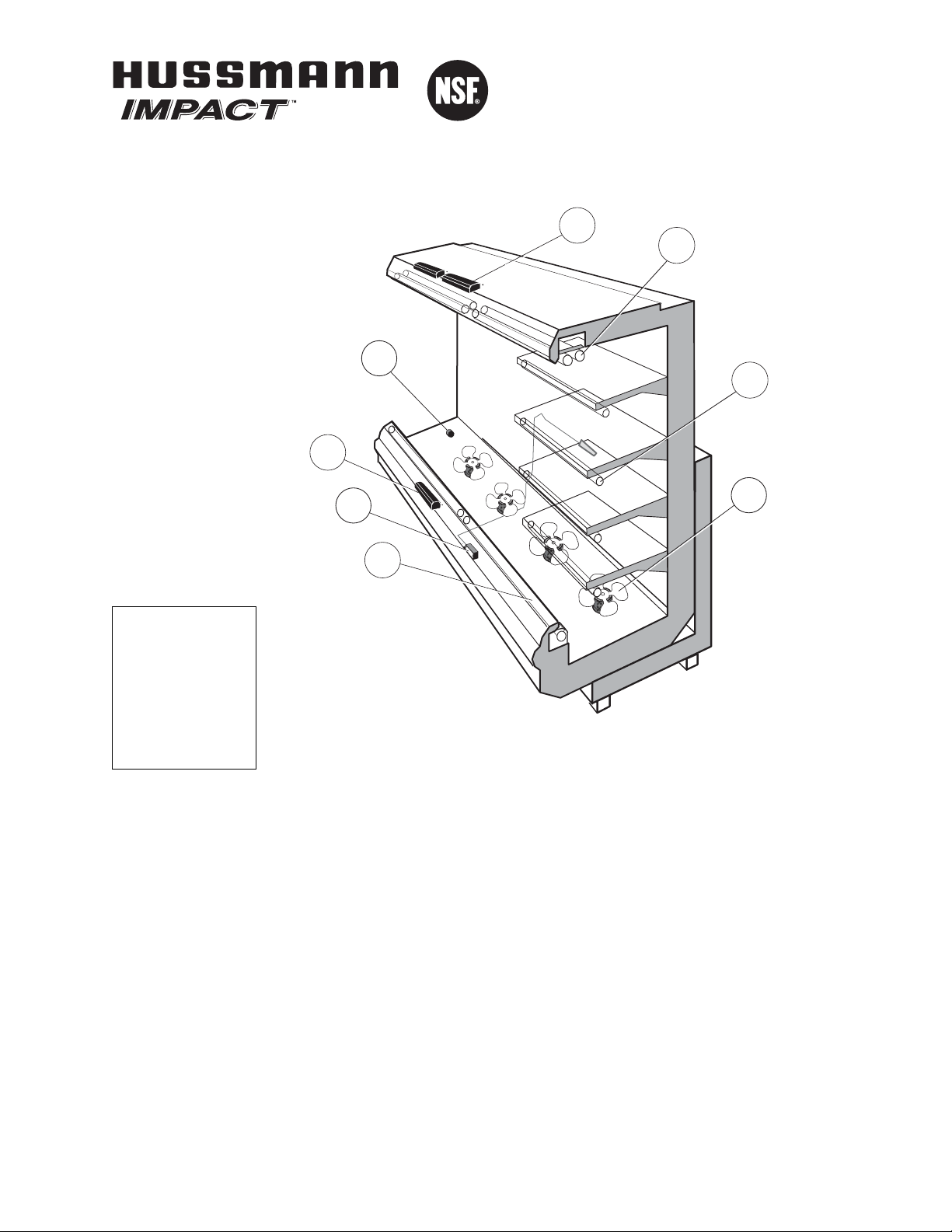

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 9W Fan Assembly (1)

0047000 Fan Motor, Evaporator

0380485 Fan Blade

embossing toward motor

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

C. 0137880 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0428648 Ballast, Electronic

2 lamps (4)

D. 0428649 Ballast, Electronic

3 lamps (4)

E. Fluorescent Lamp (5)

Replace with like fixtures

We reserve the right to change

or revise specifications and

product design in connection

with any feature of our

products. Such changes

do not entitle the buyer to

corresponding changes,

improvements, additions or

replacements for equipment

previously sold or shipped.

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Revision C corrects the cross section on Page 3.

2 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. C5-LE Technical Data Sheet

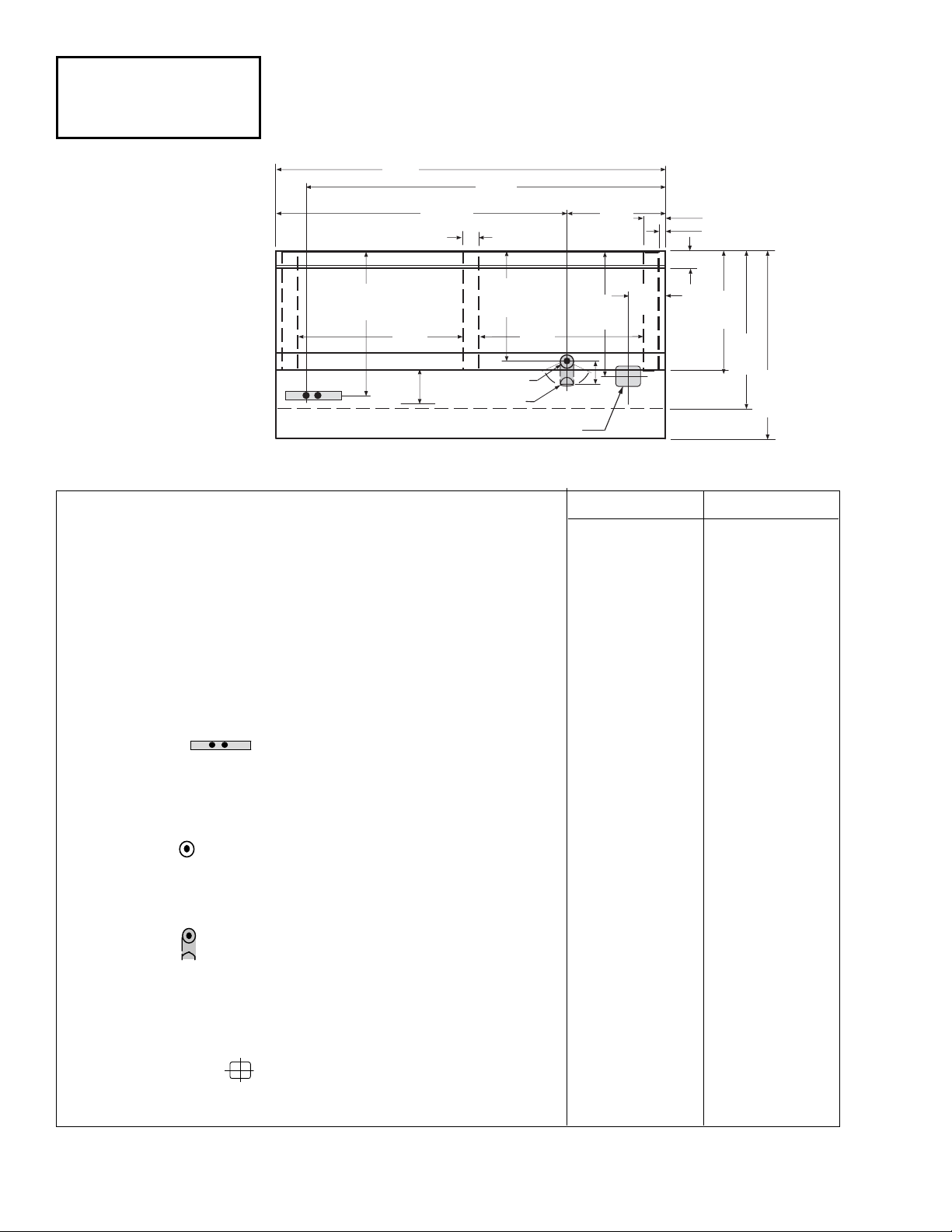

Dimensions shown as inches and (mm).

Engineering

Plan View

8 ft 12 ft

General

(A) Case Length (without ends or partitions) 96 3/8(2448) 144 1/2(3670)

Maximum O/S dimension of case back to front (includes bumper) 46 1/4(1174) 46 1/4(1174)

Back of case to front of splashguard 38 5/8 (981) 38 5/8 (981)

Back of case to O/S edge of front skid rail 29 1/2 (749) 29 1/2 (749)

Width of skid rail 4 1/2 (114) 4 1/2 (114)

RH end of case to outside edge of external support 5 1/2(140) 5 1/2(140)

Distance between edges of external support and center support 40 5/8 (1032) 40 5/8 (1032)

Distance between edges of center supports NA 44 (1118)

Stub-up area between front skid rail and splashguard 7 (178) 7 (178)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of farthest knockout 88 3/8 (2245) 136 1/2 (3467)

Back of case to center of knockout 35 3/8 (899) 35 3/8 (899)

Length of electrical raceway 34 5/8 (878) 34 5/8 (878)

Waste Outlet

LH End of case to the center of waste outlet 72 1/4 (1835) 72 1/4 (1835)

Back O/S of case to center of waste outlet 27 1/2 (699) 27 1/2 (699)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38)

NOTE: Water seal outlet must clear front skid rail;

water seal rotation in forward direction only due to low base.

Refrigeration Outlet

Back of case to center of refrigeration outlet 30 5/8 (778) 30 5/8 (778)

(D) RH end of case to center of refrigeration outlet 9 (230) 9 (230)

01-2004

51/2(140)

13/8(35)

4 1/4(108)

27 1/2

(699) 30 5/8

(778)

46 1/4

(1174)

38 5/8

(981)

29 1/2

(749)

41/2(114)

7 (178) 4 (102)

Waste Outlet

35 3/8

(899)

40 5/8

(1032)

40 5/8

(1032)

Water Seal

(See note) Refrigeration

Outlet

Electrical

Front

72 1/4

(1835)

Convertible

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75 (°F) and

55% R.H.

C5-LE Meat Produce Dairy

Discharge Air (°F) 29 31 31

Evaporator (°F) 21 24 24

Unit Sizing (°F) 19 22 22

Btu/hr/ft C5-LE

Parallel 1795 1730 1670

Conventional 1900 1830 1770

DEFROST DATA C5-LE

Frequency (hr) 6

Defrost Water 10.5 lb/ft/day

(± 15% based on case configuration and

product loading).

OFFTIME C5-LE

Temp Term (°F) 48°

Failsafe (min) 30

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F – open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO (Temp °F)*

C5-LE Meat Produce Dairy

Temp (°F) 14°/ 4° 17°/ 7° 17°/ 7°

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)* 48°

*Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)** C5-LE

8 ft 3.2

12 ft 4.5

**This is an average for all refrigerant types

actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by Each End

or Insulated Partition (in.) 1 1/2

P/N 0407832C 3 of 6

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

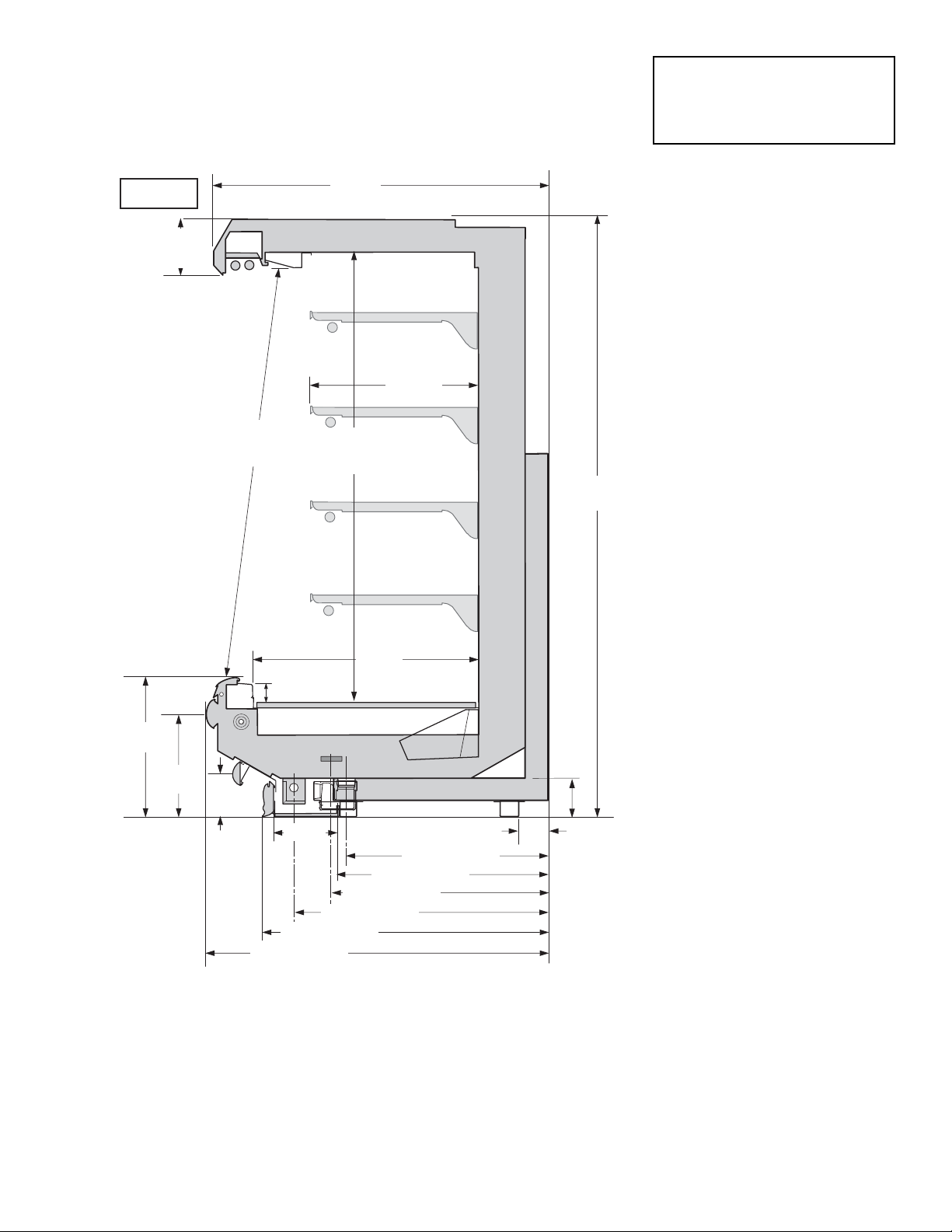

61/8

(155)

C5-LE

FAN

7 1/2

(191)

81 1/4

(2064)

30 1/2

(774)

22 (559)

23/4(70)

(1549)

(483)

14 1/8

(359)

53/4

(146)

4 3/8(111)

27 1/2 (699)

29 1/2 (749)

35 3/8 (899)

30 5/8 (778)

38 5/8 (981)

46 1/4 (1174)

45 1/2

(1156)

Lighted Shelf

(Optional)

56 1/4

(1429)

Refrigeration

Outlet

7(178)

Impact C5-LE

Meat/Delicatessen/Dairy

Precut & Packaged Produce

Multi-deck, 4 Display Levels

Dimensions shown as inches and (mm).

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF®) Standard #7 requirements.

Electrical Data

8 Ft 12 Ft

Number of Fans — 9W 4 6

Amperes Watts

Merchandiser 8 Ft 12 Ft 8 Ft 12 Ft

Fans

Standard (120V 60Hz) 2.80 4.20 210 330

Export (230V 50Hz) 1.52 2.28 228 342

Energy Efficient (120V 60Hz) 1.52 2.28 100 150

Constant on Anti-sweat Heaters NA

Cycling Anti-sweat Heaters NA

Minimum Circuit Ampacity

With Standard Fans (120V 60Hz) 3.00 4.40

Export (230V 50Hz) 1.72 2.48

With Energy Efficient Fans (120V 60Hz) 1.72 2.48

Maximum Over Current Protection 120V 20 20

Maximum Over Current Protection 230V 15 15

Supplemental Gas Heaters NA

208V 1Ph Electric Defrost NA

Standard Lighting

1 Row Canopy 0.51 0.77 59 85

Optional Lighting

1 Row Canopy and 1 Rail 1.02 1.54 118 170

2 Row Canopy 1.02 1.54 118 170

2 Row Canopy and 1 Row Rail 1.53 2.31 177 255

1 Row Ledge Lights 0.51 0.77 59 85

Optional Shelf Lighting

1 Row of Shelves 0.51 0.77 59 85

2 Rows of Shelves 1.02 1.54 118 170

3 Rows of Shelves 1.53 2.31 177 255

4 Rows of Shelves 2.04 3.08 236 340

4 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. C5-LE Technical Data Sheet

Impact C5-LE

Meat/Delicatessen/Dairy

Precut & Packaged Produce

P/N 0407832C HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Fan Wiring

Offtime Defrost

= Case GROUND

Connector

Connector Connector

Optional Shelf Harness and Light Circuits for

One Row of Shelves

120 V

Power

BL G

BL BL G

Shelf Harness

Shelf Light Circuits

BL R

Shelf Lighting

G G

Connector

4 & 6 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

5 of 6

6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. C5-LE Technical Data Sheet

Lighting 1 Row Canopy (Standard on Multi-deck)

Light Circuits

Optional Lighting 2 Row Canopy

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

WBL

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

Grayed components in 12 foot models only.

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Optional Lighting 1 Row Rail

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND
