CIDM

Technical Data Sheet

Rev B

ecialt

Products

CIDM

These merchandisers are manufactured to meet ANSI/National Sanitation

Foundation Standard #7 requirements.

We reserve the right to change or revise specifications and

roduct design in connection with any feature of our

roducts. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75F and 55% R.H.

Discharge Air (F) 26

Evaporator (F) 18

ote: Not recommended to control temp by regulating

coil temp allow t-stat to cycle and control temp.

Center

hr/ft*

Parallel 1500

Conventional 1725

Crown

tu/hr/

Parallel 2450

Conventional 2818

*For all refrigeration equipment other than Hussmann,

use conventional Btu values.

DEFROST DATA

Frequency Hrs 4

OFFTIME

Temp Term °F 54

Failsafe Minutes 25

ELECTRIC or GAS Not Recommended

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 ½*

Merchandiser Liquid Line (in.) 3/8*

Merchandiser Suction Line (in.) 5/8*

Estimated Charge (lb)***

4ft 1.2

5ft 1.5

6ft 1.8

*Dependent on case length and refrigerant type.

*** This is an average for all refrigerants types. Actual

refrigerant charge may vary by approximately half a

ound. GLYCOL REQUIREMENTS

GPM PSI

NA NA

CUL Listed

UL Sanitation

2 of 13

CIDM

Technical Data Sheet

Rev B

ecialt

Products

CIDM

Engineering

CROSS SECTION

3 of 13

CIDM

Technical Data Sheet

Rev B

ecialt

Products

CIDM

Engineering

Plan View

4 of 13

CIDM

Technical Data Sheet

Rev B

ecialt

Products

CIDM

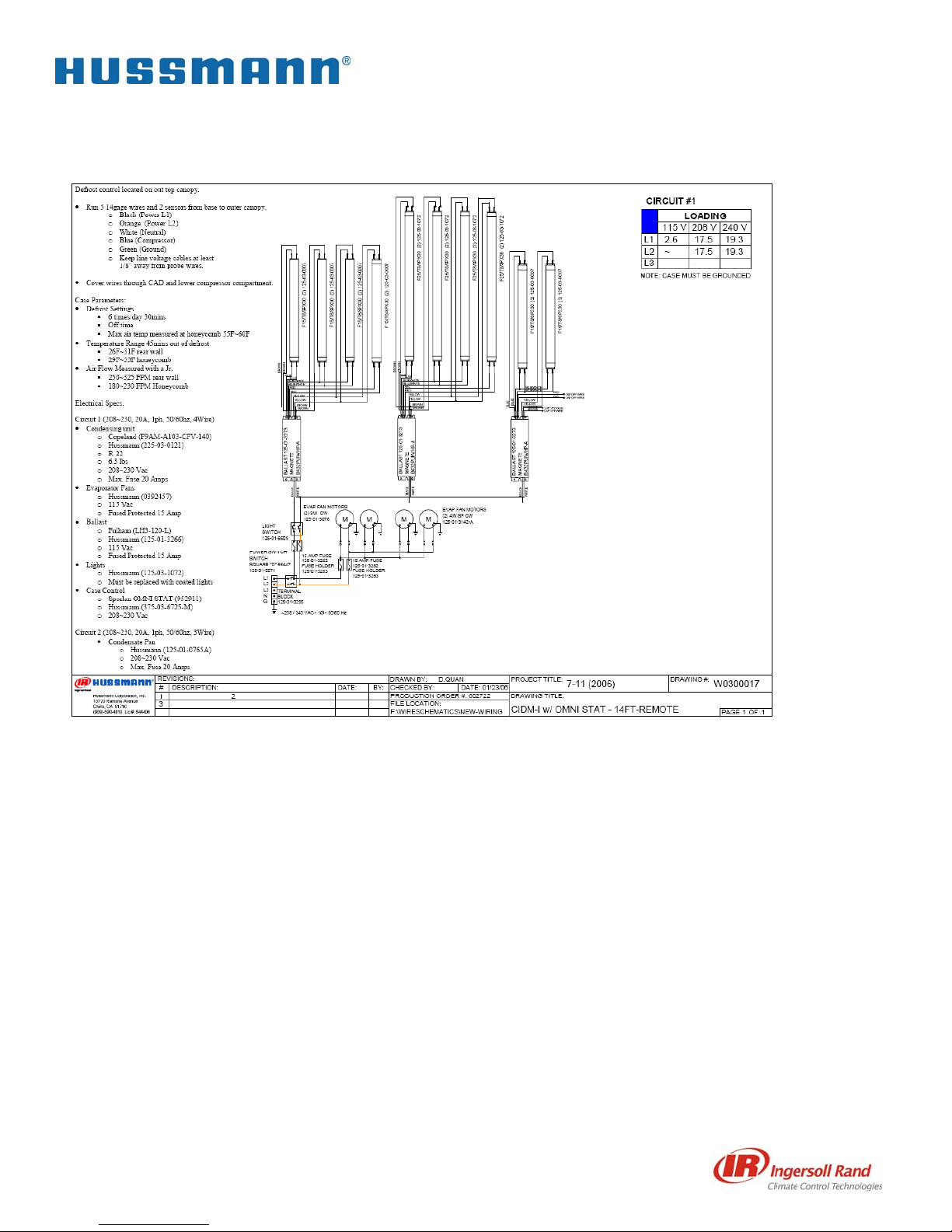

CIDME 4'X3' W0300006

CIDME w OMNISTAT W0300008

CIDMI-3 W0300007

CIDMI-3 w OMNISTAT W0300009

CIDM-I-R 14' W0300017

CIDM-I-SC 14' W0300018

CIDM-I-R Hot Gas 14' W0300019

CIDM-I-R Hot Gas 10' W0300020

CIDM-E-R W0300021

CIDM

CIDM-I-3-R Insert Case 3' W0300022

5 of 13

CIDM

Technical Data Sheet

Rev B

ecialt

Products

CIDM

6 of 13

CIDM

Technical Data Sheet

Rev B

ecialt

Products

CIDM

7 of 13

CIDM

Technical Data Sheet

Rev B

ecialt

Products

CIDM

8 of 13

CIDM

Technical Data Sheet

Rev B

ecialt

Products

CIDM

9 of 13

CIDM

Technical Data Sheet

Rev B

ecialt

Products

CIDM

10 of 13

CIDM

Technical Data Sheet

Rev B

ecialt

Products

CIDM
