C3X-LGE

Technical Data Sheet

P/N 0477979_C

NSF®Certified

March 2008

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

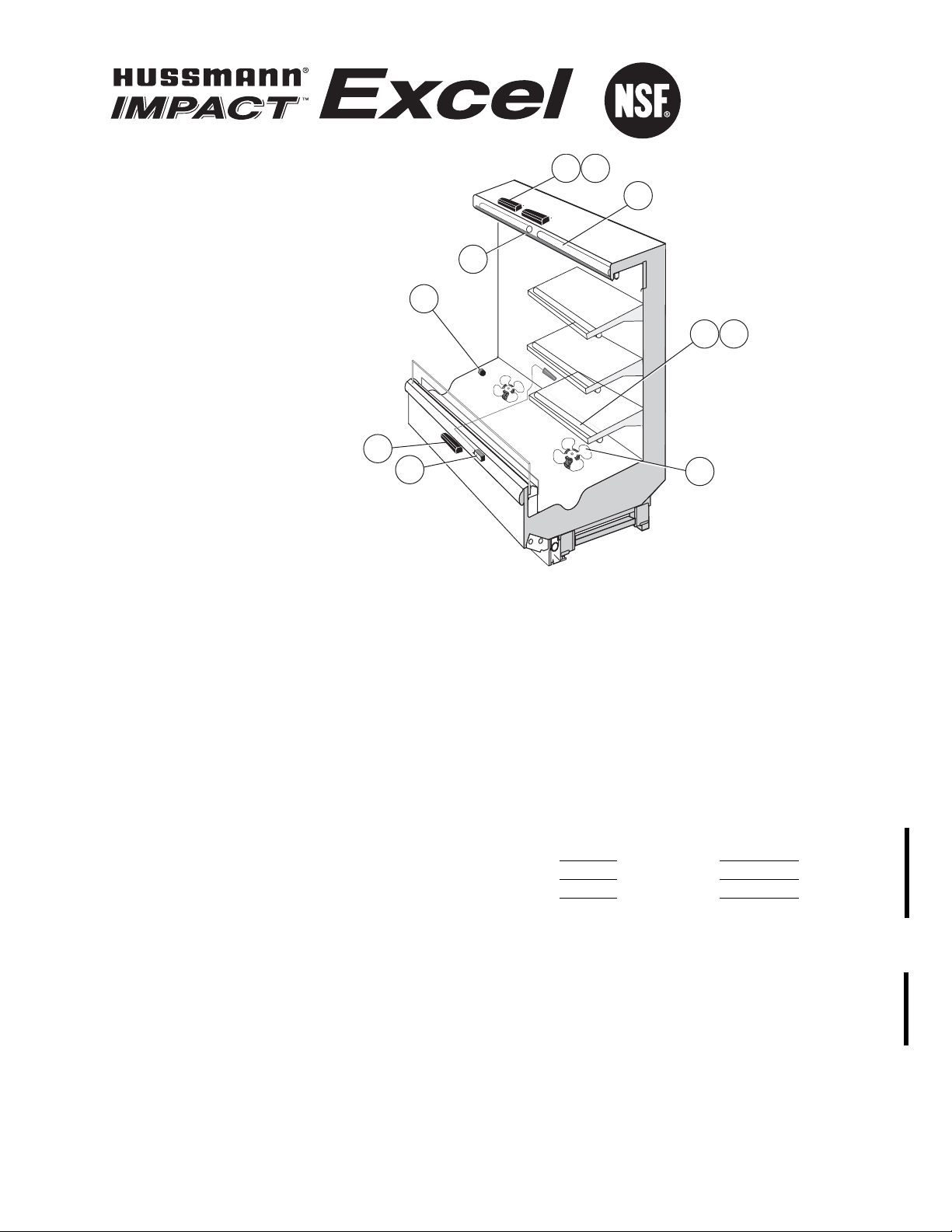

Item Part # Description Wiring Item #

FAN ASSEMBLIES

4 Ft, 8 Ft & 12 Ft

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0461805 Fan Blade (FB.4780446)

12W Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0461805 Fan Blade (FB.4780446)

6 Ft Only

A. 7W Standard Fan Assembly (1)

0058698 Fan Motor, Evaporator

(MO.4410102)

0142780 Fan Blade (FB.0142780)

7W Energy Efficient Fan Assembly (1)

0477654 Fan Motor, Evaporator

(MO.4410545)

0142780 Fan Blade (FB.0142780)

THERMOSTATS

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

(CT.0411744)

Item Part # Description Wiring Item #

THERMOSTATS (CONTINUED)

C. Optional Adjustable Refrigeration Thermostat (3)

HEATERS

D. Canopy Anti-Sweat Heater (4)

0488621 4 ft (HE.4850616)

0488622 6 ft (HE.4850617)

0488623 8 ft (HE.4850618)

0488624 12 ft (HE.4850619)

LAMPS. BALLASTS, LED FIXTURES AND POWER SUPPLY

E. Ballast, Electronic (5)

0480130 2 lamps (BA.4481676)

0480131 3 lamps (BA.4481654)

0480132 4 lamps (BA.4481677)

F. Fluorescent Lamp (6)

Replace with like fixtures

G. 0501213 Power Supply (EP.4481861) (7)

H. LED Fixture (8)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Revision C changes ballast (Page 1); adds optional LED lighting (Pages 1, 3, 4, 8); adds capacity and weight (Page 5).

2 of 11 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. C3X-LGE Technical Data Sheet

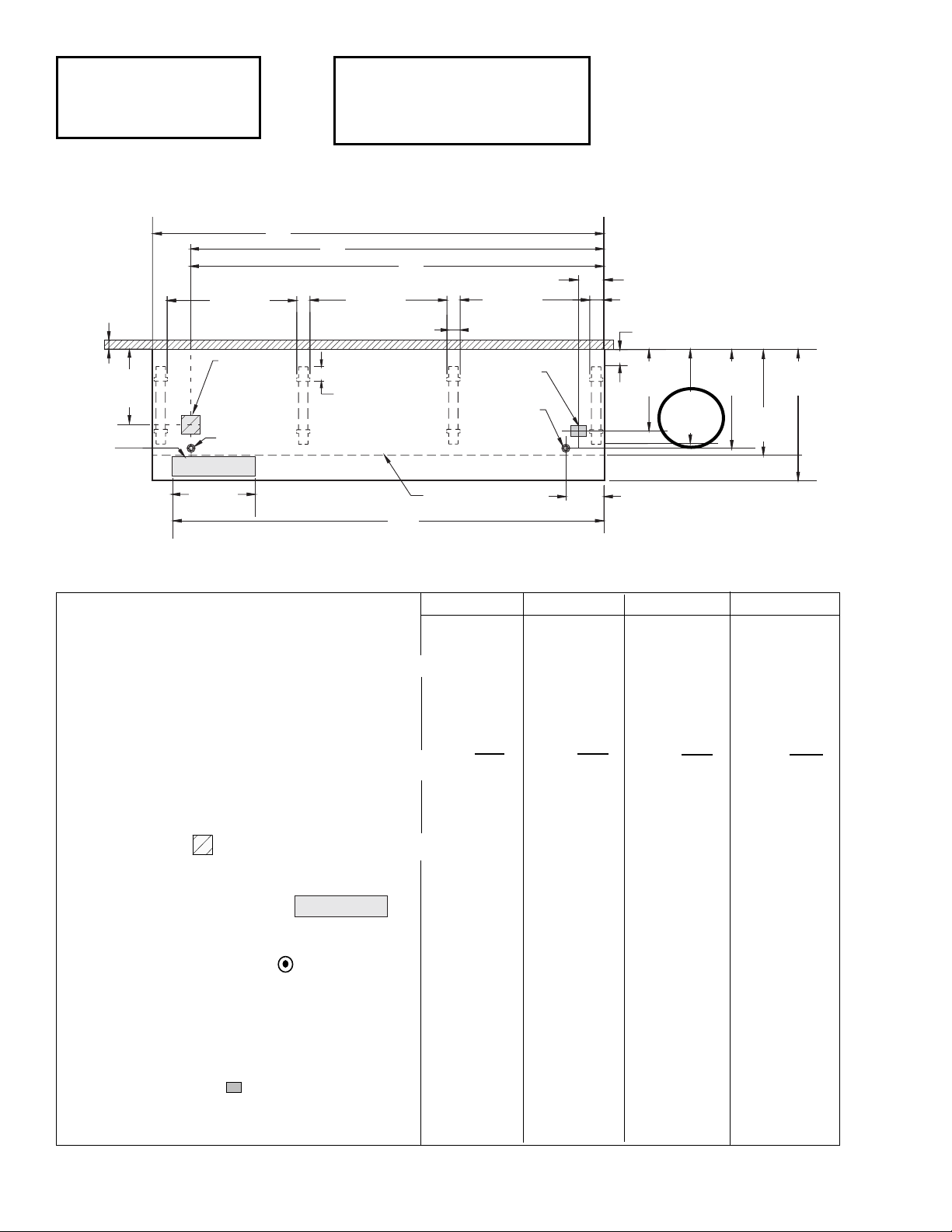

Engineering

Plan Views

Dimensions shown as inches and (mm).

Dairy/Delicatessen

Precut & Packaged Produce

01-2005

NOTE: Case-to-Case Electrical Connections

are made IN FRONT OF SPLASHGUARD.

4 3/4 (120)

Splashguard

31 5/8

(804)

(1064)

41 1/2

(1054)

3 In.

(77 mm)

Required

Air Gap

Refrigeration

Outlet

Electrical

Stub Up Area

6 x 6

(152x152) Waste Outlet

Waste Outlet

FRONT

26 1/4

(665)

8(203)

4 1/2 (115)

12 1/8 (307)

41 1/2

(1054)

43 7/8

(1114)

Wireway

4 3/4 (120)

26 1/2

(673)

4 1/4 (108)

(612)

33 1/2

(851)

Electrical

Field

Connection

30 1/4

(768)

C3X

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front

(includes bumper) 42 (1064) 42 (1064) 42 (1064) 42 (1064)

Back of case to front of splashguard 33 1/2 (851) 33 1/2 (851) 33 1/2 (851) 33 1/2 (851)

Back of case to O/S edge of front leg 30 1/4 (768) 30 1/4 (768) 30 1/4 (768) 30 1/4 (768)

Distance between edges of external legs and center legs NA 29 1/2 (750) 41 1/2 (1054) 41 1/2 (1054)

Distance between edges of center legs NA NA NA 43 7/8 (1114)

Distance between front legs and splashguard 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

Back of case to center of stub up area 24 (612) 24 (612) 24 (612) 24 (612)

Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)

Waste Outlets (One each end)

(D) RH End of case to the center of LH waste outlet 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 132 3/8 (3363)

RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)

Back O/S of case to center of waste outlets 31 5/8 (804) 31 5/8 (804) 31 5/8 (804) 31 5/8 (804)

Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

Back of case to center of refrigeration outlet 26 1/4 (665) 26 1/4 (665) 26 1/4 (665) 26 1/4 (665)

RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203)

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Wireway

3 of 11

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

P/N 0477979_C

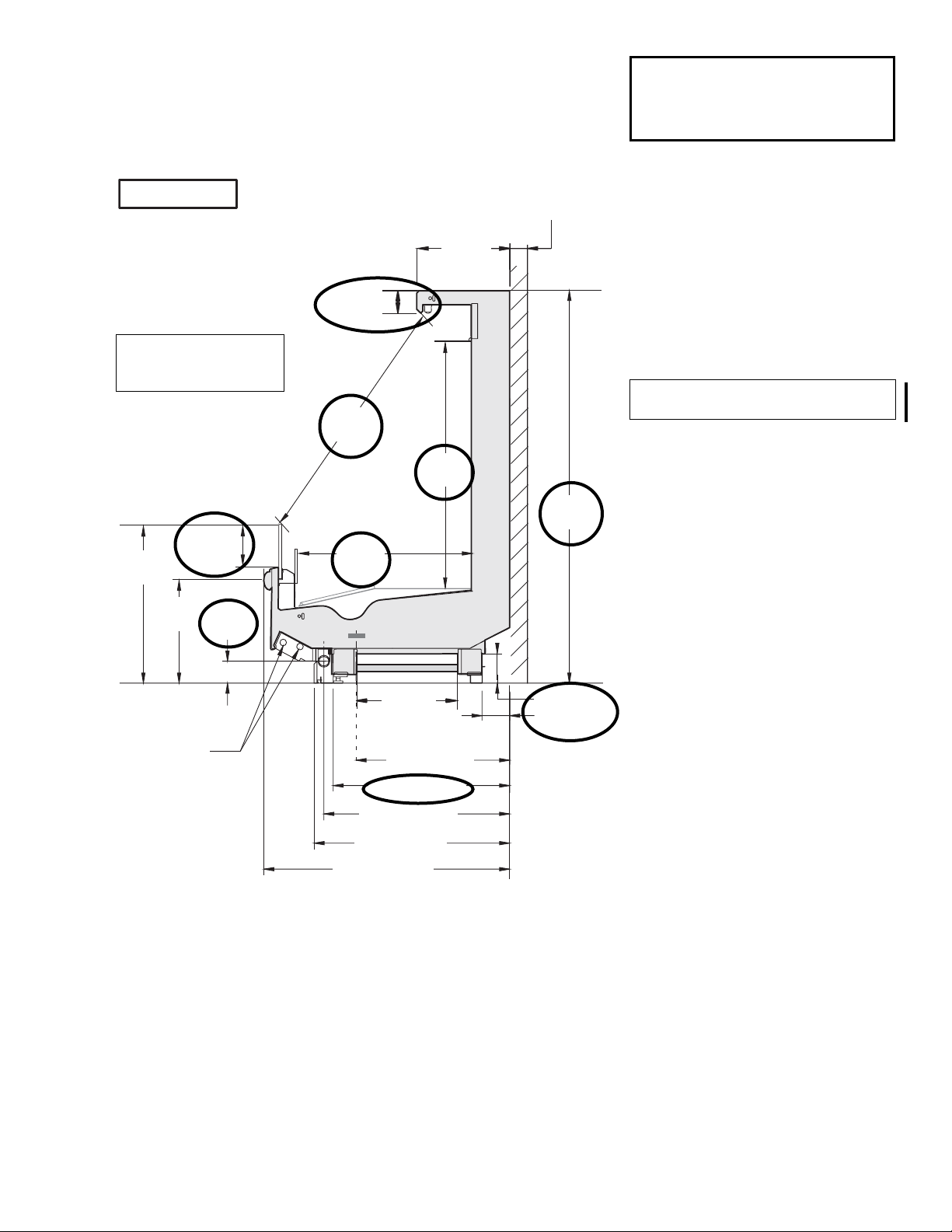

Dimensions shown as inches and (mm).

66 3/8

(1696)

31 5/8 (804)

4 3/4 (120)

30 1/4 (768)

42 (1064)

33 1/2 (851)

26 1/4 (665)

C3X-LGE

(762)

18 1/2

(470)

FAN

17 3/8

(440)

3 In. (77 mm)

Required

Air Gap

4 7/8 (123)

Electrical

Case to Case

Connections

17 1/8

(436)

Refrigeration

Outlet

3 5/8

(92)

41 1/4

(1047)

26 7/8

(683)

(1041)

3 3/4 (95)

7 1/4

(184)

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

C3X-LGE

Discharge Air °F 30

Evaporator °F 21

Unit Sizing °F 19

Btu/hr/ft — Unlit Shelves

C3X-LGE‡‡ Parallel Conventional

UNLIT 1240 1320

‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

C3X-LGE

Frequency (hr) 6

Defrost Water (lb/ft/day) 6

(±15% based on case configuration and

product loading.

OFFTIME C3X-LGE

Temp Term °F 48°F

Failsafe Minutes 30

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F – open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

C3X-LGE

CI/CO* 14°F / 4°F

Indoor Unit Only, Pressure Defrost

Termination* 48°F

*Use a Temperature Pressure Chart to determine

PSIG conversions.

Estimated Charge (lb)**C3X-LGE

4 ft 1.4

6 ft 2.0

8 ft 2.7

12 ft 3.9

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

Multi-deck, 4 Display Levels, Low Front with Glass Impact

Excel

C3X-LGE

Dairy / Delicatessen

Precut and Packaged Produce

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

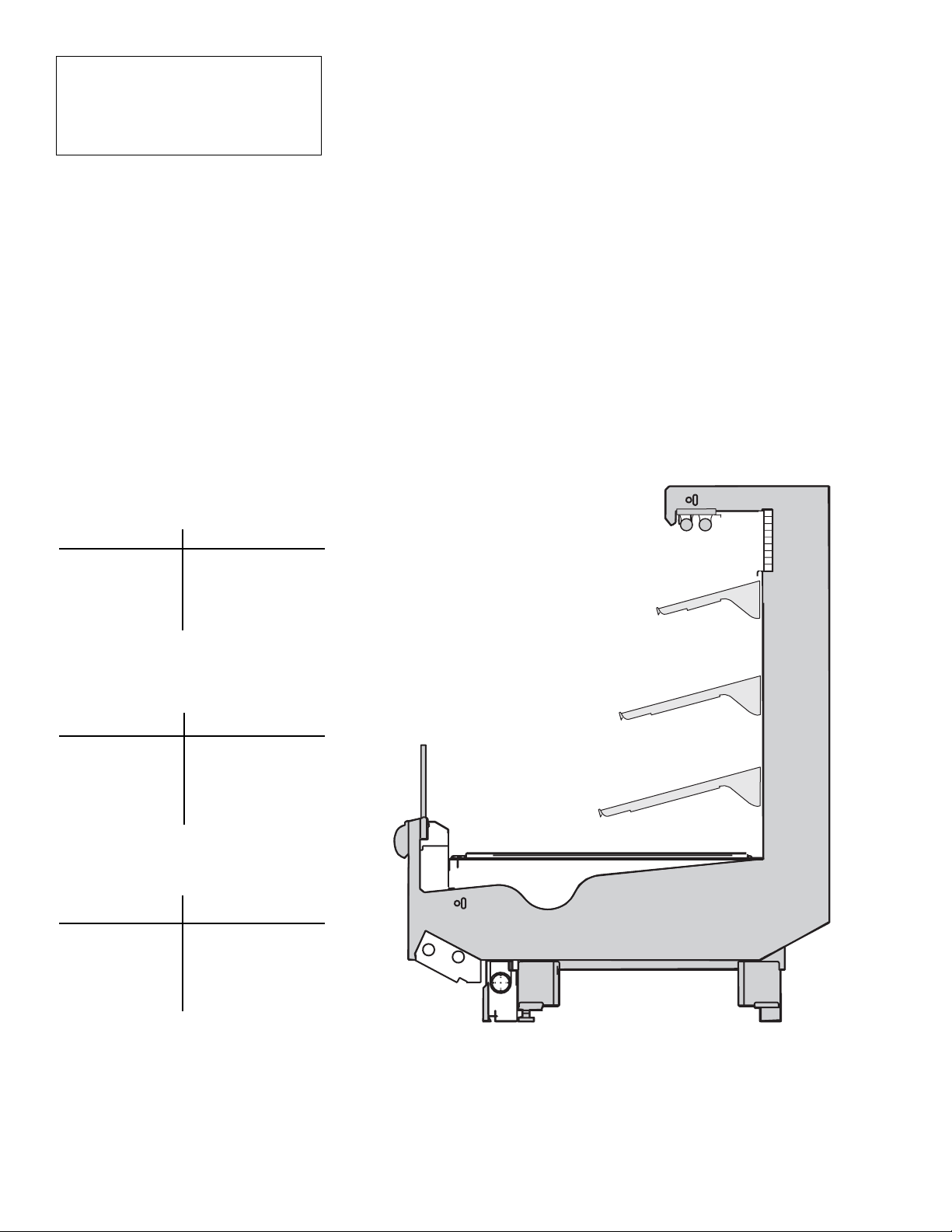

See Page 10 for

shelf arrangement.

4 of 11 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. C3X-LGE Technical Data Sheet

Electrical Data

4 ft 6 ft 8 ft 12 ft

Number of Fans—12W 1 — 2 3

Number of Fans—7W — 2 — —

Amperes Watts

4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 0.65 1.00 1.30 1.95 50 78 100 150

120V 50Hz Standard 0.75 1.10 1.50 2.25 57 84 114 171

230V 60Hz Export 0.33 0.50 0.66 0.99 50 78 100 150

230V 50Hz Export 0.38 0.56 0.76 1.14 57 84 114 171

120V 60Hz Energy Efficient 0.30 0.38 0.60 0.90 18 28 36 54

230V 60Hz Energy Efficient 0.15 0.20 0.30 0.45 18 28 36 54

Minimum Circuit Ampacity

120V 60Hz Standard 0.85 1.20 1.50 2.15

120V 50Hz Standard 0.95 1.30 1.70 2.45

230V 60Hz Export 0.53 0.70 0.86 1.19

230V 50Hz Export 0.58 0.76 0.96 1.34

120V 60Hz Energy Efficient 0.50 0.58 0.80 1.10

230V 60Hz Energy Efficient 0.35 0.40 0.50 0.65

Maximum Over Current Protection 120V 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15

Anti-sweat Heaters

120V 50/60Hz Standard 0.10 0.15 0.20 0.30 12 18 24 36

Standard Lighting (T-8 Fluorescent)

1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

Optional Lighting (T-8 Fluorescent)

Additional 1 Row Canopy 0.26 0.51 0.51 0.77 30 59 59 85

1 Row Rail Light NA — Glass front does not accept rail light

Optional Shelf Lighting (T-8 Fluorescent)

1 Row of Shelves 0.26 0.51 0.51 0.77 30 59 59 85

2 Rows of Shelves 0.51 1.02 1.02 1.54 59 118 118 170

3 Rows of Shelves 0.77 1.53 1.53 2.31 89 177 177 255

Optional Always*Bright LED Lighting

1 Row of Shelves 0.15 0.19 0.26 0.38 18 23 31 45

2 Rows of Shelves 0.26 0.34 0.47 0.67 31 41 56 80

3 Rows of Shelves 0.38 0.53 0.74 1.11 45 63 89 133

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

Impact

Excel

C3X-LGE

Dairy / Delicatessen

Precut and Packaged Produce

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 12 ft (each)

lb (kg) 600 (272) 800 (363) 1000 (454) 1200 (544) 100 (45)

5Actual weights will vary according to optional kits included.

5 of 11

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

P/N 0477979_C

Impact

Excel

C3X-LGE

Dairy / Delicatessen

Precut and Packaged Produce

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 4.66 ft3/ft (0.43 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 4.77 ft3 /ft (0.44 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 4.07 ft2/ft (1.24 m2 /m)

Shelf Area 4(Sq Ft/Ft) 6.02 ft2/ft (1.84 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann

Product Reference Guide. The standard shelf complement for this model is (1) row of 12-inch shelf,

(1) row of 14-inch shelf and (1) row of 16-inch shelf.eparately from fans.

6 of 11 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. C3X-LGE Technical Data Sheet

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

1, 2 & 3 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

1 Fan

2 Fans

3 Fans

4 ft

6 ft

8 ft

12 ft

Optional

Two Row

Canopy

Connector

BL BL

Orange or Tan Band

Standard Lighting 1 Row Canopy

Optional Lighting 2 Row Canopy

4 ft 6 ft or 8 ft 12 ft

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Fan Wiring

Offtime Defrost

Light Circuits

Purple BAND 4

120V Pow er

Purple BAND

120V Neutra l

Anti-S w eatH eater

7 of 11

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

P/N 0477979_C

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

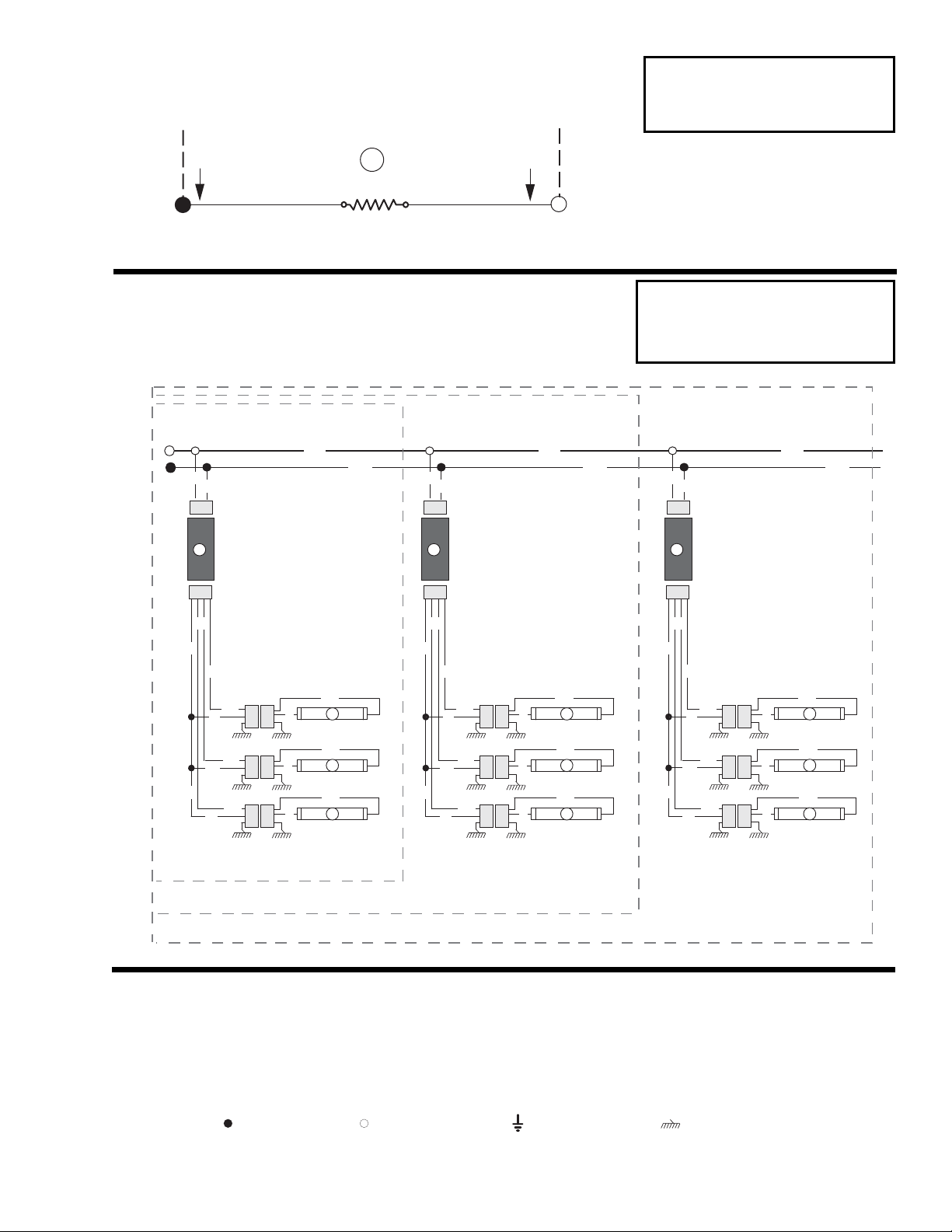

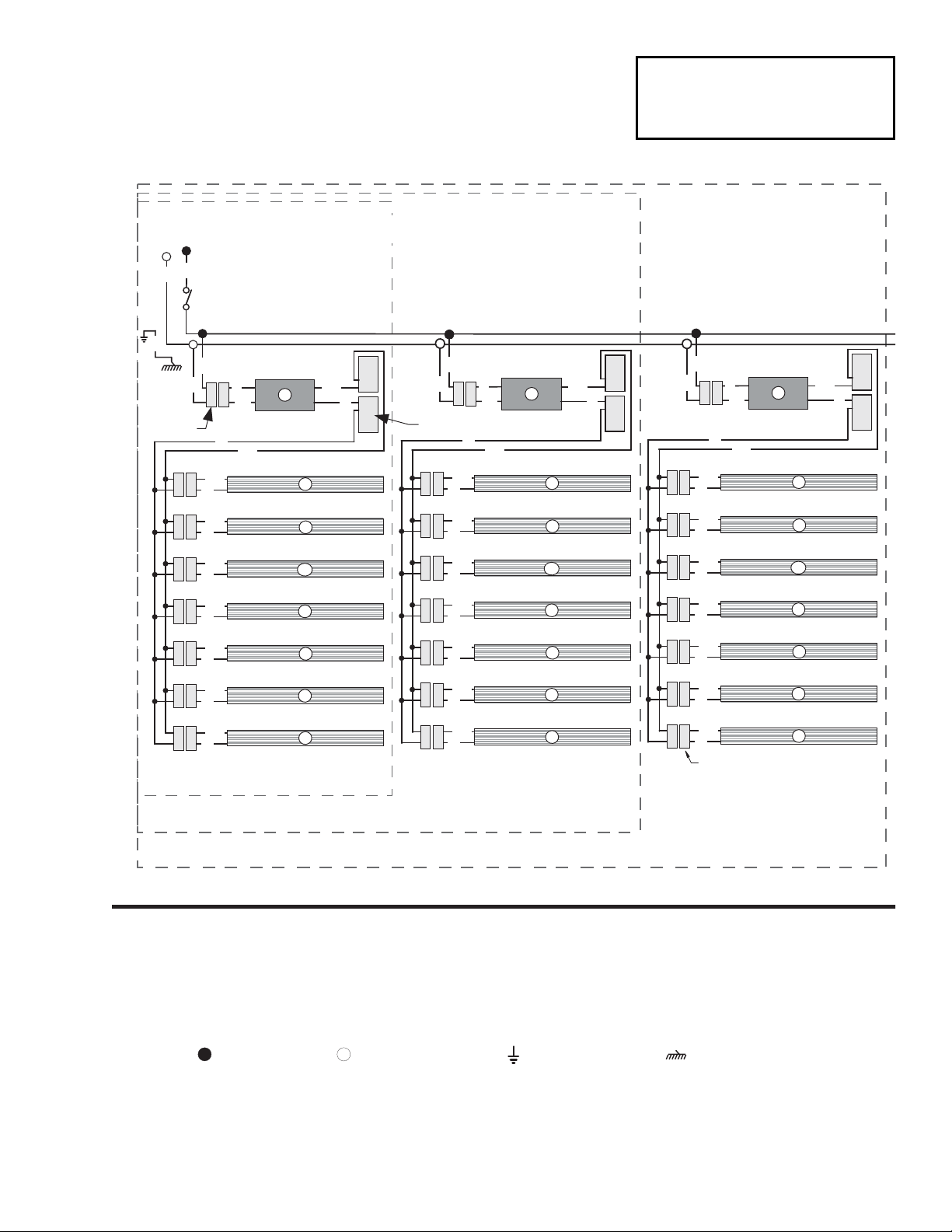

Optional Shelf Harness and Light Circuits for

Three Rows of Shelves

4 ft case

6 ft or 8 ft case

12 ft case

Canopy

Anti-Sweat Heater

Optional Shelf Lighting

Fluorescent Fixtures

8 of 11 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. C3X-LGE Technical Data Sheet

4 ft case

6 ft or 8 ft case

12 ft case

BL 8

RBL

Connector

BL 8

RBL

(TYP)

Shelf Light

Plug & Receptacle

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

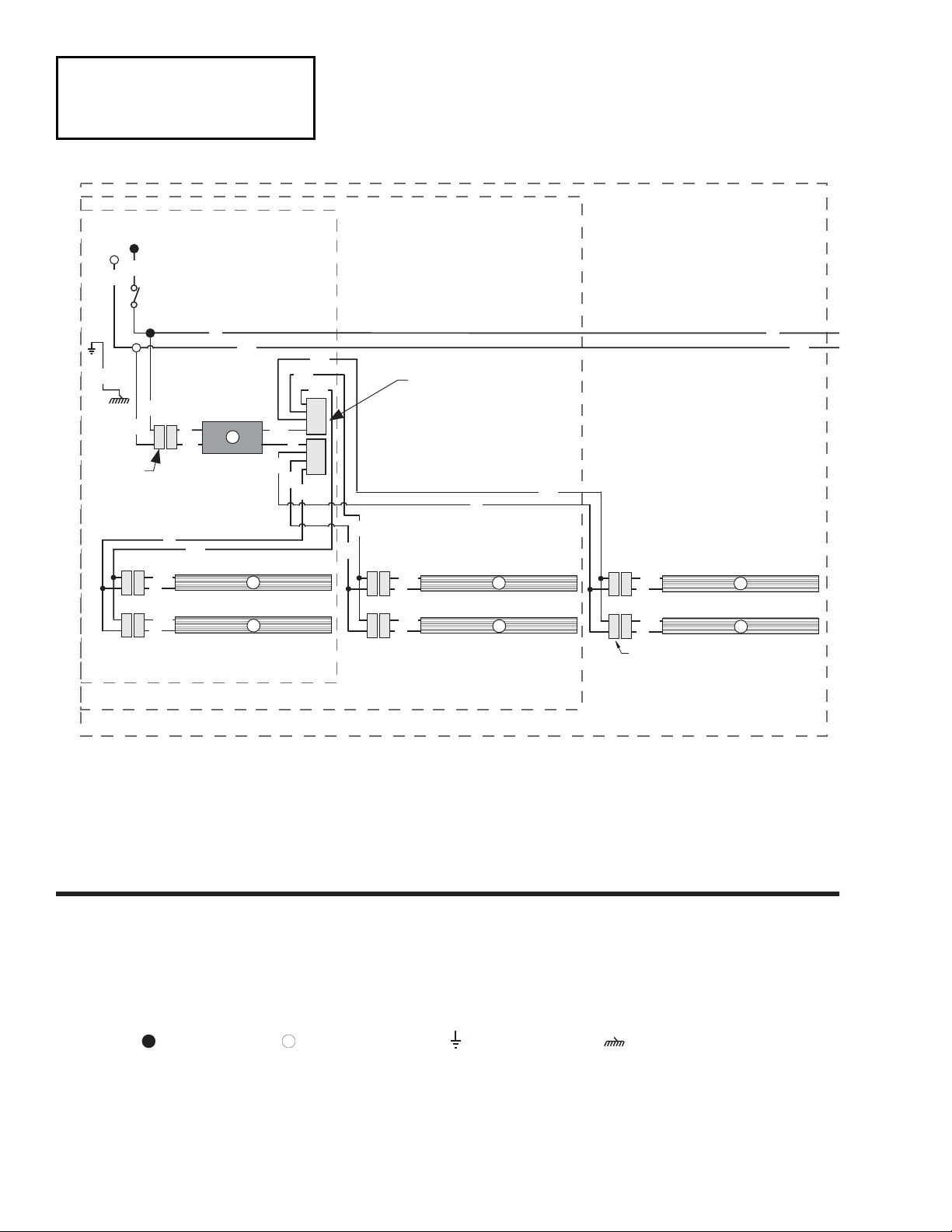

Optional Shelf Harness and LED Light Circuits for

Two Rows of Shelves

Optional Shelf Lighting

LED Fixtures

9 of 11

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

P/N 0477979_C

Optional Shelf Lighting

LED Fixtures

BL 8

RBL

4 ft case

6 ft or 8 ft case

12 ft case

(TYP)

Shelf Light

Plug & Receptacle

Connector

BL 8

RBL

BL 8

RBL

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Connector

Optional Shelf Harness and LED Light Circuits for

3, 4, 5, 6 & 7 Rows of Shelves

10 of 11 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. C3X-LGE Technical Data Sheet

Top Shelf

(12 in., 15o Shown)

Second Shelf

(16 in., 15o Shown)

Third Shelf

(18 in., 15o Shown)

Impact

Excel

C3X-LGE

Dairy/Delicatessen

Precut & Packaged Produce

SHELF CONFIGURATION

This case is designed for three (3)

shelves.

The depth of the shelves used are

critical to case performance.

The use of peg shelves is NOT

recommended on C3X-LGE cases.

Depth and angle requirements are

listed below.

Top Shelf

Shelf Depth Shelf Angle

12 inches 0 º,10 º,15 º,30 º,45 º

14 inches 30 º,45 º

Second Shelf

Shelf Depth Shelf Angle

14 inches 0 º,10 º,15 º,30 º,45 º

16 inches 30 º,45 º

Third Shelf

Shelf Depth Shelf Angle

16 inches 0 º,10 º,15 º,30 º,45 º

18 inches 30 º,45 º

Tabla de contenidos

Otros manuales de Comerciante de Hussmann

Hussmann

Hussmann DDS Manual de usuario

Hussmann

Hussmann Impact Excel P2X-EP Manual de instrucciones

Hussmann

Hussmann IMPACT ED1 Manual de instrucciones

Hussmann

Hussmann IMPACT M1CIMP-4B Guía del usuario

Hussmann

Hussmann impact Excel C5X-E Manual de instrucciones

Hussmann

Hussmann USL-2 Guía rápida

Hussmann

Hussmann ISLA IM-H Series Manual de usuario

Hussmann

Hussmann D5NX-EP Manual de instrucciones

Hussmann

Hussmann AB Manual de instrucciones

Hussmann

Hussmann WDCHI Manual de usuario

Hussmann

Hussmann XR75CX Manual de usuario

Hussmann

Hussmann MWGE Manual de usuario

Hussmann

Hussmann Q1-DC Wedge Instrucciones de funcionamiento

Hussmann

Hussmann REACH-IN Manual de usuario

Hussmann

Hussmann IMPACT LNGH Manual de instrucciones

Hussmann

Hussmann IMPACT IEDG1 Manual de instrucciones

Hussmann

Hussmann ESGMVS Manual de instrucciones

Hussmann

Hussmann EcoVision II Plus Door Upgrade Suplemento

Hussmann

Hussmann M1X-XGEC Manual de instrucciones

Hussmann

Hussmann microSC GSVM A Series Manual de usuario

Hussmann

Hussmann C5 Manual de usuario

Hussmann

Hussmann IMPACT LNM Manual de usuario

Hussmann

Hussmann IMPACT P4NE Manual de usuario

Hussmann

Hussmann D5X-E Manual de usuario

Manuales populares de Comerciante de otras marcas

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manual de usuario

EPTA

EPTA COSTAN RHINO MULTI Manual de usuario

CASCO

CASCO Nano Cube Manual de usuario

True

True GDIM-26 Manual de usuario

Structural Concepts

Structural Concepts Oasis Mobile Series Instrucciones de instalación

Haussmann

Haussmann RL Manual de usuario

Howard McCray

Howard McCray R-CDS32E-4 Manual de usuario

EPTA

EPTA iarp Cool Emotions Delight Lite Manual de usuario

VALERA

VALERA BC 85 Manual de usuario

HL Display

HL Display 3eBin Manual de usuario

Dixie Narco

Dixie Narco DNCB 501E Manual de usuario

APW Wyott

APW Wyott Racer DMXD-30H Manual de usuario

Hoshizaki

Hoshizaki KD-90C Manual de usuario

Summit

Summit SCR1006 Manual de usuario

Delfield

Delfield Shelleyspeed SPM-28E Manual de usuario

EPTA

EPTA iarp Cool Emotions GLEE 40 Manual de usuario

Kysor/Warren

Kysor/Warren GranBering KW Guía

Crane

Crane BevMAX Refresh 6 Media Manual de usuario
