HunterDouglas Blockout Manual de usuario

Installation

•

Operation

•

Care

Blockout Roller Shades

Designer Roller and Screen Shades

Custom Clutch and PowerView

Gen 3

Automation Cassette and Fascia

CONTENTS

GETTING STARTED...................................................................................... 1

Product View — Cassette Blockout................................................................1

Product View — Fascia Blockout with Custom Clutch ...................................2

Product View — Fascia Blockout with PowerView®Gen 3 Automation........3

Tools and Fasteners Needed ..........................................................................4

Installation Overview.......................................................................................4

INSTALLATION ............................................................................................. 5

STEP 1: Mount the Installation Brackets........................................................5

Inside Mount — Cassette Shades..................................................................6

Outside Mount — Cassette Shades................................................................7

Inside Mount — Fascia Shades .....................................................................8

Outside Mount — Fascia Shades ..................................................................9

STEP 2: Install the Battery Wand (If Applicable)..........................................10

STEP 3: Install the Shade..............................................................................12

Assemble the Side Channels — Cassette Shades.......................................15

Install the Side Channels — Inside Mount...................................................16

Install the Side Channels — Outside Mount ..............................................17

Install the Bottom Channel ...........................................................................18

Attach the Universal Cord Tensioner (UCT) ...................................................19

STEP 4: Connect the Power Source ..............................................................20

OPERATION................................................................................................. 26

Operate the Shade — Cord Loop Only..........................................................26

Operate the Shade — PowerView®Gen 3 Only ..........................................26

Operating the PowerView®App and Gen 3 Remote.....................................27

Further Operation and Programming Information .........................................28

Resetting the Shade .....................................................................................28

Adjust Shade Limits (If Necessary) ...............................................................29

Attach the Fascia Panel and (Optional) Outside Mount End Caps................30

(Continued on next page)

CONTENTS

Questions?

Call the Hunter Douglas Consumer Support at (800) 789-0331.

their respective owners.

TROUBLESHOOTING ................................................................................. 31

CARE............................................................................................................. 38

Removing the Shade......................................................................................38

Cleaning Procedures......................................................................................39

DECLARATIONS.......................................................................................... 40

CHILD SAFETY............................................................................................ 41

Cord Loop Shades..........................................................................................41

WARRANTY ................................................................................................ 42

(Continued)

GETTING STARTED

Product View — Cassette Blockout

NOTE: Cassette shades with PowerView®Gen 3 Automation not shown.

Cassette

Installation

Brackets

Cassette

Bottom

Channel

Side

Channel

Side

Channel

Light

Blocker

Wool

Pile

Cord Tensioner

and Mounting

Bracket

(not available in CA)

GETTING STARTED

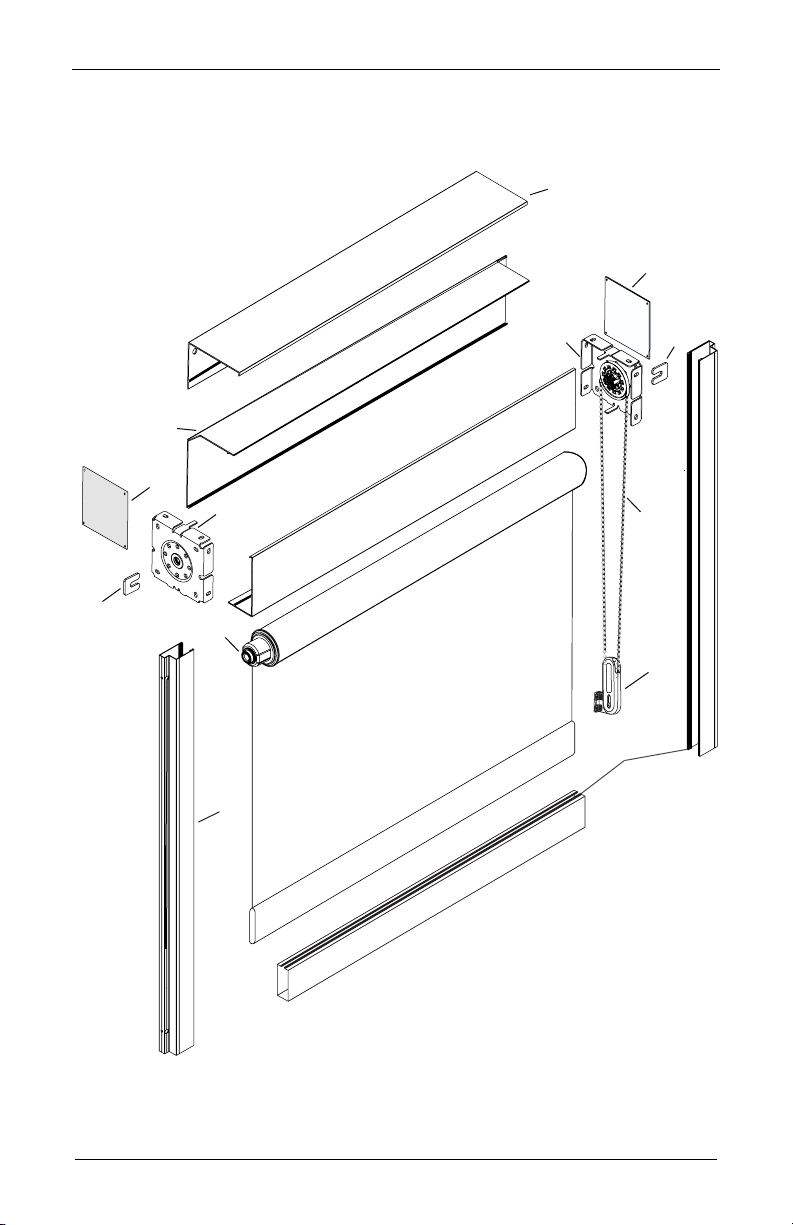

Product View — Fascia Blockout with Custom Clutch

(Not available in CA)

Beaded

Cordloop

Idle-Side

Installation

Bracket

Clutch-Side

Installation

Bracket

Shim

(Outside

Mount

Only)

Idle

Fascia Panel

End Cap

(Optional)

End Cap

(Optional)

Cord

Tensioner

and

Bracket

Top/Rear

Cover

Inside Mount

Top/Rear

Cover

Outside Mount

Shim

(Outside

Mount

Only)

Side

Channel

Bottom

Channel

Wool

Pile

GETTING STARTED

Product View — Fascia Blockout with PowerView®Gen 3 Automation

Idler

Assembly

Idle

Bracket

Fascia

Motor

Bracket

Motor

Assembly

End Cap

(Optional)

End

Cap

Bottom Bar

Wool

Pile

Bottom Channel

Side

Channels

End Cap

Tape

Satellite

Battery Pack

Cover

Top/Rear

Cover

Outside

Mount

Top/Rear

Cover

Inside

Mount

Battery

Wand

Extension

Cable

Shim

(Outside

Mount

Only)

GETTING STARTED

Thank you for purchasing Hunter Douglas blockout roller shades. With proper installation,

operation and care, your new shades will provide years of beauty and performance.

Please thoroughly review this instruction booklet and the enclosed packing list before

beginning the installation. For information regarding operation and programming, refer to the

guide included with your remote control or wireless wall switch.

Tools and Fasteners Needed

■ Flat blade and Phillips screwdriver

■ Level, (laser level is recommended)

■ Measuring tape and pencil

■ Cassette Shades. Power drill,

∕

" drill bit, and

∕

" hex driver

■ Fascia Shades. Power drill,

∕

" drill bit, and

∕

" hex driver

In addition, you will need fasteners designed to work with your specific mounting surface(s).

■ Cassette Shades — #6 Hex x 1

⁄

"Head Screws (Provided). Two 1

⁄

" screws are

provided with each installation bracket.

■ Fascia Shades — #10 Hex x 1

⁄

"Head Screws (Provided). Two 1

⁄

" screws are

provided with each fascia bracket.

■ Side and Bottom Channels. #6 x 1"Phillips Truss Head Screws (Provided). 1" screws are

provided to secure the side and bottom channels.

Installation Overview

To install your shade, you will need to perform the following three easy steps:

STEP 1: Mount the Installation Brackets

STEP 2: Install the Battery Wand (If Applicable)

STEP 3: Install the Shade

STEP 4: Connect the Power Source

#6 x 1½" Hex

Head Screw

#10 x 1½" Hex

Head Screw

#6 x 1" Truss

Head Screw

INSTALLATION

STEP 1: Mount the Installation Brackets

■ Installation Brackets for Cassette Shades. The number of installation brackets

required varies depending on the shade width, as shown in the table.

Mounting Types and Window Terminology

If the installation brackets are mounted correctly, the rest of the installation process follows

very easily. To prepare for this important first step, review the mounting types and basic

window terminology illustrated below.

■ Refer to the appropriate page below based on the mounting type chosen for your order:

➤ Inside Mount for Cassette Shades — page 6

➤ Outside Mount for Cassette Shades — page 7

➤ Inside Mount for Fascia Shades — page 8

➤ Outside Mount for Fascia Shades — page 9

Cassette

Installation

Bracket

Shade

Width

Brackets

Required

Up to 36" 2

⁄

" – 66" 3

⁄

" – 90" 4

⁄

" – 120" 5

Outside Mount

Shade mounts outside

window opening.

Collectively, the sill and

jambs are called the

“window casement.”

Molding

Head Jamb

Sill

Jamb Jamb

Inside Mount

Shade ﬁts within

window opening.

INSTALLATION

Inside Mount — Cassette Shades

■ Mark 4" from each jamb for bracket location.

➤ If more than two installation brackets came with your order, space additional

bracket(s) evenly between the two end brackets and mark their location. Mount into

wood whenever possible.

NOTE: PowerView®Gen 3 Shades: Allow a minimum of 15

⁄

" from the motor end for

the battery wand.

■ The minimum mounting depth for Cassette Blockout shades is 1

⁄

", 1

⁄

" with battery wand

and 2

⁄

" with rechargeable battery wand.

➤ Fully recessed mounting depth for PowerView Gen 3 shades:

■ Center the brackets on your marks, then mark each of

the screw holes.

IMPORTANT: The front edges of the installation

brackets must be level and aligned to eachother.

■ Drill the screw holes using a

∕

" drill bit.

■ Use a level to check that the mounting surface is

level. Shim the brackets if necessary. Shims are not

provided.

■ Attach the installation brackets using the

screws provided.

WARNING: Product is heavy. Mount into wood/metal studs or into concrete with

concrete anchors. Drywall anchors are not recommended

For PowerView Gen 3, proceed to “STEP 2: Install the Battery Wand (If

Applicable)” on page 10.

For custom clutch, proceed to “STEP 3: Install the Shade” on page 12.

Installation BracketsJamb Jamb

Space EvenlySpace Evenly4" 4"

For PowerView Gen 3 Shades:

Minimum 15½" for Battery Wand

Motor

End

Minimum IB Fully Recessed Mounting Depth

Power Supply Small Cassette Large Cassette

Without Battery Wand 3

⁄

" 4

⁄

PowerView Gen 3 with Attached Battery Wand 4

⁄

" 4

⁄

PowerView Gen 3 with Rechargeable Battery Wand 4

⁄

" 5

⁄

INSTALLATION

Outside Mount — Cassette Shades

■ Center the cassette over the window opening at the desired height. Use a pencil to lightly

mark each end of the cassette.

■ Mark 4" from each end of the cassette for the bracket location.

➤ If more than two installation brackets came with your order, space additional

bracket(s), between the two end brackets and mark their location. Whenever possible,

mount into wood.

■ Center the brackets on your marks, then mark each of the screw holes.

➤ A minimum 4" flat vertical surface is required to mount the brackets.

■ Drill the screw holes using a

∕

" drill bit.

■ Use a level to check that the mounting surface is

level. Shim the brackets if necessary. Shims are

not provided.

■ Attach the installation brackets using the 1

⁄

screws provided.

WARNING: Product is heavy. Mount into

wood/metal studs or into concrete with

concrete anchors. Drywall anchors are not

recommended.

For PowerView®Gen 3, proceed to “STEP 2: Install the Battery Wand (If

Applicable)” on page 10.

For custom clutch, proceed to “STEP 3: Install the Shade” on page 12.

Headrail End Marks

Window Opening

Space Evenly Space Evenly

Minimum 15½" For Battery Wand

Outside Mount

Tabla de contenidos

Otros manuales de Persiana de ventana de HunterDouglas

HunterDouglas

HunterDouglas Paramount Headrail Systems Manual de lista de piezas

HunterDouglas

HunterDouglas Silhouette A Deux Manual de lista de piezas

HunterDouglas

HunterDouglas Duette Manual de usuario

HunterDouglas

HunterDouglas Palmetto Horizontal Shadings Manual

HunterDouglas

HunterDouglas Solera EasyRise Manual de lista de piezas

HunterDouglas

HunterDouglas RB 500 Guía de seguridad

HunterDouglas

HunterDouglas Pirouette Manual de lista de piezas

HunterDouglas

HunterDouglas Standard Cordlock, Moveable Slat Specialty... Guía del usuario

HunterDouglas

HunterDouglas PowerView Manual de usuario

HunterDouglas

HunterDouglas Vignette Tiered Manual de usuario

HunterDouglas

HunterDouglas Specialty Motorized Vertical Blinds Manual de lista de piezas

HunterDouglas

HunterDouglas WOODMATES Manual de usuario

HunterDouglas

HunterDouglas 5-151 Manual de usuario

HunterDouglas

HunterDouglas Remembrance Motorized Shade Especificaciones técnicas

HunterDouglas

HunterDouglas Design Studio Manual de instalación

HunterDouglas

HunterDouglas Alustra Woven Textures Manual de usuario

HunterDouglas

HunterDouglas Standard Hardware System Manual de lista de piezas

HunterDouglas

HunterDouglas Paramount Manual del propietario

HunterDouglas

HunterDouglas DecoFlex WireFree Telis Instrucciones de funcionamiento

HunterDouglas

HunterDouglas Sonnette Manual de usuario

HunterDouglas

HunterDouglas Silhouette Manual de lista de piezas

HunterDouglas

HunterDouglas Duette Manual de lista de piezas

HunterDouglas

HunterDouglas ZIP 100 Guía de mantenimiento y servicio

HunterDouglas

HunterDouglas 5-156 Manual de usuario

Manuales populares de Persiana de ventana de otras marcas

Jysk

Jysk ROGEN Manual de usuario

SOMFY

SOMFY 1241752 Manual de usuario

Rollos

Rollos S-Nanorollo V2 Guía de planificación

Teptron

Teptron Move Manual de usuario

Renson

Renson Outdoor Loggia Guía de seguridad

Project Source

Project Source CDLF2342W Manual de usuario

Domondo

Domondo PureNight Manual de instrucciones de instalación

rollease acmeda

rollease acmeda Easy Spring Air Guía de configuración

IKEA

IKEA KADRILJ Manual de usuario

Hallis Hudson

Hallis Hudson Rolls Super glide Manual de usuario

Benthin

Benthin P1614 Manual de usuario

MV LINE

MV LINE CLARA 015 Manual de instrucciones

Current

Current E-WAND Guía

weinor

weinor VertiTex ZipR Manual

Roto

Roto ZAR M R4/R7 Manual de usuario

SOMFY

SOMFY Movelite WT Series Manual de usuario

Acmeda

Acmeda RF400 Series Manual de usuario

Motura

Motura Pli_353/3 Manual de usuario
