Hughes & Kettner MSM-1 Manual de usuario

Hughes & Kettner MSM-1 User Manual

Note: These instructions were written specifically for the Hughes & Kettner ATTAX preamp, but they apply

equally to the MIDI-upgradeable amps from Hughes & Kettner: the TriAmp head and combo, the TUBE 50

head/combo and TUBE 100 head, the ATTAX 100 and ATTAX 200 heads and combo amps, and the

BassBase 600 head. More general installation instructions follow this document.

Installation

1. Connections and Control Features

2. MIDI Functions

3. Standard Setup and Cable Connections

4. Short Instructions

Operation

1. Selecting MIDI Channels and the Omni Mode

2. Storing Your Presets

3. Activating Stored Presets via MIDI

Additional MIDI Setups

Troubleshooting

INSTALLATION PROCEDURE: MSM-1 into the ATTAX PREAMP

The ATTAX and the MSM-1 MIDI SWITCHING MODULE are electronic devices that operate on AC power. If

you are not qualified to install the MSM-1, you are risking a potentially life-threatening electric shock. Do

yourself a favor and ensure you leave the installation to an authorized dealer only, both a safety and a

warranty requirement. It takes just a few minutes, and it is well worth waiting for.

Proceed as follows:



Switch the ATTAX off.



Remove the AC mains power cord from the back of the unit.



Remove the four screws from rear panel cover plate and then remove the cover plate.



Remove the screws from the top of the chassis.



Lift the chassis cover off.



Insert the MSM-1 in the module chamber and fasten it to the chassis using the four screws. Ensure the

electronic components and the module inscriptions are facing up.



Connect the MSM-1 to the ATTAX by carefully plugging the ribbon cable’s connectors to the

appropriate socket. Note the markings on the connectors and ensure they face the grooved portion of

the socket when you plug the connectors in.

Seite

von

Hughes & Kettner MSM

1 User Manual

22.08.2007

file://C:\Dokumente und Einstellungen\RForse\Desktop\msm1manual.htm



Ensure the connector fits snugly and the connector markings match the socket’s grooved portion.

Check all connections carefully. Then:



Replace and fasten the chassis cover.



Plug in the AC mains cable. Switch on the power.



Press all front panel buttons, one after the other, to make sure the ATTAX functions properly.



The ATTAX should respond to each button as it did before you installed the module (refer to the

ATTAX manual).



Follow the steps described in Short Instructions to ensure that the MSM-1 functions properly.

CONNECTIONS AND CONTROL FEATURES

1. MIDI IN JACK

The MIDI IN jack is designed to receive MIDI data. Any device capable of generating MIDI data can be

connected here via its MIDI OUT jack. In most cases, a MIDI FOOT CONTROLLER or MIDI EFFECTS UNIT

is the device you will use.

2 MIDI THRU JACK

The MIDI THRU jack is used if you want to relay incoming MIDI messages to an additional MIDI device, e.g.

an effects processor. Simply connect the device’s MIDI IN to the MSM-1 's MIDI THRU. This enables you to

address the ATTAX and one or more additional devices via a single MIDI command.

3 MIDI RECEIVE CHANNEL SWITCH

This five-way DIP switch determines on which MIDI channels the MSM-1 receives MIDI messages. You can

select a single CHANNEL (1 through 16), or all MIDI CHANNELS at once.

MIDI LEARN BUTTON (front panel)

Seite

von

Hughes & Kettner MSM

1 User Manual

22.08.2007

file://C:\Dokumente und Einstellungen\RForse\Desktop\msm1manual.htm

The MIDI LEARN BUTTON on the ATTAX front panel is operable after the MSM-1 is installed, and is used to

assign ATTAX channel/effects combinations to various memory locations.

MIDI FUNCTIONS

MIDI is the abbreviation for Musical Instrument Digital Interface. MIDI is an international standard in which

musical information, to include sound parameter changes, is translated to digital data and sent to various

instruments, e.g. amps, effects devices, keyboards, etc.

The MSM-1 can process MIDI commands containing sound changes, i. e. messages that change the ATTAX

channel/effects loop settings. These commands are referred to as MIDI PROGRAM CHANGE MESSAGES.

They consist of a MIDI CHANNEL NUMBER and a MIDI PROGRAM number.

MIDI CHANNEL NUMBER

A typical guitar rack can contain several MIDI capable devices. You must assign each device a specific MIDI

CHANNEL NUMBER to ensure the message is addressed to the right device. 16 MIDI CHANNELS (1 through

16) are available. For instance, if you assign MIDI CHANNEL NUMBER 7 to the MSM-

1 (refer to Section 2.1),

then the module reacts exclusively to commands addressed to MIDI CHANNEL 7.

OMNI MODE

If you want to address several devices in your rack simultaneously, switch on the OMNI MODE for each

device. All devices will then ignore the MIDI CHANNEL NUMBERS and respond to MIDI commands on all

CHANNELS. Refer to Section 2.1 for information on how to select the MSM-1 OMNI MODE.

EXAMPLE

The MSM-1 is set to MIDI CHANNEL 3. A MIDI command containing a "MIDI CHANNEL 3/PROGRAM

NUMBER 17" message is sent. The MSM-1 responds by activating the channel and effects loop combination

saved on preset 17.

STANDARD SET-UP / CABLE CONNECTIONS

Seite

von

Hughes & Kettner MSM

1 User Manual

22.08.2007

file://C:\Dokumente und Einstellungen\RForse\Desktop\msm1manual.htm

INSTRUCTIONS - THE SHORT FORM 1.4

OPERATING THE ATTAX VIA MIDI

SELECTING MIDI CHANNELS AND THE OMNI MODE

Use the five-way DIP switch to select the MIDI CHANNEL and the OMNI MODE. Switch settings 1-4

determine the MIDI CHANNEL; the fifth switch is the OMNI OFF/ON switch. The OMNI ON setting ensures

the ATTAX receives MIDI data on all MIDI CHANNELS, regardless of how switches 1-4 are set.

Note: Ensure the OMNI switch is set to OFF when you want the ATTAX to receive MIDI data on a single MIDI

CHANNEL (I-16).

THE FOLLOWING DIP SWITCH SETTINGS ACTIVATE THE RESPECTIVE MIDI

Seite

von

Hughes & Kettner MSM

1 User Manual

22.08.2007

file://C:\Dokumente und Einstellungen\RForse\Desktop\msm1manual.htm

CHANNEL:

STORING PRESETS

Once you have selected the desired MIDI CHANNEL or OMNI settings, you can start storing presets

(channel/effects loop combinations).

Store presets by activating the desired channel/effects loop combinations manually or via the STAGEBOARD

while simultaneously pressing the MIDI LEARN BUTTON. The ATTAX responds to PROGRAM CHANGE

MESSAGES it receives.

We recommend you use the MIDI LEARN MODE when you want to assign numerous effects programs as

ATTAX presets. This mode enables you to quickly store presets without having to repeatedly press the MIDI

LEARN BUTTON (refer to the next page under the "Storing Several Presets" heading).

Note: If you want the stereo effects loop active in all MIDI switching operations, you can activate it via the

ATTAX STAGEBOARD. Then you don’t need to store the effects loop switching data for each preset.

STORING A PRESET



Briefly press the MIDI LEARN BUTTON.



Activate the parallel effects loop via the ATTAX STAGEBOARD.



Select the desired effects program and dial in the desired FX-MIX setting.

Seite

von

Hughes & Kettner MSM

1 User Manual

22.08.2007

file://C:\Dokumente und Einstellungen\RForse\Desktop\msm1manual.htm



Determine the desired preamp sound via the front panel control features or the STAGEBOARD.



Press the MIDI LEARN BUTTON again, but this time hold it down.



Send the PROGRAM CHANGE MESSAGE via the MIDI FOOT CONTROLLER. In other words, select

the active effects program again via MIDI.



The preset is now stored. You can call it at any time via MIDI the ATTAX settings



are modified to correspond to the preset data you just entered. Press the MIDI LEARN BUTTON again

and repeat the above procedure to store additional presets.

Note: Before you can call your stored presets, you must ensure the channels selector switches on the

ATTAX's front panel and on the STAGEBOARD are set to OFF (not depressed).

STORING SEVERAL PRESETS - THE MIDI LEARN MODE

This operating mode enables you to successively store a number of presets without requiring you to press the

MIDI LEARN BUTTON every time. Every PROGRAM CHANGE MESSAGE the ATTAX receives ensures the

current channel/effects loop combination is automatically stored as a preset.



Switch the ATTAX off, press and hold the MIDI LEARN BUTTON.



Switch the ATTAX on while continuing to hold the MIDI LEARN BUTTON.



Release the MIDI LEARN BUTTON. The ATTAX is now in the MIDI LEARN MODE.



Select the desired effects program, ATTAX preamp sound and parallel effects loop.



Send the PROGRAM CHANGE MESSAGE via the MIDI FOOT CONTROLLER. In other words, select

the active effects program again via MIDI.



The sound you select manually or via the STAGEBOARD is stored as a preset and assigned to the

selected effects program. If you want to change the preset, use the ATTAX front panel control features

or the STAGEBOARD to modify the preset and again activate the effects program via MIDI FOOT

CONTROLLER.



You can immediately select another effects program and thus store other switching combinations as

presets.

End the programming operation by briefly pressing the MIDI LEARN BUTTON.

Note: Before you can call your stored presets, you must ensure the channel selector switches on the ATTAX

front panel and on the STAGEBOARD are set to OFF (not depressed).

ACTIVATING STORED PRESETS VIA MIDI



Switch the ATTAX on.



Ensure the MIDI CHANNEL setting is identical for the ATTAX, the effects processor, and the MIDI

FOOT CONTROLLER



Ensure the channel selector switches on the ATTAX's front panel and on the STAGEBOARD are set to

OFF (not depressed).



Ensure the STAGEBOARD LEDs are not illuminated and the effects loop is inactive.



Now the ATTAX control features are switched according to the data in the stored presets.



Briefly press the MIDI LEARN BUTTON if you want to return to the front panel/STAGEBOARD

switching mode once the ATTAX was switched via MIDI.

ADDITIONAL MIDI SETUPS 3.0

Seite

von

Hughes & Kettner MSM

1 User Manual

22.08.2007

file://C:\Dokumente und Einstellungen\RForse\Desktop\msm1manual.htm

TROUBLESHOOTING

1) THE MSM-1 IS INSTALLED, BUT YOU CAN'T SWITCH THE ATTAX VIA MIDI.



The external device is set to the wrong MIDI channel -> Set the MIDI channel as described in Sec. 2.1

or activate the omni mode.



No presets are stored -> Store presets as described in Section 2.1



No PROGRAM CHANGE MESSAGES are aent to the ATTAX -> Check to see if the external device is

actually sending PROGRAM CHANGE MESSAGES.



The MIDI cable is defective -> Replace the cable and connect the devices as described in section 1.3

2) THE CLEAN AND/OR CRUNCH CHANNELS WILL NOT ACTIVATE PROPERLY VIA MIDI

Seite

von

Hughes & Kettner MSM

1 User Manual

22.08.2007

file://C:\Dokumente und Einstellungen\RForse\Desktop\msm1manual.htm



The channel selector switches on the front panel or Stageboard are still active -> Switch the

appropriate front panel or Stageboard channel selector swithches off.

3) THE PARALLEL EFFECTS LOOP REMAINS ACTIVE WHEN YOU SWITCH THE EFFECT LOOP VIA

MIDI, EVEN THOUGH THE PROGRAMMING DOES NOT CALL FOR AN ACTIVE PARALLEL LOOP.



The ATTAX Stageboard FX switch is active. -> Briefly press the MIDI LEARN BUTTON. If the

corresponding LED on the Stageboard lights, then the FX switch is active. Switch it off.

4) THE EFFECTS LOOP IS ACTIVE, BUT NO EFFECTS ARE AUDIBLE.



The FX-MIX pot is rotated to the dry position -> Dial in more effects signal to the mix.



The effects proccessor's send and return jacks are not currently connected to the ATTAX -> Correct

the cable connections.

5) AFTER YOU SWITCHED THE ATTAX VIA MIDI, YOU CAN'T ACTIVATE THE CRUNCH AND/OR CLEAN

CHANNELS VIA THE FRONT PANEL OR STAGEBOARD SWITCHES. DITTO FOR THE EFFECTS LOOP.



The ATTAX is not in the standard operating mode (CLEAN channel, effects loops "OFF") -> Press the

MIDI LEARN BUTTON or Briefly switch the attax off.

6) THE ATTAX REVERTS BACK TO THE STANDARD MODE DURING MIDI SWITCHING OPERATIOINS

(CLEAN CHANNEL, EFFECTS LOOP "OFF"). THE EFFECTS LOOP IS SUDDENLY DEACTIVATED.



The AC mains power supply was interrupted. -> Check the mains cable, plug, and all extension chords

for defects.

MSM-1 MIDI MODULE INSTALLATION

I. GENERAL INFORMATION

The MSM-1 MIDI Module is designed for installation in Hughes & Kettner products. These devices each

feature a port located on its rear panel. A plate bearing the inscription "TO INSTALL MIDI MODULE:..." covers

the port. In order to install the MSM 1, this cover plate must be removed so that the device’s circuit board

becomes accessible (refer to Sections II. and Ill.).

The MSM 1 is connected to your device via the included cable. This cable is the MSM l’s power conduit. It is

also the communications medium for the two devices: it relays your amp’s operating status to the MSM-1 and

sends switching information.

Ensure only authorized service personnel install the MSM 1.

Always ensure the AC mains plug is removed from the wall socket before opening the main device’s chassis.

Seite

von

Hughes & Kettner MSM

1 User Manual

22.08.2007

file://C:\Dokumente und Einstellungen\RForse\Desktop\msm1manual.htm

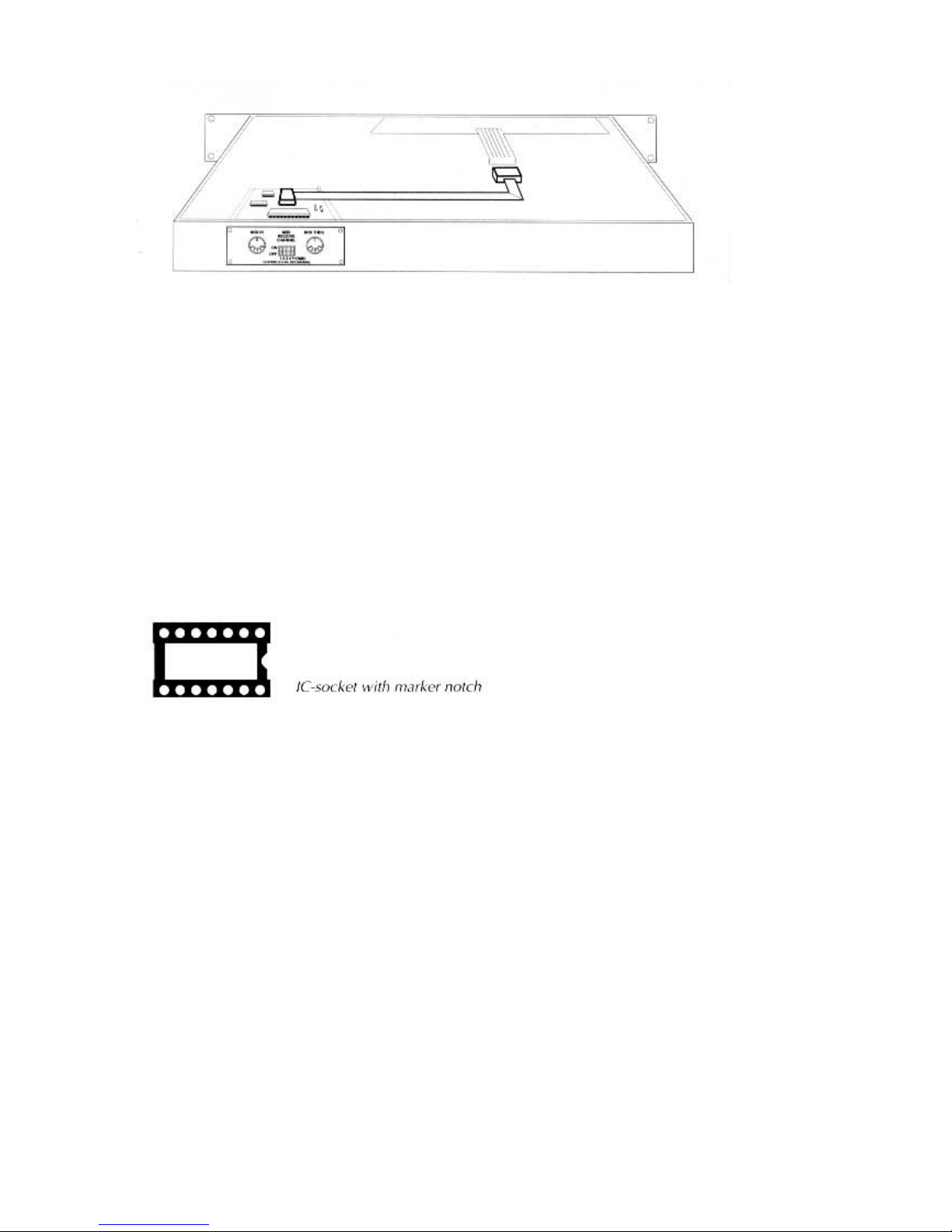

II. INSTALLATION IN 19" DEVICES (e.g. ATTAX Preamp or TUBEMAN PLUS)

1. Unplug the AC mains lead.

2. Remove the cover plate by loosening the four retainer screws.

3. Remove the 19" device’s chassis cover by loosening its retainer screws.

4. Insert the MSM 1 MIDI Module in the open port. Ensure the inscription on the module matches the rear

panel inscriptions, i.e. the module is right side up. Insert and fasten the four cover plate screws to secure the

module.

5. Insert the included flat cable connector plug in the MSM l’s socket so that the colour-coded wire faces the

notch on the socket.

6. The device’s circuit board features an identical socket. Insert the other flat cable

connector in this socket in the same manner, i.e. so that the color-coded wire faces the notch on the socket.

7. Ensure both connectors are seated properly. Replace the chassis cover and fasten the retainer screws.

All MIDI functions are accessible once the device is powered up. Run through all switching operations to

ensure the device is functioning properly.

INSTALLATION IN AMPS/COMBOS (e.g. ATTAX 100, ATTAX 200)

1. Unplug the amp’s AC mains lead.

2. Remove all connectors (e.g. spring reverb or speakers).

3. Remove the amp’

s chassis by loosening the retainer screws at the top of the amp. Do not allow the chassis

to drop.

4. Remove the port’s cover plate on the chassis’ rear panel.

5. Insert the MSM 1 MIDI Module in the open port. Fasten the four cover plate screws to secure the module.

Ensure the inscription on the module matches the rear panel inscriptions, i.e. the module is right side up.

Seite

von

Hughes & Kettner MSM

1 User Manual

22.08.2007

file://C:\Dokumente und Einstellungen\RForse\Desktop\msm1manual.htm

6. Insert the included flat cable connector plug in the MSM l’s socket so that the color-coded wire faces the

notch on the socket.

7. The amp’s circuit board features an identical socket. Insert the other flat cable connector in this socket in

the same manner, i.e. so that the color-coded wire faces I the notch on the socket.

8. Ensure both connectors are seated properly.

9. Remount the amp chassis to the housing and secure all cable connections (e.g. spring reverb, speakers,

AC mains).

10. All MIDI functions are accessible once the amp is powered up. Run through all switching operations to

ensure the amp is functioning properly.

Seite

von

Hughes & Kettner MSM

1 User Manual

22.08.2007

file://C:\Dokumente und Einstellungen\RForse\Desktop\msm1manual.htm

Tabla de contenidos

Otros manuales de Amplificador de Hughes & Kettner

Hughes & Kettner

Hughes & Kettner SYSTEM GUITAR COMBO ATS SIXTY Manual de usuario

Hughes & Kettner

Hughes & Kettner GRANDMEISTER DELUXE 40 Manual de usuario

Hughes & Kettner

Hughes & Kettner tubeman Manual de usuario

Hughes & Kettner

Hughes & Kettner Access Manual de usuario

Hughes & Kettner

Hughes & Kettner TubeMeister Deluxe 20 Manual de usuario

Hughes & Kettner

Hughes & Kettner TubeMeister 36 Manual de usuario

Hughes & Kettner

Hughes & Kettner SWITCHBLADE TSC Head 100 Manual de usuario

Hughes & Kettner

Hughes & Kettner TubeMeister 18 Manual de usuario

Hughes & Kettner

Hughes & Kettner zenTera DSM-modeling Guitar Amp Manual de usuario

Hughes & Kettner

Hughes & Kettner Warp-T Manual de usuario

Hughes & Kettner

Hughes & Kettner VS 250 Manual de usuario

Hughes & Kettner

Hughes & Kettner State sman Manual de usuario

Hughes & Kettner

Hughes & Kettner Edition Blue 60-R Manual técnico

Hughes & Kettner

Hughes & Kettner Black Spirit 200 floor Manual de usuario

Hughes & Kettner

Hughes & Kettner BassForce XXL Manual de usuario

Hughes & Kettner

Hughes & Kettner Tour Reverb Manual de usuario

Hughes & Kettner

Hughes & Kettner Vortex Manual de usuario

Hughes & Kettner

Hughes & Kettner Bass Kick 100 Manual de usuario

Hughes & Kettner

Hughes & Kettner TubeMeister 18 Manual de usuario

Hughes & Kettner

Hughes & Kettner BATT Manual de usuario

Hughes & Kettner

Hughes & Kettner TRIAMP MK II Manual de usuario

Hughes & Kettner

Hughes & Kettner SwitchBlade series Manual de usuario

Hughes & Kettner

Hughes & Kettner SPIRIT NANO Series Manual de usuario

Hughes & Kettner

Hughes & Kettner TriAmp Mark 3 Manual de usuario

Manuales populares de Amplificador de otras marcas

ASTRO

ASTRO HVO V40 P Manual de usuario

Marantz

Marantz SUPERSCOPE BLA-545 Instrucciones de montaje

NAD

NAD CI980 Manual de usuario

Technics

Technics SE-CH770 Manual de usuario

Harman Kardon

Harman Kardon HK6300 Manual de usuario

NAD

NAD T975 Manual de usuario

McIntosh

McIntosh MA6850 Manual de usuario

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manual de usuario

Viatron

Viatron Autrix Manual de usuario

GME

GME GA9800 Manual de usuario

Atlas

Atlas CP700 Manual de usuario

Roland

Roland KC-1000 Manual de usuario

Pyle

Pyle PFMRA350BW Manual de usuario

Advantage

Advantage S-250 Manual de usuario

IRT Electronics

IRT Electronics DVA-3007 Manual de usuario

Dimavery

Dimavery BA-100 Series Manual de usuario

Sony

Sony XM-S400D Manual de usuario

Schertler

Schertler ROY X Manual de usuario
