Huawei EchoLife HG521 Manual de usuario
EchoLife HG521
Home Gateway Quick Start
1 Connecting the Cables

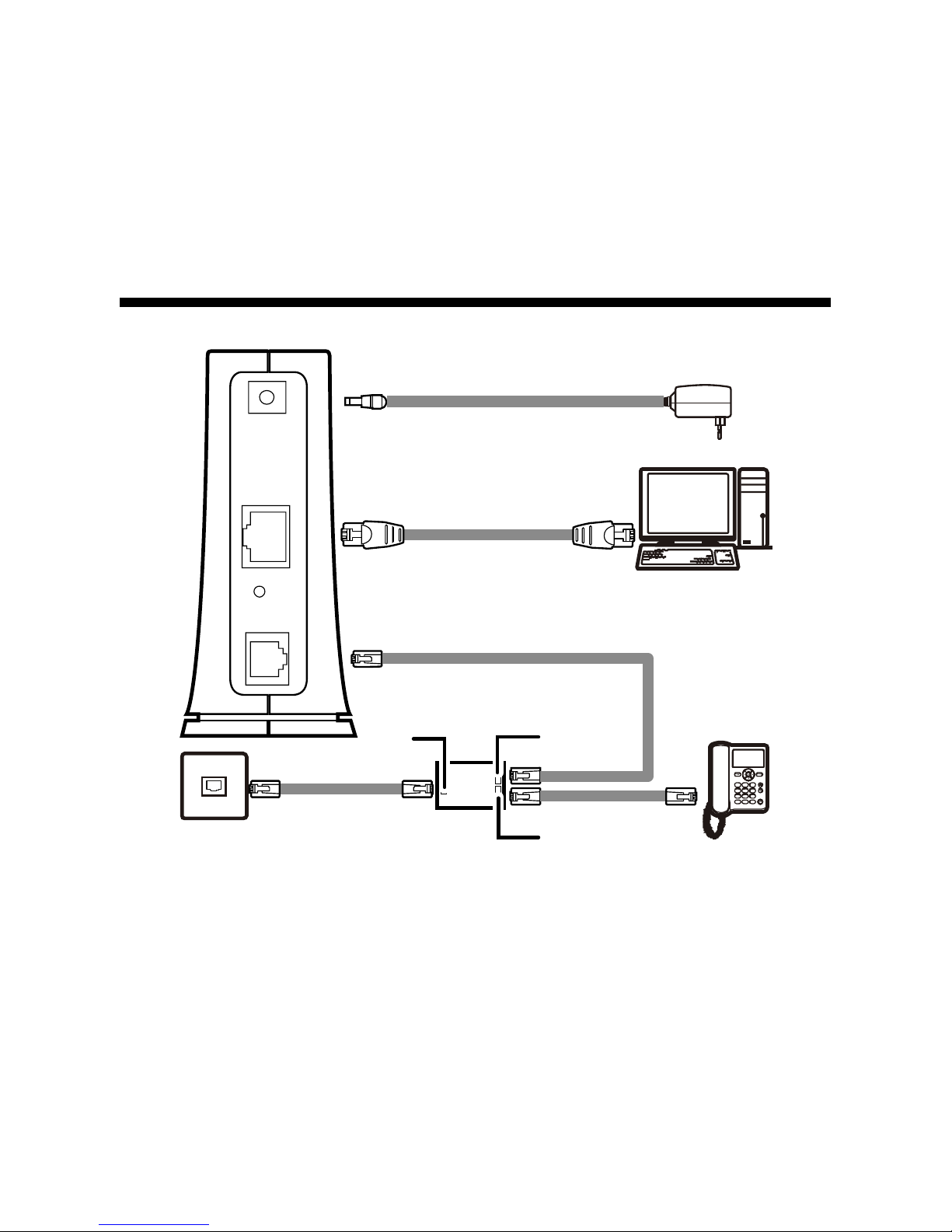

The following figure shows how to connect the cables of the HG521.
####
### # ####
1
34
POWER
LAN
RESET
ADSL
5
PHONE
LINE MODEM
2
1. Power adapter 2. Computer 3. Telephone jack on the wall
4. Splitter 5. Telephone
1
To connect the cables, do as follows:
Step 1 Connect the telephone jack on the wall to the LINE interface on the splitter
with a telephone line. Connect the telephone to the PHONE interface on the
splitter with a telephone line.
####
### # ####
LINE PHONE
Step 2 Connect the ADSL interface on the HG521 to the MODEM interface on the
splitter with a telephone line.
POWER
LAN
RESET
MODEM
####
#### ####
ADSL
2
Step 3 Connect the LAN interface on the HG521 to the Ethernet interface on your
computer with a network cable.
POWER
LAN
RESET
ADSL
Step 4 Connect the POWER interface on the HG521 to the power socket with the
power adapter.
POWER
LAN
RESET
ADSL
3
2 Getting Started
To power on the HG521, press the power button on the top of the HG521.
After you power on the HG521, the ADSL indicator blinks (for less than three minutes),
which indicates that the HG521 is being activated. After the ADSL indicator stops
blinking, the POWER and ADSL indicators turn solid on, which indicates that the
HG521 is working properly.
3 Configuring the HG521
Power off the HG521 if the embedded dial-up function is enabled but the
HG521 is not used for network access. Otherwise, even if you have shut
down your computer, the network operator may still charge you for
network access.
To configure the HG521, do as follows:
Step 1 Log in to the Web-based configuration utility of the HG521.
1.
2.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Launch the Internet Explorer on your computer. Enter http://192.168.1.1 in
the address bar, and then press Enter.
In the displayed dialog box, enter the user name and the password, and then
click OK.
By default, both the user name and the password are admin. After the user name and the
password are verified, you can access the Web-based configuration utility.
Step 2 Enable the embedded dial-up function.
In the navigation tree on the left of the Web-based configuration utility,
choose Basic > WAN.
Click New.
Select Enable from the WAN connection combo box.
Enter the VPI and VCI that are provided by the network operator in the
VPI/VCI text boxes.
Select INTERNET from the Service list drop-down combo box.
Select Route from the Connection mode drop-down combo box.
Select PPPoE option box of Connection type.
Select Enable from the NAT combo box.
Enter the user name and password that are provided by the network operator
in the Username and Password text boxes, and keep the default settings of
other parameters.
Click Submit to save the settings.
After you complete the preceding settings, you can surf the Internet.
4
You need to perform the preceding operations on a computer once only. The next time
when you power on your computer, you can surf the Internet without any configuration.
4 Configuring the Wireless Network
Connection
If a wireless network adapter is installed on your computer, you can connect your
computer to the HG521 through a wireless connection. To configure the wireless
network connection, do as follows:
Step 1 Set the wireless network name and access password of the HG521.
To set the wireless network name and the access password, do as follows (taking the
authentication type WPA-PSK as an example):
1.
2.
3.
4.
5.
6.
7.
8.
9.
1.
2.
3.
4.
In the navigation tree on the left of the Web-based configuration utility,
choose Basic > LAN > WLAN.
Select the Enable WLAN combo box.
Select the SSID1 from the SSID index drop-down combo box.
Enter a wireless network name in the SSID text box.
Select the Enalbe option box of SSID.
Select WPA-PSK from the Security drop-down combo box.
Enter an access password in the WPA pre-shared key text box.
Select TKIP from the WPA encryption drop-down combo box.
Click Submit to save the settings.
Step 2 Configure the wireless network connection on your computer.
To configure the wireless network connection, do as follows (taking the Windows XP
operating system as an example):
Choose Start > All Programs > Accessories > Communications >
Network Connections.
In the Network Connections window, right-click Wireless Network
Connection to display a shortcut menu, and then select View Available
Wireless Networks from the shortcut menu.
Select the wireless network that is configured in Step 1 from the wireless
network list, and then click Connect in the lower right corner of the window.
In the displayed dialog box, enter the access password that is preset in Step
1, and then click Connect.
After the password is verified, Connected appears on the icon of the wireless network in
the wireless network list, which indicates that your computer is connected to the HG521
through wireless connection.
5
Copyright © Huawei Technologies Co., Ltd. 2009. All rights reserved.
Trademarks and Permissions
, , and
are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
Other trademarks, product, service and company names mentioned are the property of their respective
owners.
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE
ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL
HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL, INCIDENTAL,
INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE,
DATA, GOODWILL OR ANTICIPATED SAVINGS.
Issue: 01 (2009-08-13)
Part Number: 201109
6
