Huawei E589 Manual de usuario

1

Thank you for choosing HUAWEI Mobile WiFi

Supported functions and actual appearance depend on the specific models you purchased.

The illustrations are provided for your reference only. For details about the model you

selected, consult your service provider.

This guide briefly describes the functions of the Mobile WiFi. For more details, see help on

the web management page.

Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved.

THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT CONSTITUTE

ANY KIND OF WARRANTIES.

2

Getting to Know HUAWEI Mobile WiFi

Connection Scenario

A Wi-Fi device can be connected to the Internet through the Mobile WiFi. The actual

connection procedure depends on the operating system of the Wi-Fi device. The

connection scenario illustrated here is for your reference.

3

Appearance

No. Item

1 Screen

2

WPS button

Press it twice consecutively to display

the SSID and wireless network key.

Press and hold it until a WPS

activation animation is displayed to

enable the WPS function.

3 Power/Wi-Fi button

4 SIM card slot

5 Strap hole

6 USB port

7 Reset button

8 microSD card slot

1

2

3

4

5

6

7

8

4

Screen

No. Item

1 Signal strength

2 Network

3 Wi-Fi enabled

Number of devices connected

4 Internet connection status

5 New messages

Number of new messages

6 Battery level

7 International roaming state

8 Traffic data

Connection duration

9 A: Auto mode

M: Manual mode

1

2

3

4

5

6

R

8

7

0.00 00:00

MB

A

9

4G

8

Charging the Battery

Charge your Mobile WiFi the first time you use it or if it has not been used for a long time.

Method 1: Using the charge

r

Caution:

Only use chargers compatible with the

Mobile WiFi and provided by a designated

manufacturer. Use of an incompatible

charger or one from an unknown

manufacturer may cause the Mobile WiFi

to malfunction, fail, or could even cause a

fire. Such use voids all warranties, whether expressed or implied, on the product.

The charger is an optional accessory. If the charger is not provided in the package,

you can contact your local dealer to buy one yourself.

9

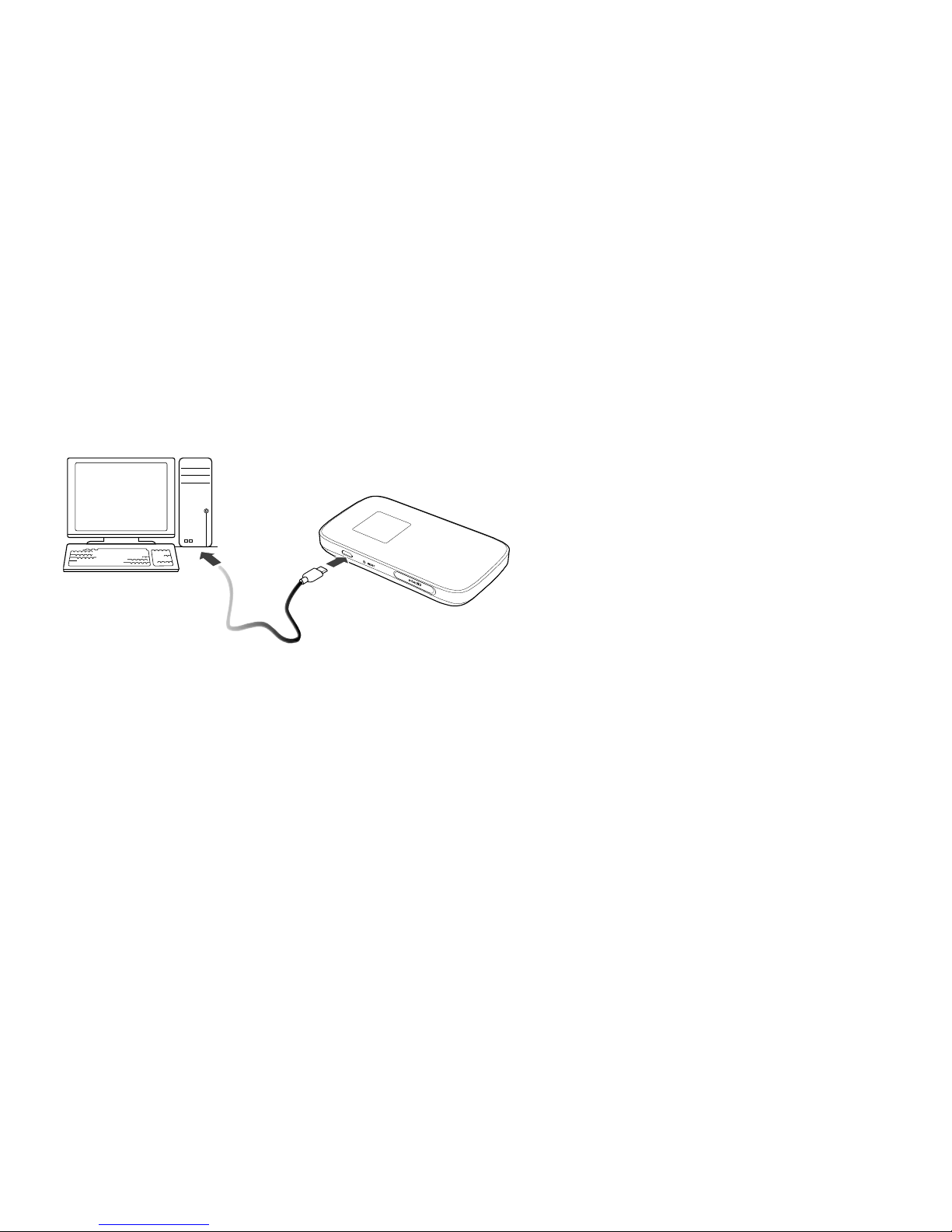

Method 2: Connecting to a PC for charging

Connect the Mobile WiFi to a PC using a compatible data cable.
