Huawei B525 Manual de usuario

B525 LTE CPE

Quick Start

1 Product overview

Power indicator Network status indicator

Wi-Fi®/WPS indicator LAN/WAN indicator

Signal strength indicator Power input

LAN/WAN port External antenna sockets

USB port Landline phone port

Reset button micro-SIM card slot

WPS button Power button

2 Setup

SSID：....................

Wi-Fi KEY：.............

SSID-5G：....................

Insert a micro-SIM card into the micro-SIM card slot as shown in the

preceding diagram and then connect the power adapter to the B525 router.

The router will turn on automatically and search for available mobile

networks.

The following indicators will turn on when the router has successfully

connected to a network.

Cyan/blue/yellow:

Connected to a mobile

network.

White: More signal bars

indicate a stronger signal.

Do not insert or remove a micro-SIM card when the router is running, as this

may affect performance or damage the micro-SIM card.

3 Connecting to your router's Wi-Fi

network

Once the router has connected to a mobile data network, you can connect

your computer or mobile phone to the router'sWi-Fi network to access the

Internet. Please refer to the label on the bottom of the router for the default

wireless network name (SSID) and password (Wi-Fi KEY).

When the indicator is steady on,Wi-Fi is enabled. To enable or

disable Wi-Fi, refer to the help section on the router's web-based

management page.

Ensure that you promptly change the Wi-Fi network name and password

on the web-based management page to prevent unauthorized access to

your Wi-Fi network. Once you have changed the password, you will need

to reconnect to the router'sWi-Fi network.

4 Configuring your router

User name:

yyy

Password:

zzz

XXX.XXX.X.X

User name：

yyy

Password：

zzz

IP:XXX.XXX.X.X

User:yyy

Password:zzz

You can configure the router using the web-based management page.

Please refer to the label on the bottom of the router for the default IP

address, user name, and password.

More information can be found in the help section of the web-based

management page.

You will be prompted to change the default login password for the web-

based management page to prevent unauthorized users from changing the

router's settings.

5 Optional configurations

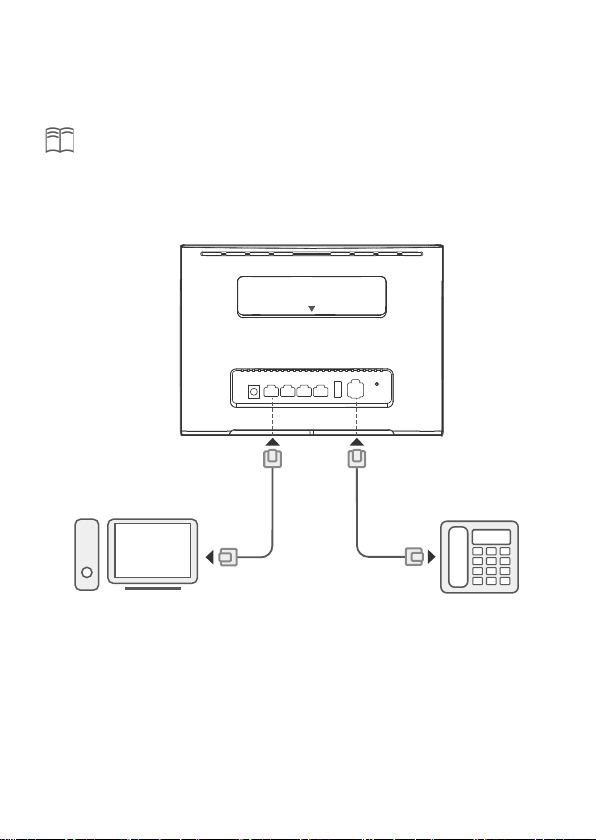

1. Connecting multiple devices

You can connect a computer, or landline phone to the router to access the

Internet, make telephone calls, and more.

The features described in this section are for reference purposes only.Your

router may not support all of these features.

31508391_01

2. Installing external antennas

You can install external antennas to improve signal reception. Please contact

your network service provider to purchase the antennas. If you only require

one antenna, plug it into the socket.

Turn off the router and unplug the power adapter before installing any

external antennas.

External antennas are only suitable for indoor use. Do not use external

antennas during thunderstorms.

Only use external antennas provided by your network service provider.

3. Accessing the Internet through an Ethernet port

You can connect the router to a wall-mounted Ethernet port using an

Ethernet cable to connect to the Internet when you have used up your data

allowance.

Configure the relevant settings on the web-based management page before

connecting to the Internet through an Ethernet port. More information can

be found in the help section of the web-based management page.

4. Downloading Huawei HiLink App

Scan the QR code to download the Huawei HiLink App and configure the

router from your phone.
