Huawei ATOM GPS NE08E Manual de usuario

HUAWEI TECHNOLOGIES CO., LTD.

ATOM GPS (Indoor NE08s and AE 905S)

Quick Installation Guide

Issue: 01

Date: 2016-12-20

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address:

Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website:

http://www.huawei.com

Email:

[email protected]

Installation Flow

PrecautionsPage 1

Introduction to the

ATOM GPS

Page 2

Installing the GPS

Satellite Antenna System

Pages

4-5

End

Start

Preparation

For

Installation

Tools for InstallationPage 1

Appendixes

Pages

7-8

Assembling OT

Terminals

Page 7

Perform power-on checkPage 6

Requirements for GPS

Antenna Installation

Positions

Page 8

Overall Installation EffectPage 3

Precautions

•This document aims to provide simple and distinctive guidelines for hardware installation.

•This document does not describe operations for the pre-delivery installation. Instead, this document

describers only the operations for on-site installation.

•This document describes how to connect the ATOM GPS to the GPS Satellite Antenna System. The ATOM

GPS consists of the indoor NE08E and AE 905S. This example uses the NE08E-S6.

•For requirements on the GPS installation, see GPS Satellite Antenna System Quick Installation Guide.

•For requirements on the GPS antenna position, see Appendixes 2.

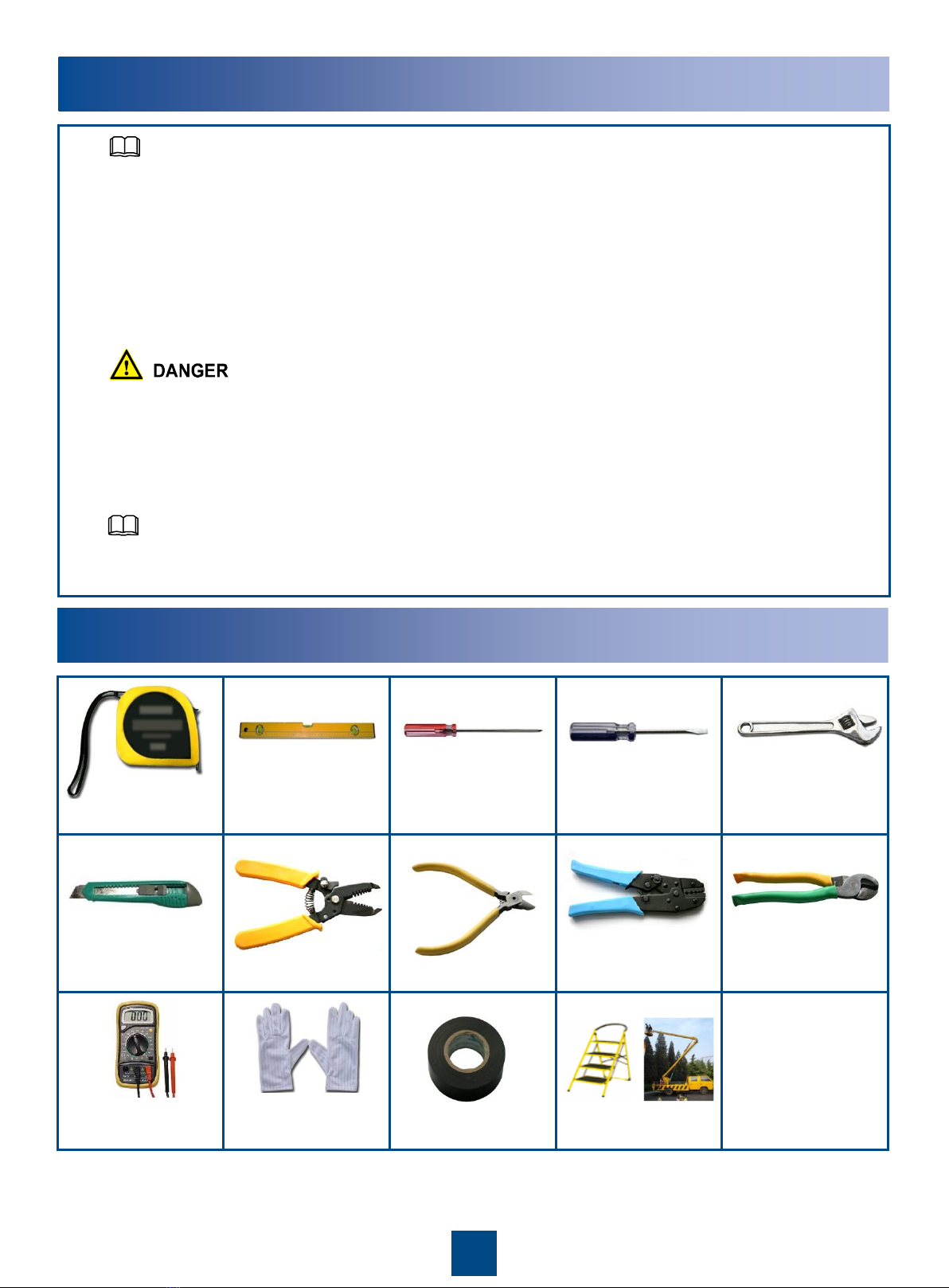

Measuring tape Phillips screwdriver Flat-head screwdriver Adjustable WrenchLevel

Ratchet crimp tool Cable CutterWire stripper Diagonal pliersPaper knife

Multimeter ESD gloves Insulation tape

Tools for Installation

Ladder or ladder truck

NOTE

•EHS requirements: The installation personnel should wear safety belts, helmets, shoes, and gloves for

climb operations.

•Exercise caution when touching the device with the high temperature identification to avoid scalding.

•When installing or maintaining fibers, do not look into the optical port without eye protection. The infrared

laser emitted by the optical interfaces can cause permanent eye damage.

Use cables delivered with Huawei devices or cables complying with Huawei standards.

NOTE

Introduction to the ATOM GPS

Before inserting an AE 905S to an optical interface, lock the

ejector lever. Before removing an AE 905S from an optical

interface, loosen the ejector lever.

Although the AE 905S can be inserted into an optical

interface, it cannot be installed on an NED1EG2 board.

If you need to install two AE 905Ss on a device, separately

installing them on the optical interfaces of two boards is

recommended.If you need to install two AE 905Ss on the

same board, inserting the modules at an interval of at least

four optical interfaces is recommended.

Loosen the ejector lever.

a Indoor NE08E (Example:NE08E-S6)

AE 905S

Optical interface Alarm interface

Power supply interface Clock interface

Time interface

Antistatic jack interface

Optical interface

NM interface

(Console interface)

PGND point

Electrical interface

Lock the ejector lever.

NOTE

Overall Installation Effect

a Typical Scenario 1

Typical Scenario 2

NE08E

GPS antenna

lightning protection

component

Feeder

Route the feeder along the cable rack that is mounted on the wall and use feeder fasteners to fix the feeder.

The interval between feeder fasteners is 2.5 m.

Route the feeder along the cable rack that is mounted on the wall and use feeder fasteners to fix the feeder.

The interval between feeder fasteners is 2.5 m.

NE08E

GPS antenna

lightning protection

component

Feeder

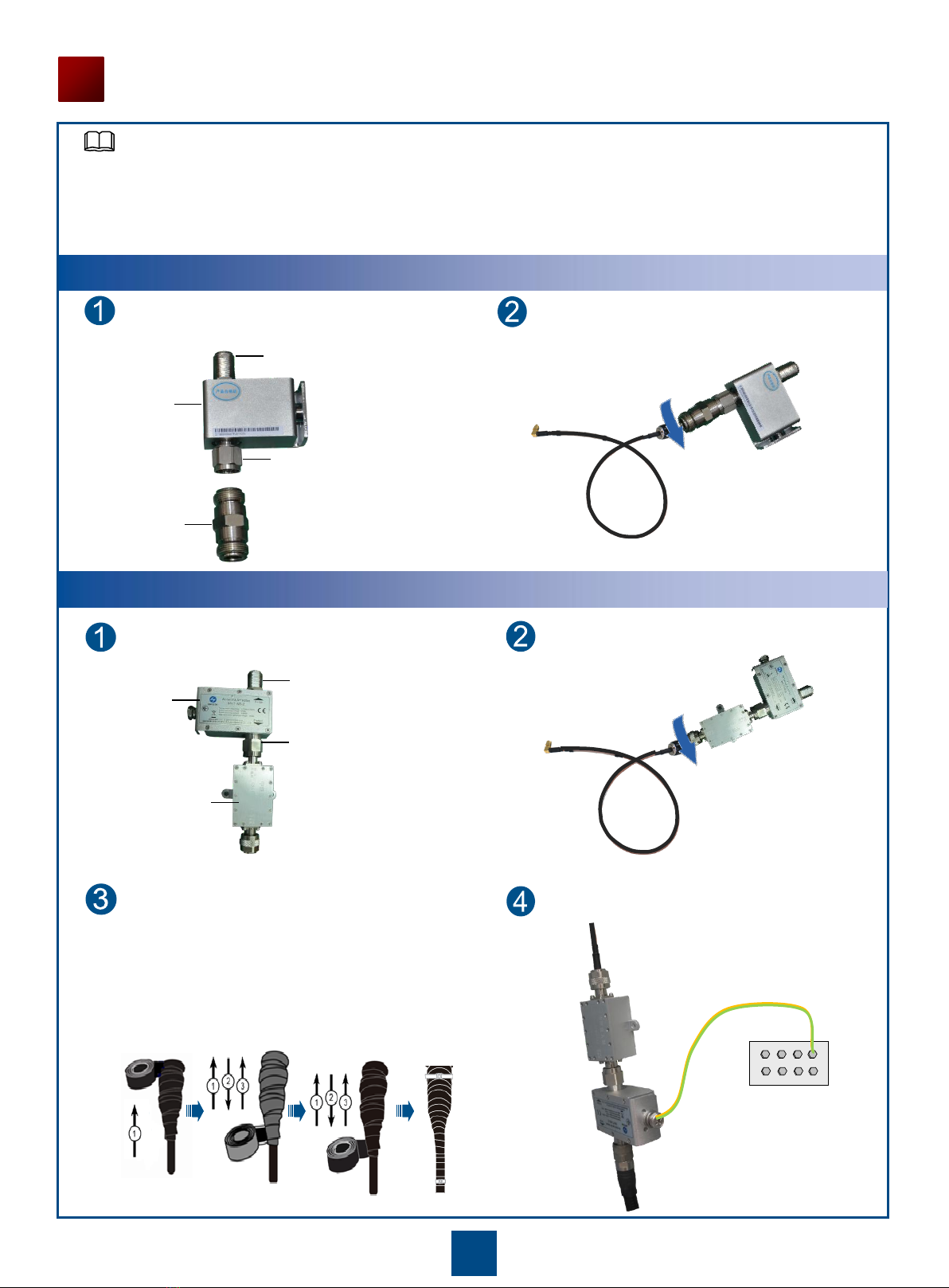

Standalone Deployment of a Lightning Protection Component

Install the dual-female conversion adapter on

the Protect interface of the lightning protection

component.

Connect one end of the coaxial cable to the RF

OUT interface of the amplifier, and use the

wrench to secure the joint.

Connect one end of the coaxial cable to the

Protect interface of the lightning protection

component, and use a wrench to secure the

joint.

For requirements on the GPS installation, see GPS Satellite Antenna System Quick Installation Guide.

For requirements on the GPS antenna position, see Appendixes 2.

This document describes how to connect the ATOM GPS to the GPS.

Deploy amplifiers based on the GPS feeder length. Deploy one amplifier if the feeder length exceeds 80 m.

Dual-female

conversion

adapter

Lightning

protection

component

Protect

Surge

Installing the GPS Satellite Antenna System

Deployment of a Lightning Protection Component Together with an Amplifier

Surge

Connect the RF IN interface of the amplifier to the

Protect interface of the lightning protection

component, and use a wrench to secure the joint.

Lightning

protection

component Protect

Amplifier

Ground bar

Install the ground cable of the lightning

protection component.

At the joint between the coaxial cable and the

Protect interface of the lightning protection

component or the RF OUT interface of the

amplifier, implement 1+3+3 waterproof

protection. Use one cable tie on each end of

the tape to secure the adhesive tape.

NOTE

Wrap one layer

of insulation

tape.

Wrap three layers

of waterproof

tapes.

Wrap three layers

of insulation

tapes.

Use one

cable tie on

each end.

Install the GPS feeder by connecting one end

of the feeder to the Surge interface of the

lightning protection component and the other

end to the GPS antenna. Use the wrench to

secure the joint.

Implement 1+3+3 waterproof protection. Use

one cable tie on each end of the tape to

secure the adhesive tape.

•Implement waterproof protection for the

feeder-and-lightning-protection-surge joint.

•Implement waterproof protection for the

feeder-and-GPS-antenna-N joint.

Insert the AE 905S into an optical interface of

the NE08E device, with the wrench on the AE

905S being locked.

Connect the other end of the coaxial cable to

the AE 905S.

The coaxial cable must be routed without affecting the

cabling of neighboring boards.

Do not connect the coaxial cable to any AE 905S

inserted into an optical interface adjacent to another

optical interface with an optical attenuation module.

Wrap one layer

of insulation

tape.

Wrap three layers

of waterproof

tapes.

Wrap three layers

of insulation

tapes.

Use one

cable tie on

each end.

For requirements on the GPS feeder joint production,

see GPS Satellite Antenna System Quick

Installation Guide.

NOTE

Perform power-on check

1 Check the indicator of the AE 905S

the indicator

Status Description

Steady on (Green) The AE 905S module works properly.

Steady on (Red) The AE 905S module encounters a hardware

fault or overtemperature event.

Flashing at an interval of 1s

(Red) The frequency or time of the GPS is out of

lock.

Flashing at an interval of 1s

(Green) The GE port is unavailable (not linked).

Off 1. The module is not running.

2. The module is not powered on.

Assembling OT Terminals

Material: OT terminals (ring terminals) , heat-shrinkable tube and cable.

Strip a part of the jacket off the cable to expose the

conductorwith a length of L1.

L1 = 23 mm to 25 mm

Conductor

When stripping the jacket off the cable, do not

damage the metal conductor of the cable.

Press the end of the contact terminal on the

conductor by using the crimping tool.

Heat the heat-shrinkabletube by using a heat gun.

Lead the cable through the heat-shrinkable tube,

and then place the contact terminal on the

exposed conductor.

A: heat-shrinkable

B: OT terminals

•Close contact between the contact terminal and the end of

the jacket of the cable is required.

•When placing the contact terminal on the conductor

closely to the end of the jacket, ensure that the L2 part of

the conductor which sticks out of the contact terminal

cannot exceed 2 mm.

C: power cable

insulation layer

Heat gun

Do not overheat the heat shrink tube. Otherwise,

the insulation layer may be damaged.

CAUTION

CAUTION CAUTION
