Huawei E5186 Manual de usuario
Quick Start
1
Thank you for purchasing the CPE. This CPE brings you a high
speed wireless network connection.
This document will help you understand your CPE so you can start using it right away. Please
read this document carefully before using your CPE.
For detailed information about the functions and configurations of the CPE, refer to the online help
on the web management page that comes with the CPE.
Getting to Know Your CPE
Note:
zDuring thunderstorms and rainy weather, turn off and disconnect the CPE.
zThe CPE function descriptions and illustrations in this document are for your reference
only. The product you have purchased may vary.
Application Scenario
The CPE can:
zProvide Internet access for Wi-Fi devices and computers.
zConnect to telephones for voice services.
Note:
When connected to a 2G network, the CPE supports circuit switched (CS) calls but not VoIP.
zConnect to fax machines for fax services.
zBe used to save and share files in USB storage devices.
zConnect to a USB printer.
zExpand LAN coverage together with hubs and switches.

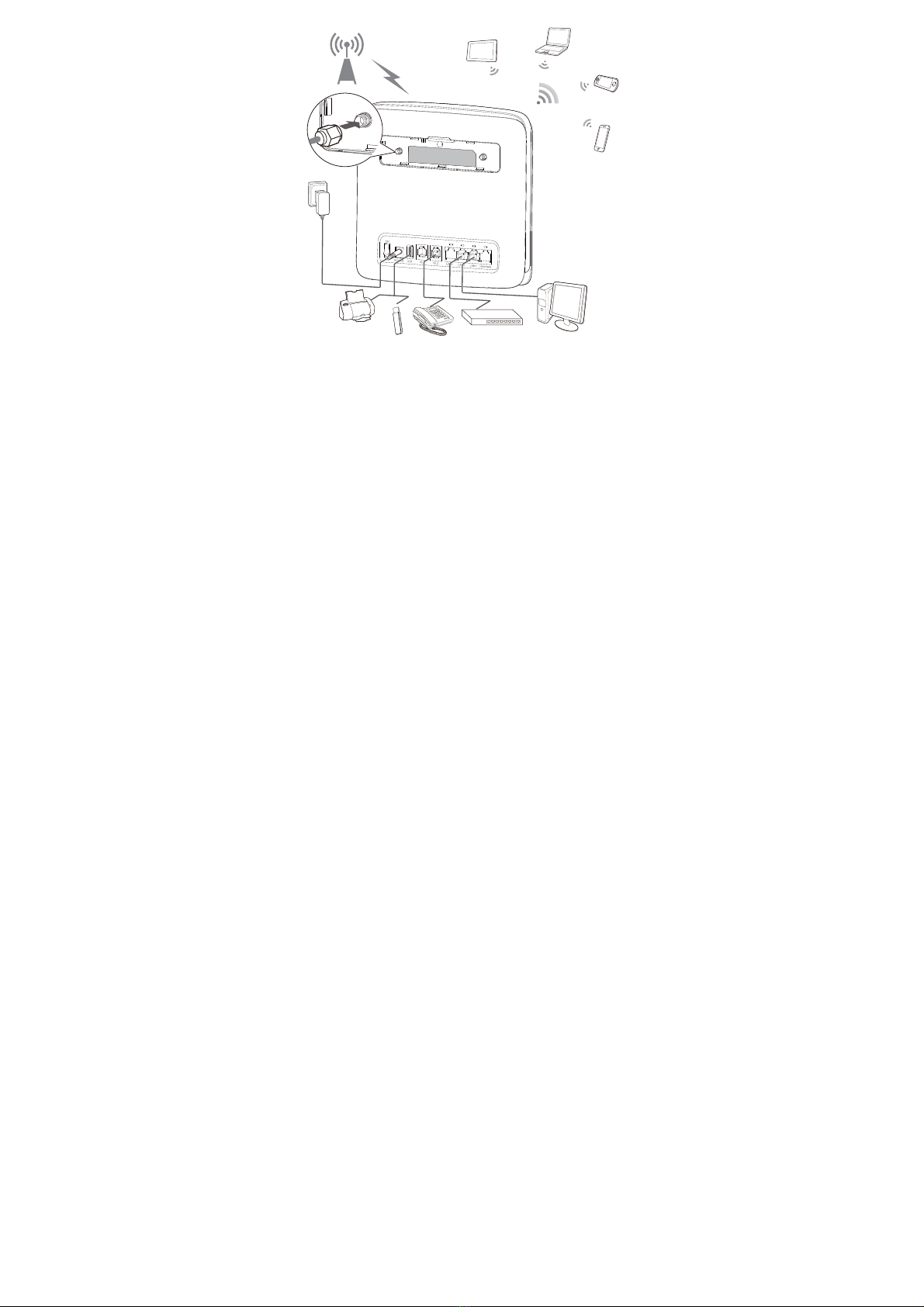

Scenario 1: Accessing the Internet Using an LTE, 3G, or 2G Network
The CPE uses your operator's LTE, 3G, or 2G network to access the Internet.
2
Note:
zWhen the CPE is in use, you can alter its position or orientation to improve signal
reception.
zThe external antenna is an optional accessory. If it is not included in the package, you may
contact an authorized dealer to buy an external antenna compatible with the CPE.
Scenario 2: Accessing the Internet Using Ethernet (WAN)
Connect the CPE's LAN4/WAN port to an Ethernet port using a network cable. You can then
access the Internet through Ethernet, such as a home ADSL, hotel DHCP, or campus static IP
broadband network. To access the Internet through Ethernet:
1.Use the network cable to connect the CPE to the Ethernet port.
LTE/3G/2G
3
2.Log in to the CPE's web management page and configure the parameters of the Ethernet
connection.
zDynamic IP: Does not need to be configured.
zPPPoE: Enter the user name and password for a dial-up connection.
zStatic IP: Select static IP in connection mode and enter the IP address, default gateway address, DNS
server address, and so on.
Note:
For detailed information about the user name, password, IP address, default gateway
address, DNS server address, and other settings, contact your operator.
3.When is steady green, the Ethernet connection is successful.
WAN/Ethernet
4
Selecting the Installation Environment
Obstacles such as concrete and wooden walls will affect the transmission of the network signal. It
is recommended that when you install CPE you choose an open space.
Keep the CPE away from equipment that generates strong magnetic and electric fields, for
instance microwaves, refrigerators, and satellite receivers.
Appearance
○,1Power indicator
zOn: CPE turned on
zOff: CPE turned off
○,2Mode indicator
zSteady cyan: The CPE is connected to an LTE network.
zSteady blue: The CPE is connected to a 3G network.
zSteady yellow: The CPE is connected to a 2G network.
zSteady green: The CPE is connected to an Ethernet network.
zSteady red:
1011 12 13 15
14
17
16
18
12345
7
8
6
9
5
−The micro SIM card is not recognized, the PIN has not been entered, or the PIN
verification failed.
−The CPE failed to connect to a wireless network.
−The CPE is overheating. Its network connection is disconnected so the device can cool
down.
○,3Wi-Fi indicator
zOn: Wi-Fi function enabled
zBlinking: WPS interconnection verification is in progress. This process should not take longer
than 2 minutes.
zOff: Wi-Fi function disabled
○,4Voice indicator
zOn: Off-hook condition
zBlinking: Incoming call
zOff: On-hook condition
○,5Signal indicator
zOn: Indicates network signal strength. Full light indicates strong signal.
zOff: No network signal.
○,6Micro SIM card slot
Accommodate a micro SIM card.
○,7Wi-Fi button
Press and hold for less than 1 second to enable or disable the Wi-Fi function.
Note:
The CPE supports 2.4 GHz and 5 GHz Wi-Fi networks.
○,8Reset button
Press and hold for more than 3 seconds to restore the CPE to its factory settings.
Note:
Restoring the default settings of the CPE will override all the previous settings.
○,9WPS button
6
When WPS is enabled, press and hold the button for one to five seconds to set up a 2.4 GHz
WPS connection, or press and hold the button for more than five seconds to set up a 5 GHz WPS
connection.
○,10 Power button
Press this button to power the CPE on or off.
○,11 Power port
Connect to the CPE's power adapter.
○,12 USB port
Connect to a USB storage device or USB printer.
Note:
zThe CPE supports USB 1.1 and 2.0 storage devices in FAT16, FAT32, ext2, and ext3
formats. Storage devices with power supply requirements exceeding USB standards may
not work properly. It is recommended that you prepare an external power supply in these
cases.
zThe CPE is compatible with samba-supported USB printers.
zThis port cannot be connected to USB host devices, such as computers.
○,13 TEL ports (RJ11)
Connect to telephones or a fax machine.
Note:
Do not connect a telephone and fax machine to the CPE simultaneously.
○,14 LAN ports (RJ45)
Connect to computers, switches, or other network devices.
○,15 LAN4/WAN port (RJ45)
Connect to an Ethernet port, computer, switch, or other network device.
○,16 LAN4/WAN indicator
zOn: The port is connected to an Ethernet port or device.
zBlinking: Data is being transmitted through the port.
7
zOff: The port is not connected to an Ethernet port or device.
○,17 LAN indicators
zOn: The port is connected to a device.
zBlinking: Data is being transmitted through the port.
zOff: No device is connected to the port.
○,18 External antenna ports (SMA-J)
Connect to external antennas (optional).
Note:
Before you connect an external antenna to the CPE, remove the CPE's rear cover.
To activate external antennas: click on System in the menu , then click on Antenna settings,
choose External and press Submit. The same procedure is used wether you use included
antennas, or antennas you have bought yourself.
Getting Started
Installing the Micro SIM Card
Install the micro SIM card according to the illustration.
8
Note:
zWhen removing the micro SIM card, gently press the micro SIM card in, then release. The
card will automatically pop out.
zDo not remove the micro SIM card when the CPE is powered on. Doing so will affect the
performance of your CPE, and data stored on the micro SIM card may be lost.
Connecting to a Power Adapter
Install the power adapter according to the illustration.
9
Note:
zUse the provided power adapter. Use of an incompatible power adapter or one from an
unknown manufacturer may cause the CPE to malfunction, fail, or could even cause a fire.
Such use voids all warranties, whether expressed or implied, on the product.
zThe CPE's power adapter model is HW-120200XYW. X and Y represent letters or
numbers that vary by region. For details about the specific adapter model, contact an
authorized dealer.
Logging In to the Web Management Page
The web-based configuration utility can be used for initial CPE installation, parameter
configuration, and function management through the browser.
The Windows 7 operating system and Internet Explorer 8.0 are used as an example. Ensure that
the CPE is connected to the computer. Follow these steps to log in to the web management page:
1.Connect CPE cables.
2.Configure the computer's IP address so that the IP addresses of the computer and the CPE
are in the same network segment.
Note:
zOn the back of the router is a label with information that you will need.
zMake sure Wireless Network is activated on your computer.
zYour computer will discover any available wireless networks. Select
your network name (WLAN – Name) from the list which is displayed
where you select a network connection.
zWhen prompted, enter your security key (WLAN – Key).
zYou are done when you can see on your computer that you are
