About This Document
Intended Audience
This document describes hardware installation and basic configuration of the
S2700/3700/5700/6700 series to help you understand S2700/3700/5700/6700 hardware and
configuration.
This document is intended for:
lNetwork planning engineers
lHardware installation engineers
lCommissioning engineers
lOnsite maintenance engineers
lSystem maintenance engineers
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol Description
DANGER
Indicates a hazard with a high level or medium level of risk
which, if not avoided, could result in death or serious injury.
WARNING
Indicates a hazard with a low level of risk which, if not
avoided, could result in minor or moderate injury.
CAUTION
Indicates a potentially hazardous situation that, if not
avoided, could result in equipment damage, data loss,
performance deterioration, or unanticipated results.
TIP
Provides a tip that may help you solve a problem or save time.
NOTE
Provides additional information to emphasize or supplement
important points in the main text.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide About This Document
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
ii
Change History
Changes between document issues are cumulative. The latest document issue contains all the
changes made in earlier issues.
Issue 12 (2013-07-25)
This version has the following updates:
The following information is modified:
lS5710-HI installation instruction.
l2.4 Connecting Cables.
Issue 11 (2013-05-30)
This version has the following updates:
The following information is added:
S5710-HI installation instruction.
The following information is modified:
l2.2 Installing a Chassis.
l2.3 Installing and Removing Device Modules.
l2.4 Connecting Cables.
Issue 10 (2013-02-08)
This version has the following updates:
The documentation is modified according to updates in product features.
Issue 09 (2012-12-08)
This version has the following updates:
Quick Installation Guide changes to Quick Start Guide
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide About This Document
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iii
Contents
About This Document.....................................................................................................................ii
1 Product Introduction.....................................................................................................................1
2 Device Installation........................................................................................................................2
2.1 Preparing for Installation................................................................................................................................................3
2.2 Installing a Chassis.........................................................................................................................................................4
2.3 Installing and Removing Device Modules...................................................................................................................20
2.4 Connecting Cables........................................................................................................................................................23
2.5 Powering on the Device................................................................................................................................................30
3 Logging in to the Device............................................................................................................33
3.1 Logging In to the Switch Through the Console Interface............................................................................................34
3.2 Example for Configuring to Manage the SwitchThrough Telnet.................................................................................38
3.3 Logging In to the Web System Client..........................................................................................................................40
4 Service Deployment....................................................................................................................43
5 Where to Obtain Documentation.............................................................................................44
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide Contents
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
iv
1 Product Introduction
This section provides a brief introduction about the S2700/3700/5700/6700 series switches.
For details about the models included in the S2700/3700/5700/6700 series and specifications of
each model, see "Overview" or "Chassis" in the S2700/3700/5700/6700 hardware description.
NOTE
To obtain the electronic hardware description manuals, see 5 Where to Obtain Documentation.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 1 Product Introduction
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1
2 Device Installation
About This Chapter
This section describes how to install S2700/3700/5700/6700 switches, connect cables, power
on the switches, and check the switches after power-on.
2.1 Preparing for Installation
This section describes the tools and accessories required for installation of the
S2700/3700/5700/6700 series switches.
2.2 Installing a Chassis
This section describes the installation scenarios of the S2700/3700/5700/6700 series and
installation methods in these scenarios.
2.3 Installing and Removing Device Modules
This section describes how to install and remove various modules on the
S2700/3700/5700/6700 series switches.
2.4 Connecting Cables
This section describes how to connect an S2700/3700/5700/6700 chassis to a network.
2.5 Powering on the Device
This section provides the checklist used to check the S2700/3700/5700/6700 switches before
and after powering on the switches.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2
2.1 Preparing for Installation
This section describes the tools and accessories required for installation of the
S2700/3700/5700/6700 series switches.
Installation Tools
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3
Accessories
2.2 Installing a Chassis
This section describes the installation scenarios of the S2700/3700/5700/6700 series and
installation methods in these scenarios.
WARNING
The S2700/3700/5700/6700 series Ethernet switches are class A products. Customers should
take preventative measures as the operating devices may cause radio interference.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
CAUTION
lTake ESD protection measures before the installation, for example, wear ESD gloves or ESD
wrist strap.
lWhen installing multiple fan-free or intelligent-heat-dissipation devices in a cabinet or rack,
leave at least 1 U (1 U = 44.45 mm) distance between each two.
lLeave at least 50 mm clearance at two sides and rear of each chassis for heat dissipation.
lPreventing trips are required to fix AC terminals only in desk-mounting or wall-mounting,
and are not required in cabinet-mounting.
The S2700/3700/5700/6700 switches support the following installation scenarios:
lDesk-mounting
lWall-mounting
lCabinet- or rack-mounting
lNetwork box-mounting
Desk-Mounting
CAUTION
The S6700 chassis cannot be installed on a desk.

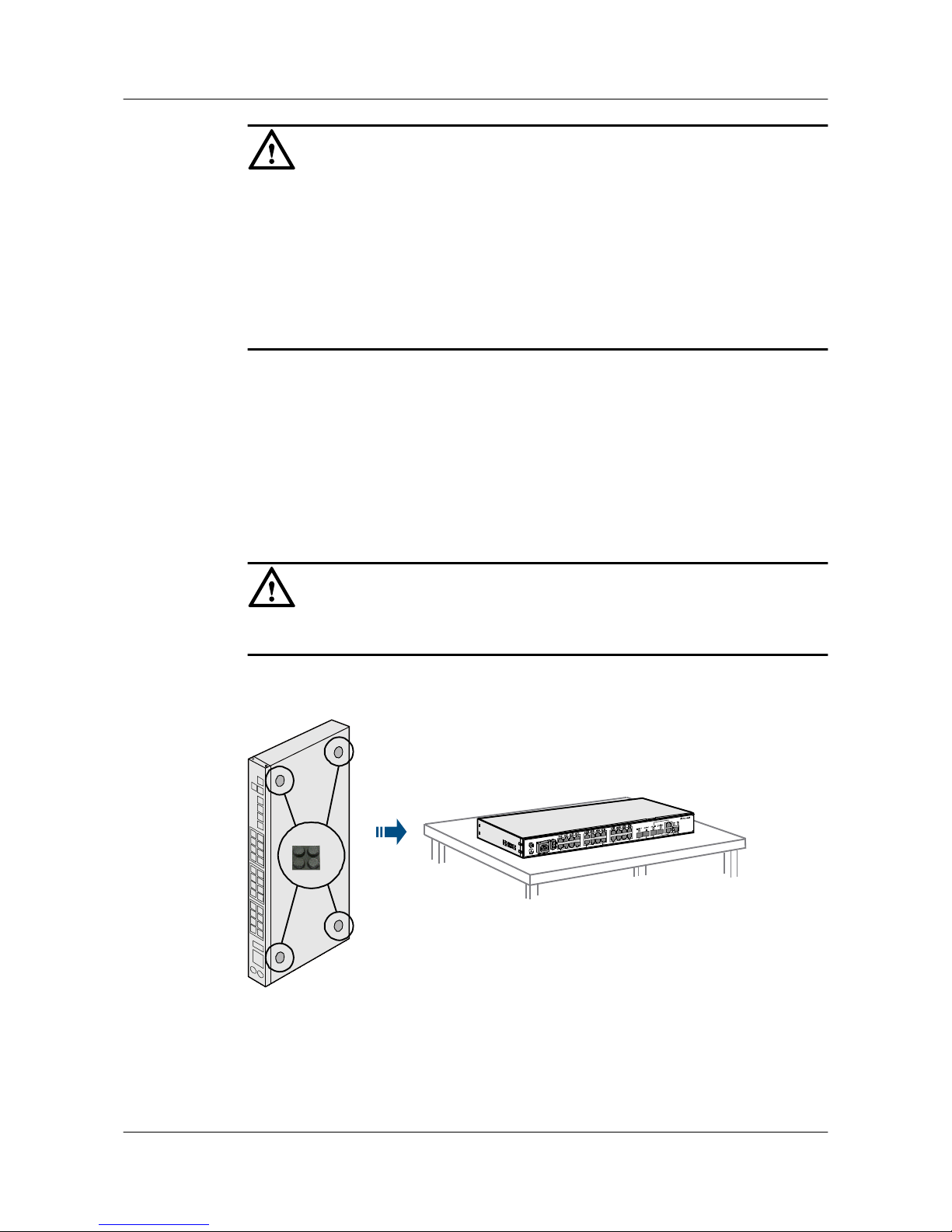

Before placing an S2700, S3700, S5700 chassis on a desk, attach rubber pads onto each of the
four recessed corner areas on the bottom of the chassis.
S2700&S3700&S5700&S6700 Series Ethernet Switches
Quick Start Guide 2 Device Installation
Issue 12 (2013-07-25) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
