Huawei B882 Manual de usuario

4G LTE Huawei B882 Turbo Hub

Getting Started Guide

Thank You for Purchasing the Turbo Hub!

Before You Begin

What’s in the Box :

1. Turbo Hub

2. Power adapter

3. 1 Ethernet cable (Yellow)

4. 1 Telephone cable

5. Getting Started Guide

6. Safety Information Guide

7. Warranty Information Guide

If anything is missing or damaged, return the entire package to your point of

purchase.

1Getting Started: Setting up Your

Turbo Hub

Follow these simple steps to setup your Turbo Hub.

Place the Turbo Hub at an indoor open area or close to a window if possible.

Obstructions such as concrete or wooden walls may affect the transmission of

wireless signals.

Keep the Turbo Hub away from the household electrical appliances that produce

strong electric or magnetic fields, such as microwaves, refrigerators, or satellite

dish antennas.

Step 1Insert SIM card into the Turbo Hub’s SIM Card Slot.

If your SIM card was not activated and inserted into your Turbo Hub at your point

of purchase, please call Bell customer service at 1-800-667-0123 to activate it now.

Before removing the SIM card, ensure that Turbo Hub is powered off and

disconnected from the power outlet.

Step 2Connect the power adapter to the power port and plug into the wall

socket.

The Turbo Hub will power on automatically.

2Getting Started: Setting up an

Internet Connection

Connecting your devices (computer, laptop, tablet, etc.) to the Internet

You are able to connect to the Internet via a wired or wireless (Wi-Fi) connection.

Follow the instructions below to set up your connection of choice.

Wired Connection With an Ethernet Cable

Step 1Connect the Yellow Ethernet cable provided to one of the 3 LAN ports

and connect the other end to your computer.

Step 2Wait approximately 30 - 60 seconds for the connection to establish. Check

the indicators on the front panel of your Turbo Hub. If they are lit as

outlined you are ready to use the internet with your new Turbo Hub!

Do not connect the Yellow Ethernet cable to the WAN port that is closest to the

right hand side of the device.

Power

Solid White: the Turbo Hub is powered on.

Wireless Signal

indicator

Solid Blue or Cyan: the Turbo Hub is registered

with the wireless network.

If this indicator is red and blinking, power off the

Turbo Hub and ensure your SIM card is inserted

correctly.

If this continues after turning the Turbo Hub on

again, please contact Bell customer service at 1-

800-667-0123 to ensure your SIM card is

activated.

Wireless Dial-up

indicator

Solid: the Turbo Hub is connected to the wireless

network.

If this indicator is blinking continuously, power

off the Turbo Hub for 2 minutes and try again.

/ /

LAN indicators

Solid: 1, 2 or 3 will be lit depending on which

LAN port you are connected to.

Blinking: data is transferring.

Wireless (Wi-Fi) Connection

Follow these simple steps to connect up to 32 Wi-Fi enabled devices to the Internet

through your Turbo Hub:

Step 1Ensure that on the front panel is solid and Wi-Fi is enabled on your

device (computer, laptop, tablet, etc.).

Step 2From your device, scan for wireless networks in your area. Connect to the

network name that matches the Wi-Fi Name (SSID) found on the Wireless

Security Sticker.

Step 3When prompted for your wireless security settings, enter the Wi-Fi Password

listed on the Wireless Security Sticker (Wi-Fi Password is case sensitive).

Step 4Wait approximately 30 seconds for the connection to establish. Your Wi-Fi

enabled device will notify you when it is connected.

Step 5You may connect up to 32 Wi-Fi enabled devices. Repeat steps 1 through 4.

The Wi-Fi Name (SSID) and Wi-Fi Password (WIFI KEY) are printed on the

Wireless Security Sticker located on the bottom of your Turbo Hub.

To protect your wireless network from unauthorized access, change the Wi-Fi

Name (SSID) and Wi-Fi Password (WIFI KEY)

at regular intervals. For details, see

the online help information on the web user interface.

If you are using Windows Vista or later, you can press the WPS button on the top of

your Turbo Hub for 6 seconds in lieu of entering the Wi-Fi Password.

3Getting Started: Setting up Your

Phone

Follow these simple steps to connect a Phone to your Turbo Hub.

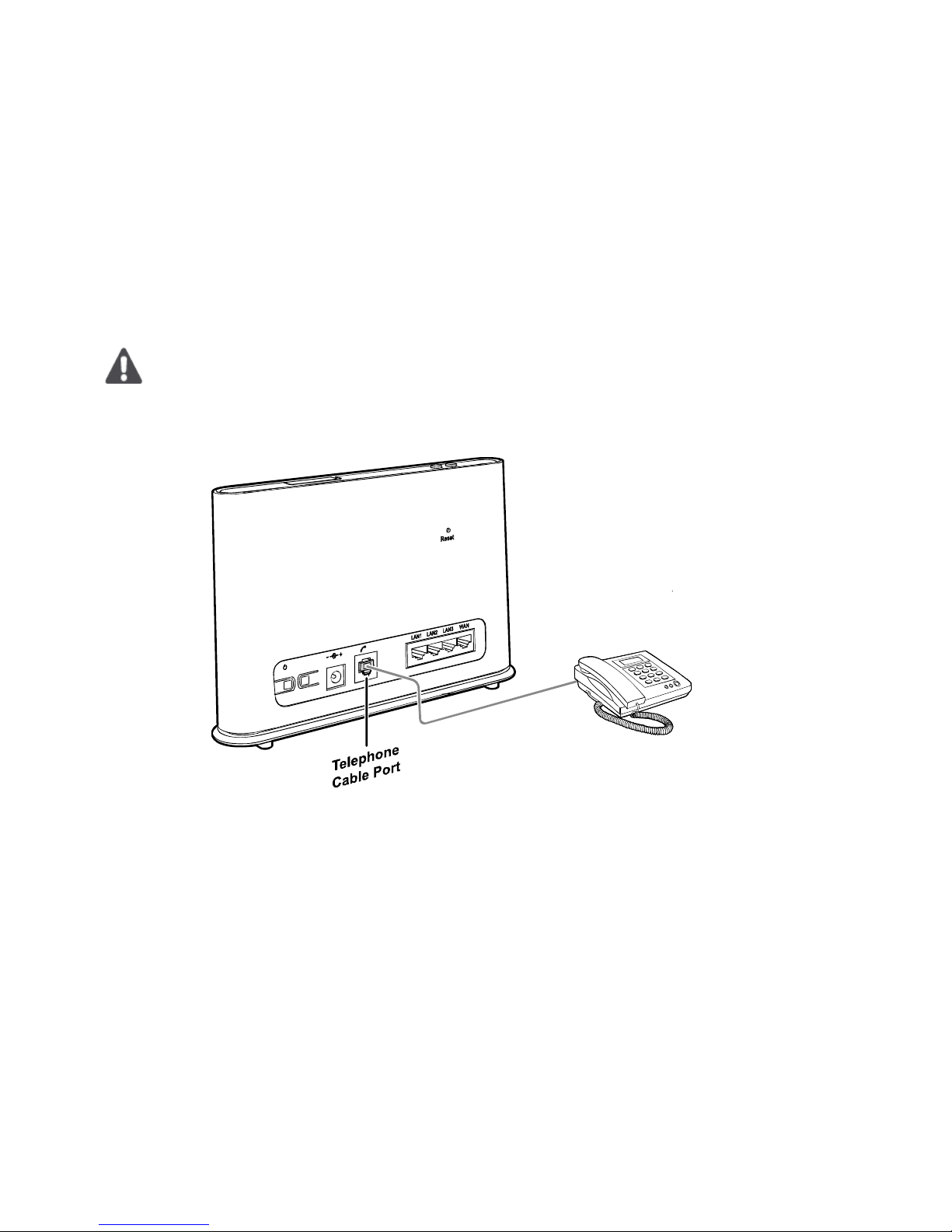

Step 1For voice calls, connect a standard telephone to the Telephone Port using

a RJ-11 cable (you will require a voice plan in addition to a data plan

to use this feature).

Step 2Check the indicators on the front panel of your Turbo Hub. At minimum the

indicators must be lit as outlined.

You are ready to make your first phone call on your new Turbo Hub! Refer to the

section “Using your Turbo Hub’s Phone Features” for more help on using a phone

with your Turbo Hub.

If the Turbo Hub is to be connected to the existing wall outlet telephone wiring, the

existing wiring MUST first be disconnected from any outside landline telephone

network. Not disconnecting from any outside landline telephone network will cause

excessive heat or even damage the Turbo Hub.
