Huawei E173 Manual de usuario

No part of this document may be reproduced or

transmitted in any form or by any means without

prior written consent of Huawei Technologies Co.,

Ltd.

The product described in this manual may include

copyrighted software of Huawei Technologies Co.,

Ltd and possible licensors. Customers shall not in

any manner reproduce, distribute, modify,

decompile, disassemble, decrypt, extract, reverse

engineer, lease, assign, or sublicense the said

software, unless such restrictions are prohibited

by applicable laws or such actions are approved

by respective copyright holders under licenses.

Trademarks and Permissions

, , and are trademarks or

registered trademarks of Huawei Technologies

Co., Ltd.

Other trademarks, product, service and company

names mentioned are the property of their

respective owners.

Notice

Some features of the product and its accessories

described herein rely on the software installed,

capacities and settings of local network, and may

not be activated or may be limited by local

network operators or network service providers,

thus the descriptions herein may not exactly

match the product or its accessories you

purchase.

Huawei Technologies Co., Ltd reserves the right

to change or modify any information or

specifications contained in this manual without

prior notice or obligation.

NO WARRANTY

THE CONTENTS OF THIS MANUAL ARE

PROVIDED “AS IS”. EXCEPT AS REQUIRED BY

APPLICABLE LAWS, NO WARRANTIES OF ANY

KIND, EITHER EXPRESS OR IMPLIED,

INCLUDING BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE, ARE

MADE IN RELATION TO THE ACCURACY,

RELIABILITY OR CONTENTS OF THIS MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY

APPLICABLE LAW, IN NO CASE SHALL HUAWEI

TECHNOLOGIES CO., LTD BE LIABLE FOR ANY

SPECIAL, INCIDENTAL, INDIRECT, OR

CONSEQUENTIAL DAMAGES, OR LOST

PROFITS, BUSINESS, REVENUE, DATA,

GOODWILL OR ANTICIPATED SAVINGS.

Import and Export Regulations

Customers shall comply with all applicable export

or import laws and regulations and will obtain all

necessary governmental permits and licenses in

order to export, re-export or import the product

mentioned in this manual including the software

and technical data therein.

Table of Contents

Getting to Know the E173 ................................... 1

Requirements for the PC .................................... 3

Installing the SIM/USIM and mircoSD Card ........ 3

Installation Guide ................................................ 4

Warnings and Precautions.................................. 7

Thank you for purchasing

Huawei E173 USB Stick.

Note:

zThis manual briefly describes the preparation,

the process for installing/uninstalling, and

safety precautions for using Huawei E173 USB

Stick (hereinafter referred to as the E173).

zYou are recommended to read the manual

before using the E173.

Getting to Know the E173

The following figures show the appearance of the

E173. The actual product may differ.

nUSB Interface

It connects the E173 to a computer.

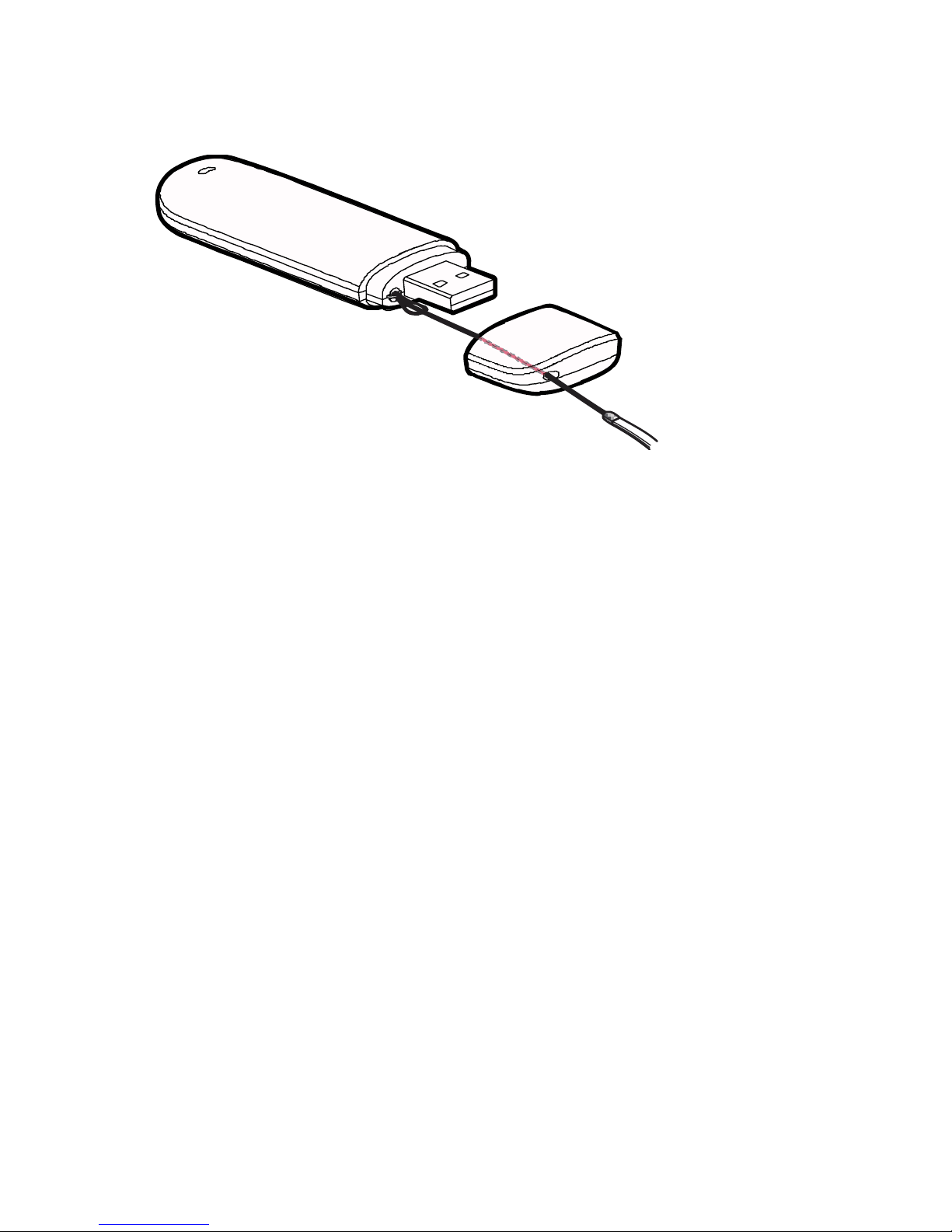

oStrap Hole

You can tie the cap and the USB Stick together by

threading a strap through the strap holes, so that

the cap will not be easily lost.

pIndicator

It indicates the status of the USB Stick.

zGreen, blinking twice every 3s: The USB Stick

is powered on.

zGreen, blinking once every 3s: The USB Stick

is registering with a 2G network.

zBlue, blinking once every 3s: The USB Stick is

registering with a 3G network.

zGreen, solid: The USB Stick is connected to a

2G network.

zBlue, solid: The USB Stick is connected to a

3G network.

zOff: The USB Stick is removed.

qSIM/USIM Card Slot

It holds a Subscriber Identity Module

(SIM)/Universal Subscriber Identity Module (USIM)

card.

rMicroSD card slot

Holds the MicroSD card.

Requirements for the PC

To use the E173, the PC must meet the following

requirements:

zWindows 2000 SP4,Windows XP SP2/ SP3,

Windows Vista (32 bit & 64 bit),Windows 7 and

MAC OS 10.4, 10.5 and 10.6 with latest

upgrades

zSupports standard USB

Installing the SIM/USIM and

mircoSD Card

1. Slide the front cover to remove it from the USB

Stick.

2. Insert the SIM/USIM card and the microSD

card into the corresponding card slots, as

shown in the following figure.

3. Replace the front cover and slide it into place.

Note:

zThe microSD card is an optional accessory. If it

is not provided in the package, you can buy

one yourself.

zEnsure that the beveled edge of the SIM/USIM

card is properly aligned with that of the

SIM/USIM card slot and the microSD card is

inserted according to the direction as labeled

on the microSD card slot.

zDo not remove the microSD or SIM/USIM card

when the card is in use. Otherwise, the card as

well as your USB Stick may get damaged and

the data stored on the card may be corrupted.

Installation Guide

The procedure for installing the Reliance 3G

program depends on the operating system

installed in your PC. The following section takes

Windows XP as an example.

Connecting the E173 with a PC

Note:

Power on your PC before connecting the E173

with the PC. Otherwise, the normal installation of

the E173 may be affected.

One way: Plug the E173 into the USB interface

of the PC.

The other way: connect the E173 to a PC using

the USB extension cable.

Installation

1. Connect the E173 with the PC.

2. The OS automatically detects and recognizes

the new hardware and starts the installation

wizard.

Note:

If the auto-run program does not respond, find the

AutoRun.exe file in the driver path. Then

double-click AutoRun.exe to run the program.

3. Follow the prompts of the installation wizard.

4. After the program is installed, the shortcut icon

of the Reliance 3G will be displayed on the

desktop.

Starting the Reliance 3G Dialer

After the E173 is installed, the Reliance 3G Dialer

will be launched automatically. Then every time

the E173 is connected to the PC, the Reliance 3G

Dialer will be launched automatically.

You can also double-click the shortcut icon on the

desktop to launch the Reliance 3G Dailer.

Uninstallation

1. Choose Start > Control Panel> Add or

Remove Programs.

2. Find the Reliance 3G and click Remove to

uninstall it.

3. Choose Start > All Programs > Reliance 3G >

Uninstall

Note:

It is recommended to restart the PC after the

uninstallation to ensure that the Reliance 3G

program is completely uninstalled.

Unplug the E173

1. Double-click in the system tray. The

Unplug or Eject Hardware interface is

displayed.

2. Select the hardware related to the E173 and

click Stop.

3. When the prompt "It is safe to remove the

device" is displayed, remove the E173.

Note:

Before unplugging the E173, exit the Reliance 3G

dialer.
