Huawei AR Series Manual de usuario

HUAWEI TECHNOLOGIES CO., LTD

AR650&AR1600&AR6100&AR6200&

AR6300 Series Routers

Quick Start Guide

Issue: 05 (2019-08-20)

Part Number: 31509419

Thank you for purchasing a Huawei AR series router. This guide describes how to install AR650, AR1600, AR6100,

AR6200, and AR6300 series routers. It also explains how to log in to your router for the first time.

For more information, see the Hardware Installation and Maintenance Guide for your router on the Huawei

support website.

The installation, cable connection, and login methods for most AR series routers are similar. This guide uses the

AR651W-X4, AR651F-Lite, and AR6280 as an example.

Figures in the document are for reference only and may be different from actual devices.

Any procedural differences between models are specified at the start of each section.

1 About This Guide

Chassis (with the product model on the nameplate)

Power cable

Power adapter (only delivered with the AR650 series

routers)

Installation accessory package:

- Ground cable

- Quick Start Guide

- Rubber pads

- Console cable

- Warranty Card

- Mounting brackets

- Locking latches

- Screws

The numbers and types of items in the installation accessory package differ for different product models.

The installation accessory package of an AR650 series router does not include the console cable, mounting brackets and

screws.

NOTE

2 Packing List

3 Safety Guidelines

To ensure personal and equipment safety, observe all the safety precautions on the equipment and in this

document. WARNING and CAUTION items do not cover all the safety precautions and are only supplementary

to the safety precautions.

Follow all the safety precautions and instructions provided by Huawei. The safety precautions outlined in this

document are only requirements of Huawei and do not include general safety requirements. Huawei is not

liable for any consequence that results from violation of regulations pertaining to safe operations or safety

codes pertaining to design, production, and equipment use.

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be

required to take adequate measures.

Take ESD protection measures during router installation and maintenance. For example, wear ESD gloves or an ESD wrist strap.

Do not place other objects on the router.

WARNING

CAUTION

Laser beams will cause eye damage. Do not look into bores of optical modules or optical fibers without eye protection.

Do not install power cables while the power is on.

Do not turn on the power until you have finished installing the chassis and connecting cables.

4 Site Environment

5 Installing the Router

Scenario 1: Desk Mounting

The AR650, AR1600, and AR6120 series routers can be desk-mounted.

Do not stack routers on top of or closely next to each other.

Router models provide a security slot ( ) on the side of the chassis. You can install a security lock (separately

purchased) in this slot to protect the router against theft.

Before You Start

Installation Procedure

Attach four rubber pads to the bottom.

Place the router on a desk.

Step 1

Step 2

(Optional) Install a security lock.

Connect the ground cable to the ground point.

Step 3

Step 4

Scenario 2: Wall Mounting

This installation method applies to the AR651, AR657, AR651-X8, AR651U-A4, AR651W, AR657W, AR651W-X4, and AR6120

series routers.

Before drilling holes in a wall, make sure there are no power cables in the wall to avoid electric shock.

Ensure that there are no flammable or explosive materials near the router and no obstructions within 100 mm around the router.

The panel with interfaces must face down to protect the interfaces from water.

The distance between two installation holes of the AR651, AR657, AR651-X8, AR651U-A4, AR651W, AR657W, and AR651W-X4

routers is 185 mm.

The distance between two installation holes of the AR6120 series routers is 270 mm.

Before You Start

Use the marker to mark installation hole positions. The distance between two installation holes is 185 mm.

Fix M4 mounting screws against the wall and leave 2 mm distance away from the wall.

Step 1

Step 2

Installation Procedure

Do not place this product in an environment with flammable or explosive gases, or smoke.

The installation site must be free from leaking or dripping water, heavy dew, and humidity. If the relative

humidity is high, use dehumidifiers or dehumidifying air conditioners.

The installation site must be well ventilated. Ensure that air vents on the equipment are not blocked.

Do not install the equipment in a dusty environment.

Leave at least 50 mm clearance at the rear and both sides of the chassis for heat dissipation.

If multiple routers are installed in a cabinet/rack, leave at least 1 U (44.45 mm) distance between each two

routers.

Ensure that the temperature and humidity at the installation site meet the router operation requirements. For

the specific requirements, see the Hardware Description for your router on the Huawei support website.

Scenario 3: Wall Mounting (AR651F-Lite/AR651C)

This installation method applies to the AR651F-Lite/AR651C router.

Before drilling holes in a wall, make sure there are no power cables in the wall to avoid electric shock.

Ensure that there are no flammable or explosive materials near the router and no obstructions within 100 mm

around the router.

The panel with interfaces must face down to protect the interfaces from water.

Screws must be installed solid in the wall. Otherwise, the wall-mounted router may fall down after cables are

connected.

The wall must be a bearing wall. Otherwise, the wall is not suitable for wall-mounting.

Install the router at an appropriate height to ensure that the indicators can be observed easily.

Before You Start

Use a Phillips screwdriver to fix the mounting brackets to both sides of the router using M4 screws, with a

torque of 1.4 N·m.

Use a measuring tape to determine the four mounting bracket installation positions. Keep the upper and

lower installation positions respectively on a horizontal line and mark the positions with a marker.

Drill holes and install mounting expansion bolts in the wall.

a. Use an 8-mm drill bit to drill holes in the marked positions.

b. Insert M6 expansion bolts into the holes and screw the M6 nuts to fasten the expansion bolts.

c. Remove the nut, flat washer, and spring washer.

Place the router on the M6 expansion bolts, fasten the spring washers, flat washers, and nuts in order, and

secure the router on the wall using a torque wrench, with a torque of 5 N·m.

Step 1

Step 2

Step 3

Step 4

Installation Procedure

2 mm

185 mm

Hang the router on the mounting screws.

Connect the ground cable to the ground point.

Step 3

Step 4

Installation Procedure

Scenario 4: Cabinet/Rack Mounting

AR series routers can be installed in a 19-inch standard cabinet/rack. Cabinets/racks purchased from other

vendors must have enough space for equipment installation.

If the distance between front and rear mounting rails is not within the required range, install guide rails or a

tray in the cabinet/rack to support the chassis. Guide rails or trays are not delivered with the product and must

be purchased separately.

Cabinet/rack mounting is not recommended for Wi-Fi-capable routers.

If routers with the 3G or LTE function are installed in a cabinet, use indoor remote antennas for the routers.

Install indoor remote antennas on the primary 3G or LTE interfaces on the routers.

Before You Start

90° 90°

50 mm-55 mm

5 N•m

1.4 N•m

465 mm

31.75 mm

Some router models have specific installation requirements. Refer to the following table for

details about your router model.

Chassis is heavy, so it is recommended that you install guide rails (separately purchased) in the cabinet to support the chassis.

AR6140-9G-2AC/AR6140-16G4XG/AR6140-S

AR6280/AR6300/AR6300-S

Ensure a distance of 375–454 mm or 507–566 mm between the front and rear mounting brackets.

Leave 1 U between the floating nuts on each front mounting rail, and 1 U between those on the rear rails. Ensure the lower

floating nut on each mounting rail is level with those on the other mounting rails.

Install four floating nuts on front mounting rails, two on each side. Install the floating nuts in two

mounting holes with one hole between them.

Hold bottom of the router and push the router into the cabinet.

Use M6 screws to secure the router onto the cabinet/rack.

Connect the ground cable to the ground point.

Step 2

Step 3

Step 4

Step 5

Attach mounting brackets to the router with M4 screws. Determine the mounting method

according to the brackets delivered with your router.

Step 1

Installation Procedure

Applicable to AR650 series (excluding AR651F-Lite

/AR651C)

Applicable to AR1610-X6

Applicable to AR651F-Lite/AR651C

Applicable to AR6120 series

Distance between mounting rails:

507 mm-566 mm

Distance between mounting rails:

375 mm-454 mm

Applicable to AR6140-9G-2AC/AR6140-S

/AR6140-16G4XG

Applicable to AR6280 Applicable to AR6300/AR6300-S

6 Installing Cards

Before You Start

Installation Procedure

Use a Phillips screwdriver to loosen the captive screw on the filler panel counterclockwise.

Pull the filler panel out by the captive screw. Keep the filler panel for future use.

Turn the eject lever of the card 45 degrees outward. Push the card into the chassis with your thumbs.

Rotate the ejector lever inward to lock the card after the card is completely in the chassis.

Use the Phillips screwdriver to fasten the captive screws clockwise.

Step 1

Step 2

Step 3

Step 4

Step 5

1 U

M6 screw

The methods for installing MIC, SIC, WSIC, XSIC, and SRU cards into MIC, SIC, WSIC, XSIC, and SRU slots are

the same. The procedure in scenario 1 installs a SIC card into a SIC slot without removing the guide rail.

Slots can be combined into a bigger slot on an AR router. The procedure in scenario 2 installs a WSIC card into

two SIC slots with the guide rail removed.

For information about the cards supported by your model, see Cards in the Hardware Description of your

router on the Huawei support website.

All cards are hot swappable.

Before installing a card, wear an ESD wrist strap or ESD gloves.

When installing a card, slowly push it into the slot. If you feel resistance or find the card inclined, pull the card

out and push it into the slot again. Do not push the card with force; otherwise, the connectors on the card

and router backplane may be damaged.

Install filler panels in vacant slots.

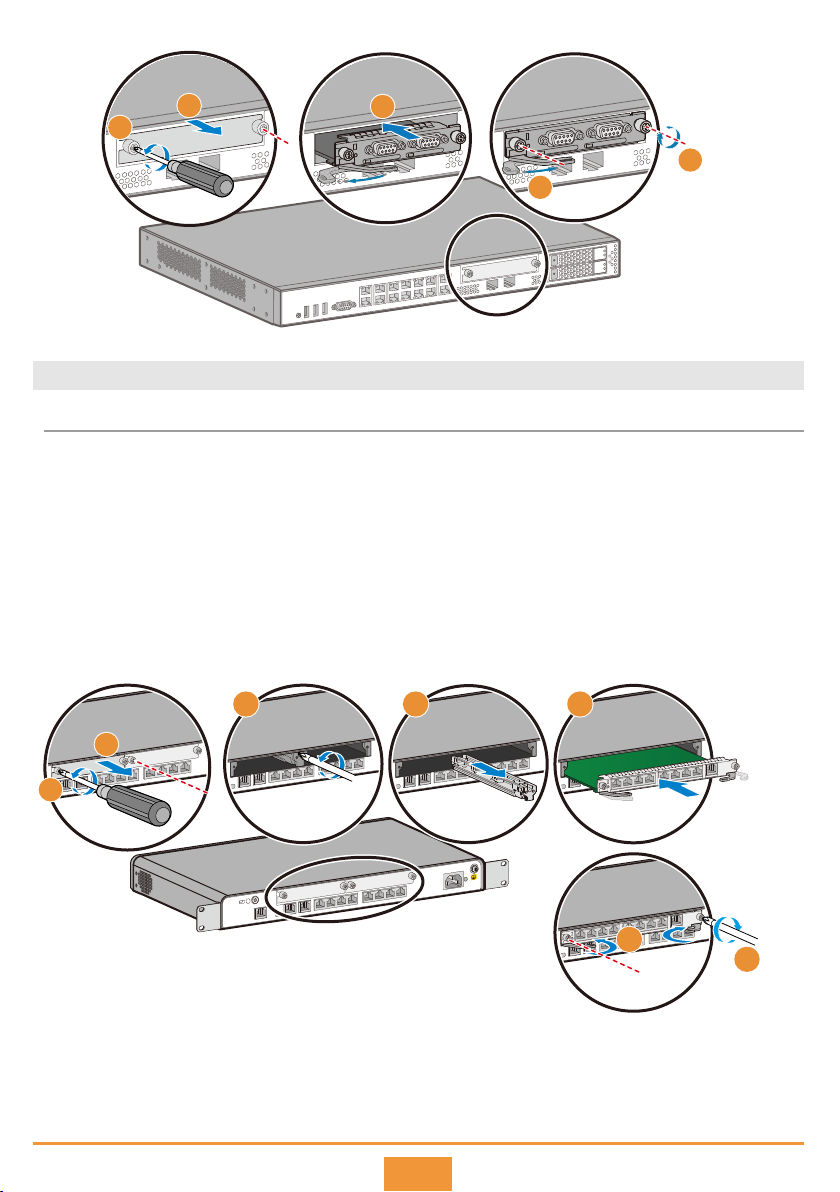

Scenario 1: Not Removing Guide Rails

LINK/ACT

STAT

0LINK/ACT 1

LINK/ACT

STAT

0LINK/ACT 1

Installation Procedure

Use a Phillips screwdriver to loosen the captive screws on the filler panels on the two SIC

slots counterclockwise.

Pull the filler panel out by the captive screw. Keep the filler panel for future use.

Use the Phillips screwdriver to loosen the screw on the guide rail.

Remove the guide rail in the middle of the chassis.

Turn the eject lever of the card 45 degrees outward. Push the card into the chassis with your thumbs.

Rotate the ejector lever inward to lock the card after the card is completely in the chassis.

Use the Phillips screwdriver to fasten the captive screws clockwise.

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

Step 7

Scenario 2: Removing a Guide Rail

3 54

AR160

Series

WiFi 2

12 V; 5 A

AR651W-

CONSOLE

HDD

MIC

GE4 GE 5

GE4 GE5

WiFi 1

WiFi 0

MGMT

network

1 5

Power adapter

- - -

No. Item Connect To No. Item Connect To

Ground cable

Protection ground

Console cable

Operation terminal

(usually a PC)

Ethernet cable

Switch or PC

Ethernet cable

Operation terminal

(usually a PC)

Ethernet cable

Upstream network device

USB port USB flash drive

External power source

7 Connecting Cables

Power cables must be more than 10 cm away from signal cables.

Optical fibers must be used with optical modules.

The bend radius of optical fibers must be larger than 40 mm.

For the ground cable, attach the M4 lug to the router and the M6 lug to the ground point.

If your router uses AC power supply, use AC power cables in compliance with local standards.

If your router uses DC power supply, ensure that the positive and negative cables are connected to the positive

and negative poles correctly.

Antennas need to be installed for routers that provide the Wi-Fi or LTE/3G functions.

The ground cable of the AR651F-Lite/AR651C router must be routed from the top.

Before You Start

8.2 Using the web login settings

Before You Start

If the web page is displayed abnormally, the browser version may be too low. Upgrade the browser and log in

to the web platform using Mozilla Firefox 12.0 or later, Google Chrome 23 or later, or Internet Explorer 8.0 or

later.

The login page varies according to version.

Username:admin

Password:

Info: The entered password is the same as the default. You are

advised to change it to ensure security.

Use a console cable to connect a PC to the console interface of the router.

Start the terminal simulation software, create a connection, configure the connected port, and set

communication parameters as follows.

Step 2

Step 3

Press Enter until the following information is displayed. (The following information is only for reference)Step 4

Transmission rate: 9600

Data bit (B): 8

Parity bit: None

Stop bit (S): 1

Flow control mode: None

After successful login, you can configure the router on the command line interface. For more information, see the

CLI-based Configuration of the product.

8.1 Using the console interface login settings

Install third-party terminal simulation software on the PC by referring to user manual or online help.

The password entered in interactive mode is not displayed on the screen.

Before You Start

8 Logging In to the Router for the First Time

Step 1 Turn on the power switch on the external power supply and log in to the router after the SYS indicator

blinks once every 2 seconds (indicating that the router is running properly).

NOTE

For V300R019C00 and later versions, the default user name is admin and the default password is

[email protected].

For the other versions, the default user name is admin and the default password is Admin@huawei.

Otros manuales para AR Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de Huawei

Huawei

Huawei NetEngine 8000 F Instrucciones de instalación

Huawei

Huawei AR502 Series Manual de usuario

Huawei

Huawei Quidway R2600 Series Manual de usuario

Huawei

Huawei AR530 Series Manual de usuario

Huawei

Huawei AR2200 Series Manual de usuario

Huawei

Huawei SmartAX MT880a Manual de usuario

Huawei

Huawei AR2200 Series Manual de usuario

Huawei

Huawei WiFi AX3 Manual de usuario

Huawei

Huawei Quidway S9300 Manual de usuario

Huawei

Huawei AR1200-S Series Manual de usuario

Huawei

Huawei Quidway S3000-EI Series Manual de usuario

Huawei

Huawei Swisscom B593s Manual de usuario

Huawei

Huawei Baudcom EG8145V5 Manual de usuario

Huawei

Huawei 31010GEV Manual de usuario

Huawei

Huawei LTE CPE B593 Manual de usuario

Huawei

Huawei NE20E-S8 Guía rápida

Huawei

Huawei AR Series Manual de funcionamiento

Huawei

Huawei Quidway AR-19-61 Manual de usuario

Huawei

Huawei Quidway AR 28 Series Manual de usuario

Huawei

Huawei SUN2000-25KTL-M5 Manual de usuario

Huawei

Huawei Vodafone B970 Manual de usuario

Huawei

Huawei B315S-607 Manual de usuario

Huawei

Huawei Quidway NetEngine40E Guía

Huawei

Huawei quidway s7700 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
