Huawei FIC-1E1 Manual de usuario

Quidway® AR 46 Router E1 Interface Module

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved. 1

http://datacomm.huawei.com

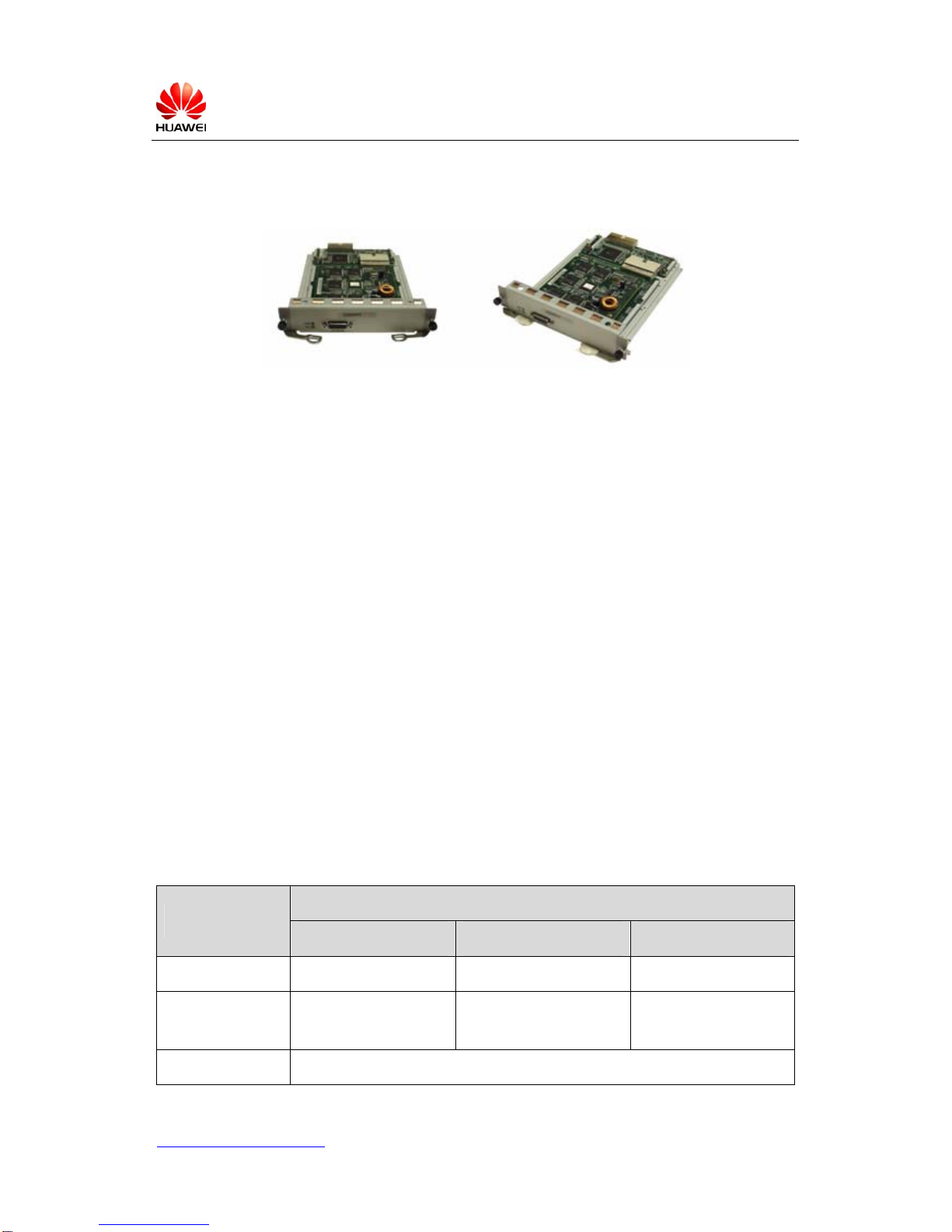

Quidway® AR 46 Router E1 Interface Module

Overview

The E1 interface module of the AR46 router falls into channelized type (FIC-*E1) and non

channelized type (FIC-*E1-F). Where, the channelized E1 interface module includes four types:

FIC-1E1/FIC-2E1/FIC-4E1/FIC-8E1, indicating 1-port, 2-port, 4-port and 8-port channelized E1/PRI

interface modules. The non channelized E1 interface module includes FIC-4E1-F and FIC-8E1-F,

indicating 4-port and 8-port non channelized E1 interface cards. Where, E1-F indicates fractional

E1. Its main differences from the channelized E1 interface module are:

zThe FE1 working mode supported by the non channelized E1 interface module can be bound

once (bound as a channel; the rate is n × 64 K, n=1-31). The channelized E1 interface module

can group the 31 channels randomly to realize binding for many times.

zThe non-channelized E1 interface module does not support the PRI mode.

Specifications

The E1 interface module of the AR46 routers falls into six types and eight specifications. The

description of specifications is listed in the following table.

Interface property

The interface properties of FIC-1E1/FIC-2E1/FIC-4E1 and FIC-4E1-F are shown in the following

table:

Description

Properties FIC-1E1 FIC-2E1 FIC-4E1/FIC-4E1-F

Connector type DB15 DB15 DB25

Connector

quantity 1 2 1

Interface standard G.703 and G.704

Quidway® AR 46 Router E1 Interface Module

Copyright ©2007 Huawei Technologies Co., Ltd. All Rights Reserved. 2

http://datacomm.huawei.com

Description

Properties FIC-1E1 FIC-2E1 FIC-4E1/FIC-4E1-F

Interface rate 2.048Mbps

Cable type

E1 75 ohm unbalanced coaxial cable

E1 120 ohm unbalanced twisted pair

120 ohm 4E1 transit cable (FIC-4E1/FIC-4E1-F)

75 ohm 4E1 transit cable (FIC-4E1/FIC-4E1-F)

Coaxial connector, network interface connector and 75 ohm-120 ohm converter

(with BNC connector)

Working mode E1, CE1 and ISDN PRI (only supported by FIC-1E1/FIC-2E1/FIC-4E1)

FE1 (only supported by FIC-1E1-F/FIC-2E1-F/FIC-4E1-F)

Service supported

Backup

ISDN PRI (only supported by FIC-1E1/FIC-2E1/FIC-4E1)

Access of leased line

The interface properties of FIC-8E1 and FIC-8E1-F are shown in the following table:

Description

Properties FIC-8E1/FIC-8E1-F (75 ohm) FIC-8E1/FIC-8E1-F (120 ohm)

Connector type DB68

Connector quantity 1

Interface standard G.703

Interface rate 2.048 Mbps

Interface cable type 75 ohm 8E1 transit cable 120 ohm 8E1 transit cable

Working mode E1, CE1 and ISDN PRI (only supported by FIC-8E1)

FE1 (only supported by FIC-8E1-F)

Service supported

Backup

Terminal access service

ISDN PRI (only supported by FIC-8E1)
