Huawei LTE E8372 Manual de usuario

Quick Start Guide

1

Thank you for choosing the HUAWEI LTE E8372. The LTE

E8372 provides high speed access to the wireless

network.

Note:

This guide briefly describes the appearance of the LTE E8372 and the steps for using the

LTE E8372. For details about how to set the device and Wi-Fi management parameters, see

help information on the device management web page at http://huawei.setup or

http://192.168.8.1.

2

Getting to Know Your LTE E8372

The following figure shows the LTE E8372. The actual product may look different.

1

5

6

3

2

4

3

USB connector

Allows the LTE E8372 to connect to a computer or power adapter (not included).

Wi-Fi indicator

Indicates the status of a Wi-Fi network.

Steady green: The Wi-Fi function is turned on.

Off: The Wi-Fi function is turned off or the LTE E8372 has been removed.

SMS indicator

Indicates the status of the SMS inbox. To view SMS messages and manage the inbox go to

http://huawei.setup or http://192.168.8.1.

Steady green: There are unread messages in your inbox.

Blinking green once every 2 sec: The message storage is full.

Off: The LTE E8372 is powered off, there are no unread messages.

4

2G/3G/LTE indicator

Indicates the connection status to the Mobile network (connection to the internet).

Blinking green twice every 2 sec: The LTE E8372 is powered on.

Blinking green once every 0.2 sec: The software of the LTE E8372 is being upgraded.

Blinking green once every 2 sec: The LTE E8372 is registered with a 2G network.

Steady green: The LTE E8372 is connected to a 2G network.

Blinking blue once every 2 sec: The LTE E8372 is registered with a 3G network.

Steady blue: The LTE E8372 is connected to a 3G network.

Blinking cyan once every 2 sec: The LTE E8372 is registered with a LTE network.

Steady cyan: The LTE E8372 is connected to a 4G/LTE network.

Off: The LTE E8372 has been removed.

microSD card slot

microSD card holder for the LTE E8372.

SIM card slot

Subscriber Identity Module (SIM) card holder for the LTE E8372.

5

Getting Started

1. Remove the cover from the LTE E8372 by sliding it off.

Note:

Make note of the SSID and Wi-Fi network key which are printed on the LTE E8372, as

shown in the following diagram.

RESET

xxxxxxxx

xxxxxxxx

xxxxxxxx

xxxxxxxx

xxxxxxxx

xxxxxxxx

xxxxxxxx

xxxxxxxx

6

2. Insert the SIM card and the microSD card (not included in package) into the

corresponding card slot, as shown in the following figure.

3. Replace the cover and slide it into place.

1

2

2

1

Note:

Ensure that the bevelled edge of the SIM card is properly aligned with that of the SIM

card slot.

7

Do not remove the SIM card when the device is in use as it may get damaged and result

in the data stored on the card becoming corrupted.

Please only use compatible SIM cards to avoid damage to your LTE E8372 and SIM card.

The microSD card is an optional accessory and is not included in the package.

Ensure that microSD card is inserted according to the direction (as labelled on the

microSD card slot).

Do not remove the microSD when the device is in use as it may get damaged and result

in the data stored on the card becoming corrupted.

8

Connection Scenarios

Scenario 1: One-device Internet access

using computer

Scenario 2: Multi-device Internet access

using Wi-Fi (connected to a computer)

9

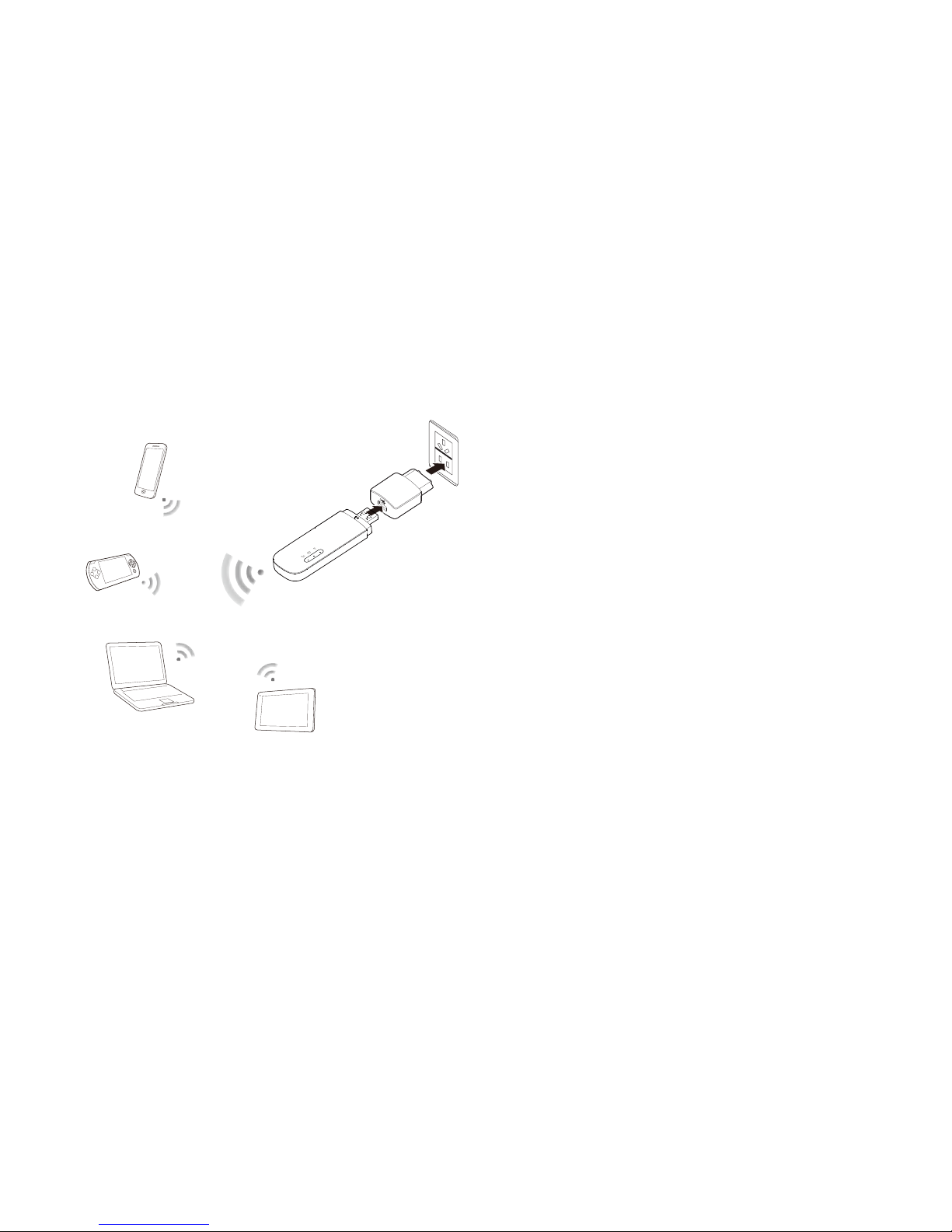

Scenario 3: Multi-device Internet access using Wi-Fi (connected to the power adapter)
