Huawei HG655b Manual de usuario

HUAWEI HG655b

Home Gateway Quick Start

1 Introduction

1.1 Contents in the package

HG655b Splitter Power Adapter

DSL Cable Ethernet Cable User CD-ROM

Warranty Card

1.2 The Front Panel of the HG655b

The front panel of the HG655b provides the following indicators:

zOne power indicator: POWER

zOne ADSL indicator: DSL

zOne Internet indicator: INTERNET

zFour LAN indicators: LAN1,LAN2,LAN3,LAN4

zOne WLAN indicator: WLAN

zOne WPS indicator: WPS

zOne VoIP indicator: VOIP

zOne USB indicator: USB

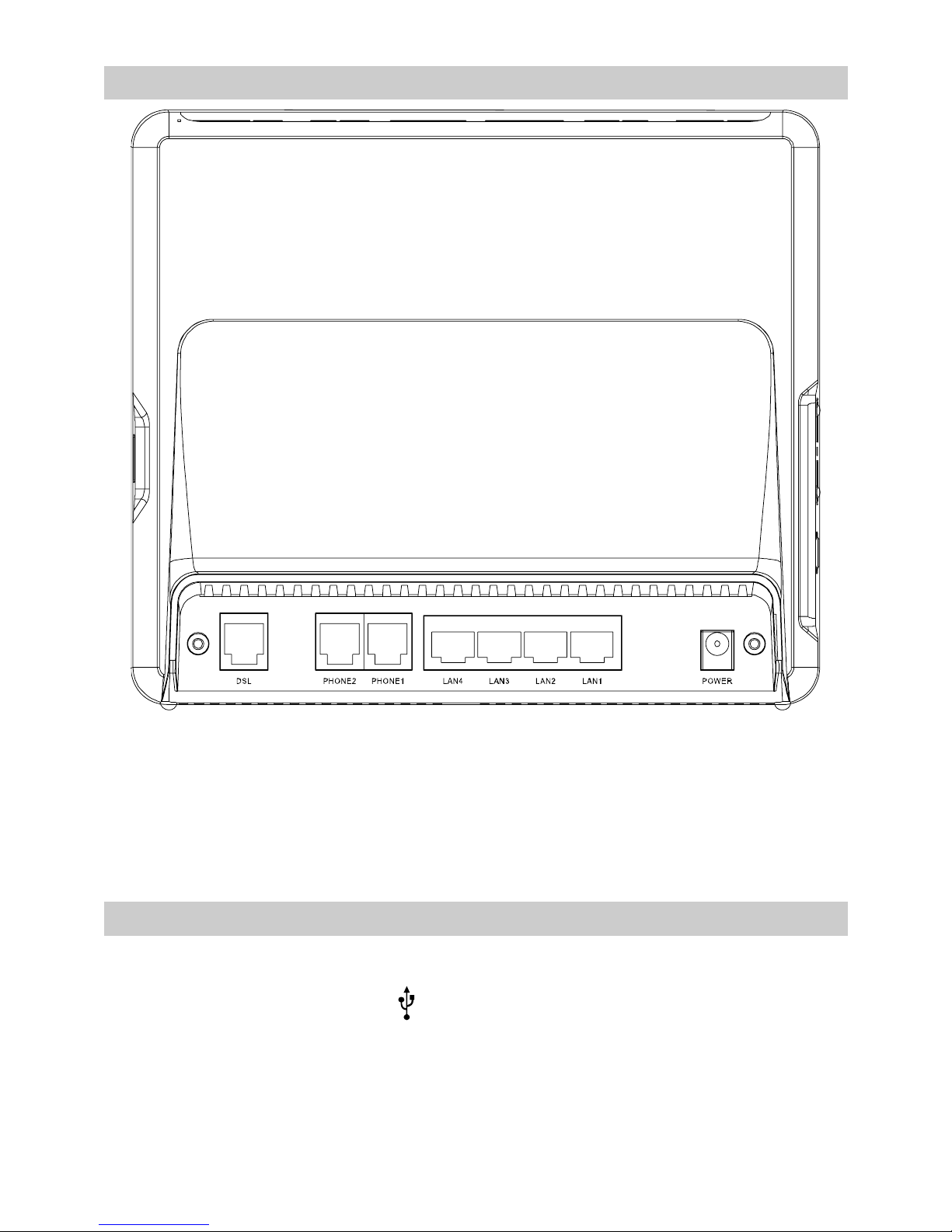

1.3 The Rear Panel of the HG655b

The rear panel of the HG655b provides the following interfaces and buttons:

zOne ADSL interface: DSL

zTwo RJ-11 phone interfaces: PHONE2, PHONE1

zFour LAN interfaces: LAN4,LAN3,LAN2,LAN1

zOne POWER interface: POWER

1.4 The Side Panel of the HG655b

The side panel of the HG655b provides the following interfaces and buttons:

zOne USB interface:

zOne WPS button: WPS

zOne WLAN button: WLAN

zOne ON/OFF button: ON/OFF

2 Installation Guide

To connect the cables for installing the HG655b, do as follows:

1 Telephone jack on the wall 2 Splitter 3 Telephone

4 PC 5 Set-top box 6 Power adapter

2.1 Connecting the HG655b to the Fixed Network

Step 1 Connect the telephone jack on the wall to the LINE interface on the splitter

with a telephone line. Connect the telephone to the PHONE interface on the

splitter with a telephone line.

####

#### ####

LINE PHONE

Step 2 Connect the DSL interface on the HG655b to the MODEM interface on the

splitter with a telephone line.

2.2 Connecting telephones to the HG655b

Connect a telephone to the PHONE1 or PHONE2 interface of the HG655b. The

connection methods are as follows:

zIf you have two VoIP numbers, you can connect two telephones to the PHONE1

and PHONE2 interfaces respectively.

zIf you have no VoIP number and use only the PSTN function, then connect the

telephone to the PHONE interface through splitter, refer to 2.1 Connecting the

HG655b to the Fixed Network.

2.3 Connecting the PC to the HG655b

Connect Ethernet interface on the computer to any of the four LAN interfaces on the

rear panel of HG655b with an Ethernet cable.

2.4 Supplying Power to the HG655b

Connect the power adapter to the power interface on the back of the HG655b and plug

the power adapter into a wall outlet.

After you power on the HG655b, the DSL indicator blinks (for less than three

minutes), which indicates that the HG655b is being activated. After the DSL

indicator stops blinking, the POWER and DSL indicators turn solid on, which

indicates that the HG655b is working properly.

2.5Connecting the PC to the HG655b Through Wi-Fi

3 Configuring the HG655b

You can access the Internet by use the following two methods:

zUsing the Embedded PPP Dial-Up Software of the HG655b to Get Online

zUsing the PPP Dial-Up Software of the Computer to Get Online

Please use the parameters provided by your internet service provider (ISP) for

configuration. If the configuration is wrong, you will not be able to access the

Internet.

Using the Embedded PPP Dial-Up Software of the

HG655b to Get Online

Step 1

Step 2

Configure the HG655b to enable the embedded dial-up function

1. Connect the HG655b with your computer by using the Ethernet cable.

2. Configure the IP address of your computer to be in the same network

segment as the HG655b. The default LAN IP address and subnet mask of

the HG655b is 192.168.1.1 and 255.255.255.0.

3. Start Internet Explorer on your computer and enter the http://192.168.1.1

in the address bar, and then press Enter.

4. The Login dialog box is displayed.

5. Enter the administrator name (admin by default) and password (admin

by default) in the Login dialog box, and then click OK.

Enable the embedded dial-up function

1. In the navigation tree on the left of the Web-based configuration utility,

choose Basic > WAN.

2. Click New.

3. Select Enable check box for WAN connection.

4. Select INTERNET from the Service list drop-down combo box.

5. Select Route from the Connection mode drop-down combo box.

6. Select PPPoE option button for Connection type.

7. Select Enable check box for NAT.

8. Enter the user name and password that are provided by the network

operator in the User name and Password text boxes, and keep the default

settings of other parameters.

9. Click Submit to save the settings.

After you complete the preceding settings, you can surf the Internet.

If the embedded dial-up function of the HG655b is enabled, you need to power off

the HG655b when you do not want to access the Internet. Otherwise, the ISP may

calculate the fee for accessing the Internet even if you have powered off your

computer.

Using the PPP Dial-Up Software of the Computer to Get

Online

Step 1

Step 2

Configure the HG655b to work in the bridge mode

For details, refer to the procedure for enabling the embedded dial-up function described

in Step 2 in section "Using the Embedded PPP Dial-Up Software of the HG655b to Get

Online." The only difference is to select the Bridge mode not the Routing mode from

the Connection mode drop-down combo box.

Configure your computer

The PPP dial-up software is installed in your computer, and then you can get online.

The Windows XP (Professional) operating system has an embedded PPPoE dial-up

software. To set up the dial-up connection in Windows XP system, do as follows:

1. Choose Start > All Programs > Accessories > Communications >

Network Connections.

2. Click Create a new connection in the displayed page.

3. Click Next in the New Connection Wizard dialog box.

4. Select Connect to the Internet and click Next.

5. Select Set up my connection manually and click Next.

6. Select Connect using a broadband connection that requires a user

name and password and click Next.

7. Enter the name of the dial-up connection (you can enter the name as you

like). Then click Next.

8. Select Anyone's use or My use only and click Next.

9. Enter the user name and password. Then click Next.

10. Click Finish.

Configuring the Wireless Network

Connection

If a wireless network adapter is installed on your computer, you can connect your

computer to the HG655b through a wireless connection.

There are two methods to configure the wireless network connection to enable the

Wi-Fi function of the HG655b:

Configuring the Wireless Connection by the Web Page

To configure the wireless network connection by configuring the web page, do as

follows:

Step 1

Step 2

Set the wireless network name and access password of the HG655b (taking

the authentication type WPA-PSK as an example):

1. Log in to the Web-based configuration utility.

2. In the navigation tree on the left, choose Basic > LAN.

3. Select WLAN.

4. Select the Enable WLAN option button.

5. Enter a wireless network name in the SSID text box.

6. Select WPA-PSK from the Security drop-down combo box.

7. Enter an access password in the WPA pre-shared Key text box.

8. Select TKIP from the WPA encryption drop-down combo box, and

keep the default settings of other parameters.

9. Click Submit to save the settings.

Configure the wireless network connection on your computer (taking the

Windows XP operating system as an example):

1. Choose Start > All Programs > Accessories > Communications >

Network Connections.

2. In the Network Connections window, right-click Wireless Network

Connection to display a shortcut menu, and then select View Available

Wireless Networks from the shortcut menu.

3. Select the wireless network that is configured in Step 1 from the wireless

network list, and then click Connect in the lower right corner of the

window.

4. In the displayed dialog box, enter the access password that is preset in

Step 1, and then click Connect.

After the password is verified, Connected appears on the icon of the wireless network

in the wireless network list, which indicates that your computer is connected to the

HG655b through wireless connection.

Configuring the Wireless Connection by the buttons

If the wireless network adapter on your conputer can support the WPS function, you

can connect your computer to the HG655b wirelessly as follows:

Step 1 Press the WLAN button on the side panel of the HG655b and hold it for more

than two seconds.
