HUAWEI TE30 Videoconferencing Endpoint

Quick Installation Guide



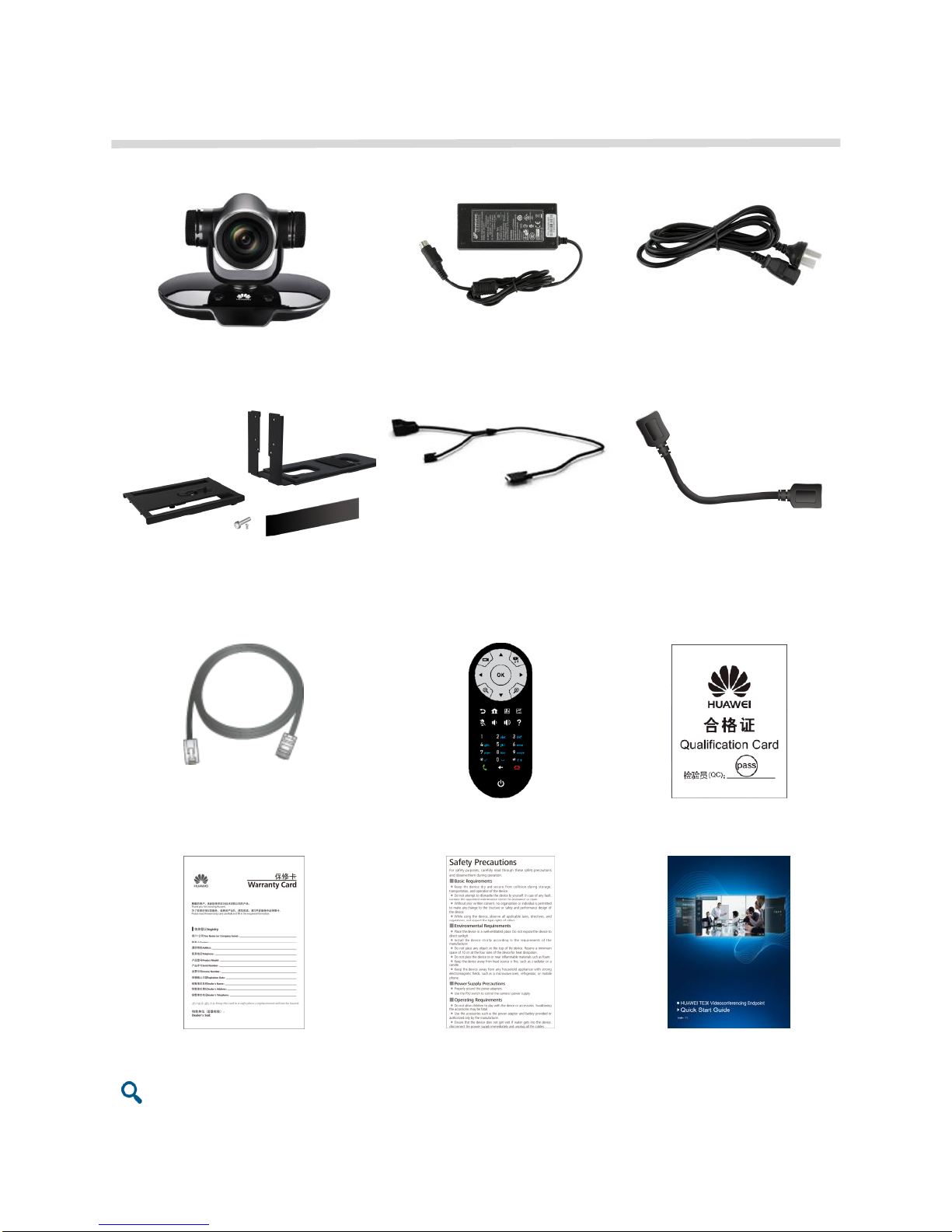

What's in the Box

HUAWEI TE30

videoconferencing endpoint

Power adapter

Power cable

L-shaped bracket, 1/4"-UNC

screw, and hook-and-loop

fastener

Accessorial integration cable

HDMI cable

Network cable

Remote control

Qualification Card

Warranty Card

Safety Precautions

Quick Start Guide

The power adapter, power cable, and accessorial integration cable in the box can be used only with the

endpoint in the same box. The item pictures are for your reference only.



Installation

Standard Mounting

Use the L-shaped bracket and hook-and-loop fastener to secure the TE30 on top of the

monitor. Select an installation option based on the monitor width.

If the thickness of the monitor is 97 mm (3.82 in.) or slimmer, follow the steps in the

following figure.

If the thickness of the monitor is between 97 mm (3.82 in.) and 170 mm (6.69 in.), follow

the steps in the following figure.

If the monitor is 170 mm (6.69 in.) or thicker or is wall-mounted, use the free-standing, wall-

mounting, inverted installation, or other installation options.

Free-Standing

Place the TE30 on a flat surface.

If you have to place the TE30 on an inclined surface, ensure that the inclination is less than

15°so that the TE30 can function properly.

Wall-Mounted

Use the L-shaped bracket to wall-mount the TE30.

Before mounting the TE30 onto the wall, connect all required cables to the TE30.

Inverted Installation

Purchase a bracket for inverted installation and mount the TE30 onto the ceiling.

Use the 1/4"-UNC screw to secure the TE30 to the bracket.

Other Installation Options

Purchase a tripod and install the TE30.



Connecting Cables

The VGA cable is not provided with the TE30. You need to purchase it by yourself.

The cable connection shown in the preceding figure is the simplest and provided only for reference. Visit

http://enterprise.huawei.com to access the HUAWEI TE30 Videoconferencing Endpoint User Guide for more

cable connection instructions.



Power On the TE30

With all cables connected correctly, to get the power adapter connected with TE30, with the

power supply on, then, the TE30 will be automatically powered on. The following table describes

the TE30 indicator status.

Indicator

Status

TE30 Status

Indicator

Status

TE30 Status

Blinking

green

Starting

Steady orange

Powered off but connected to the power

supply

Steady

green

Operating

properly

Off

Disconnected from the power supply

Blinking

orange

Sleeping

Blinking red

Encountered a fault, such as a self-

check error, overheating, and software

malfunction



Loading the Configuration File

Using a USB Flash Drive

The TE30 automatically loads the configuration file from the USB flash drive. After the

configuration file is loaded, the TE30 can work properly.

The USB flash drive and configuration file thereon are provided by the reseller or operator. Do

not modify the configuration file. To obtain a USB flash drive, contact the local reseller or

operator.

To load the configuration file on the USB flash drive:

1. Insert the USB flash drive into the USB port in the TE30.

2. When Popup prompts, click Yes.

The TE30 automatically loads the configuration file and restarts.

If you do not perform any operations within 10 seconds after you insert a USB flash drive, the TE30

automatically loads the configuration file and restarts.

3. Remove the USB flash drive.

Using Other Methods

You can also use the methods described in the "Configuring the TE30" section in the HUAWEI

TE30 Videoconferencing Endpoint Quick Start Guide.

Do not turn the TE30 or stop it from turning using your hands or other

forces when the TE30 is powered on and working properly.
