HP ProLiant ML150 G6 Instrucciones de montaje

HP ProLiant ML150 G6 Server

Installation Sheet

Part Number 501527-004

Configuring the server

For additional information and updates not provided in this

installation sheet, see the HP ProLiant ML150 G6 Server Easy Set-up

CD.

1. Connect the keyboard, mouse, and monitor.

2. To determine the BIOS version:

a. Power up the server.

b. Press the Esc key at the HP logo screen, and then press the

Pause key to halt screen movement.

c. Note the server BIOS version. Verify the server BIOS

version against the latest BIOS version listed for this server

on the HP website: http://www.hp.com.

d. If necessary, update the BIOS. See the HP ProLiant ML150

G6 Server Maintenance and Service Guide available on

the HP website: http://www.hp.com.

Identifying server components

Figure 1 Front and rear panel components

Item Description Item Description

1 Media bays 12 System Health LED

2 USB 2.0 ports (2) 13 AC input connector

3 Hard drive bays 1-4 14 Expansion slots

4 Hard drive bays 5-8 15 Keyboard connector

5 Optical drive bay 16 Mouse connector

6 Media eject button 17 Serial port connector

7 Front key lock 18 VGA connector

8 System power button/LED 19 USB 2.0 ports (4)

9 Hard drive activity LED 20 NIC connector

10 NIC2 LED 21 Dedicated NIC port

11 NIC1 LED 22 UID

Figure 2 System board components

Item Description Item Description

1 Processor 1 socket 24 Internal USB connector

2 CPU1_DIMM slot 1D 25 SATA 6_ODD 2 connector

3 CPU1_DIMM slot 2A 26 SATA 5_ODD 1 connector

4 CPU1_DIMM slot 3E 27 SATA 4 connector

Item Description Item Description

5 CPU1_DIMM slot 4B 28 SATA 3 connector

6 CPU1_DIMM slot 5F 29 SATA 2 connector

7 CPU1_DIMM slot 6C 30 SATA 1 connector

8 Power supply connector

(4-pin)

31 System fan 1

9 Expansion slot 5 32 System fan 2 (redundant)

10 Expansion slot 4 33 System fan 3

11 Expansion slot 3 34 System fan 4

12 Expansion slot 2 35 I2C connector (2)

13 Expansion slot 1 36 NMI button

14 CPU2_DIMM slot 6C 37 SGPIO

15 CPU2_DIMM slot 5F 38 Front panel USB connector

16 CPU2_DIMM slot 4B 39 Internal USB port

17 CPU2_DIMM slot 3E 40 Chassis/board ID DIP switches

18 CPU2_DIMM slot 2A 41 Front panel I/O connector

19 CPU2_DIMM slot 1D 42 Redundant power supply

connector

20 Processor 2 socket 43 Hard drive LED connector

21 Power supply connector

(8-pin)

44 Thermal sensor connector

22 Power supply connector

(24-pin)

45 TPM

23 Battery 46 CMOS clear jumper

Table 1 Expansion slot definitions

Expansion

slot

Technology Bus width Connector

width

From factor

1 (standard) PCI 2.3 3.3V; 32 bits Full-length, full-

height slot

2 (standard) PCI-E Gen 1 x4 x8 Full-length, full-

height slot

3 (standard) PCI-E Gen 2 x4 x8 Full-length, full-

height slot

4 (standard) PCI-E Gen 2 x16 x16 Full-length, full-

height slot

5 (standard) PCI-E Gen 2 x4 x8 Full-length, full-

height slot

Opening the server

CAUTION: You must power down the server and then

disconnect the power cords before removing or replacing

non-hot-pluggable hard disk drives, DIMMs, or

processors.

If necessary, unlock the server with the supplied key.

Figure 3 Removing the access panel

Figure 4 Removing the front bezel

Figure 5 Removing the air baffle

Installing an accessory card

Figure 6 Installing an accessory card

Installing hard drives

This system can support SATA and SAS drives in non-hot-plug and

hot-plug hard disk drive cages.

For detailed drive cabling information, see the server hood label.

Non-hot-plug drive installation

Figure 7 Removing a non-hot-plug hard drive cage

Figure 8 Installing a non-hot-plug drive

Hot-plug drive installation

Figure 9 Installing a hot-plug-drive

Installing optical drives

The lower two half-height media bays are shipped with drive bay

shields. Remove a shield by pulling it away from the front of the

chassis.

Figure 10 Removing an optical drive bay shield

Figure 11 Installing an optical drive

Installing memory

Memory installation guidelines are as follows:

•Use registered and unbuffered DDR3 ECC DIMM.

•Install DIMMs in identical pairs for best performance.

•A single DIMM can be installed in DIMM slot 2A.

Table 2 DIMM slot configurations

1D 2A 3E 4B 5F 6C

– • – – – –

– • – • – –

– • – • – •

• • – • – •

• • • • – •

• • • • • •

– : Empty

•: DIMM installed

To access DIMM slots, remove the air baffle as shown in Figure 5.

CAUTION: To prevent damage to DIMMs, use an

antistatic wrist strap and grounding mat, and discharge

static electricity before touching DIMMs.

If a DIMM does not fit completely or easily into the socket, remove

the DIMM, reverse the orientation, and then reinsert it.

Figure 12 Installing a DIMM

Installing a processor

For a two-processor system, both processors must be of the same

type. To access the processor sockets, remove the air baffle as

shown previously.

CAUTION: Failure to completely open the processor

locking lever prevents the processor from seating during

installation, leading to hardware damage.

1. Open the processor locking lever and the bracket. Do not

remove the processor socket cover.

Figure 13 Opening the lever and bracket

IMPORTANT: Be sure the processor remains inside the

processor installation tool.

2. If the processor has separated from the installation tool,

carefully reinsert the processor in the tool. Handle the

processor by the edges only, and do not touch the bottom of

the processor, especially the contact area.

Figure 14 Reinserting the processor

3. Align the processor installation tool with the socket, and then

install the processor. THE PINS ON THE SYSTEM BOARD ARE

VERY FRAGILE AND EASILY DAMAGED.

Figure 15 Installing the processor

CAUTION: THE PINS ON THE SYSTEM BOARD ARE VERY

FRAGILE AND EASILY DAMAGED. To avoid damage to

the system board:

•Never install or remove a processor without using the

processor installation tool.

•Do not touch the processor socket contacts.

•Do not tilt or slide the processor when lowering the

processor into the socket.

4. Press the tabs on the processor installation tool to separate it

from the processor, and then remove the tool.

Figure 16 Removing the tool

5. Close the processor socket retaining bracket and the processor

locking lever. The processor socket cover is automatically

ejected. Remove the cover.

Figure 17 Closing the bracket and lever, removing the cover

CAUTION: Be sure to close the processor socket

retaining bracket before closing the processor locking

lever. The lever should close without resistance. Forcing

the lever closed can damage the processor and socket,

requiring system board replacement.

6. Install the heatsink.

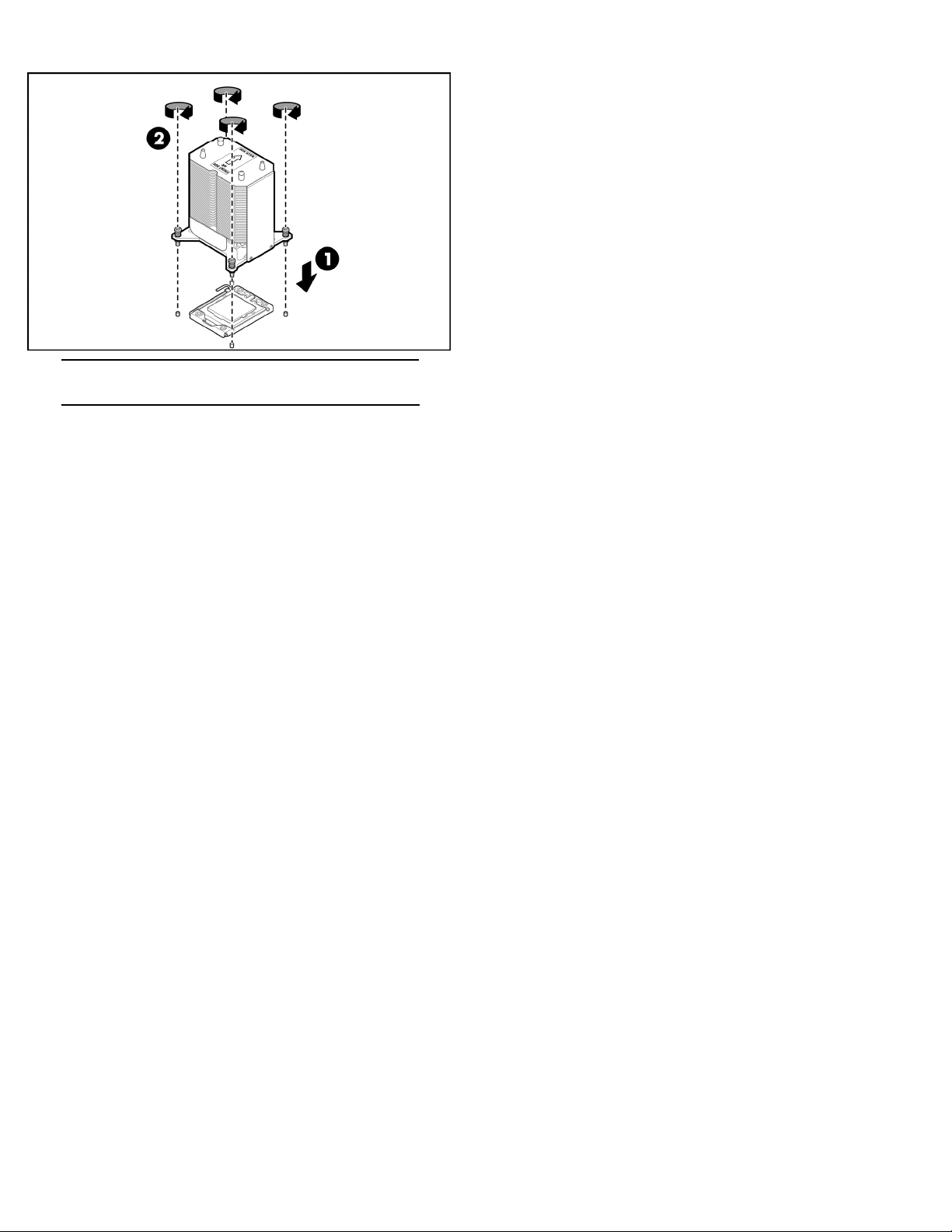

Figure 18 Installing the heatsink

NOTE: Ensure that the air flow arrow on top of the

heatsink is pointing towards the rear of the chassis.

Legal notices

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty

statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for

technical or editorial errors or omissions contained herein.

Part Number: 501527-004

Published: April 2012

Edition: 4

*501527-004*

501527-004
