HP Surestore Drive Rail Mounting Kit

This document includes steps to install drive rails on HP Surestore internal tape drives for installation in HP Servers. The

drive rail mounting kit includes two sets of drive rails and the hardware to install the drive rails on the tape drives.

Drive Rail Selection

The drive rail mounting kit includes a set of plastic drive rails (Figure 2) and metal drive rails (Figure 5)toattachthe

rails to the HP Surestore tape drive.

•Plastic drive rails are always used in mounting the DAT 24i and DAT 40i drives in the HP Servers.

•Metal drive rails are used in mounting all other drives in the HP Servers.

The kit also includes screw sub-kits for mounting the metal drive rails to the HP Surestore tape drive. See Table 3. for

the screw sub-kits and mounting slot appropriate for each HP Surestore tape drive.

Tools Required (Metal Drive Rails Only)

The following tools are required to install the metal drive rails:

•T-10 TORX®screwdriver

•Number 1 Phillips®screwdriver

•Posidrive®screwdriver

Where to Obtain Additional Installation Instructions

Complete mass storage device installation instructions can be found in both of the following sources:

•The HP Server Operations and Maintenance Guide, on the HP Server Documentation CD-ROM shippedwithyour

HP server, has a complete chapter on installation.

•The HP Server Operations and Maintenance Guide for your HP Server can be viewed and printed from the official

HP web site:

http://www.hp.com

Refer to the web site for the latest revisions and product updates.

Configuration Guidelines

HP Server tc3100 Configuration

The HP Server tc3100 can accept either of the following HP Surestore tape drives:

Table 1. HP Surestore Tape Drives for the HP Server tc3100

Drive Part No. Size Supported Location Comments

DAT 24i C1555D Half Height P2, R2 Use the plastic drive rails when installing the

drive on the tc3100 server.

DAT 40i C5686A Half Height P2, R2 Use the plastic drive rails when installing the

drive on the tc3100 server.

2HP Part Number 5990-3463

Installing the Plastic Rails (Models DAT 24i and DAT 40i)

The plastic drive rails are secured to the drive by spring tension.

To install the plastic drive rails:

1. Insert one end of the wire rod on the rail into the mounting hole at the rear of the drive (Figure 2).

2. Apply pressure to the middle of the rail allowing the remaining wire rod end to be inserted into the mounting hole at

the front of the drive. Ensure that the rail is seated against the side of the drive.

3. Repeat the installation for the second mounting rail.

Figure 2. Plastic Drive Rails

HP Server tc4100 Configuration

The HP Server tc4100 can accept any of the following HP Surestore tape drives:

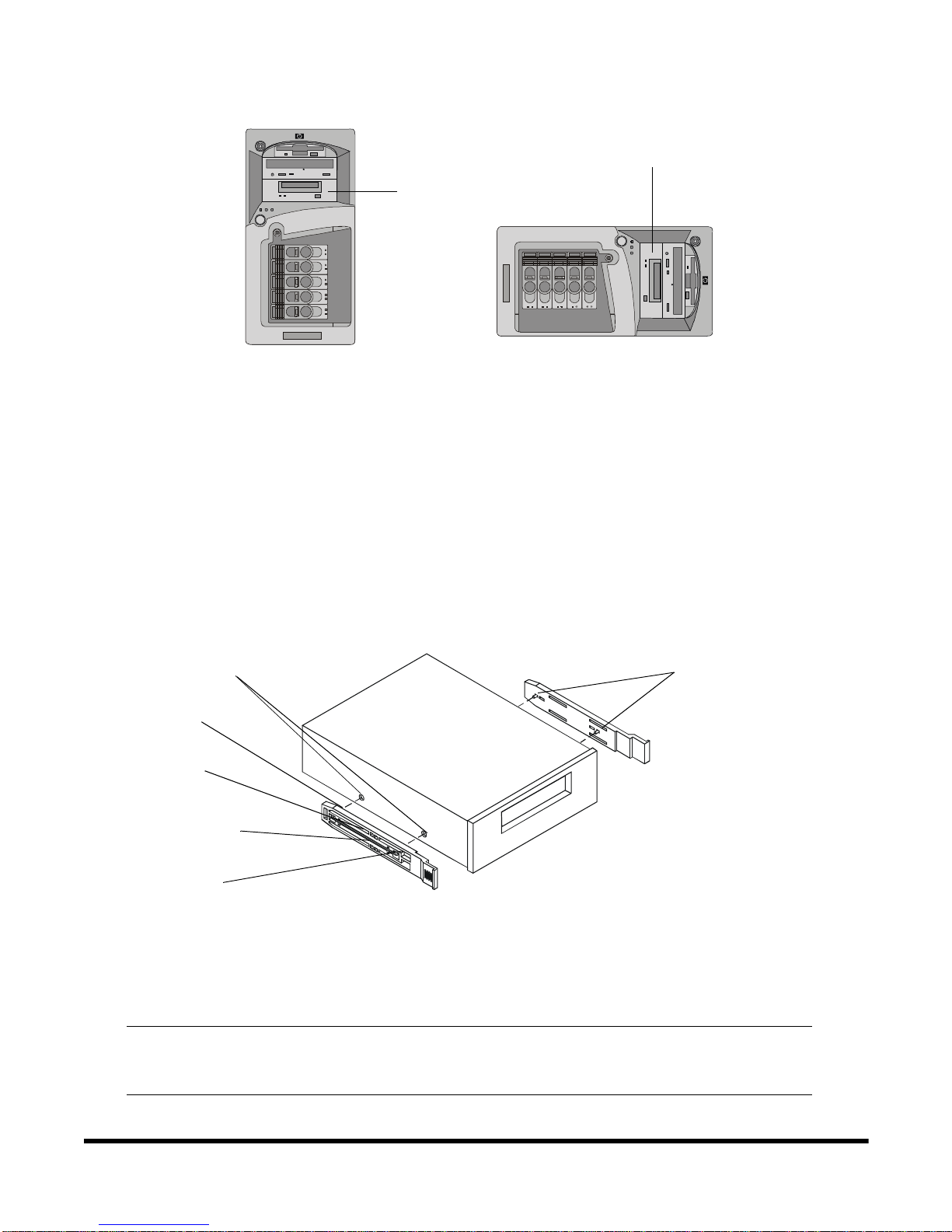

Figure 1. HP Surestore Supported Locations for the HP Server tc3100

NOTE In any of these server configurations, the CD-ROM is normally mounted in location

P1 in the pedestal configuration and in location R3 in the rack mount configuration

(see Figure 3).

Pedestal Shelf Mount

P2 Location

R2 Location

Wire Rod Ends

Mounting Holes

Wire Rod

Insert this wire

rod end last

Apply pressure

to middle of rail

Insert this wire rod

end first

HP Part Number 5990-3463 3

Installing the Plastic Rails (Models DAT 24i and DAT 40i)

The plastic drive rails are secured to the drive by spring tension.

To install the plastic drive rails:

Table 2. HP Surestore Tape Drives for the HP Server tc4100

Drive Part No. Size Supported Location Comments

DAT 24i C1555D Half Height R1, R2, P2, P3 Use the plastic drive rails when installing.

DAT 40i C5686A Half Height R1, R2, P2, P3 Use the plastic drive rails when installing.

DAT 40x6i C5716A Full Height R1 and R2, P2 and P3

(Two HH slots are

required)

Use the metal drive rails when installing on

the server.

DAT 24X6i C5677B Full Height R1 and R2, P2 and P3

(Two HH slots are

required)

Use the metal drive rails when installing on

the server.

Ultrium 230i C7400A Full Height R1 and R2, P2 and P3

(Two HH slots are

required)

Use the metal drive rails when installing on

the server.

DLT VS80i C7504A Half Height R1, R2, P2, P3 If this drive is installed in position P2 or P3,

it is necessary to remove the power

protection bracket of the server.

See “Clearance Considerations (Model

C7504A or C7420A)” on page 5

Use the metal drive rails when installing on

the server.

Ultrium 215i C7420A Half Height R1, R2, P2, P3 If this drive is installed in position P2 or P3,

it is necessary to remove the power

protection bracket of the server.

See “Clearance Considerations (Model

C7504A or C7420A)” on page 5

Use the metal drive rails when installing on

the server.

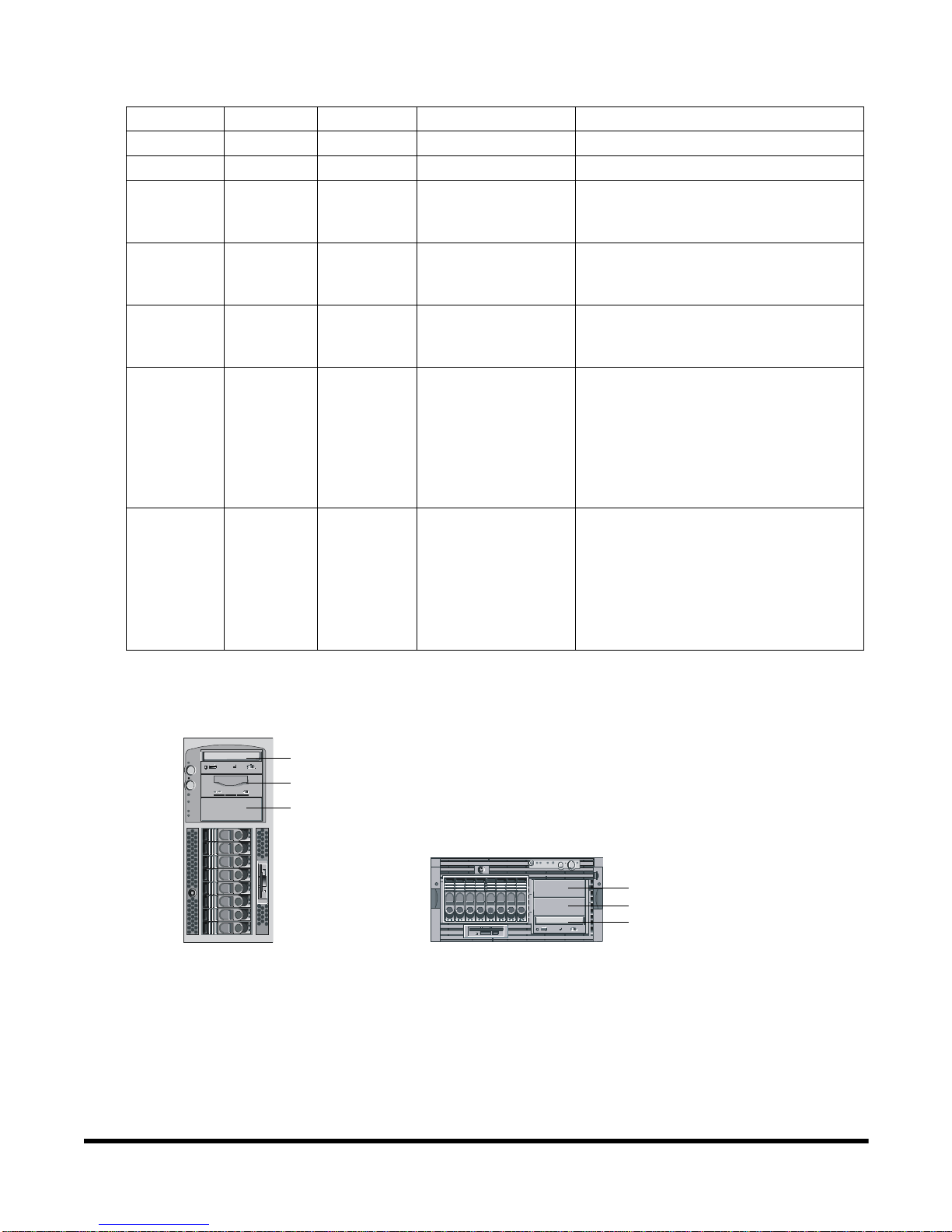

Figure 3. HP Surestore Supported Locations for the HP Server tc4100

Rack Mount

Pedestal

P1 CD-ROM

P2 Location

P3 Location

R3 CD-ROM

R2 Location

R1 Location

4HP Part Number 5990-3463

1. Insert one end of the wire rod on the rail into the mounting hole at the rear of the drive (Figure 4).

2. Apply pressure to the middle of the rail allowing the remaining wire rod end to be inserted into the mounting hole at

the front of the drive. Ensure that the rail is seated against the side of the drive.

3. Repeat the installation for the second mounting rail.

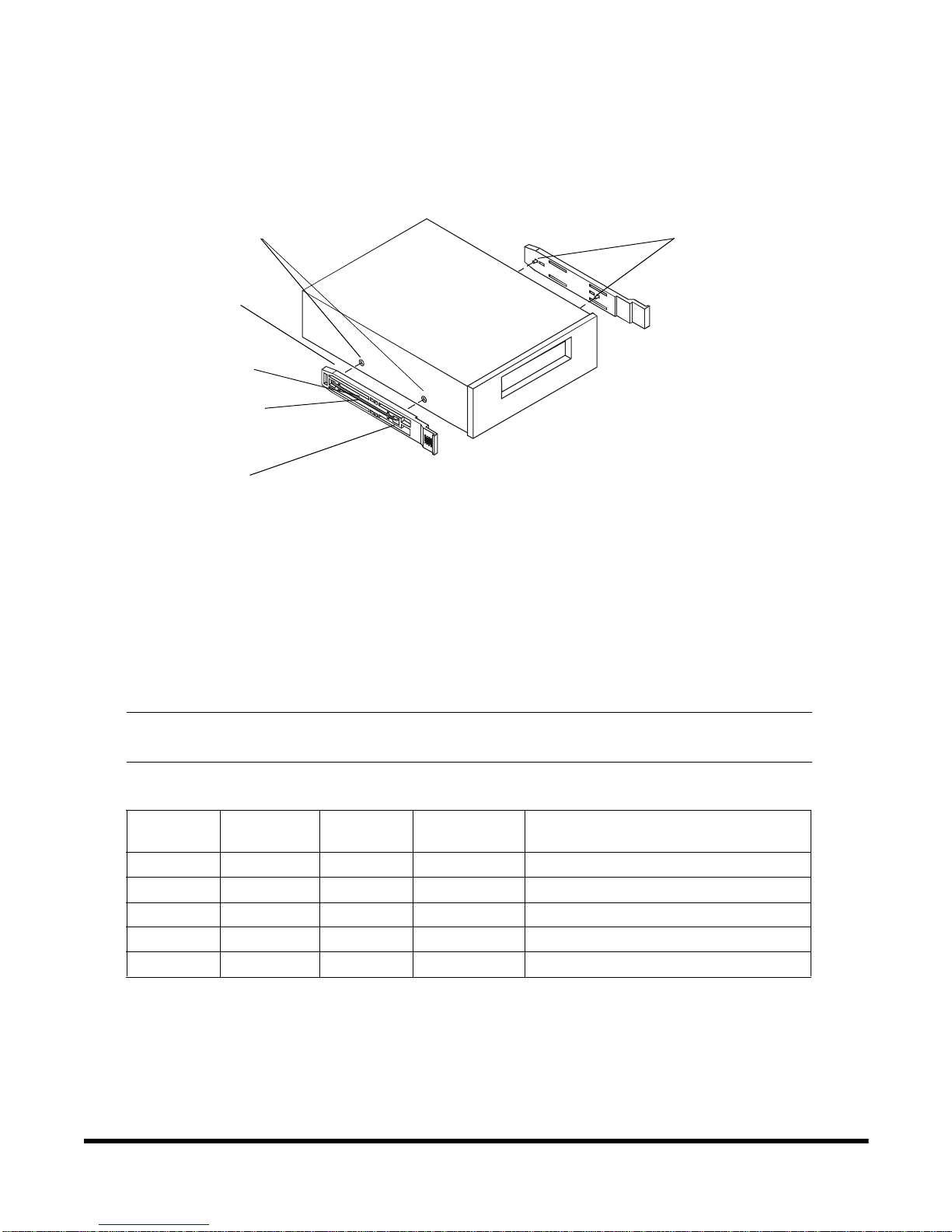

Figure 4. Plastic Drive Rails

Installing the Metal Drive Rails (All Other Drive Models)

Table 3. lists the mounting slot and sub-kit screws required for attaching the metal rails to each HP Surestore tape drive.

See Figure 5 for the mounting slot location.

Toinstallthemetaldriverails:

1. Align the drive rail over the tape drive screw holes.

2. Secure the drive rail with the appropriate screws for the tape drive (see Table 3.).

3. Repeat the installation for the second drive rail.

4. Insert the tape drive into the server and secure with chassis screws Q1497-60008.

NOTE Do not over-torque the mounting screws. Too much torque can damage the

threading on the rails.

Table 3. Metal Drive Rail Mounting Slot and Screw Specification

Drive Part Number Mounting

Slot Screw Kit

Part Number Screw Specification

DAT 40x6i C5716A 1 Q1497-60005 M3 x 6mm countersunk, TORX

Ultrium 230i C7400A 1 Q1497-60005 M3 x 6mm countersunk, TORX

Ultrium 215i C7420A 2 Q1497-60007 M3 x 4mm pan head + washer Posidrive

DAT 24X6i C5677B 1 Q1497-60005 M3 x 6mm countersunk, TORX

DLT VS80i C7504A 1 Q1497-60006 #6-32 x 0.25in countersunk, Phillips

Wire Rod Ends

Mounting Holes

Wire Rod

Insert this wire

rod end last

Apply pressure

to middle of rail

Insert this wire

rod end first

HP Part Number 5990-3463 5

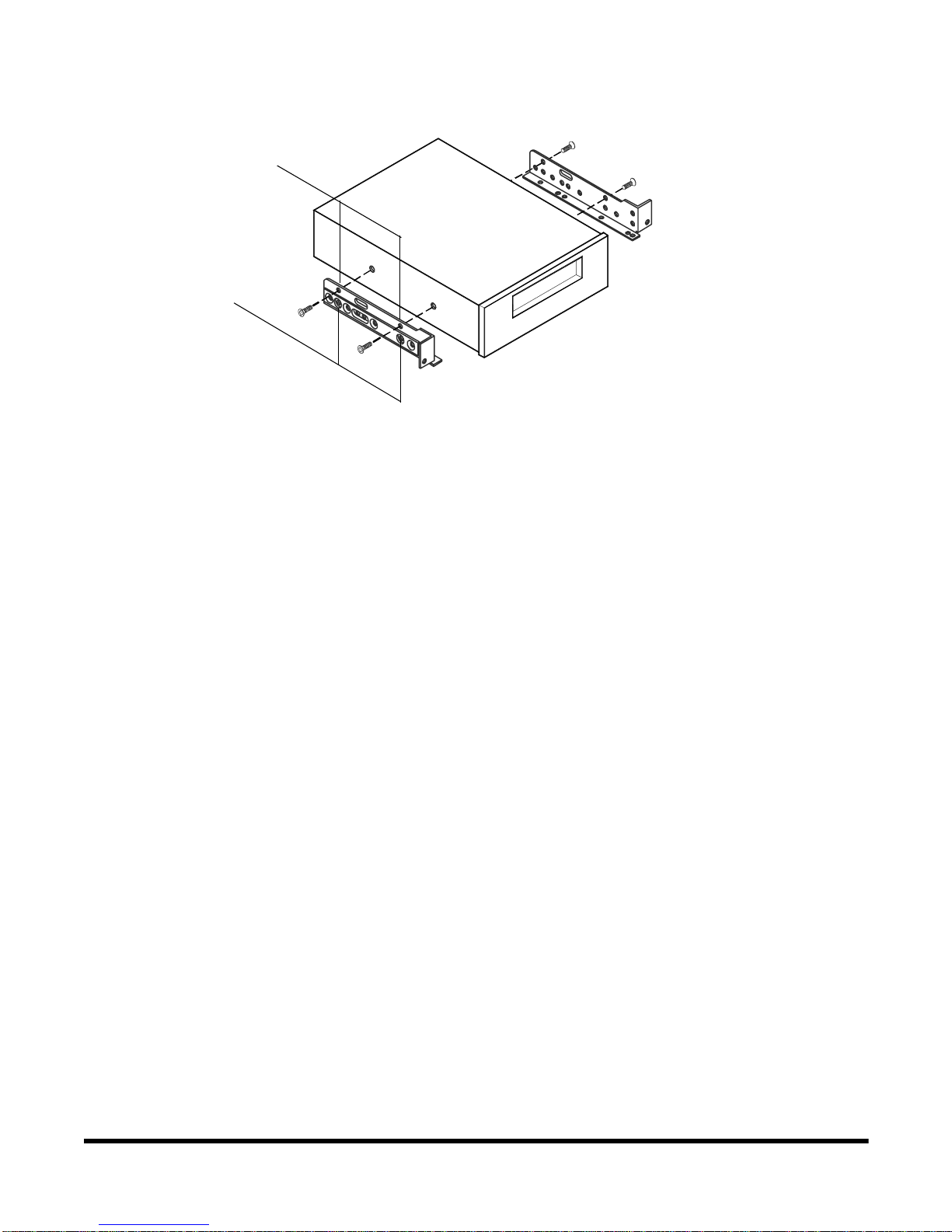

Figure 5. Metal Drive Rails

Clearance Considerations (Model C7504A or C7420A)

Installation of the C7504A or C7420A tape drive requires removing the power protection bracket attached to the power

distribution assembly in the server. The power protection bracket is located behind the non-hot swap drive cage. Before

installing the C7504A or C7420A tape drive, refer to your HP Server Operations and Maintenance Guide to power down

and open the server.

To remove the power protection bracket:

1. If the server is operating, log off all users, back up files, and power down the server.

2. Disconnect the power cord and any external cables connected to the server. If necessary, label each one to expedite

re-assembly.

3. Open the server by removing the left cover (pedestal) or top cover (rack) to gain access to the interior of the server.

Mounting Slot 1

Mounting Slot 2

6HP Part Number 5990-3463

4. Undo the thumbscrew at the rear of the system fan housing and remove the system fan assembly from the chassis.

5. Locate the power protection bracket at the rear of the non-hot swap cage, see Figure 7. Undo the captive Torx screw

securing the power protection bracket to the power distribution assembly.Remove the power protectionbracket and

screw from the server.

Figure 6. Removing the System Fan Assembly

NOTE The power protection bracket and screw should be saved for reinstallation if the

tape drive is later removed.

Thumbscrew

HP Part Number 5990-3463 7

6. Install the proper tape drive rails on the selected tape drive and install the tape drive in the server.

7. Replace the system fan assembly and tighten the thumbscrew.

8. Close the server and replace the external cables and power cord.

9. Power up the server and return it to normal operation.

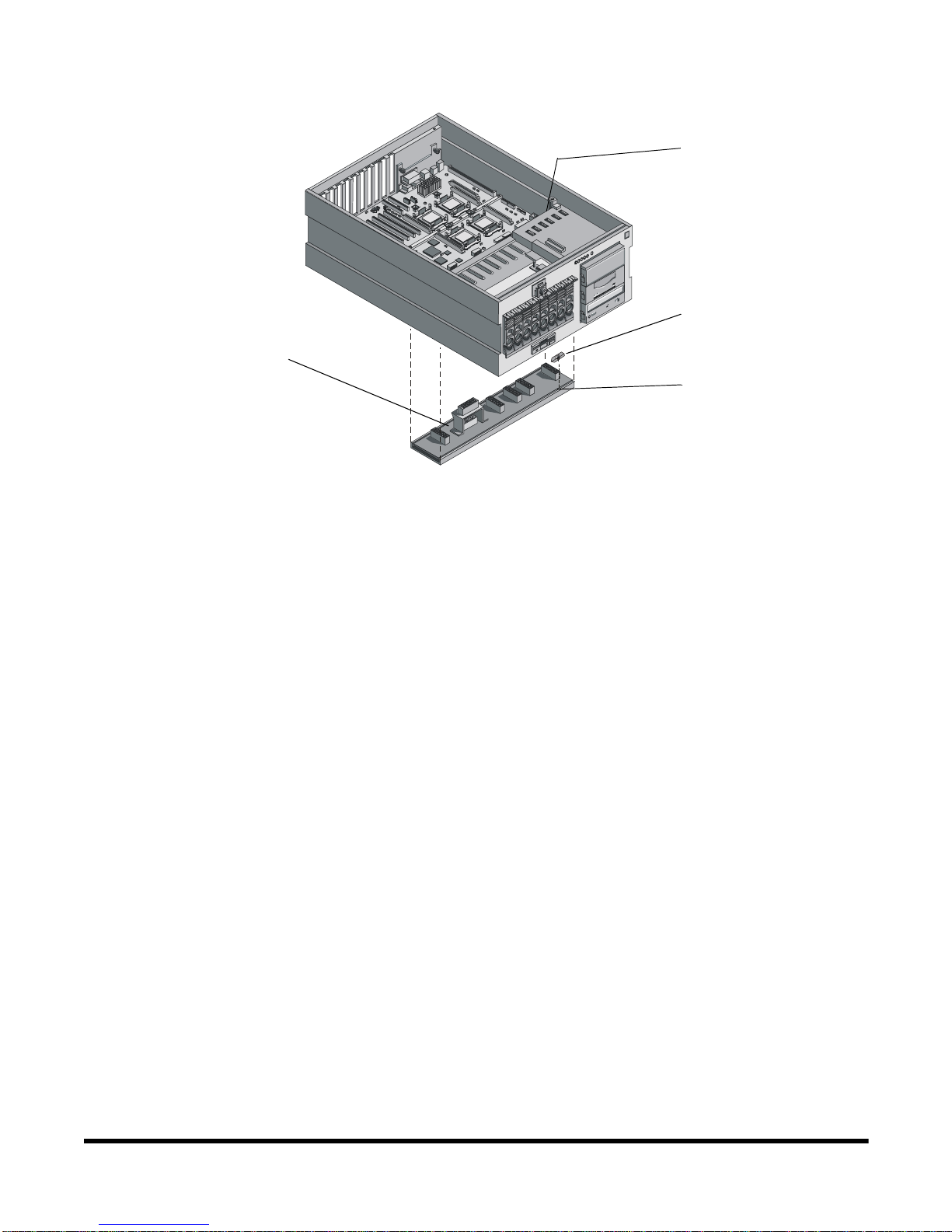

Figure 7. Removing the Power Protection Bracket

Bracket is

accessible from

this position

Captive Screw

Power Protection

Bracket

Power Distribution

Assembly

NOTE:

It is not necessary to remove the

Power Distribution Assembly from the chassis in order

to remove the Power Protection Bracket.

This view is used to indicate the location of the bracket.

8HP Part Number 5990-3463

Warranty and Support

This HP Server rail kit is covered by a limited hardware warranty for a period of one year from receipt by the original

end-user purchaser.

Once installed in an HP Server, this accessory may carry the longer of either aone-year warranty or the remainder of the

warranty period for the HP Server in which it is installed.

This accessory may be serviced through expedited part shipments. In this event, HP will prepay shipping charges, duty,

and taxes; provide telephone assistance on replacement of the component; and pay shipping charges, duty, and taxes for

anypartthatHPaskstobereturned.

The customer may be required to run HP-supplied configuration and diagnostic programs before a replacement will be

dispatched or an on-site visit is authorized.

Refer to the warranty statement provided with your original HP Server system documentation for the warranty

limitations, customer responsibilities, and other terms and conditions.

HP Repair and Telephone Support

Refer to the Warranty & Support for your HP Server booklet supplied with your HP Server system documentation for

instructions on how to obtain HP repair and telephone support.
