HP DesignJet 3500CP

Plotter Quick Start Guide

Section Page

Removing a Roll ................................................................................................................................1

Installing a Roll..................................................................................................................................3

Loading Roll Media ...........................................................................................................................6

Loading Sheet Media .........................................................................................................................13

Unloading Sheet Media......................................................................................................................16

Print Speed and Quality .....................................................................................................................17

Setup for Illustrator............................................................................................................................21

Setup for Powerpoint .........................................................................................................................26

Troubleshooting .................................................................................................................................29

Important Reminders .........................................................................................................................31

Working with Media

Removing a Roll from the Printer

3-31

Removing a Roll from the Printer

To unload media from the Take Up Reel see page 3-27, Unloading Media from the

Take Up Reel.

1If the media button light is off, press Form Feed and Cut on the front panel.

2If the media button light is on, press the media button.

3The front panel displays:

4Open the roll cover and gently pull the media from the printer.

C472353a

C4704034

Remove media

Working with Media

Removing a Roll from the Printer

3-32

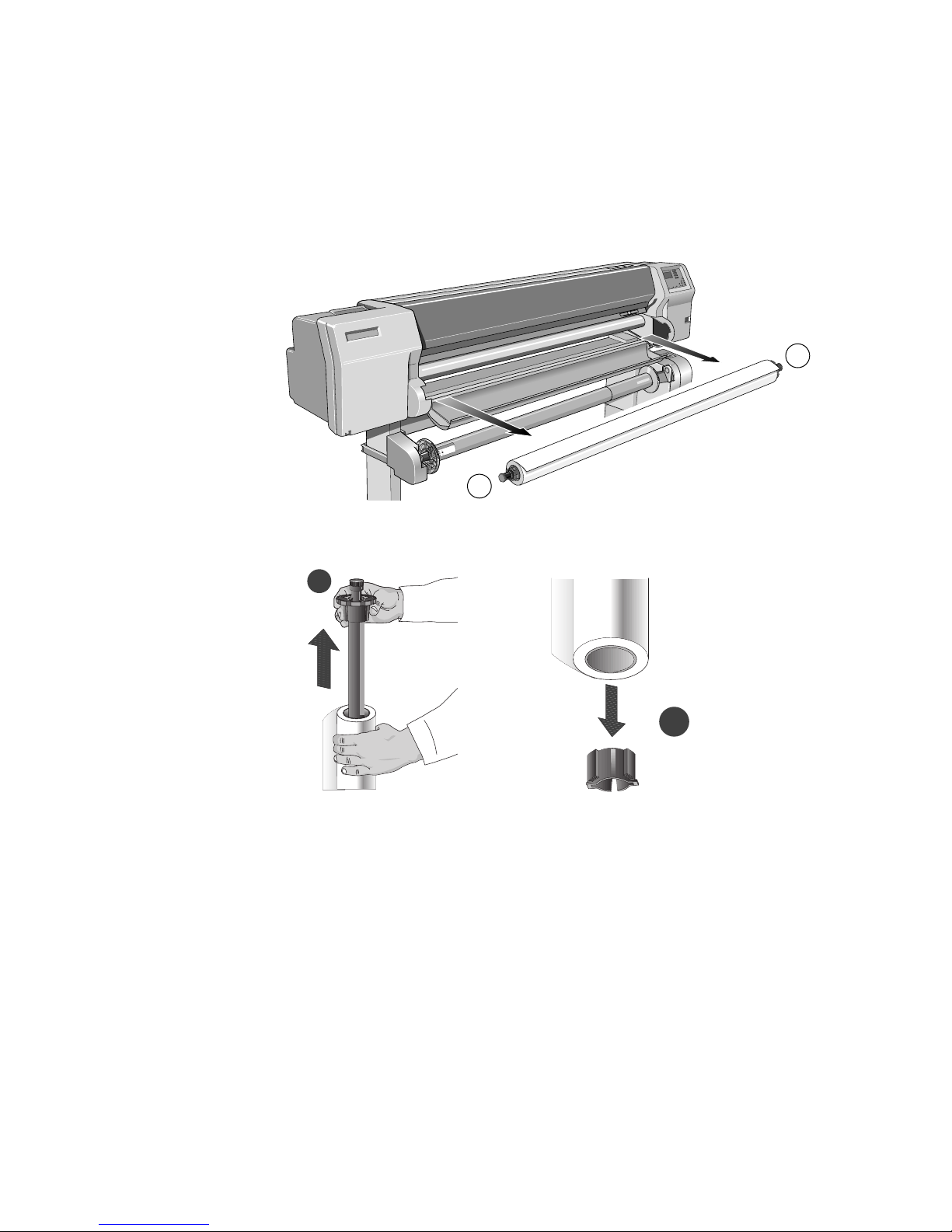

5Remove the old roll by pulling firmly on each end of the spindle, A then B.

6Rest the old roll upright on the floor so that the media stop (A) is on top. Pull out the

media stop A and the spindle. Pull out the endcap (B) from the other end of the old

roll.

NOTE:Alternatively if the media roll is very long, rest it horizontally on a table and

unload the media on the table.

7You have completed removing the old roll media from the printer. If you are not

immediately loading another roll of media into the printer, replace the endcap on the

spindle and place the spindle back in the printer.

To load a new roll of media, continue with the next section, Installing a New Roll

into the Printer.

12'' / 305mm

42'' / 1067mm

+ 54''/1372mm

+ 36''/915mm

+ 50''/1270mm

C4723121

C4723125

C4723126

Working with Media

Installing a New Roll into the Printer

3-33

Installing a New Roll into the Printer

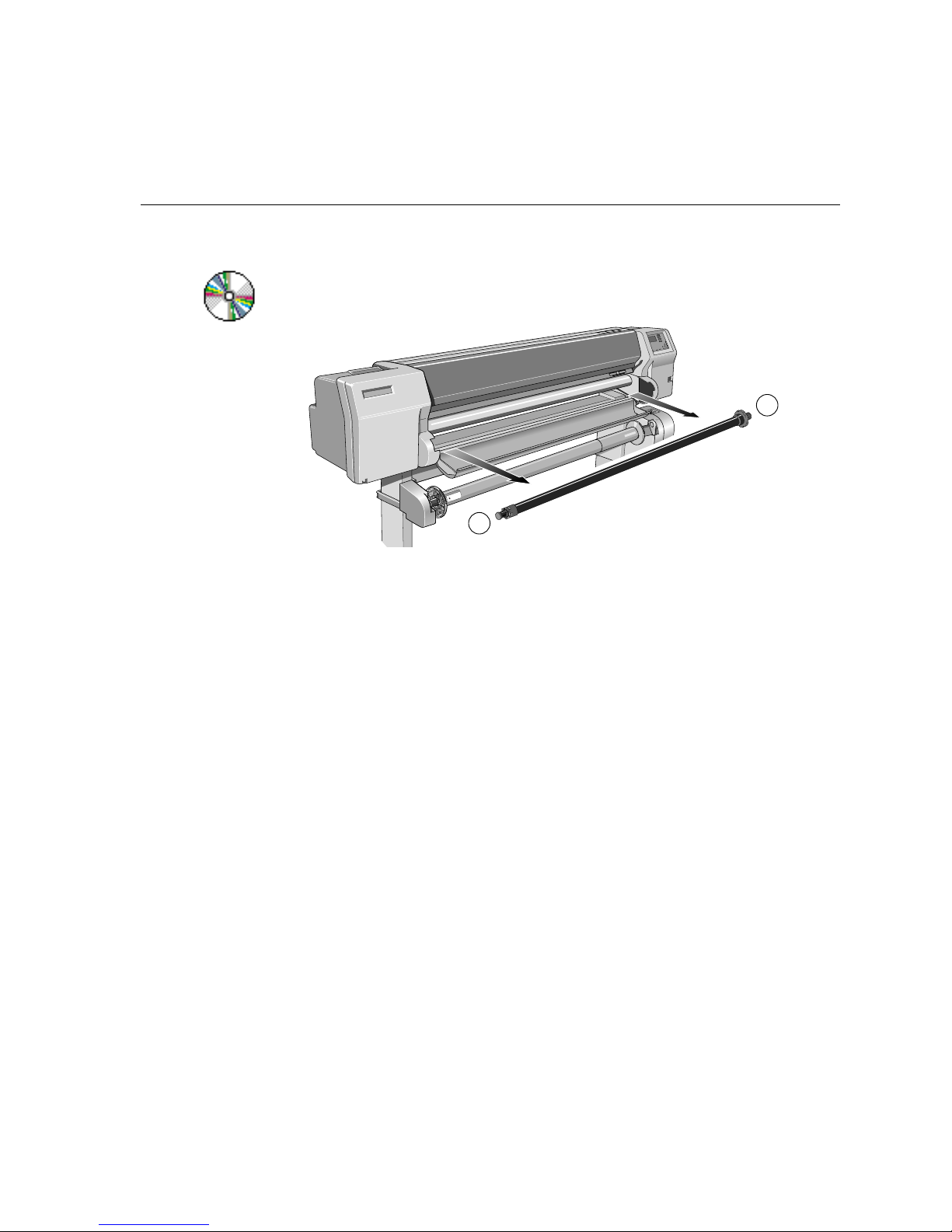

1If an empty spindle is installed in the printer, open the roll cover and remove the

empty spindle by pulling firmly on each end, A and then B as shown below.

2Remove the new roll from its wrapping.

3HP Heavyweight Coated Paper is the only media that is compatible with both the

HP DesignJet CP Ink System and the HP DesignJet CP Ink System UV. Therefore,

if you have changed the Ink System and the media you are loading is incompatible

with the new Ink System, the printer will automatically reject the non-compatible

media. See page 3-2, Choosing Media.

12'' / 305mm

42'' / 1067mm

+54''/1372mm

+36''/915mm

+50''/1270mm

C4723118

Working with Media

Installing a New Roll into the Printer

3-34

4Place the spindle vertically on the floor, with the media stop at the bottom. Remove

the end cap from the top of the spindle, and slide the new roll onto the spindle. The

leading edge of the media must wind clockwise as shown below.

5Alternatively if the media roll is very long, rest it horizontally on a table and load

the media on the table.

If the media stop falls off, push it back in until it snaps into position.

6Push the end cap in, making sure that the tabs are flush against the ends of the roll.

Push it far enough to be firm, but do not use excessive force as this may result in

broken tabs.

Correct Incorrect

C4723119

C4723120

Working with Media

Installing a New Roll into the Printer

3-35

7Insert the spindle so that the large media stop (A) is to the right and the small

endcap (B) to the left. Push in firmly on both ends. Make sure the media remains

flush against the media stop.

The media must be positioned on the roll as shown above.

12'' / 305mm

42'' / 1067mm

+ 54''/1372mm

+ 36''/915mm

+ 50''/1270mm

42'' / 1067mm

+ 54''/1372mm=

+ 36''/915mm=

+ 50''/1270mm

Media Path

C4723122

Working with Media

Loading Roll Media

3-13

Loading Roll Media

To start this procedure you need to have a roll of media installed on to the printer

spindle. See page 3-33, Installing a New Roll into the Printer.

1Check the leading edge as it unwinds from the spool. If it is not evenly cut or if it is

skewed (not perpendicular to the guides), continue with the next procedure. If the

media is cut correctly go to step 3.

WARNING The knife used in the next step is sharp. Be sure the printer’s wheels are locked.

Keep fingers clear of the cutting path. Keep the knife away from children.

2Trim the leading edge of the media roll only if it is not straight:

aPull the media over the top of the machine and lay it over the cutting track.

bUse the knife in the pocket located on the back of the printer to cut off the first

few inches of the media.

cRetract the blade and return the knife to its pocket.

42'' / 1067mm

+ 54''/1372mm

+ 36''/915mm

+ 50''/1270mm

C4723123

Working with Media

Loading Roll Media

3-14

NOTE:Make sure the media lever is in the raised position.

3Open the roll cover and pull out the media.

4Position the media.

12'' / 305mm

42'' / 1067mm

+ 54''/1372mm

+ 36''/915mm

+ 50''/1270mm

40 - 45 cm

C472330a

C472370

Working with Media

Loading Roll Media

3-15

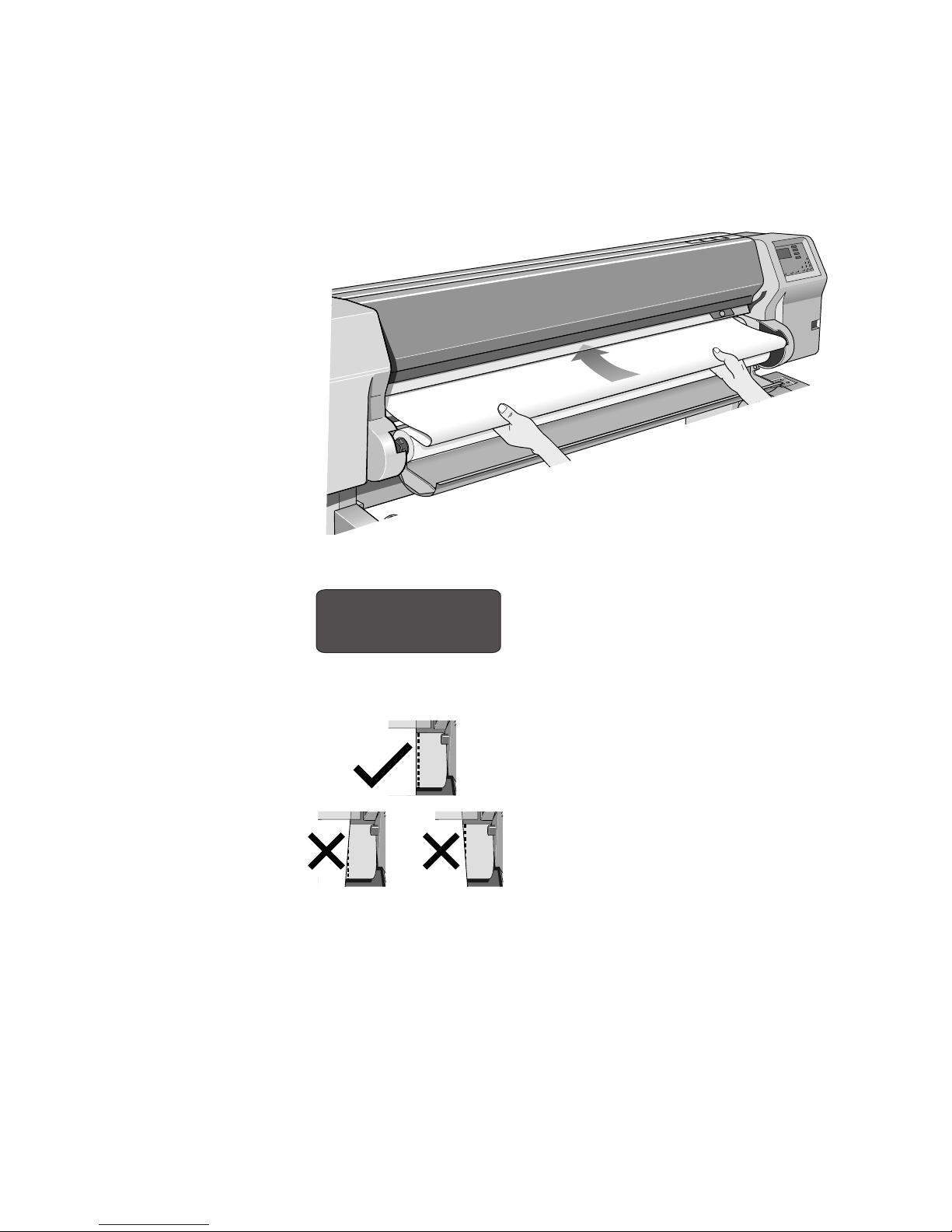

5Insert the media into the printer.

6When the media is fed into the printer as far possible the media button light comes

on. The front panel displays:

7Make sure the media is aligned with dashed line as shown below.

C472371

C4704034

to continue

Press Load Button

to continue

Press Load Button

C472357
