MSM317 Access Device Installation Guide

This guide describes how to physically install the MSM317 in an electrical outlet box

and make all necessary power and network connections. This guide assumes that

before installing the MSM317, all configuration issues have been addressed as

described in the MSM317 Access Device Installation and Getting Started Guide

available at: www.procurve.com/manuals.

The MSM317 Access Device is a

wireless/wired end-point solution with

an integrated four-port (plus uplink)

managed Ethernet switch that can be

installed in a standard NEMA-WD6

(US) or BS 4662 (International)

electrical outlet box.

It provides a complete connectivity

solution for hospitality or multiple

dwelling unit applications, supporting

a variety of IP-based in-room

applications over a single wire. (J9422A) (J9423A)

Package contents

• MSM317 body • Two mounting screws

• Two faceplates (NEMA-WD6 and BS 4662) •Thisguide

• Two trim panels (NEMA-WD6 and BS 4662)

Professional installation required

Professional installation of the MSM317 is required for proper RF operation and compliance.

Please consult with a professional installer who is trained in RF installation and knowledgeable

about local regulations (including building and wiring codes) to ensure that the MSM317 is

operating in accordance with channel, power, indoor/outdoor restrictions and license

requirements for the intended country of operation.

Safety information

Take note of the following safety information during installation of the MSM317:

• Communications wires and cables which are installed in building locations shall be listed CM

type in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular

Section 800.179 (Communications Wires and Cables).

• Conductors and equipment shall be installed in accordance with ANSI/NFPA 70, the National

Electrical Code (NEC), in particular Section 725.133 (Installation of Conductors and

Equipment in Cables, Compartments, Cable Trays, Enclosures, Manholes, Outlet Boxes,

Device Boxes, and Raceways for Class 2 and Class 3 Circuits).

• Wiring methods and materials shall be in accordance with NFPA 70, the National Electrical

Code (NEC), in particular Section 725.130.

• Handle exposed metal components of the network with caution.

NEMA-WD6 Version BS 4662 Version

2 MSM317 Access Device Installation Guide

• This product does not have a power switch. It is powered-on when the Uplink port is plugged

into a PoE power source.

• This product and all interconnected equipment must be installed indoors within the same

building, including all associated network connections as described by Environment A of the

IEEE 802.3af standard.

• It is normal for the rear metal cover of the MSM317 to get hot during operation. The cover is a

heat sink and is used to dissipate the heat generated by the MSM317.

MSM317 connectors and status lights

MSM317 components

Faceplate Trim Panel

MSM317 Body

NEMA-WD6 Version

BS 4662 Version

3MSM317 Access Device Installation Guide

Installation procedure

A. Attach the faceplate

Place the appropriate faceplate (NEMA-WD6 for US or BS 4662 for international) over the

front of the MSM317 body and press firmly to snap it into place.

B. Prepare the electrical outlet box

The MSM317 requires a single-gang electrical outlet box mounted in a wall cavity. The US version

requires a box conforming to NEMA-WD6, with a minimum depth of 1.4 inches. The International

version requires a box conforming to BS 4662, with a minimum depth of 35mm.

1. Install an appropriate electrical outlet box. Or if using an existing electrical outlet box,

disconnect and remove any existing equipment.

2. Run the required cables through the bottom of the electrical outlet box allowing sufficient

slack for the cables to reach the not-yet installed MSM317.

C. Connect the cables

1. Connect an Ethernet cable to the

Uplink port either via the RJ-45

connector or the Punch-down

block. Do not connect to both.

(See Punch-down block wiring on

page 4 for wiring details.)

2. If required, connect the cable

providing support for pass-through

devices to the Pass Through port.

D. Mount the MSM317

1. Attach the MSM317 to the

electrical outlet box using the

supplied mounting screws.

2. Place the appropriate trim panel

(US or International) over the front

of the MSM317 body and press

firmly to snap it into place.

E. Configure the MSM317

For details, see the MSM317 Access

Device Installation and Getting

Started Guide.

4 MSM317 Access Device Installation Guide

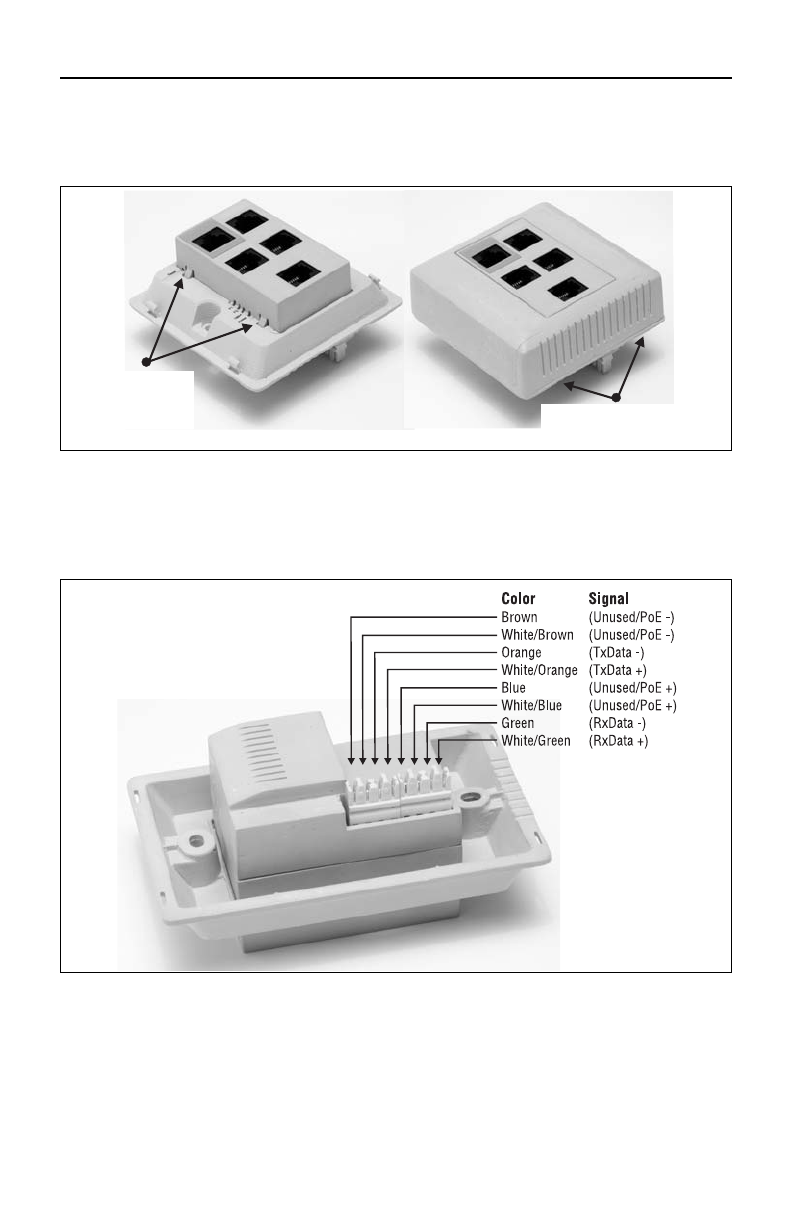

Faceplate and trim panel removal

To remove the faceplate, slightly push in two tabs on one side of the MSM317 body with a small

screwdriver. To remove the trim panel, pry off the trim panel with a small flat screwdriver.

Press here

to remove

the faceplate. Use a screwdriver to

pry off trim panel here.

(BS 4662 version shown.)

Punch-down block wiring

When terminating a cable run with the Punch-down block, always use solid conductor cables.

Stranded cables may not make good connections. To ensure good connections, install cables

into the individual Punch-down connectors using a 110-style tool.

CAUTION: Do not connect both the Punch-down block and the Uplink port to a network. Only

one connection can be used at a time.

The information contained herein is subject to change without notice. 5900-0236
