Clinician Adjustable

Lift Assist Salon Top

Shown with optional

Adjustable Side Arm Rests

and Universal Table Extender

ASSEMBLY & OPERATION INSTRUCTIONS

Lift Assist Backrest Top

Flat Top

INSTRUCTION MANUAL

www.oakworks.com · 717.235.6807

ASSEMBLY INSTRUCTIONS

WARNINGS

TABLE ASSEMBLY INSTRUCTIONS

STEP 1

Place the table top upside down on the floor.

STEP 2

Place the shelf upside down on top of the table skirt.

(Fig. 1) Each leg has a number by the top bolt that

corresponds with a number on the inside corners of

the table’s base.

STEP 3

Place the top leg bolt through the metal

corner bracket in one corner of the table skirt. (Fig.

1 inset) For flex top models, it may be necessary to

raise the foot section to install the leg.

Parts Included:

1 - Wrench 8 - Washers 8 - Nylock

Nuts

1 - Table Top

1 - Shelf

4 - Main Legs

w/extensions

Shelf Assembly

Table Top &

Skirt Assembly

Leg Assembly

Figure 1

Nylock Nut &

Washer (4 ea.)

Figure 2

(As viewed from underside)

STEP 4

Lift the same corner of the table shelf and place the

bottom leg bolt through the metal corner brackets on

the shelf.

STEP 5

Place a flat washer and nut on each bolt. Do not

tighten. (If cabinet is included, please go to step 1

below.)

STEP 6

Repeat steps 3-5 on remaining corners, installing the

remaining three leg assemblies to the skirt and shelf.

STEP 7

Using the included wrench, or a 1/2” wrench, tighten

all eight nuts securely. When tight, assembled unit

should look like figure 2.

WARNINGS

CABINET OPTION INSTALLATION INSTRUCTIONS

ASSEMBLY INSTRUCTIONS

STEP 2

Place end panel in position. Insert supplied

screws (2) into the hole in the legs on both

sides of the end panel. Tighten screw until end

panel is secured. Do not over tighten. Tighten

just enough to hold end panel in position.

Repeat for other end panel.

STEP 1

Tighten all four nuts on the bottom shelf, and upright

the table with assistance from another person.

STEP 3

Remove lower door track on shelf with supplied

screw driver. Lay doors on shelf in the position they

will be installed.

STEP 4

At an angle, install the top of the two doors into the upper door track. Place the

lower track on the bottom of the two doors. Slide the lower track into the final

location and replace the screws in the lower track.

picture not available


not

available


not

available

STEP 5

Slide the doors back and forth to insure easy movement.

Repeat on other side.

WARNINGS

OPERATION INSTRUCTIONS

OPERATING THE MANUAL TOP (IF EQUIPPED)

Back Rest

Control

To Raise the Back Rest:

Raise the backrest by pressing the lever under the head section and lifting up to the desired height. It

is recommended that the client takes some of their weight off the backrest while you lift.

To Lower the Back Rest:

Press the lever under the head section and push the backrest down. Release the lever and the backrest

will stay in place.

To change position of the backrest lever:

The backrest lever can be moved to the opposite side of the backrest by removing the screws and

relocating the hand lever to the opposite side of the top into the four pre-drilled holes.

BACK REST

To Raise the Leg Rest:

Raise the leg rest by pulling the handle on the side of the leg section and raise to the desired height.

It is recommended that the client takes some of their weight off the leg rest while you lift.

To Lower the Leg Rest:

Pull the handle on the side of the leg section and push the leg section down. Release the handle once

leg rest is at desired location and the leg section will stay in place.

To change position of the leg rest handle:

The leg rest handle can be moved to the opposite side of the table. First, remove the screws from the

handle and replace just the screws. Move handle to the opposite side of the table. Remove the screws

that are there and mount handle.

LEG REST

Leg Rest

Control

WARNINGS

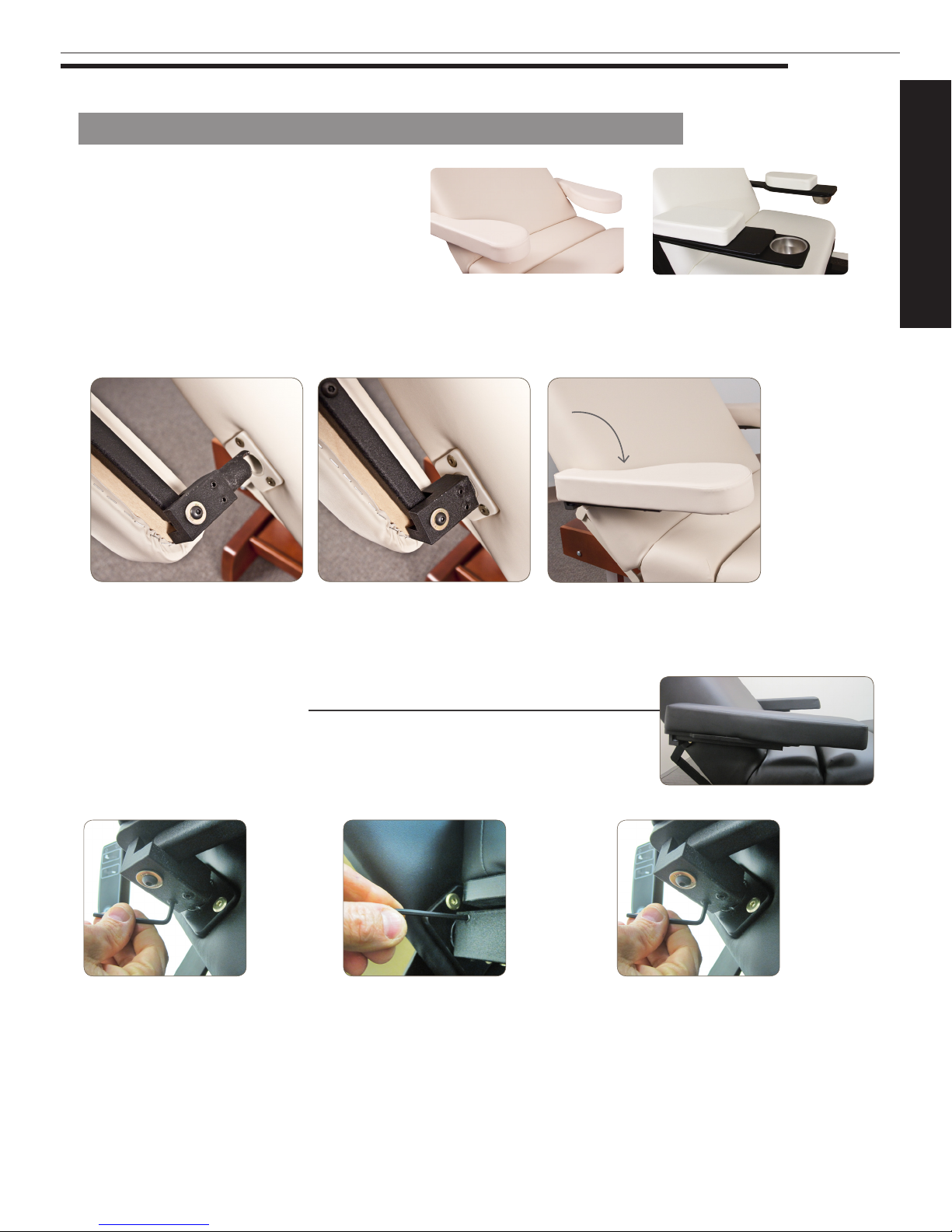

ARM REST INSTRUCTIONS

ARM REST INSTALLATION AND ADJUSTMENT INSTRUCTIONS

OPTIONAL ACCESSORY

AVAILABLE ON SALON TOP ONLY

Manicure Arm RestsAdjustable Side Arm Rests

1. Insert end of arm rest into

hole in backrest while holding

arm rest at 60° angle.

2. Push end all the way into hole and drop arm rest into horizontal

position. Tug slightly to make sure the armrest is fully locked to

the table (for patient safety).

To remove the arm rest, simply reverse the procedure above.

TO INSTALL THE ARM REST:

The arm rests adjust automatically as the table’s back support moves to remain parallel to the floor in any position.

They are designed to be strong and will take a reasonable amount of weight, but they are not designed to be used to

sustain a person’s weight when getting on or off the table.

CAUTION: Do not use the arm rest

for customer weight support during the

mounting or dismounting of the table.

The arm rest is not designed to support

the patient’s weight.

The arm rest height is adjusted to level at the factory. When in use, some of the new

parts will wear, and you may see some sagging of the arm rest over time. If the arm

rest is too low the height can easily be adjusted using the enclosed Allen wrench.

1. Loosen bottom 2 set screws

(turn counter-clockwise).

2. Turn side set screw in (clock-

wise) while lightly raising the arm

rest with your other hand (to make

the adjustment easier).

3. When you have achieved the desired

height, tighten the two bottom set screws

(turn clockwise).

1. Loosen bottom 2 set screws

(turn counter-clockwise).

2. Turn side set screw out (turn

counter-clockwise).

3. When you have achieved the desired

height, tighten the two bottom set screws

(turn clockwise).

To Raise the Arm Rest

To Lower the Arm Rest

TO LEVEL THE ARM REST:

WARNINGS

THIS PAGE INTENTIONALLY LEFT BLANK

NOTES:

WARNINGS

THIS PAGE INTENTIONALLY LEFT BLANK

NOTES:

European Compliance for CE Information:

Emergo Europe

Molenstraat 15

The Hague, 2513 BH Netherlands

[email protected]

Manual Part Number MMMNST0023

Revision date: 02.01.12

Edition 1 - February 2012

Printed in English

Printed in USA

CONTACT INFORMATION:

Oakworks®Inc.

923 East Wellspring Road

New Freedom, PA 17349

Phone: 717-235-6807

FAX: 717-235-6798

www.oakworks.com

Clinician Adjustable

ASSEMBLY & OPERATION INSTRUCTIONS

Maximum Working

Load Rating:

500 LBS. (227 KG.)

CAUTION
