HPE Edgeline EL1000 System User GuideHPE Edgeline EL1000 System User Guide

Part Number: 10-191019-Q321

Published: May 2021

Edition: 1

HPE Edgeline EL1000 System User GuideHPE Edgeline EL1000 System User Guide

AbstractAbstract

This document is for the person who installs, administers, and troubleshoots servers and storage systems. Hewlett Packard Enterprise

assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels.

Part Number: 10-191019-Q321

Published: May 2021

Edition: 1

NoticesNotices

The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and

services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as

constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained

herein.

Confidential computer software. Valid license from Hewlett Packard Enterprise required for possession, use, or copying. Consistent with FAR

12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed

to the U.S. Government under vendor's standard commercial license.

Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard Enterprise has no control over and is

not responsible for information outside the Hewlett Packard Enterprise website.

AcknowledgmentsAcknowledgments

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other

countries.

Linux is the registered trademark of Linus Torvalds in the U.S. and other countries.

® ®

™

Table of contentsTable of contents
Component identification
1 PCIe configuration
1.1 Front panel components
1.2 Front panel LEDs and buttons
1.3 Right side components
1.4 System board components
2 PXI/PXIe configuration
2.1 Front panel components
2.2 Front panel LEDs and buttons
2.3 Right side components
2.3.1 Mini-PCIe module port-cable mapping
2.4 System board components
2.4.1 DIP switch
3 Hot-plug drive LED definitions
4 HPE H240 Smart Host Bus Adapter port identification
Operations
1 Install an AC power supply
2 Install the DC power supply
3 Power down the system
4 Power up the system
5 Mount the system
6 Dismount the system
6.1 Dismounting the system from a wall mount
6.2 Dismounting the system from a rack mount
6.3 Dismounting the system from an ETSI rack mount
6.4 Dismounting the system from an Enterprise rack mount
7 Remove the access panel
8 Install the fans
9 Install the blade
10 Remove the blade
11 Install the mini-PCIe adapter board
12 Install the antenna
12.1 Installing the WiFi or LTE antennas
12.2 Installing the WiFi and LTE combo antennas
Setup
1 Optional services
2 Optimum environment
2.1 Temperature requirements
2.2 Power requirements
3 Installing hardware options
4 Registering the product
Hardware options installation

1 Installing the wall mounting option kit
2 Installing the rack mounting option kit
3 Installing the ETSI rack mounting option kit
4 Installing the Enterprise rack mounting option kit
5 Installing the drive
6 Installing the card options
6.1 Install the PCIe card
6.2 Install the PXI/PXIe card
7 Installing the mini-PCIe module options
7.1 Install a half-length mini-PCIe WiFi module option
7.2 Installing a full-length mini-PCIe LTE module
8 Installing the NVMe M.2 SSD option
Configuration
1 Accessing the System Utilities menu
2 Finding the IP address for an iLO on system blades
2.1 Using dynamic DNS to access the iLO
2.2 Using the MAC address to identify the IP address of the iLO
2.3 Using NMAP to identify the IP address of the iLO
2.4 Configuring the DHCP server for Windows on your laptop
2.5 Setting the static IP address using the serial console cable
2.5.1 Using iLO 4 configuration utility
2.5.2 Using iLO 5 configuration utility
3 Viewing or updating the DHCP address using the serial console cable
4 Finding the IP address through DHCP
Software and configuration utilities
1 Product QuickSpecs
2 Supported operating systems and drivers matrix
3 HPE iLO
3.1 Active Health System
3.1.1 Active Health System data collection
3.1.2 Active Health System log
3.2 iLO 4 or iLO 5 RESTful API support
3.3 Integrated Management Log
3.4 Temperature information
3.5 Thermal configuration settings
3.6 Intelligent PDU details
3.7 Smart Storage Energy Pack list
3.8 Using iLO 5 for viewing chassis information
3.8.1 Chassis information
3.8.2 Chassis Time
3.8.3 Configuring the chassis time
4 HPE Edgeline Component Pack
5 Firmware information

6 HPE Edgeline Infrastructure Manager
7 UEFI System Utilities
7.1 Using UEFI System Utilities
7.2 Flexible boot control
7.3 Restoring and customizing configuration settings
7.4 Secure Boot configuration
7.5 Embedded UEFI shell
7.6 Embedded Diagnostics option
7.7 iLO RESTful API support for UEFI
7.8 Re-entering the server serial number and product ID
Troubleshooting
1 HPE Edgeline Troubleshooting Guide
Battery
1 Battery specifications
2 Replace the system battery
Warranty and regulatory information
1 Warranty information
2 Regulatory information
3 Japnese certification mark for WiFi module
4 Japanese certification mark for LTE module
5 Belarus Kazakhstan Russia marking
6 Turkey RoHS material content declaration
7 Ukraine RoHS material content declaration
8 Federal Communications Commission notice for Class A equipment
9 European Union (CE) compliance
10 Canada, Industry Canada (IC) Notices
Electrostatic discharge
1 Preventing electrostatic discharge
2 Grounding methods to prevent electrostatic discharge
Specifications
1 Product QuickSpecs
2 Environmental specifications
2.1 Environmental specifications-system components support matrix
3 Mechanical specifications
4 Power supply specifications
5 PXI/PXIe specifications
5.1 Electrical load regulation specifications
5.2 Chassis cooling specifications
5.3 Pollution specifications
5.4 Shock and vibration specifications
5.5 Acoustic emission specifications
5.6 HPE EMC compliance testing
5.7 System synchronization clock specifications
Support and other resources

12.1 Websites

12.2 Accessing Hewlett Packard Enterprise Support

12.3 Accessing updates

12.4 Customer self repair

12.5 Remote support

13 Acronyms and abbreviations

14 Documentation feedback

Component identificationComponent identification

This chapter describes the external and internal server features and components.

Component identification 7

PCIe configurationPCIe configuration

PCIe configuration 8

Front panel componentsFront panel components

ItemItem DescriptionDescription

1 iLO port

2 Network port 1

3 Network port 2

4 USB 3.0 ports

5 Drives

6 Blade

Network connections are available in 1G and 10G. The 1G is shown.

Front panel components 9

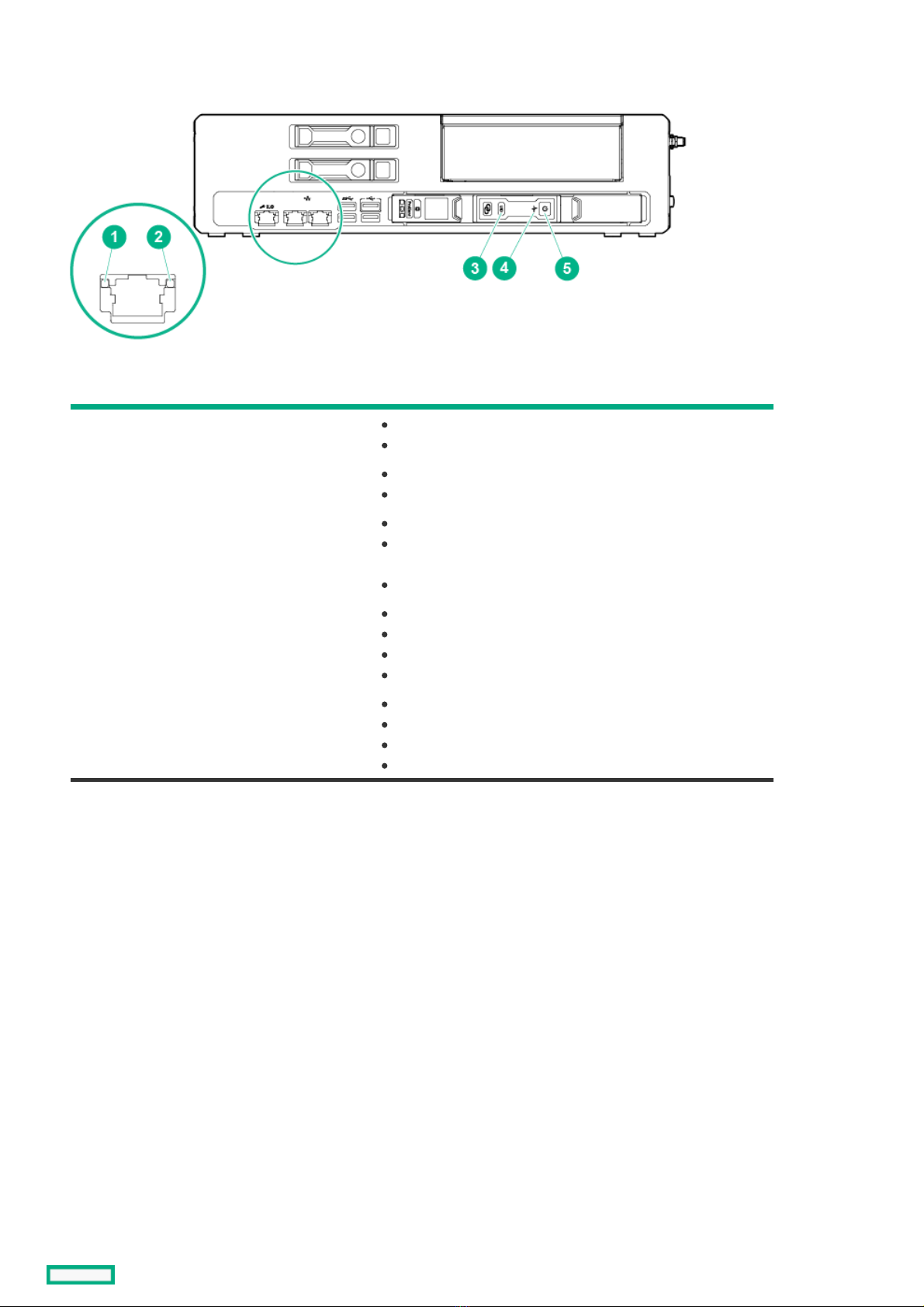

Front panel LEDs and buttonsFront panel LEDs and buttons

ItemItem DescriptionDescription StatusStatus

1 iLO and network port link LED Green = Linked to network

Off = No network connection

2 iLO and network port activity

LED

Flashing green = Network activity

Off = No network activity

3 Blade UID LED/button Blue = Blade ID is selected

Flashing Blue = Blade firmware update is in progress or iLO

IRC is in use

Off = Blade ID is not selected

4 Blade health LED Green = Normal operation

Flashing Amber = Degraded condition

Flashing Red = Critical condition

Off = No power

5 Blade power LED Green = CPU power on

Flashing green = iLO booting

Amber = Standby operation

Off= No power

Front panel LEDs and buttons 10
