HP TC1100 - Compaq Tablet PC Guía del usuario

Startup Guide

HP Tablet PC Series Docking Station

Document Part Number: 334244-001

October 2003

This guide provides information on docking the tablet PC in the

portrait position, enabling the default desktop video profiles, and

undocking the tablet PC. It also provides operating instructions

and troubleshooting procedures for common docking problems.

334244-001.book Page i Monday, August 11, 2003 2:12 PM

Microsoft and Windows are trademarks of Microsoft Corporation in the

U.S. and/or other countries.

The information contained herein is subject to change without notice. The

only warranties for HP products and services are set forth in the express

limited warranty statements accompanying such products and services.

Nothing herein should be construed as constituting an additional warranty.

HP shall not be liable for technical or editorial errors or omissions

contained herein.

Startup Guide

HP Tablet PC Series Docking Station

First Edition October 2003

Reference Number: TC1100/TR1105

Document Part Number: 334244-001

334244-001.book Page iii Monday, August 11, 2003 2:12 PM

Startup Guide iii

Contents

1 Getting Started

Unpacking the Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Identifying the Docking Station Components . . . . . . . . . 1–3

Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3

Right Side View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Left Side View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6

Using This Product Safely . . . . . . . . . . . . . . . . . . . . . . . . 1–7

2 Docking and Undocking the Tablet PC

Connecting to a Power Source . . . . . . . . . . . . . . . . . . . . . 2–2

Docking the Tablet PC in the Portrait Position . . . . . . . . 2–3

Keyboard Considerations . . . . . . . . . . . . . . . . . . . . . 2–3

Changing the Orientation and Viewing Angle. . . . . . . . . 2–9

Changing the Orientation. . . . . . . . . . . . . . . . . . . . . . 2–9

Changing the Viewing Angle of the Tablet PC. . . . 2–11

Using an External Keyboard and Mouse . . . . . . . . . . . . 2–13

Using MultiBay Devices . . . . . . . . . . . . . . . . . . . . . . . . 2–15

Inserting and Removing Devices. . . . . . . . . . . . . . . 2–16

Undocking the Tablet PC. . . . . . . . . . . . . . . . . . . . . . . . 2–19

Turning the System On and Off. . . . . . . . . . . . . . . . . . . 2–20

3 Enabling the Default Desktop Video Profiles

Setting Up the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Enabling the Default Profiles. . . . . . . . . . . . . . . . . . . . . . 3–3

334244-001.book Page iii Monday, August 11, 2003 2:12 PM

iv Startup Guide

Contents

4 Getting Help

HP Customer Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

HP Web Site. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

HP Authorized Reseller . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

Troubleshooting Problems, Causes and Solutions. . . . . . 4–3

Docking Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

Tablet PC Orientation Problems . . . . . . . . . . . . . . . . 4–4

MultiBay Device Problems . . . . . . . . . . . . . . . . . . . . 4–4

Index

334244-001.book Page iv Monday, August 11, 2003 2:12 PM

Startup Guide 1–1

Getting Started

This chapter lists the contents of the packing box and helps you to

identify the Tablet PC Docking Station components.

✎For information on specific tablet PC components, refer to the

Hardware Guide provided with your tablet PC or the Reference

Guide on the Documentation Library CD included with this

product.

Before docking your tablet PC to the Docking Station, read the

safety instructions in “Using This Product Safely” later in this

chapter and the Important Safety Information document included

with this product.

334244-001.book Page 1 Monday, August 11, 2003 2:12 PM

1–2 Startup Guide

Getting Started

Unpacking the Box

Make sure you unpack the following items.

Item Description

1Tablet PC Docking Station

2Screen protector

3AC adapter

4Warranty and service information

5This guide,

Tablet PC Docking Station Startup Guide

Documentation Library

✎The

Documentation Library

CD provides additional product

documentation, such as the

Reference Guide, Safety &

Comfort Guide,

and

Regulatory Agency Notices

334244-001.book Page 2 Monday, August 11, 2003 2:12 PM

Getting Started

Startup Guide 1–3

Identifying the Docking Station

Components

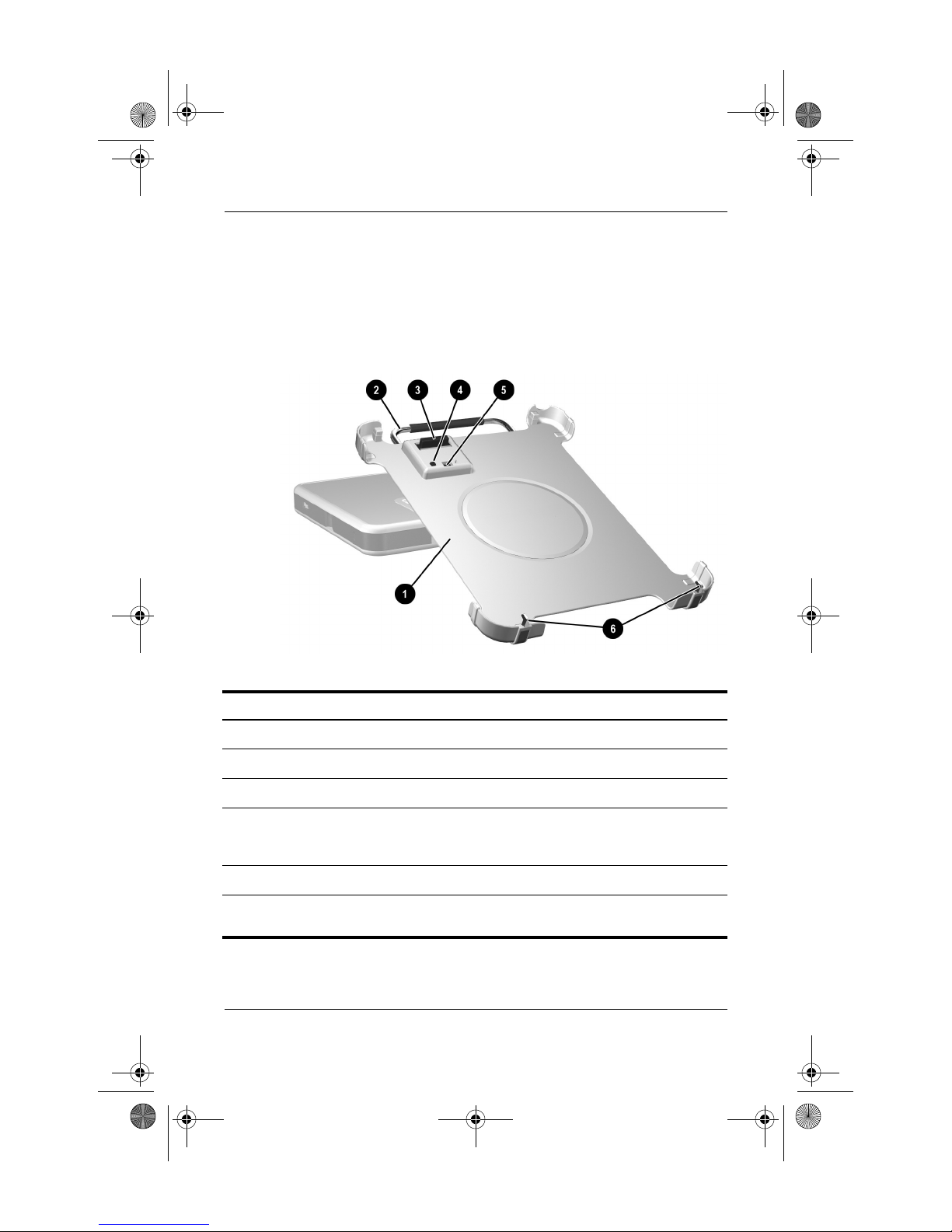

Front View

Component Description

1Docking stand Holds the tablet PC when it is docked.

2Release handle Ejects the tablet PC from the docking stand.

3Docking connector Connects to the tablet PC.

4Docking eject pin Disconnects the tablet PC from the docking

stand docking connectors when the release

handle is pulled.

5Docking restraint latch Secures the tablet PC to the docking stand.

6Docking alignment

brackets (2) Fit into the tablet PC docking alignment slots

to align the tablet PC in the docking stand.

334244-001.book Page 3 Monday, August 11, 2003 2:12 PM

1–4 Startup Guide

Getting Started

Right Side View

Component Description

1MultiBay Supports a diskette drive, CD-ROM or

CD-RW drive, DVD drive, DVD/CD-RW drive,

or second hard drive.

2Pivot arm Tilts the docking stand forward and backward

to enable different viewing angles and

different docking modes.

334244-001.book Page 4 Monday, August 11, 2003 2:12 PM

Getting Started

Startup Guide 1–5

Back View

Component Description

1RJ-45 network jack Connects a network cable.

2External monitor

connector Connects an optional external monitor or

overhead projector.

3Audio line-out jack Connects optional stereo headphones or

powered stereo speakers, and connects the

audio function of an audio/video device such

as a television or VCR.

4Audio line-in jack Connects the stereo audio function of

optional audio devices such as CD players.

5USB connectors (3) Connect optional USB devices.

6AC power connector Connects an AC adapter.

✎When the tablet PC is docked, the RJ-45 network cable must be

connected to the Docking Station and

not

to the tablet PC. For more

information, refer to the

Reference Guide

on the

Documentation

Library

CD.

334244-001.book Page 5 Monday, August 11, 2003 2:12 PM

1–6 Startup Guide

Getting Started

Left Side View

Component Description

1External MultiBay

connector Connects optional USB devices.

2MultiBay release lever Ejects a MultiBay device from the bay.

3Security cable slot Attaches an optional security cable that

secures the Docking Station to an immovable

object and disables the MultiBay release

lever.

✎If an optional External MultiBay device is connected to a USB

connector, the device must also be connected to AC power. See the

“Right Side View” section earlier in this chapter. If an External MultiBay

device is connected to the External MultiBay connector, it is not

necessary to connect the External MultiBay device to AC power.

334244-001.book Page 6 Monday, August 11, 2003 2:12 PM
