Reference Guide

HP Tablet PC Series Docking Station

Document Part Number: 335884-001

October 2003

This guide provides information on docking and undocking the

tablet PC to the Tablet PC Docking Station (in both portrait and

landscape positions), operating the Docking Station with the

tablet PC, and using the screen protector, as well as tips on

solving common docking problems.

Microsoft and Windows are trademarks of Microsoft Corporation in the

U.S. and/or other countries.

The information contained herein is subject to change without notice. The

only warranties for HP products and services are set forth in the express

limited warranty statements accompanying such products and services.

Nothing herein should be construed as constituting an additional warranty.

HP shall not be liable for technical or editorial errors or omissions

contained herein.

Reference Guide

HP Tablet PC Series Docking Station

First Edition October 2003

Reference Number: TC1100/TR1105

Document Part Number: 335884-001

Reference Guide iii

Contents

1 Identifying the Components

Docking Station Components . . . . . . . . . . . . . . . . . . . . . 1–2

Front View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Right Side View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3

Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Left Side View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Tablet PC Components . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6

Keyboard Components. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8

2 Docking and Undocking the Tablet PC

Connecting to a Power Source . . . . . . . . . . . . . . . . . . . . . 2–2

Docking the Tablet PC. . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Keyboard Considerations . . . . . . . . . . . . . . . . . . . . . 2–3

Docking in the Portrait Position . . . . . . . . . . . . . . . . 2–5

Docking in the Landscape Position . . . . . . . . . . . . . . 2–9

Docking the Tablet PC with the

Keyboard Attached . . . . . . . . . . . . . . . . . . . . . . . . . 2–12

Undocking the Tablet PC. . . . . . . . . . . . . . . . . . . . . . . . 2–14

Turning the System On and Off. . . . . . . . . . . . . . . . . . . 2–15

3 Using Desktop Video Profiles

Setting Up the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

Enabling Default Profiles. . . . . . . . . . . . . . . . . . . . . . . . . 3–3

iv Reference Guide

Contents

Customizing Profiles (Optional) . . . . . . . . . . . . . . . . . . . 3–4

Identifying the Profile . . . . . . . . . . . . . . . . . . . . . . . . 3–4

Changing the Windows Control Definitions . . . . . . . 3–4

Changing the Hot Key Definitions . . . . . . . . . . . . . . 3–5

Changing the Video Settings . . . . . . . . . . . . . . . . . . . 3–5

Defining Applications to Launch . . . . . . . . . . . . . . . 3–6

Saving the Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–6

Using Personal Profiles . . . . . . . . . . . . . . . . . . . . . . . 3–6

4 Using the Tablet PC Docking Station and

Screen Protector

Changing the Orientation and Viewing Angle. . . . . . . . . 4–2

Changing the Orientation. . . . . . . . . . . . . . . . . . . . . . 4–2

Changing the Viewing Angle of the Tablet PC. . . . . 4–4

Using Optional MultiBay Devices. . . . . . . . . . . . . . . . . . 4–5

Inserting and Removing Devices. . . . . . . . . . . . . . . . 4–6

Using External MultiBay Devices. . . . . . . . . . . . . . . 4–8

Using Security Features. . . . . . . . . . . . . . . . . . . . . . . 4–8

Connecting and Using External Devices . . . . . . . . . . . . . 4–9

Connecting Standard External Devices . . . . . . . . . . 4–10

Connecting Monitors . . . . . . . . . . . . . . . . . . . . . . . . 4–11

Connecting USB Devices . . . . . . . . . . . . . . . . . . . . 4–11

Using Communications Devices . . . . . . . . . . . . . . . . . . 4–12

Attaching and Detaching the Screen Protector . . . . . . . 4–13

Attaching the Screen Protector to the

Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–13

Detaching the Screen Protector from the

Tablet PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–15

Attaching the Screen Protector to the

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–16

Detaching the Screen Protector from the

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–17

Contents

Reference Guide v

A Troubleshooting

Getting Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–1

HP Customer Care. . . . . . . . . . . . . . . . . . . . . . . . . . . A–1

HP Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–2

HP Authorized Reseller. . . . . . . . . . . . . . . . . . . . . . . A–2

Troubleshooting Problems, Causes and Solutions. . . . . . A–3

Docking Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . A–3

Tablet PC Orientation Problems . . . . . . . . . . . . . . . . A–4

MultiBay Device Problems . . . . . . . . . . . . . . . . . . . . A–4

External Device Problems . . . . . . . . . . . . . . . . . . . . . A–5

B Specifications

Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1

Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . B–1

Rated Input Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–2

Index

Reference Guide 1–1

Identifying the Components

This chapter helps you to identify:

■Tablet PC Docking Station components

■Tablet PC components

■Keyboard components

✎This chapter assumes that the Docking Station is in the portrait

(vertical) position when describing the components.

1–2 Reference Guide

Identifying the Components

Docking Station Components

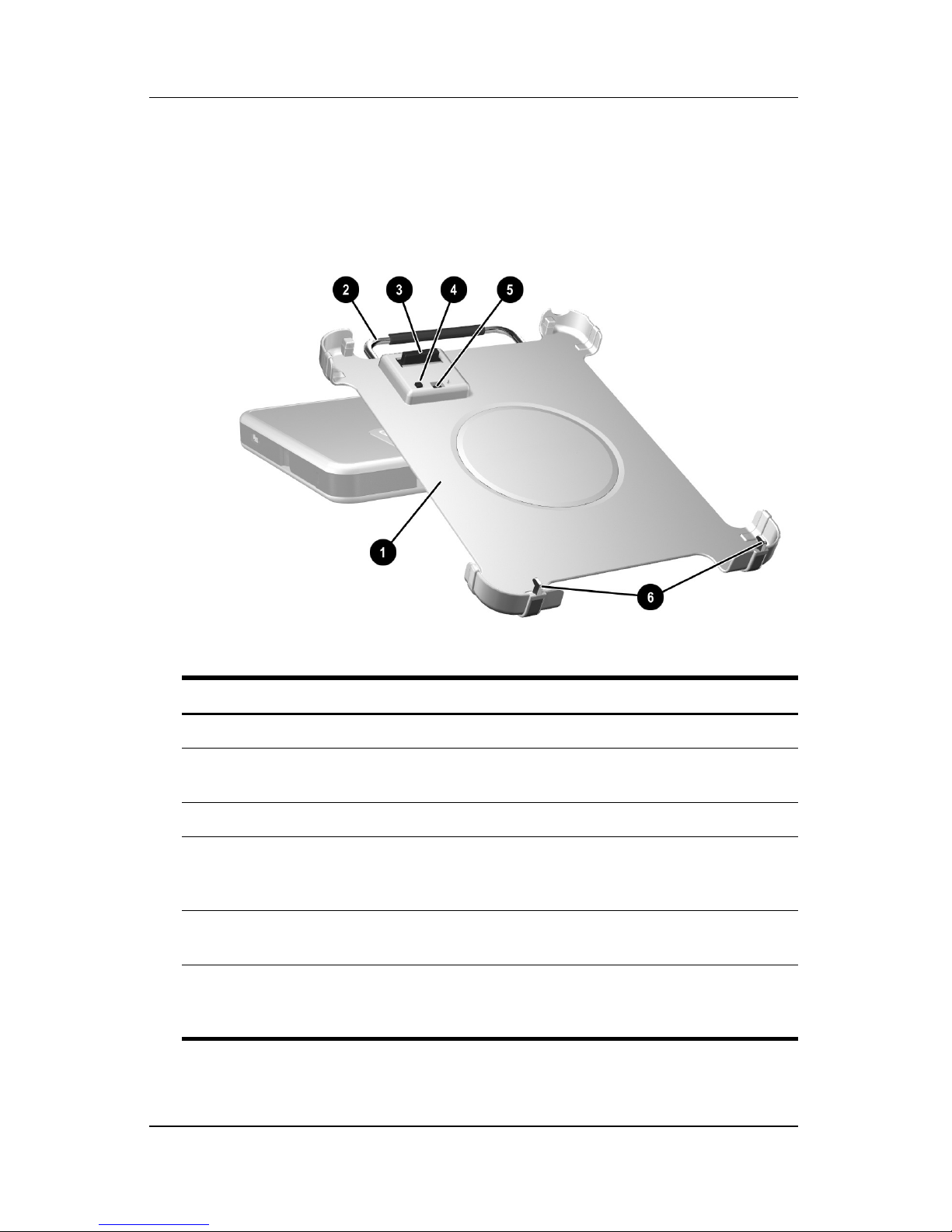

Front View

Component Description

1Docking stand Holds the tablet PC when it is docked.

2Release handle Ejects the tablet PC from the docking

stand.

3Docking connector Connects to the tablet PC.

4Docking eject pin Disconnects the tablet PC from the

docking stand docking connectors

when the release handle is pulled.

5Docking restraint latch Secures the tablet PC to the docking

stand.

6Docking alignment

brackets (2) Fit into the tablet PC docking

alignment slots to align the tablet PC in

the docking stand.

Identifying the Components

Reference Guide 1–3

Right Side View

Component Description

1MultiBay Supports a diskette drive, CD-ROM or

CD-RW drive, DVD drive, DVD/CD-RW

drive, or second hard drive.

2Pivot arm Tilts the docking stand forward and

backward to enable different viewing

angles and different docking modes.

1–4 Reference Guide

Identifying the Components

Back View

Component Description

1RJ-45 network jack Connects a network cable.

2External monitor connector Connects an optional external monitor

or overhead projector.

3Audio line-out jack Connects optional stereo headphones

or powered stereo speakers, and

connects the audio function of an

audio/video device such as a television

or VCR.

4Audio line-in jack Connects the stereo audio function of

optional audio devices such as CD

players.

5USB connectors (3) Connect optional USB devices.

6AC power connector Connects an AC adapter.

✎When the tablet PC is docked, the RJ-45 network cable must be

connected to the Docking Station and

not

to the tablet PC. See

“Using Communications Devices” in Chapter 4 for more

information.

Identifying the Components

Reference Guide 1–5

Left Side View

Component Description

1External MultiBay connector Connects optional USB devices.

2MultiBay release lever Ejects a MultiBay device from the bay.

3Security cable slot Attaches an optional security cable

that secures the Docking Station to an

immovable object and disables the

MultiBay release lever.

✎If an optional External MultiBay device is connected to a USB

connector, the device must also be connected to AC power. Refer

in this chapter to the “Right Side View” section. If an External

MultiBay device is connected to the External MultiBay connector, it

is not necessary to connect the External MultiBay device to AC

power.
