HP Kayak XA 05xx Manual
HP Kayak XA 05xx PC Workstation—
Technical Information
This section provides technical information about your PC Workstation
and includes details about the system board connectors and switches.
HP Kayak XA 05xx PC Workstation — Technical Information
Features
2English
Features
Feature: Description:
Processor (standard) Pentium II
Cache Memory
(integrated in processor package)
•Level-One: 16 KB code, 16 KB data
•Level-Two: 512 KB
Main memory (size/speed) Upgradeable to 768 MB (SDRAM)
Video One of the following video cards will be installed in the AGP
slot:
•Matrox Millennium G200 Integrated Graphics Accelerator
8 MB SGRAM Frame Buffer
•Elsa Gloria Synergy
8 MB SGRAM Frame Buffer
LAN
(SCSI Models Only)
Ethernet 10BT/100TX LAN controller on combined LAN/SCSI
PCI board. WOL (Wake On LAN) capability.
Audio •Embedded Sound Blaster Pro-compatible 16 bit full
duplex stereo audio solution
•MPC-3 compatible and Direct Sound V certified
•Built-in speaker
•Midi/joystick interface, headphones, line input and line
output
Disk drive controllers •Dual Ultra ATA-33 IDE controllers
•On selected models, an UltraWide 16-bit SCSI controller
on a combined LAN/SCSI PCI board
Rear connectors •Mini-DIN mouse
•Mini-DIN keyboard
•25-pin parallel
•9-pin serial (two, buffered)
•Two USB connectors
25-pin parallel connector •Mode: Centronics or bidirectional modes (ECP/EPP)
•Parallel port: 1 (378h, IRQ 7), 2 (278h, IRQ 5), or Off.
English 3
HP Kayak XA 05xx PC Workstation — Technical Information
Features
9-pin serial connectors •Standard: Two UART 16550 buffered serial ports
(both RS-232-C).
•Serial Ports A and B: 2F8h (IRQ 3), 2E8h (IRQ 3),
3F8h (IRQ 4), 3E8h (IRQ 4), or Off—
(if one port uses 2xxh, the other port must use 3xxh).
Disk drive shelves •Five mass storage shelves supporting:
•One front-access, third-height, 3.5-inch drive
•Two front-access, half-height, 5.25-inch drives
•Two internal 3.5-inch hard disk drives
(one full-height, one half-height)
System board connectors •One floppy disk drive connector
•Two ATA/33 IDE connectors (for up to four IDE devices)
•Audio connector (Desktop models only)
•Single front panel connector
for both LCD and status panel
•HP external start connector
•WOL (Wake On LAN) external start connector
•External battery connector
•Three fan connectors
•Power connector
Accessory slots •One AGP (Accelerated Graphics Port) slot
•Three 32-bit PCI slots
•One 16-bit ISA (Industry Standard Architecture) slot
•One combination ISA or PCI slot
Keyboard/Mouse •HP enhanced keyboard with mini-DIN connector
•HP enhanced scrolling mouse with mini-DIN connector
HP UltraFlow cooling system Cooling system with multiple temperature-regulated fans to
optimize cooling
Headset Stereo headset with microphone
SCSI (Selected Models Only) UltraWide 16-bit SCSI controller on a combined LAN/SCSI PCI
board
Feature: Description:
HP Kayak XA 05xx PC Workstation — Technical Information
System Specifications
4English
System Specifications
Power Consumption Information
NOTE When the PC Workstation is turned off with the power button on the
front panel, the power consumption falls below 5 Watts, but is not zero.
The special on/off method used by this PC Workstation considerably
extends the lifetime of the power supply. To reach zero power
consumption in “off” mode, either unplug the PC Workstation from the
power outlet or use a power block with a switch. You should be aware
that, in this case, the PC Workstation will lose its time settings within a
few days.
Maximum Loads Available for Accessory Slots
The load limits for the ISA and PCI accessory slots are compliant with
ISA and PCI specifications. For example, your PC Workstation has been
designed to support up to 15W per PCI slot and a total of 60W for all 4
PCI slots.
Maximum power consumption 200 W
Operating 80 W (average)
Idle 45 W (average)
Off 2.5 W1(average)
1. The power supply in your PC Workstation continues to supply power to the CMOS
memory, even when switched off.
English 5
HP Kayak XA 05xx PC Workstation — Technical Information
System Specifications
IRQs, DMAs, and I/O Addresses Used by Your PC Workstation
The IRQ, DMA, and I/O address mappings shown here are for a basic
configuration. The resources used by your PC Workstation may vary,
depending on which accessory boards are bundled with the
PC Workstation. Resources are allocated by the system BIOS or the
Plug and Play operating system.
IRQs used by
PC Workstation
IRQ0 System timer
IRQ1 Keyboard controller
IRQ2 Free
IRQ3 COM2, COM4
IRQ4 COM1, COM3
IRQ5 LPT2
IRQ6 Floppy disk drive controller
IRQ7 LPT1
IRQ8 Real-time clock
IRQ9
IRQ10
IRQ11
IRQ12 Mouse
IRQ13 Not connected
IRQ14 Integrated IDE controller
IRQ15 Integrated IDE controller
DMAs used by
PC Workstation
DMA 0 Capture
DMA 1 Playback
DMA 2 Floppy disk drive controller
DMA 3 LPT ECP
DMA 4 Cascade
DMA 5 free
DMA 6 free
DMA 7 free
HP Kayak XA 05xx PC Workstation — Technical Information
System Specifications
6English
I/O Addresses used by PC
Workstation
0000 - 000F DMA controller 1
0020 - 0021 Master interrupt controller
002E - 002F Configuration registers
0040 - 0043 Timer 1
0060, 0064 Keyboard controller
0061 Port B (speaker, NMI status and control)
0070 Bit 7: NMI mask register
0070 - 0071 RTC and CMOS
0080 Manufacturing port (POST card)
0081 - 0083,
008F DMA low page register
0092 PS/2 reset and Fast A20
00A0 - 00A1 Slave interrupt controller
00C0 - 00DF DMA controller 2
00F0 - 00FF Coprocessor error
0170 - 0177 IDE secondary channel
01F0 - 01F7 IDE primary channel
0278 - 027F LPT 2
02E8 - 02EF Serial port 4 (COM4)
02F8 - 02FF Serial port 2 (COM2)
0372 - 0377 Free (Secondary floppy disk drive)
0378 - 037A LPT1
03B0 - 03DF VGA
03E8 - 03EF COM3
03F0 - 03F5 Floppy disk drive controller
03F6 IDE primary channel
03F7 Floppy disk drive controller
03F8 - 03FF COM1
04D0 - 04D1 Interrupt edge/level control
0678 - 067B LPT2 ECP
0778 - 077B LPT1 ECP
0CF8 - 0CFF PCI configuration space
8000 PIIX4 Power Management I/O space
8400 NS317 ACPI Registers
8800 PIIX4 SMBus I/O space
English 7
HP Kayak XA 05xx PC Workstation — Technical Information
System Connectors and Switches
System Connectors and Switches

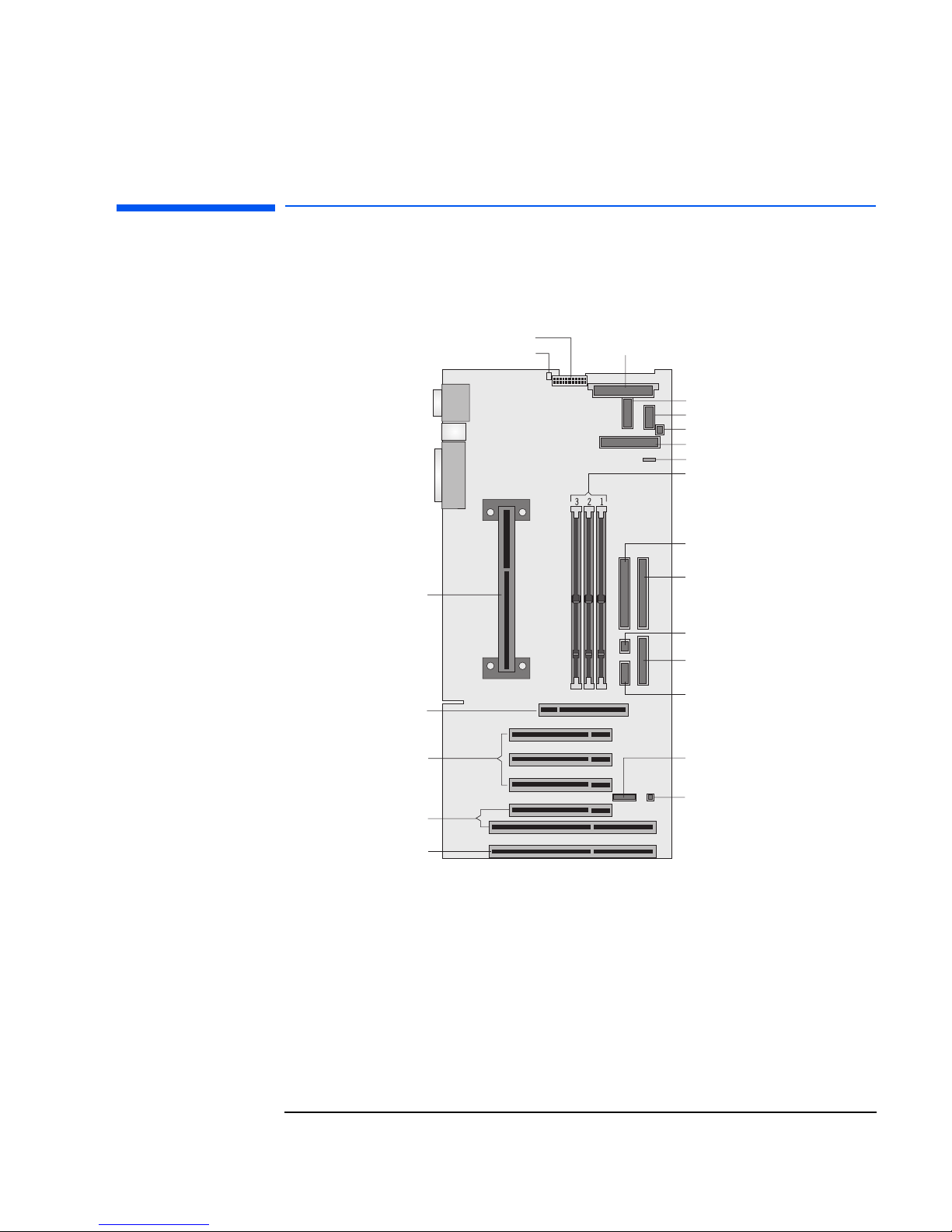

System Board Connectors
PCI fan
External Start
DT Audio
DT Status Panel
Buzzer
Primary IDE
Memory Modules
External Battery
FDD
Secondary IDE
MT LCD Panel
MT Status Panel
Power
Power Supply
Processor Fan
Processor
AGP Slot
PCI Slots
ISA/PCI Combo
ISA Slot
Disk Drive Fan
HP Kayak XA 05xx PC Workstation — Technical Information
System Connectors and Switches
8English

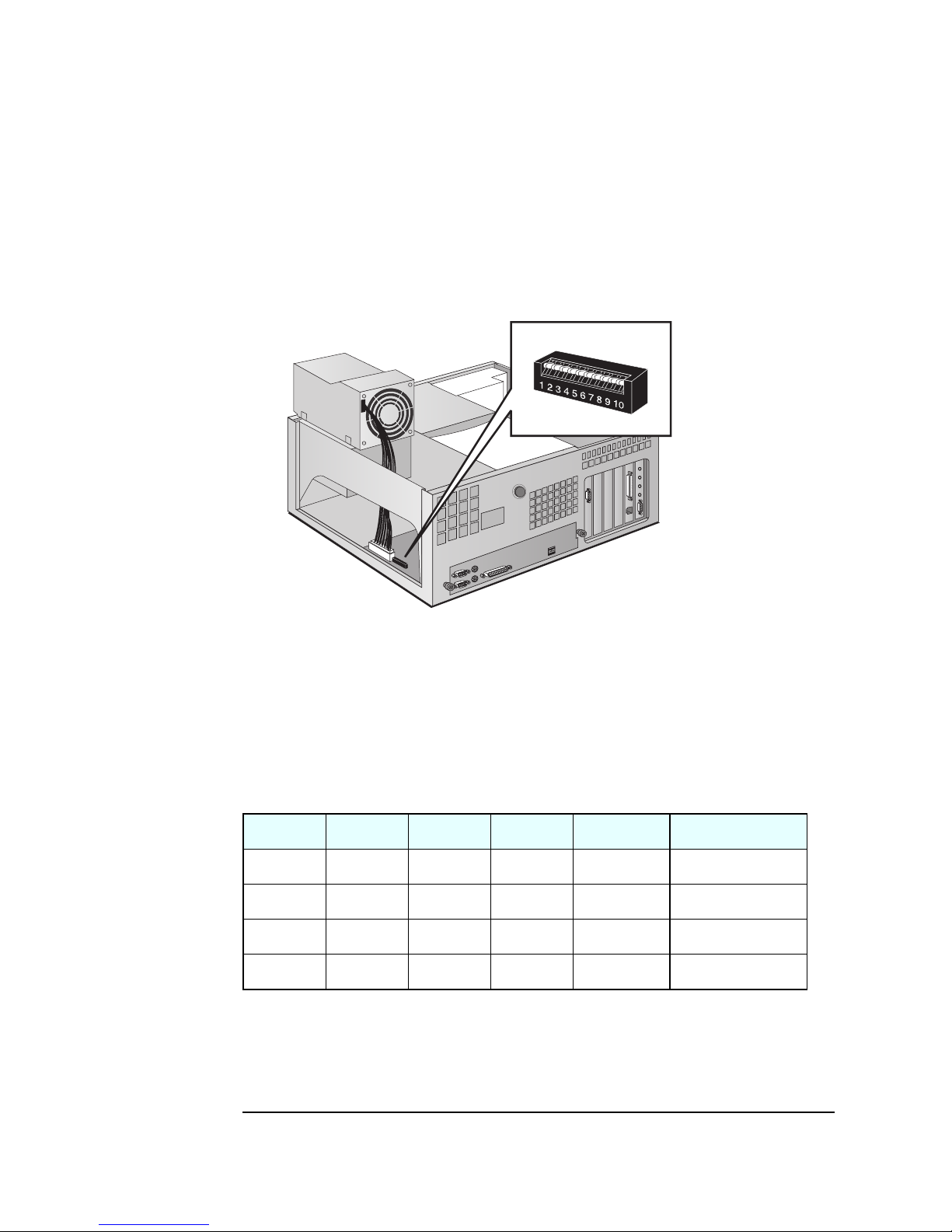

System Board Switches
The following diagram shows the position of the system board switches
on a Desktop HP Kayak XA Workstation:
Switch 1 is reserved and should not be used. Its default position is Up.
Switches 2 through 5 are used for processor settings as shown in the
following table and should be changed if the processor supplied with
the PC Workstation is replaced with a faster one.
System Board
Switches
Switch 2 Switch 3 Switch 4 Switch 5 Bus Speed Processor Speed
UP1
1. UP=OFF, DOWN=ON.
UP DOWN DOWN 100 MHz 350 MHz
UP DOWN UP UP 100 MHz 400 MHz
UP DOWN UP DOWN 100 MHz 450 MHz
UP DOWN DOWN UP 100 MHz 500 MHz
English 9
HP Kayak XA 05xx PC Workstation — Technical Information
System Connectors and Switches
Switches 6 to 10 are used as shown in the following table:
Switch1
1. On the switch, UP=OFF and DOWN=ON.
Use Switch to:
1 - RESERVED Do not use.
6 - CLEAR CMOS Retain or clear CMOS memory:
•UP to retain CMOS memory — DEFAULT
•DOWN to clear CMOS memory.
7 - PSWRD Enable or clear (and disable) User and System Administrator
Passwords stored in EEPROM:
•UP to enable passwords — DEFAULT
•DOWN to clear passwords.
8 - KEYB power on Enable or disable power on using the keyboard:
•UP to disable keyboard power on
•DOWN to enable keyboard power on — DEFAULT
9 - BOX
DEFINITION
Select box type:
•UP to select a Minitower model
•DOWN to select a Desktop model — DEFAULT
10 - BIOS
Recovery Mode
•UP to enable normal mode — DEFAULT
•DOWN to enable recovery mode.
