NO.

ISSUED:

MODEL

HOSHIZAKI

STACKABLE CRESCENT CUBER

(FINAL) PARTS LIST

KM-2000SWE3

KM-2000SRE3

JUNE 7, 1994

AUG. 7, 2000

71090

REVISED:

KM-2000SWE3

D-0 June, 1994

E-1 April, 1995

F-1 May, 1996

F-2 July, 1996

G-0 Jan., 1997

G-1 July, 1997

H-0 Jan., 1998

KM-2000SRE3

D-0 Feb., 1994

E-0 De ., 1994

E-1 April, 1995

F-1 April, 1996

F-2 July, 1996

G-0 Jan., 1997

G-1 Aug., 1997

H-0 Mar h, 1998

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PE P = Polyethylene terephthalate = etlon

PP = Polypropylene

PS = Polystyrene

P FE = Polytetrafluoroethylene = eflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "1990" or "2000".

o = New part for "x"

Ex.2 A-1 in the same auxiliary code.

"A" is the first in alphabetical

order. So, "A" indicates "1991".

Ex.3 A-2

Each time a part is changed non-interchangeably

in a year, this number advances.

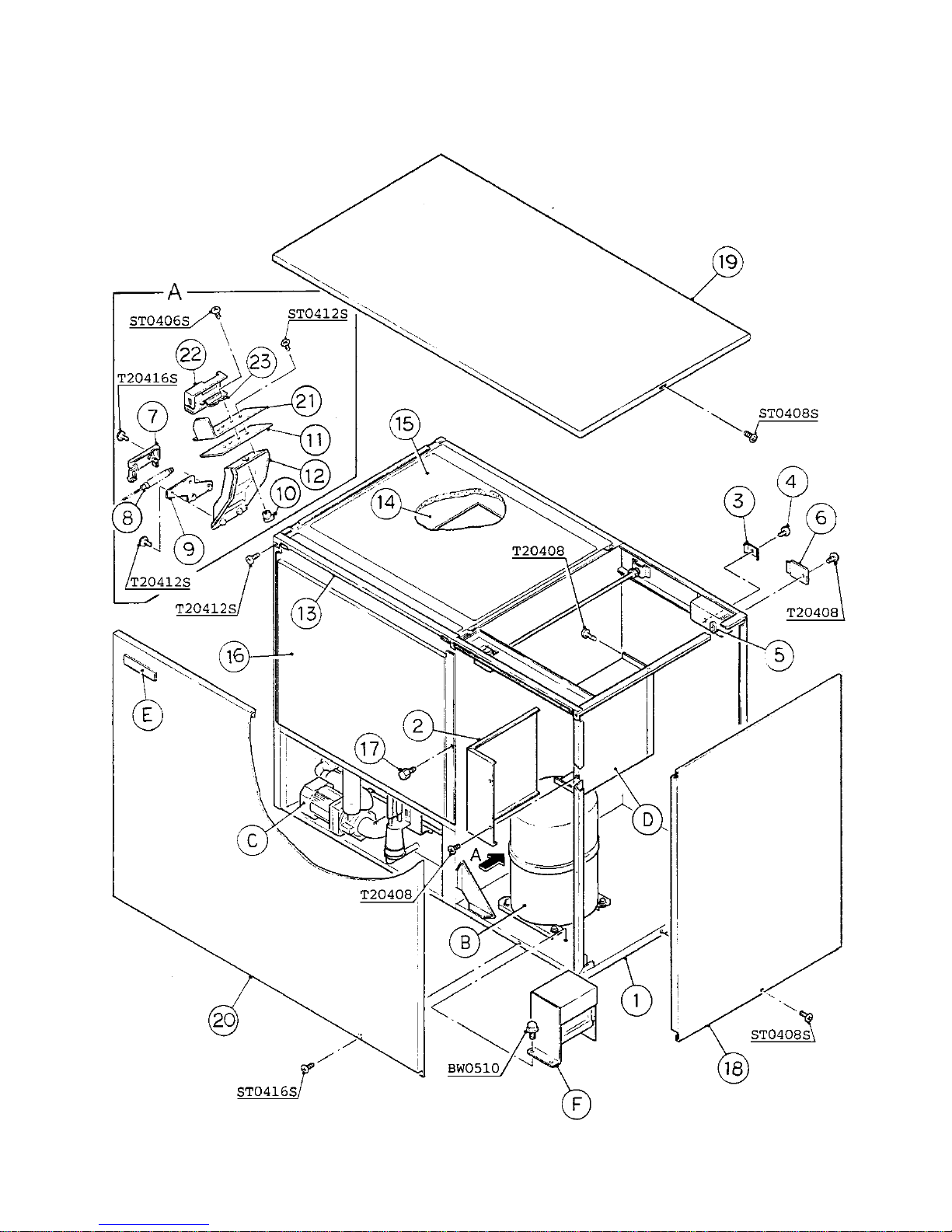

KM-2000SWE3 A. ICE CUBER ASSEMBLY D-0

KM-2000SWE3 A. ICE CUBER ASSEMBLY E-1, F-1, F-2, G-0, G-1, H-0

MODEL: KM-2000SWE3 TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER D-0 E-1 F-1 F-2 G-0 G-1 H-0

B REFRIGERATION CIRCUIT - 106807A01 1 -

- 106807A02 1 -

- 106807A03 1 1 1 1 1

C WATER CIRCUIT - 105122A03 1 -

- 105122A04 111111

D CONTROL BOX ASSEMBLY - 219335A02 1111111

E LABEL LOCATION - 219350A02 1111111

FTRANSFORMER BOX ASSEMBLY - 333073A011111111

1 EVAPORATOR CASE - 105861G04 1 -

- 105861G06 111111

2CONTROLBOXCOVER GS 3A0174-011111111

3SQUAREWASHER BRASS 433537-021111111

4SCREW-GROUNDING BRASS 433304-021111111

5BUSHING SR-34-2 420472-051111111

6JUNCTIONBOXCOVER GS 433410-011111111

7BULBHOLDER PE 328919-011111111

8 SPACER PE 443545-01 1111111

9BULBHOLDER(C) ABS 325845G011111111

10BUSHING EPDM 425307-011111111

11 SPACER ABS 439727-01 1111111

12BULBHOLDER(D) ABS 215644G011111111

13FRONTPANEL-BRACKETSS 323903-011111111

14 SPACER ABS 324321-01 1111111

15 TOP INSULATION ABS, PE 324216G01 1111111

16 FRONT INSULATION ABS, PE 326041G01 1111111

17 THUMBSCREW ABS, SS 415949G01 1111111

18SIDEPANEL(R) SS 215381G011111111

19 TOP PANEL SS 213669-01 1 x1

SS 213669-02 o1 1 1 1 1 1

MODEL: KM-2000SWE3 TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER D-0 E-1 F-1 F-2 G-0 G-1 H-0

20 FRONT PANEL SS 325848G01 1 1 1 1 1 1 1

21 BULB HOLDER (E) GS 439725-01 1 1 1 1 1 1 1

22 BULB HOLDER (F) GS 328743-01 1 1 1 1 1 1 1

23 BULB HOLDER (G) GS 439726-01 1 1 1 1 1 1 1

KM-2000SRE3 A. ICE CUBER ASSEMBLY D-0, E-0

KM-2000SRE3 A. ICE CUBER ASSEMBLY E-1, F-1, F-2, G-0, G-1, H-0

MODEL: KM-2000SRE3 TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

D-0 E-0 E-1 F-1 F-2 G-0 G-1 H-0

B REFRIGERATION CIRCUIT - 106808A01 1 1 -

- 106808A02 1 -

- 106808A03 11111

C WATER CIRCUIT - 105122A03 1 1 -

- 105122A04 111111

DCONTROLBOXASSEMBLY- 219335A0311111111

E LABEL LOCATION - 219351A02 11111111

FTRANSFORMER BOX ASSEMBLY - 333073A0111111111

1 EVAPORATOR CASE - 105861G05 1 1 -

- 105861G07 111111

2CONTROLBOXCOVER GS 3A0174-0111111111

3SQUAREWASHER BRASS 433537-0222222222

4 SCREW - GROUNDING BRASS 433304-02 22222222

5BUSHING SR-34-2 420472-0511111111

6 JUNCTION BOX COVER GS 433410-01 22222222

7BULBHOLDER PE 328919-0111111111

8SPACER PE 443545-0111111111

9BULBHOLDER(C) ABS 325845G0111111111

10BUSHING EPDM 425307-0111111111

11SPACER ABS 439727-0111111111

12BULBHOLDER(D) ABS 215644G0111111111

13FRONTPANEL-BRACKETSS 323903-0111111111

14SPACER ABS 324321-0111111111

15TOPINSULATION ABS,PE 324216G0111111111

16FRONTINSULATION ABS,PE 326041G0111111111

17THUMBSCREW ABS,SS 415949G0111111111

18SIDEPANEL(R) SS 215381G0111111111

19 TOP PANEL SS 213669-01 1 x1

SS 213669-02 o1111111
