INSTRUCTION MANUAL
ISSUED: JUNE 5, 2001
DB-130H
ICE DISPENSING BIN
Reliability is a
beautiful thing
TM
REVISED: DEC. 10, 2003
2
IMPORTANTIMPORTANT
IMPORTANTIMPORTANT
IMPORTANT
Only qualified service technicians should attempt to install, service or maintain this
ice dispenser. No installation, service or maintenance should be undertaken until the
technician has thoroughly read this Instruction Manual. Likewise, the owner/
manager should not proceed to operate the ice dispenser until the installer has
instructed them on its proper operation.
HOSHIZAKI provides this manual primarily to assist qualified service technicians in the
installation, maintenance and service of the ice dispenser.
Should the reader have any questions or concerns which have not been satisfactorily
addressed, please call or write to the HOSHIZAKI Technical Support Department for
assistance.
HOSHIZAKI AMERICA, INC.
618Highway74South
PeachtreeCity,GA 30269
Attn: HOSHIZAKITechnicalSupportDepartment
Phone: 1-800-233-1940TechnicalService
(770)487-2331
Fax: (770)487-3360
NOTE: Toexpediteassistance,allcorrespondence/communicationMUST includethefollowing
information:
• ModelNumber
• SerialNumber
• Completeanddetailedexplanationoftheproblem
3
• Pleasereview thismanual. Itshouldbereadcarefullybeforetheicedispenseris
installedandoperated.Onlyqualifiedservicetechniciansshouldinstall,serviceand
maintaintheicedispenser. Thismanualshouldbemadeavailabletothetechnician
priortoinstallation,maintenanceorservice.
• Keepthismanualwiththedispenserforlaterreference.
CONTENTSCONTENTS
CONTENTSCONTENTS
CONTENTS
PAGE
I. SPECIFICATIONS .................................................................................................... 4
1. NAMEPLATE RATING ........................................................................................... 4
2. DIMENSIONS/CONNECTIONS.............................................................................. 5
II. INSTALLATION AND OPERATING INSTRUCTIONS............................................. 6
1. CHECKS BEFORE INSTALLATION ...................................................................... 6
2. LOCATION.............................................................................................................. 7
3. SET UP ................................................................................................................... 8
4. ELECTRICAL CONNECTION .............................................................................. 10
5. DRAIN CONNECTIONS ....................................................................................... 11
6. FINAL CHECK LIST.............................................................................................. 11
7. START UP ............................................................................................................ 13
8. PREPARING THE ICE DISPENSING BIN FOR LONG STORAGE ..................... 13
III. CLEANING AND MAINTENANCE INSTRUCTIONS............................................ 14
1. CLEANING INSTRUCTIONS ............................................................................... 14
[a] CLEANING PROCEDURE .............................................................................. 14
[b] SANITIZING PROCEDURE............................................................................. 16
2. MAINTENANCE.................................................................................................... 16
4
We reserve the right to make changes in specifications and design without prior notice.
See NAMEPLATE for electrical specifications. The nameplate
is located on the upper part of the right side panel.
I. SPECIFICATIONSI. SPECIFICATIONS
I. SPECIFICATIONSI. SPECIFICATIONS
I. SPECIFICATIONS
1. NAMEPLATE RATING1. NAMEPLATE RATING
1. NAMEPLATE RATING1. NAMEPLATE RATING
1. NAMEPLATE RATING
5
2. DIMENSIONS/CONNECTIONS2. DIMENSIONS/CONNECTIONS
2. DIMENSIONS/CONNECTIONS2. DIMENSIONS/CONNECTIONS
2. DIMENSIONS/CONNECTIONS
6
II. INSTALLATION AND OPERATING INSTRUCTIONSII. INSTALLATION AND OPERATING INSTRUCTIONS
II. INSTALLATION AND OPERATING INSTRUCTIONSII. INSTALLATION AND OPERATING INSTRUCTIONS
II. INSTALLATION AND OPERATING INSTRUCTIONS
1. CHECKS BEFORE INSTALLATION1. CHECKS BEFORE INSTALLATION
1. CHECKS BEFORE INSTALLATION1. CHECKS BEFORE INSTALLATION
1. CHECKS BEFORE INSTALLATION
IMPORTANTIMPORTANT
IMPORTANTIMPORTANT
IMPORTANT
1. Thisicedispensingbinisdesignedandintendedtobeusedincombination
with a Hoshizaki Modular Crescent Ice Cuber, Models KM-280M,
KM-500M, or KM-630M.
It cannot be recommended to use this ice dispensing bin in combination
with any cuber or flaker other than a Hoshizaki Modular Crescent Ice
Cuber.
2. Removeshippingcarton,tape(s)andpackingtopreventdamagetotheice
dispensing bin.
3.Ensure allcomponents,fastenersandthumbscrewsaresecurelyinplace.
1) Remove the Front panel to prevent damage before installing.
2) Remove the package containing the accessories.
3) Remove the protective plastic film from the Side Panels. If the ice dispensing bin has
been exposed to the sunlight or to direct heat, it should be allowed to cool before
removing the protective film.
4) See the Nameplate, located on the upper part of the Right Side Panel. Check that
the voltage supplied corresponds with the voltage specified on the Nameplate.
7
WARNINGWARNING
WARNINGWARNING
WARNING
This ice dispensing bin is not intended for outdoor use. Normal operating
ambient temperature should be within +45°F to +100°F. To the icemaker,
water temperature should be within +45°F to +90°F.
Extended periods of operation at temperatures outside of these limitations
may cause unsatisfactory results.
For best operating results:
•Icedispensingbinshouldnotbe located next to ovens, grills orotherhighheatproducing
equipment.
• Location should provide a firm and level foundation for the equipment.
• Always avoid a site where dripping is not allowed.
• Allow 6" clearance at rear and sides for ease of maintenance and/or service should they
be required. More space is needed especially on the left side of the dispensing bin to
service the drive system.
CAUTIONCAUTION
CAUTIONCAUTION
CAUTION
The icemaker will not work in sub-freezing temperatures. To prevent
damage to the water supply line, always drain the icemaker when air
temperature is 32°F or below.
2. LOCATION2. LOCATION
2. LOCATION2. LOCATION
2. LOCATION
8
3. SET UP - See Fig. 1.3. SET UP - See Fig. 1.
3. SET UP - See Fig. 1.3. SET UP - See Fig. 1.
3. SET UP - See Fig. 1.
CAUTIONCAUTION
CAUTIONCAUTION
CAUTION
It is especially important that the icemaker/ice dispensing bin is leveled
in both left-to-right and front-to-rear directions. If it is not level, the
result could be the production of smaller or irregular shaped cubes or
of overflow into the ice dispensing bin. See the “LOCATION”
instructions on the icemaker.
1)Unpacktheicedispensingbin,andremoveallshippingcartons,tape(s)andpackingbefore
operating the unit. Attach four (4) adjustable legs [adjustable within max. 6-13/32"
(188 mm.) to min. 6" (152 mm.)] to the bottom of the ice dispensing bin. Remove the front
panel to prevent damage, and be careful not to damage the other panels when installing
the ice dispensing bin. Remove the screws, and pull up and toward you to remove the
Front Panel.
2)Positiontheicedispensingbininaselectedpermanentsite. Cleanandwipetheinteriorwith
a clean cloth.
3) Unpack the icemaker, and remove all shipping cartons, tape(s) and packaging.
4) See the “SET UP” instructions on the icemaker when installing the icemaker.
5) Attach the icemaker to the top of the ice dispensing bin, and secure the icemaker by using
two Universal Braces and four (4) Hexagon Head bolts (KM accessory).
6) Level the icemaker/ice dispensing bin in both the left-to-right and front-to-rear directions.
7) Place exterior panels in position on both the icemaker and the ice dispensing bin. See the
“SET UP” instructions on the icemaker.
9

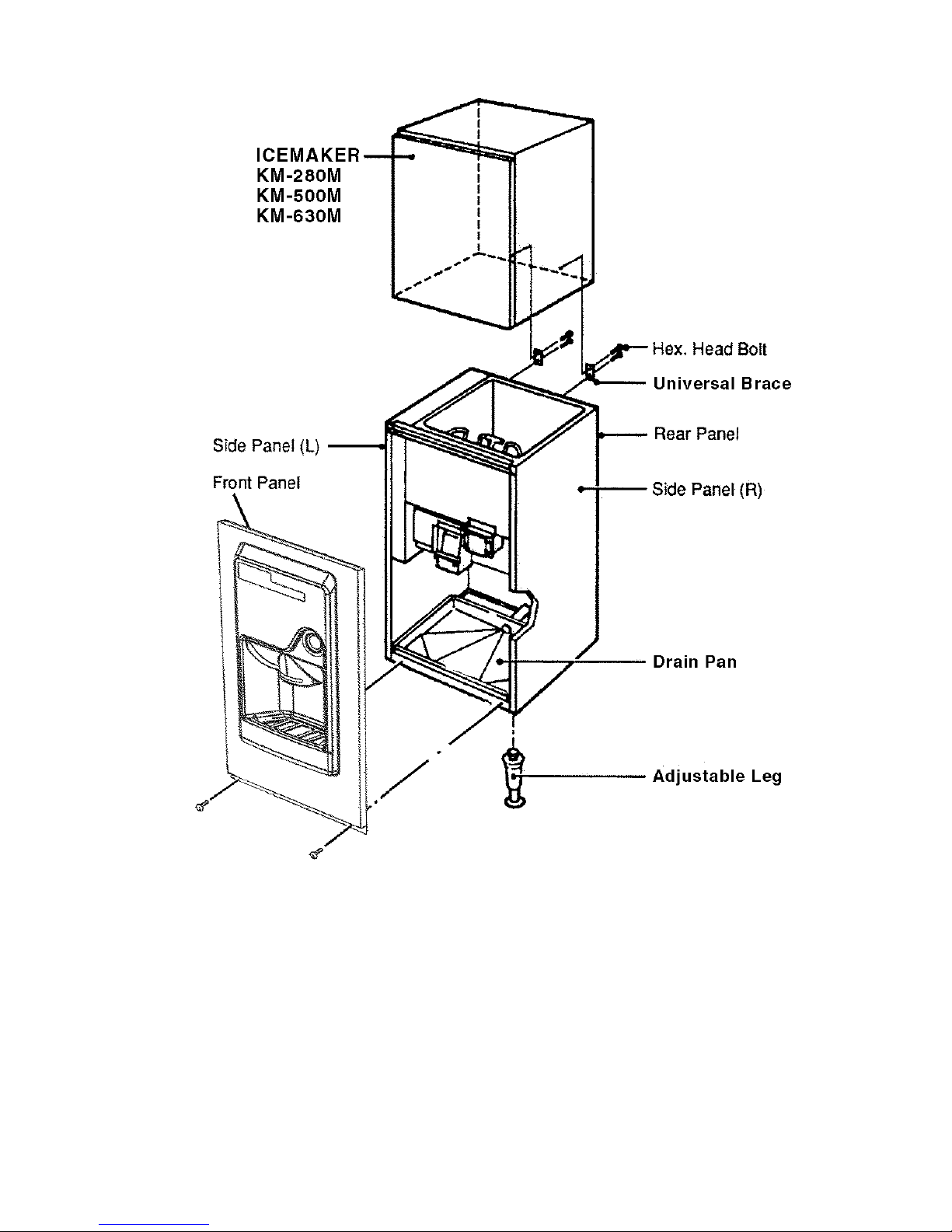

Fig. 1Fig. 1
Fig. 1Fig. 1
Fig. 1
10
4. ELECTRICAL CONNECTION4. ELECTRICAL CONNECTION
4. ELECTRICAL CONNECTION4. ELECTRICAL CONNECTION
4. ELECTRICAL CONNECTION
WARNINGWARNING
WARNINGWARNING
WARNING
1.Electrical connectionmustbemadeinaccordancewith theinstructions on
a “WARNING” tag, provided with the pigtail leads in the Junction Box.
2.Topreventpossibleelectricalshocktoindividuals or extensive damage to
the equipment, install a proper ground wire to the ice dispensing bin that
meets local code requirements.
•Thewhiteleadmustbeconnectedtotheneutralconductorofthepowersource. Miswiring
results in severe damage to the ice dispensing bin. See Fig. 2.
• The ice dispensing bin must have a separate power supply or receptacle of proper
capacity. See the Nameplate.
• Check that the ice dispensing switch and the safety switch are operating correctly.
See Fig. 3.
Ice Dispensing Switch Push the button, and the unit should operate.
You can hear the operating sound.
Safety Switch Continue pushing the button, and move the
spout toward you. Then the safety switch
should operate to stop the unit.
• Usually an electrical permit and services of a licensed electrician are required.
Fig. 3Fig. 3
Fig. 3Fig. 3
Fig. 3
Fig. 2Fig. 2
Fig. 2Fig. 2
Fig. 2
Ice DispensingIce Dispensing
Ice DispensingIce Dispensing
Ice Dispensing
Switch (Button)Switch (Button)
Switch (Button)Switch (Button)
Switch (Button)
SpoutSpout
SpoutSpout
Spout
SafetySafety
SafetySafety
Safety
SwitchSwitch
SwitchSwitch
Switch
IceIce
IceIce
Ice
StationStation
StationStation
Station
