Hoshizaki KM-1300SAF Manual de usuario

KM-1300SAF

KM-1300SWF

KM-1300SRF

KM-1300SAF3

KM-1300SWF3

KM-1300SRF3

MODEL

HOSHIZAKI

STACKABLE CRESCENT CUBER

(FINAL) PARTS LIST

NO: 71130

ISSUED: OCT. 8, 1998

REVISED: JUNE 14, 2005

KM-1300SAF H-0 JAN. 1998

H-1 JUNE 1998

J-0 DEC. 1998

K-0 DEC. 1999

L-0 DEC. 2000

L-1 APRIL 2001

KM-1300SAF3 H-1 JUNE 1998

J-1 FEB. 1999

K-0 JAN. 2000

L-0 FEB. 2001

KM-1300SWF H-0 MAY 1998

H-1 OCT. 1998

J-0 DEC. 1998

K-0 DEC. 1999

L-0 JAN. 2001

KM-1300SWF3 H-1 JUNE 1998

K-0 JAN. 2000

KM-1300SRF H-0 JAN. 1998

H-1 AUG. 1998

J-0 DEC. 1998

K-0 DEC. 1999

L-0 DEC. 2000

KM-1300SRF3 H-0 MARCH 1998

H-1 JULY 1998

J-1 FEB. 1999

K-0 JAN. 2000

L-0 FEB. 2001

HA MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PE P = Polyethylene terephthalate = etlon

PP = Polypropylene

PS = Polystyrene

PIFE = Polytetrafluoroethylene = eflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "2000".

o = New part for "x"

Ex.2 L-0 in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3 L-1

Each time a part is changed non-interchangeably,

in a year, this number advances.

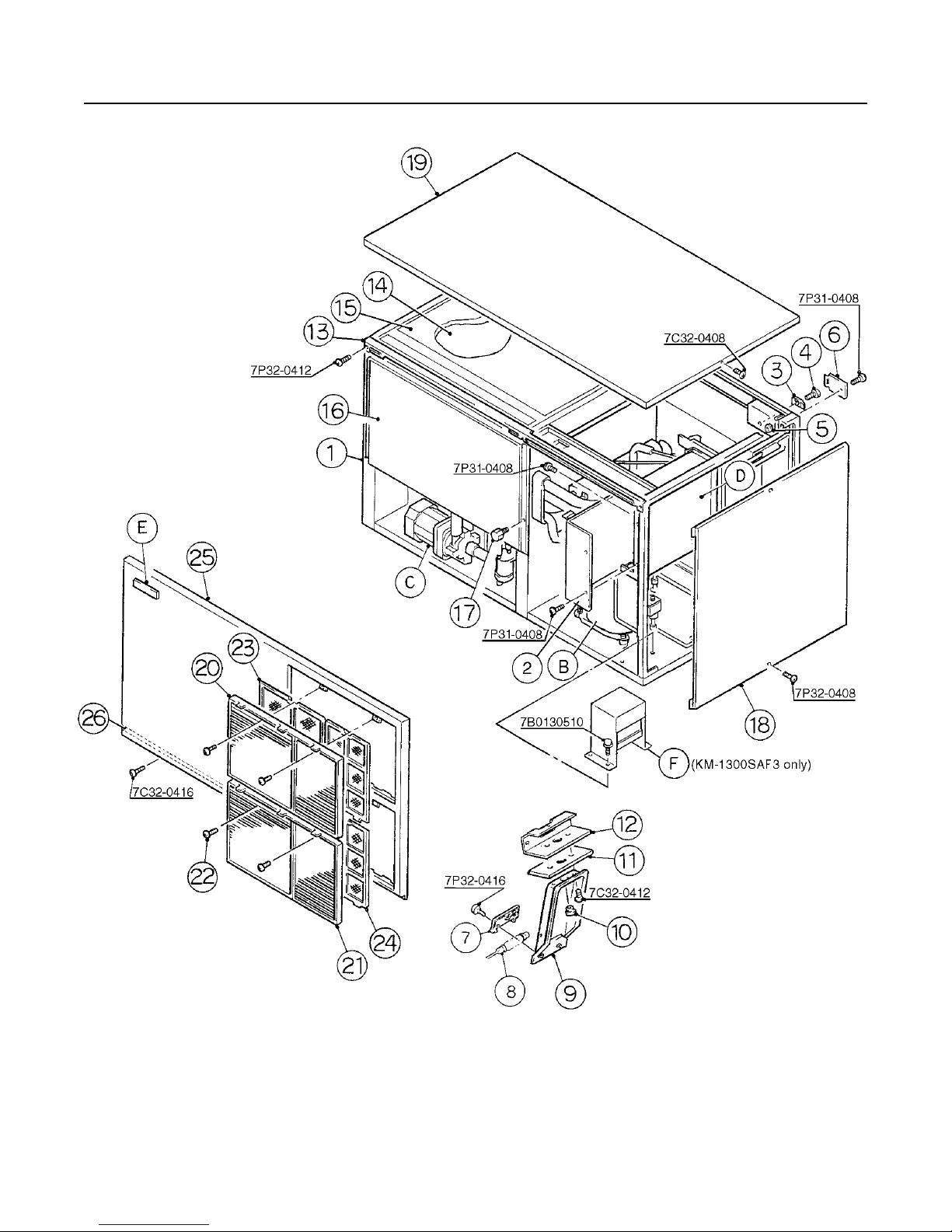

KM-1300SAF, KM-1300SAF3 A. ICE CUBER ASSEMBLY H-0, H-1, J-0, J-1, K-0, L-0, L-1

MODEL: KM-1300SAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-0 H-1 J-0 K-0 L-0 L-1

B REFRIGERATION

CIRCUIT

- 1A0207A01

1 1 1 1 1 1

C WATER CIRCUIT - 105109A04

1 1 1 1 1 1

D CONTROL BOX

ASSEMBLY

(HS-1101) 2A1081A02

1 1 1 1 1 1

T2 SCREW Zinc, 4X8 7P31-0408 3 3 3 3 3 3

E LABEL LOCATION - 2A1049A01

1 1 x1

- 2A1049A03

o1 1 1 1

1 EVAP. CASE (HS-1001) 105860G17

1 1 -

- 105860G28

1 1 1 1

2 CONTROL BOX COVER GS 3A0174-01

1 1 1 1 1 1

T2 SCREW Zinc, 4X8 7P31-0408 3 3 3 3 3 3

3 SQUARE WASHER BRASS 433537-02

1 1 1 1 1 1

4 SCREW - GROUNDING BRASS 433304-02

1 1 1 1 1 1

5 BUSHING SR-34-2 420472-05

1 1 1 1 1 1

6 JUNCTION BOX COVER GS 433410-01

1 1 1 1 1 1

T2 SCREW Zinc, 4X8 7P31-0408 1 1 1 1 1 1

7 BULB HOLDER ABS 328919-01

1 1 1 1 1 1

8 SPACER PE 443545-01

1 1 1 1 1 1

9 BULB HOLDER (C) ABS 216340G01

1 1 1 1 1 1

TRUSS HEAD SCREW SS, 4X12 7C32-0412 2 2 2 2 2 2

10 BUSHING EP RUBBER 425307-01 1 1 1 1 1 1

11 SPACER ABS 439727-01

1 1 1 1 1 1

12 BULB HOLDER (D) GS 328742-01

1 1 1 1 1 1

T2 SCREW SS, 4X16 7P32-0416 2 2 2 2 2 2

13 FRONT PANEL -

BRACKET

SS 323903-01

1 1 1 1 1 1

T2 SCREW SS 7P32-0412

3 3 3 3 3 3

14 SPACER ABS 324321-01

1 1 1 1 1 1

15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1 1

MODEL: KM-1300SAF TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-0 H-1 J-0 K-0 L-0 L-1

16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1 1

17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1 1

18 SIDE PANEL (R) SS 213668G01

1 1 1 1 1 1

19 TOP PANEL (324217A01) 213669-01 1 1 1 1 1 1

TRUSS HEAD SCREW SS, 4X8 7C32-0408 3 3 3 3 3 3

20 LOUVER (B) ABS 103121-05

2 2 2 2 2 2

21 LOUVER (C) ABS 103122-03

2 2 2 2 2 2

22 TAPPING SCREW -

BLACK

STEEL, 4X8 433954-01 4 4 4 4 4 4

23 AIR FILTER (B) ABS 208283G03

2 2 2 2 2 2

24 AIR FILTER (C) ABS 208284G01

2 2 2 2 2 2

25 FRONT PANEL SS 213708-01

1 1 1 1 1 1

TRUSS HEAD SCREW SS, 4X16 7C32-0416 2 2 2 2 2 2

26 GASKET L=1219 4A0808L02

MODEL: KM-1300SAF3 TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-1 J-1 K-0 L-0

B REFRIGERATION

CIRCUIT

- 1A0207A02

1 1 1 1

C WATER CIRCUIT - 105109A04

1 1 1 1

D CONTROL BOX

ASSEMBLY

(HS-1105) 2A1122A03

1 1 1 1

T2 SCREW Zinc, 4X8 7P31-0408 3 3 3 3

E LABEL LOCATION - 2A1049A02

1x1

- 2A1049A04

o1 1 1

F TRANSFORMER BOX

ASSEMBLY

HS-0126 3A1102A01

1 1 1 1

HEX HEAD BOLT

W/WASHER

5 X10 7B0130510 4 4 4 4

1 EVAP. CASE (HS-1001) 105860G17

- 1 1 1

2 CONTROL BOX COVER GS 3A0174-01

1 1 1 1

T2 SCREW Zinc, 4X8 7P31-0408 3 3 3 3

3 SQUARE WASHER BRASS 433537-02

1 1 1 1

4 SCREW - GROUNDING BRASS 433304-02

1 1 1 1

5 BUSHING SR-34-2 420472-05

1 1 1 1

6 JUNCTION BOX COVER GS 433410-01

1 1 1 1

T2 SCREW Zinc, 4X8 7P31-0408 1 1 1 1

7 BULB HOLDER ABS 328919-01

1 1 1 1

8 SPACER PE 443545-01

1 1 1 1

9 BULB HOLDER (C) ABS 216340G01

1 1 1 1

TRUSS HEAD SCREW SS, 4X12 7C32-0412 2 2 2 2

10 BUSHING EP RUBBER 425307-01 1 1 1 1

11 SPACER ABS 439727-01

1 1 1 1

12 BULB HOLDER (D) GS 328742-01

1 1 1 1

T2 SCREW SS, 4X16 7P32-0416 2 2 2 2

MODEL: KM-1300SAF3 TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-1 J-1 K-0 L-0

13 FRONT PANEL -

BRACKET

SS 323903-01

1 1 1 1

T2 SCREW SS 7P32-0412

3 3 3 3

14 SPACER ABS 324321-01

1 1 1 1

15 TOP INSULATION ABS, PE 324216G01 1 1 1 1

16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1

17 THUMBSCREW ABS, SS 415949G01 1 1 1 1

18 SIDE PANEL (R) SS 213668G01

1 1 1 1

19 TOP PANEL (324217A01) 213669-01 1 1 1 1

TRUSS HEAD SCREW SS, 4X8 7C32-0408 3 3 3 3

20 LOUVER (B) ABS 103121-05

2 2 2 2

21 LOUVER (C) ABS 103122-03

2 2 2 2

22 TAPPING SCREW -

BLACK

STEEL, 4X8 433954-01 4 4 4 4

23 AIR FILTER (B) ABS 208283G03

2 2 2 2

24 AIR FILTER (C) ABS 208284G01

2 2 2 2

25 FRONT PANEL SS 213708-01

1 1 1 1

TRUSS HEAD SCREW SS, 4X16 7C32-0416 2 2 2 2

26 GASKET L=1219 4A0808L02

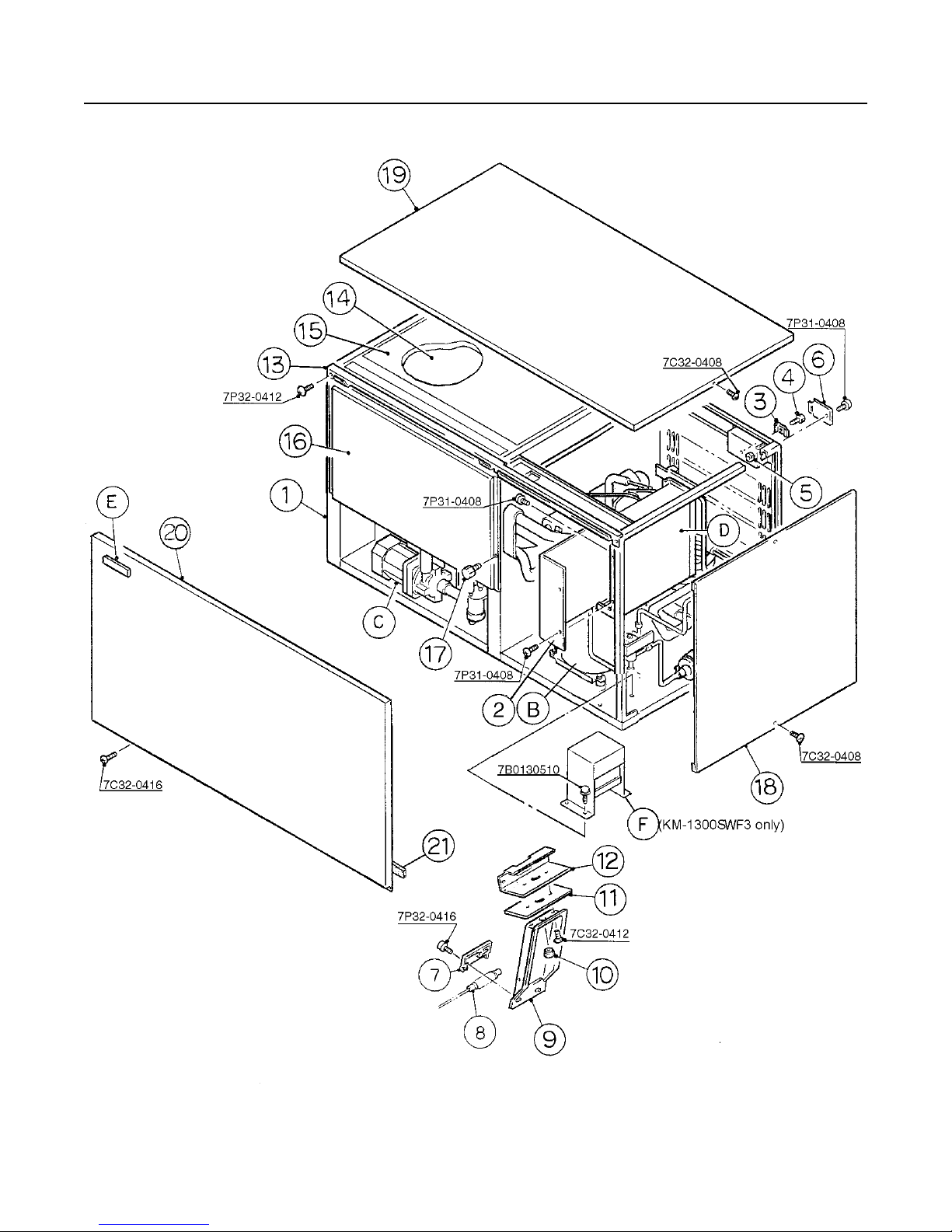

KM-1300SWF, KM-1300SWF3 A. ICE CUBER ASSEMBLY H-0, H-1, J-0, K-0, L-0

MODEL: KM-1300SWF TITLE:A. ICE CUBER ASSEMBLY

INDE

NO.

DESCRIPTION

MATERIAL

OR MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER H-0 H-1 J-0 K-0 L-0

B REFRIGERATION

CIRCUIT

- 1A0259A01

1 1 1 1 1

C WATER CIRCUIT - 105109A04

1 1 1 1 1

D CONTROL BOX

ASSEMBLY

HS-1101 2A1081A02

1 1 1 1 1

T2 SCREW 4X8 7P31-0408

3 3 3 3 3

E LABEL LOCATION - 2A1196A01

- 2A1196A03

1 1 1 1

1 EVAP. CASE HS-1006 105860G26

1 1 -

- 105860G37

1 1 1

2 CONTROL BOX COVER GS 3A0174-01

1 1 1 1 1

T2 SCREW 4X8 7P31-0408

3 3 3 3 3

3 SQUARE WASHER BRASS 433537-02

1 1 1 1 1

4 SCREW - GROUNDING BRASS 433304-02

1 1 1 1 1

5 BUSHING SR-30-1 420472-05

1 1 1 1 1

6 JUNCTION BOX COVER GS 433410-01

1 1 1 1 1

T2 SCREW 4X8 7P31-0408

1 1 1 1 1

7 BULB HOLDER ABS 328919-01

1 1 1 1 1

T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2

8 SPACER PE 443545-01

1 1 1 1 1

9 BULB HOLDER (C) ABS 216340G01

1 1 1 1 1

TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2

10 BUSHING EP RUBBER 425307-01 1 1 1 1 1

11 SPACER ABS 439727-01

1 1 1 1 1

12 BULB HOLDER (D) GS 328742-01

1 1 1 1 1

13 FRONT PANEL -

BRACKET

SS 323903-01

1 1 1 1 1

T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3

14 SPACER ABS 324321-01

1 1 1 1 1

15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1
