Hoshizaki KML-451MAH Manual de usuario

Hoshizaki

“A Superior Degree

of Reliability”

www.hoshizaki.com

Models

KML-451MAH

KML-451MWH

Modular Crescent Cuber

Hoshizaki America, Inc.

Number: 71262

Issued: 10-12-2006

PARTS LIST

Contents

Auxiliary Codes ...................................................................................................................... 3

Note About Ordering Parts .................................................................................................... 3

Material Abbreviations ........................................................................................................... 4

A. Ice Cuber Assembly .......................................................................................................... 5

KML-451MAH .................................................................................................................... 5

KML-451MWH ................................................................................................................... 7

B. Refrigeration Circuit ........................................................................................................... 9

KML-451MAH .................................................................................................................... 9

KML-451MWH ................................................................................................................. 12

C. Water Circuit .................................................................................................................... 15

KML-451MAH, KML-451MWH ........................................................................................ 15

D. Control Box Assembly ..................................................................................................... 18

KML-451MAH, KML-451MWH ........................................................................................ 18

E. Label Location ................................................................................................................. 20

KML-451MAH .................................................................................................................. 20

KML-451MWH ................................................................................................................. 22

F. Top Panel Assembly ......................................................................................................... 24

KML-451MAH, KML-451MWH ........................................................................................ 24

G. Front Panel Assembly ..................................................................................................... 25

KML-451MAH, KM-451MWH .......................................................................................... 25

H. Accessories ..................................................................................................................... 26

KML-451MAH, KML-451MWH ........................................................................................ 26

Auxiliary Codes

KML-451MAH R-0 July 2006

KML-451MWH R-0 October 2006

Note About Ordering Parts

Most assemblies cannot be ordered as complete units; parts in the assemblies generally

must be ordered separately.

Material Abbreviations

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PTFE = Polytetraﬂuoroethylene = Teﬂon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

K-0

Designates the year. "K" indicates the year 2000. Years progress or regress in alphabetical order.

"J" is 1999, "L" is 2001, "M" is 2002, and so on. The letters "I" and "O" were skipped.

Designates signiﬁcant part changes within the same year for this model. Base is 0 and this number

advances for each change.

Example: P-1

"P" indicates 2004.

"1" indicates the ﬁrst signiﬁcant part change for 2004.

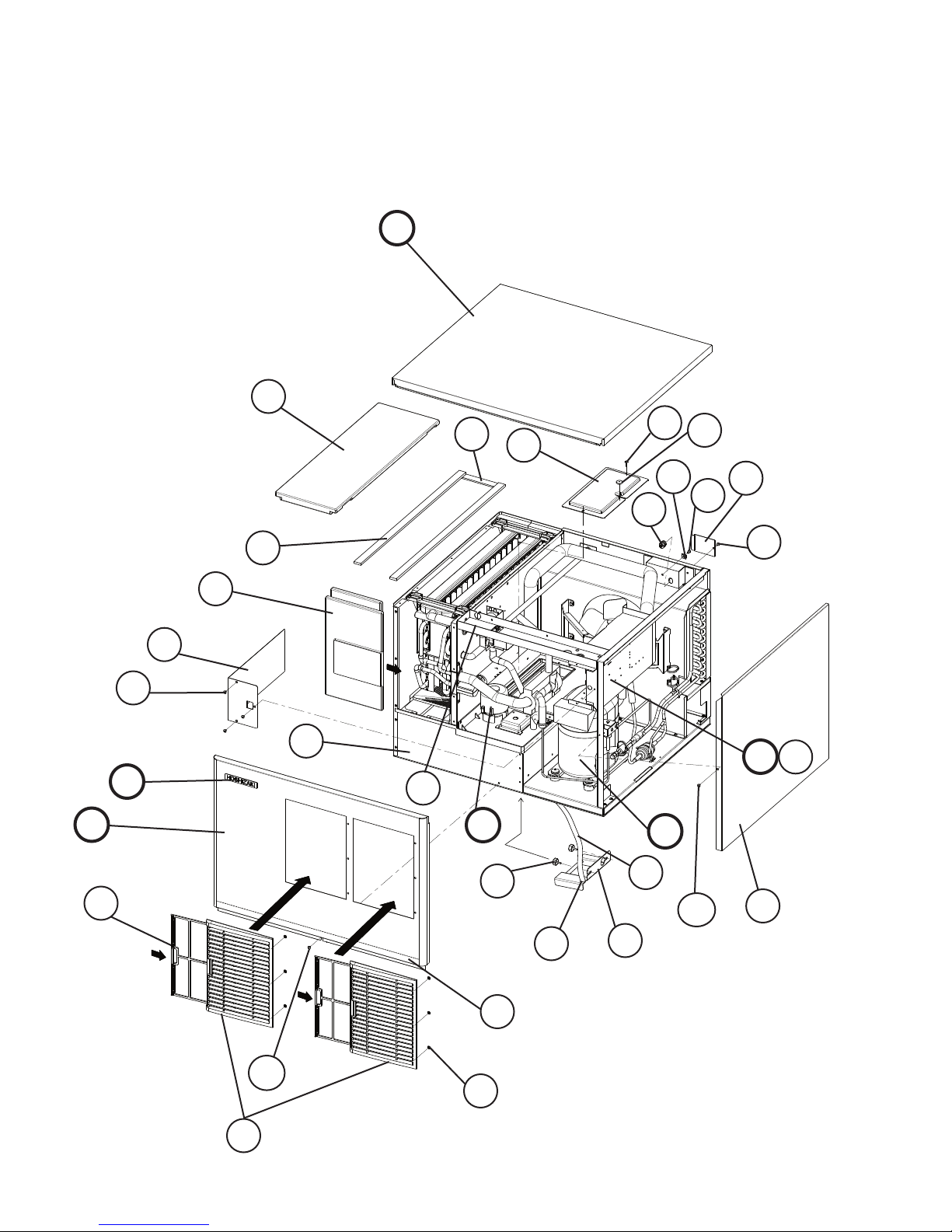

A. Ice Cuber Assembly

KML-451MAH

R-0

DD1

13a

Title: A. Ice Cuber Assembly Model: KML-451MAH

Index

No. Description

Material Or

Model Number Part Number

Required Number

R-0

B Refrigeration Circuit - 1A1143A01 1

C Water Circuit - 1A1186A01 1

D Control Box Assembly - 2A2541A01 1

D1 T2 Screw 4×8 7P31-0408 3

E Label Location - 3A3915A01 1

F Top Panel Assembly - 3A1862A01 1

G Front Panel Assembly - 3A1859A01 1

G1 Truss Head Screw 4×8, SS 7C32-0408 1

1 Evaporator Case HS-1014 2A2113G02 1

2 Control Box Cover GS 3A2371-01 1

2a T2 Screw 4×8 7P31-0408 3

3 Square Washer Brass 433537-02 1

4 Screw - Grounding Brass 433304-02 1

5 Junction Box Cover GS 433410-01 1

5a T2 Screw 4×8 7P31-0408 1

6 Thermostat Extension Bracket SS 4A3436-01 1

7 Spacer PE 443545-01 2

8 Thumbscrew SS, ABS 415949G10 2

9 Bin Control Cover GS 3A0664G01 1

10 Capillary Ring EP Rubber 425307-01 1

11 Top Insulation PP 215730G01 1

12 Front Insulation PP 2A0664G01 1

13 Side Panel (R) SS 2A2111G01 1

13a T2 Screw 4×8, SS 7P32-0408 1

14 Louver (B) ABS 1A0548-01 2

15 Push Retainer - 4A2414-01 6

16 Air Filter (B) ABS 2A2063G01 2

17 Bushing SR-34-2 420472-05 1

18 Wire Saddle VWS4238-C 4A0338-02 2

19 Thumbscrew SS, ABS 415949G08 2

20 Gasket L=655 4A0808L02 2

21 Gasket L=190 4A0808L02 1

22 Gasket L=762 4A0808L02 1

23 Silicone Hose L=310 7730I3812 1

A. Ice Cuber Assembly

KML-451MWH

R-0

DD1

13a

12 3

Title: A. Ice Cuber Assembly Model: KML-451MWH

Index

No. Description

Material or

Model Number Part Number

Required Number

R-0

B Refrigeration Circuit - 1A1144A01 1

C Water Circuit - 1A1186A01 1

D Control Box Assembly - 2A2541A02 1

D1 T2 Screw 4×8 7P31-0408 3

E Label Location - 3A3916A01 1

F Top Panel Assy - 3A1862A01 1

G Front Panel Assembly - 3A1859A02 1

G1 Truss Head Screw 4×8, SS 7C32-0408 1

1 Evaporator Case - 2A2113G02 1

2 Control Box Cover GS 3A2371-01 1

2a T2 Screw 4×8 7P31-0408 3

3 Square Washer BRASS 433537-02 1

4 Screw - Grounding BRASS 433304-02 1

5 Junction Box Cover GS 433410-01 1

5a T2 Screw 4×8 7P31-0408 1

6 Thermostat Extension Bracket SS 4A3436-01 1

7 Spacer PE 443545-01 2

8 Thumbscrew SS, ABS 415949G10 2

9 Bin Control Cover GS 3A0664G01 1

10 Capillary Ring EP RUBBER 425307-01 1

11 Top Insulation PP 215730G01 1

12 Front Insulation PP 2A0664G01 1

13 Side Panel (R) SS 2A2111G01 1

13a T2 Screw 4×8, SS 7P32-0408 1

14 Bushing SR-30-1 420472-03 1

15 Wire Saddle VWS4238-C 4A0338-02 2

16 Thumbscrew SS, ABS 415949G08 2

17 Gasket L=655 4A0808L02 2

18 Gasket L=190 4A0808L02 1

19 Gasket L=762 4A0808L02 1

20 Silicone Hose L=310 7730I3812 1

B. Refrigeration Circuit

KML-451MAH

R-0

19a

6789

11 12

13 14

16 17

22 23 23a

44a

33a

5a 5b 5c

10 10a

11a

20 21a

21 21b

25a

40a

42a

43a

41 46

THERMISTOR DETAIL

EXPANSION VALVE BULB DETAIL

Title: B. Refrigeration Circuit Model: KML-451MAH

Index

No. Description

Material or

Model Number Part Number

Required Number

R-0

1Condenser Support GS 3A3870-01 1

1a T2 Screw 4×8 7P31-0408 5

2Condenser S-0799 2A0640-01 1

2a T2 Screw 4×8 7P31-0408 3

3Barrier GS 4A0932-01 1

3a T2 Screw 4×8 7P31-0408 2

4Shroud GS 3A0597G02 1

4a T2 Screw 4×8 7P31-0408 7

5Compressor RS43C2E-

CAA-219

4A2300-01 1

5a Spacer 027-0072-02 434404-01 4

5b Grommet 027-0073-00 434403-01 4

5c Bolt 8×45 437889-01 4

6Terminal Cover Comp.

Accessory

4A2300F01 1

7Spring Clip Comp.

Accessory

4A2300F02 1

8Protector Comp.

Accessory

4A1805-01 1

9Protector Holder Comp.

Accessory

437339-01 1

10 Fan Motor Bracket GS 3A3967-01 1

10a Hex Head Bolt W/Washer (Lf) 5×12 7B0130512 4

11 Fan Motor 5KCP84

DFK148S

4A3158-01 1

11a Self Locking Nut NO. 8-32 7N21I0832 4

12 Fan Blade AD10CW40 4A4014-01 1

13 Drier C-03E126 4A2666-01 1

14 Nylon Tie PLWP3H-TL 8911-0301 1

15 Expansion Valve HFE-10NHDU-

4A4008-01 1

16 Holder / Exp. Valve – 3/8 SS 3A0107-01 1

17 Clamp SS 443461-02 1

18 Expansion Valve Cover PE FOAM 3A0944-01 1

19 Evaporator Assy - 2A0717G01 1

19a T2 Screw 4×16 7P31-0416 4

20 Valve Body–Hot Gas ATS-B7SHDU-

4A3978-01 1

21 Coil-Valve AMS-C12HDU-

4A3277-01 1

21a Bolt - 4A3277F01 1

21b Truss Head Screw 4×8 7C31-0408 2

22 Pressure Switch ACB-1UB09 433441-07 1

23 Pressure Switch Bracket GS 434938-01 1

23a T2 Screw 4×8 7P31-0408 1
