Package Includes:

• T6 Pro Hydronic Programmable

Thermostat

• Floor sensor (model AQ12C20)

• UWP™ Mounting System

• Honeywell Standard Installation Adapter

(J-box adapter)

• Honeywell Decorative Cover Plate –

Small; size 449/64 in x 449/64 in x

11/32 in (121 mm x 121 mm x 9 mm)

• Screws and anchors

• 2 AA Batteries

• Installation Instructions and User Guide

T6 Pro Hydronic

Programmable Thermostat

Installation Instructions

Welcome!

T6 Pro Hydronic Programmable Thermostat can be used

to control the ambient air temperature or floor temperature

or both. You can choose among the following temperature

control modes.

A mode: Controls and displays the ambient air temperature

only.

F mode: Controls and displays the floor temperature only

using an external floor temperature sensor. This control

mode is suitable for areas such as bathrooms where floor

temperature could be scheduled to be warm only during

occupied, morning and evening periods.

• Floor temperature is indicated by “FLR” above the actual

floor temperature.

• Actual ambient air temperature could also be displayed in

the Thermostat MENU/TEMP.

AF mode: Controls and displays the ambient air temperature

as well as maintains the floor temperature within desired

floor temperature limits using an external floor temperature

sensor. Setting the minimum and maximum floor

temperature limits is a way to enhance

comfort and to protect the floor covering at

the same time.

• Actual floor temperature could also be

displayed in the Thermostat MENU/

TEMP.

NOTE: To set the thermostat temperature

control mode, go to “Installer setup (ISU)”

on page 7.

A, AF mode; main screen

F mode; main screen

Temperatures menu

Back

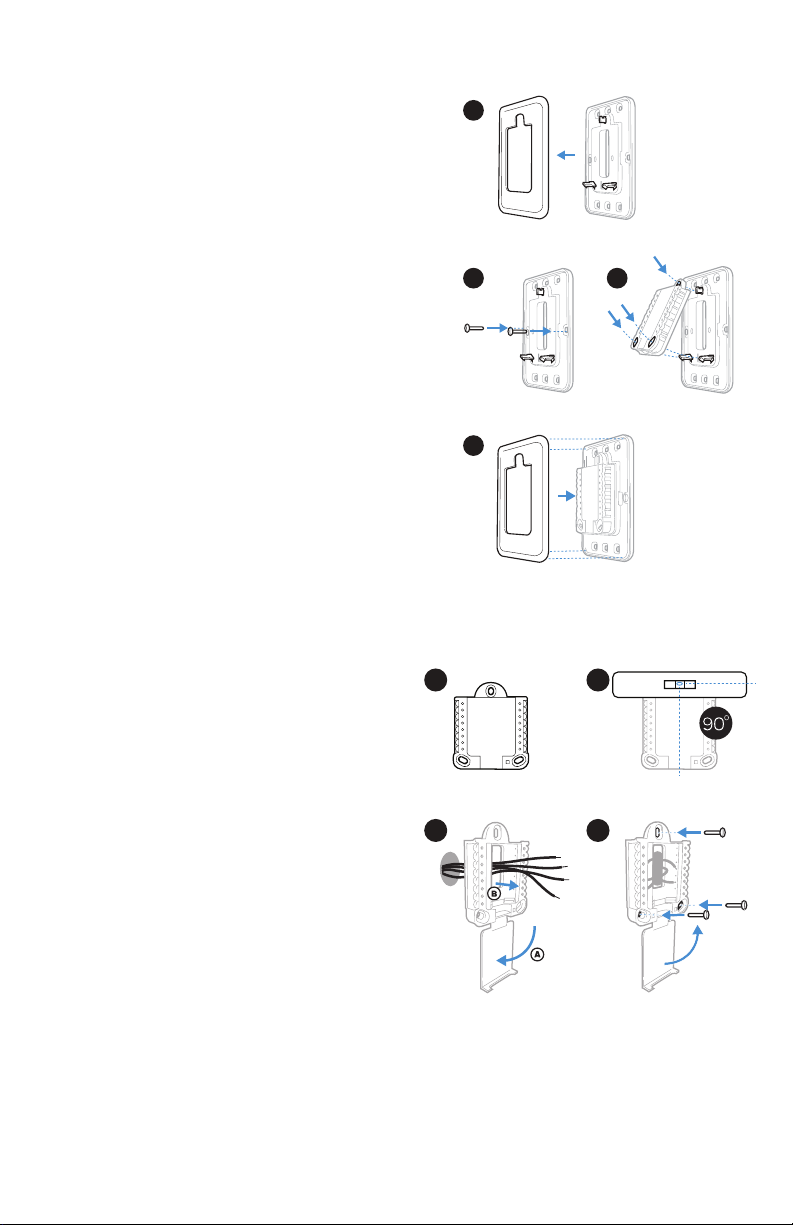

UWP Mounting System installation

Use 3x supplied

screws #8 11/2”

5. Before starting, turn the power off

at the breaker box or switch. Open

package to find the UWP. See Figure 5.

6. Position the UWP on wall. Level and

mark hole positions. See Figure 6.

Drill holes at marked positions, and

then lightly tap supplied wall anchors

into the wall using a hammer.

‒Drill 7/32” holes for drywall.

7. Pull the door open and insert the wires

through wiring hole of the UWP. See

Figure 7.

8. Place the UWP over the wall anchors.

Insert and tighten mounting screws

supplied with the UWP. Do not

overtighten. Tighten until the UWP

no longer moves. Close the door. See

Figure 8.

Optional Cover Plate installation

NOTE: If Optional Cover Plate is not

required, see “UWP Mounting System

installation” below.

Use the Optional Cover Plate when:

• Mounting the thermostat to an

electrical junction box

• Or when you need to cover paint gap

from old thermostat.

1. Separate the Junction Box Adapter

from the Cover Plate. See Figure 1.

2. Mount the Junction Box Adapter to

the wall or an electrical box using

any of the eight screw holes. Insert

and tighten mounting screws

supplied with Cover Plate Kit. Do not

overtighten. See Figure 2. Make sure

the Adapter Plate is level.

3. Attach the UWP by hanging it on the

top hook of the Junction Box Adapter

and then snapping the bottom of the

UWP in place. See Figure 3.

4. Snap the Cover Plate onto the

Junction Box Adapter. See Figure 4.

Use 2x

supplied

screws #6

5/8”

L/A

O/B

AUX

Power options

Insert Rand Cwires into

designated terminals for primary

AC power (C terminal is optional

if batteries are installed, but it is

recommended). Remove wires by

depressing the terminal tabs. Insert AA batteries for primary or backup

power. Match the polarity of the batteries

with the + / – marks inside the battery

compartment.

Set R Slider Tab.

• Boiler, hot water valve circuit, or hot water

relay panel wires to Rand W. If the same

transformer is providing common to power

the thermostat, wire the transformer

common to Cand leave the R slider tab in

the up position (1 wire). If a transformer

that is not powering the heating equipment

is used to power the thermostat display,

set the R slider tab to the down position

(2 wires). Wire the heat circuit to Rand W,

then wire the separate transformer to Rc

and C.

NOTE: Slider Tabs for U terminals should be

left in place for this thermostat model.

Setting Slider Tabs

R/Rc slider tab

UWP Mounting System

Wiring terminal designations

SInput for auxiliary wired floor

or indoor sensors

L/A

- A Unused

SO/B Unused

YUnused AUX

- W2 Unused

Y2 Unused EUnused

GUnused WHeat relay (stage 1)

24 VAC common. If a second

transformer, separate

from the one powering the

heating equipment, is used,

use the common from that

transformer.

KUnused

Unused

R24 VAC power from heating

transformer*

URc

24 VAC power is a

transformer other than a

heating transformer used to

power display (optional)

* Terminal can be jumped using Slider Tab. See “Setting Slider Tabs” on

page 3.

Heat-only System (with floor sensor)

R Power [1]

Rc [R+Rc joined by Slider Tab] [2]

C 24 VAC common [3]

W Heat relay

S,S Input for wired floor sensor

Heat-only System (power open zone

valve)

R Power [1]

Rc [R+Rc joined by Slider Tab] [2]

C 24 VAC common [3]

W Valve

Heat-only System (hot water relay

panel with floor sensor)

R Power [1]

Rc [R+Rc joined by Slider Tab] [2]

C 24 VAC common [3]

W to W on zone of relay panel

S,S Input for wired floor sensor

Heat-only System (boiler with floor

sensor)

R Power [1]

Rc [R+Rc joined by Slider Tab] [2]

C 24 VAC common [3]

W to W on boiler

S,S Input for wired floor sensor

Wiring conventional systems

NOTES

Wire specifications: Use 18 to 22-gauge thermostat wire. Shielded cable is not

required.

[1] Power supply. Provide disconnect means and overload protection as required.

[2] Move RSlider Tab on UWP to the R (1 wire) setting. For more information,

see “Setting Slider Tabs” on page 3.

[3] Optional 24 VAC common connection.

Floor temperature sensor installation

T6 Pro Hydronic thermostat is compatible

with the following 10K ohm Honeywell floor

temperature sensors: AQ12C20, AC11201,

AC13001.

The floor temperature sensor needs to be

installed mid way between the piping to

ensure proper temperature reading (not over

or right next to piping). Example: For a 12”

pipe spacing install the sensor 6” away from

the piping and ensure the sensor is vertically

centered.

We recommend installing the floor

temperature sensor inside of min. 0.5’’

PEX pipe. This simplifies future sensor

replacement, if required.

In a small room, position the sensor in the

center of the floor. In larger rooms, ensure the

sensor is at least 7 feet from the wall.

Recommended floor temperatures

settings

Recommended maximum floor temperature

is 90 °F (32 °C) for most floor covering types

except wood. Suggested maximum floor

temperature for wood floor is 85 °F (29.5 °C).

Freeze protection temperature for garages and

basements is suggested to be set between

4145 °F (57.2 °C).

Floor sensor conduit position in a slab

FLOOR SENSOR

CONDUIT

HEATING PIPE

SLAB

Thermostat mounting

1. Push excess wire back into the wall

opening.

2. Close the UWP door. It should remain

closed without bulging.

3. Align the UWP with the thermostat, and

push gently until the thermostat snaps in

place.

4. Turn the power on at the breaker box or

switch.

Set the time and date

Time

1 Press Menu on your thermostat.

2 Press or to go to TIME. Press Select.

3 Press or to choose between 12 or 24 hour.

Press Select.

4 Use or to adjust the hour. Press Select.

5 Use or to adjust the minutes. Press Select

to exit Time menu.

Date

1 If previously setting time, continue to Step

2. If at the Home screen, press Menu on your

thermostat.

2 Press or to go to DATE. Press Select.

3 Use or to adjust year. Press Select.

4 Use the or to adjust month. Press Select.

5 Use the or to adjust day. Press Select to

save and exit Date menu.

System operation settings

1 Press the Mode button to cycle to the next

available System mode.

2 Cycle through the modes until the required

System mode is displayed and leave it to

activate.

Available System modes:

‒Heat

‒Off

1 Press and hold CENTER and buttons for

approximately 3 seconds to enter advanced

menu.

2 Press Select to enter ISU.

3 Press Select to cycle through menu setup

options.

4 Press or to change values or select

from available options.

5 Press Select and confirm your settings or

press Back to ignore changes and return

to ISU menu screen to continue editing

another setup option.

6 To finish setup process and save your

setting, press Home and return to Home

screen.

NOTE: A complete list of all setup (ISU)

parameters and options starts below and

continues through page 9.

Installer setup (ISU)

Advanced setup options (ISU)

NOTE: Depending on system settings, not all options may be available.

# ISU ISU Name ISU Options (factory defaults

in bold)

Notes

120 Scheduling Options 0 = Non-programmable

2 = 52 Programmable

3 = 511 Programmable

4 = 7Day Programmable

You can change default 511 schedule here. To edit

periods, temperature setpoints during days, go to

MENU/PROG.

125 Temperature

Indication Scale

0 = Fahrenheit

1 = Celsius

129 Wired Floor

Temperature Sensor

0 = None

1 = Wired

Floor Temperature Sensor needs to be wired to S

terminal and configured if you want thermostat to

operate either in AF or F mode (ISU 299). If Floor

Temperature Sensor is wired to S terminal and

configured, actual floor temperature can be displayed

in thermostat Menu/Temp.

205 Heating Equipment

Type

9 = Hot Water Radiant Heat

10 = Hot Water Radiant Floor

Heat

12 = Steam

This ISU configuration helps to optimize control

algoritms and to force optimal default cycle rates for

controlled heating euipment.

299 Temperature Control

Mode

1 = Air and Floor (AF Mode)

2 = Air Only, (A Mode)

3 = Floor Only (F Mode)

This ISU is only displayed if ISU 129 is configured for

1 (wired floor sensor) and ISU 205 is set to 10 (Hot

Water Radiant Floor Heat). Default Mode is AF.

AF Mode: Controls and displays the ambient air

temperature. Maintains the floor temperature within

desired limits using an external floor temperature

sensor.

A Mode: Controls and displays the ambient air

temperature only.

F Mode: Controls and displays the floor temperature

only using an external floor temperature sensor.

Advanced setup options (ISU)

# ISU ISU Name ISU Options (factory defaults

in bold)

Notes

370 Heating Cycle Rate

(Cycles per hour)

1 - 12 This ISU allows you to limit the maximum number

of times the system can cycle in a 1 hour period

measured at a 50% load. For example, when set to 3

CPH, at a 50% load, the most the system will cycle

is 3 times per hour (10 minutes on, 10 minutes off).

The system cycles less often when load conditions

are less than or greater than a 50% load. The

recommended (default) cycle rate settings are below

for each heating equipment type selected:

Hot Water Radiant Heat = 3 CPH; Hot Water

Radiant Floor Heat in A or AF mode = 1CPH; Hot

Water Radiant Floor Heat in F mode = 3CPH; Steam

= 1CPH

388 Minimum On Time

(Boiler short cycling

protection)

0 = Off

2 = 2min

5 = 5min

15 = 15min

This ISU allows you to set minimum on time to protect

equipment from short cycling.

425 Adaptive Intelligent

Recovery

0 = No

1 = Yes

Adaptive Intelligent Recovery (AIR) is a comfort

setting. Heating equipment will turn on earlier,

ensuring the indoor temperature will match the

setpoint at the scheduled time.

431 Maximum Heat

Setpoint

A/AF mode:

40 °F to 90 °F (90 °F);

4.5 °C to 32.0 °C (32.0 °C)

F mode:

40 °F to 99 °F (85 °F);

4.5 °C to 38.0 °C (29.5 °C)

The user cannot set the heating temperature above

this level. Air heating temperature in A/AF mode,

Floor heating temperature in F mode.

432 Minimum Heat

Setpoint

A/AF mode:

40 °F to 90 °F (50 °F);

4.5 °C to 32.0 °C (10 °C)

F mode:

40 °F to 99 °F (50 °F);

4.5 °C to 38.0 °C (10 °C)

The user cannot set the heating temperature below

this level. Air heating temperature in A/AF mode.

Floor heating temperature in F mode.

435 Keypad Lockout 0 = Off

1 = Partial

2 = Full

Unlocked: User has access to all thermostat settings.

Partially Locked: User can modify only temperature

settings.

Fully Locked: User cannot modify any settings.

Screen will be locked by default "1234" factory code

and cannot be changed.

500 Wired Indoor Air

Temperature Sensor

0 = No

1 = Yes

This ISU is only displayed if no Wired Floor

Temperature Sensor (ISU 129) is configured.

515 Wired Indoor Air

Temperature Sensor

Type

0 = 10k

1 = 20k

Choose resistance type of Wired Indoor Air

Temperature Sensor. This ISU is only displayed if

Wired Indoor Air Temperature Sensor (ISU 500) is

configured.

520 Which Indoor Air

Temperature Sensor

will be used for

TEMPERATURE

Control? (Multiple

Sensors are

Averaged)

1 = Thermostat Only

2 = Wired Only

3 = Average

You can choose what Air temperature source to

be used or you can ask thermostat to use both

thermostat and remote wired sensors for higher

accuracy of measurement. This ISU is only displayed

if Wired Indoor Air Temperature Sensor (ISU 500) is

configured.

Advanced setup options (ISU)

# ISU ISU Name ISU Options (factory defaults

in bold)

Notes

575 Minimum Floor

Temperature Limit

40 °F to 89 °F* (72 °F);

4.5 °C to 31.5 °C* (22.2 °C)

*If the floor temperature is below that limit, the

heating will be activated regardless of the ambient Air

temperature. This ISU is only displayed if Temperature

Control Mode (ISU 299) is set to AF mode. The

minimum floor temp limit setting cannot be set higher

than 10 degrees below the maximum floor temp limit

setting.

576 Maximum Floor

Temperature Limit

50 °F* to 99 °F (85 °F);

10 °C* to 38 °C (29.5 °C)

*If the floor temperature is above that limit, the

heating will turn off regardless of the ambient Air

temperature. This ISU is only displayed if Temperature

Control Mode (ISU 299) is set to AF mode. The

maximum floor temp limit setting cannot be set lower

than 10 degrees above the minimum floor temp limit

setting.

577 Floor Economy

Mode

0 = Off

1 = On

If enabled, Low Floor Temperature Limit (ISU 575)

will be disabled during Away and Sleep period. This

ISU is only displayed if Temperature Control Mode

(ISU 299) is set to AF mode and (ISU 120) is set to

programmable.

578 Freeze protection

temperature

A mode:

40 °F to 50 °F (40 °F);

4.5 °C to 10.0 °C (4.5 °C)

A/AF mode:

40 °F (4.5 °C) to Min. Floor Temp.

Limit

F mode:

40 °F (4.5 °C) to Min. Heat Temp.

Setpoint

The thermostat operates the heat whenever the room

or floor temperature falls below that limit, even when

the system mode is set to Off. Default setting is 40 °F

(4.5 °C) for all A/AF/F regulation modes.

Freeze protection temperature cannot be set above the

minimum floor temperature limit in AF mode or above the

minimum heat temperature setpoint in F mode.

1400 Backlighting 0 - On Demand

1 - Continuous

Common wire needed for Continuous Backlight

1401 Inactive Backlight

Brightness

1 - 5This ISU is only displayed if Continuous Backlight

selected.

1=minimum, 5=maximum inactive backlight

brightness

1410 Clock Format 12 / 24

1415 Daylight Saving Time 0 = Off

1 = On

Set to Off in areas that do not follow Daylight Saving

Time.

1420 Temperature Display

Offset

3 - 3 °F (0)

1.5 to 1.5 °C (0)

0°F - No difference in displayed temperature and the

actual room temperature. The thermostat can display

up to 3 °F (1.5 C) lower or higher than the actual

measured temperature.

Installer system test

To perform a System Test:

1 Press and hold CENTER and buttons for

approximately 3 seconds to enter advanced

menu.

2 Use to go to TEST. Press Select to enter

System Test.

3 Use to change between Heat or Ver

(thermostat version information). Press Select.

4 Press to turn heat on. Press to turn heat

off.

5 Use the Home button to exit the System Test.

Number Alert/Reminder Definition

170 Internal Memory Error The memory of the thermostat has encountered an error. Please contact dealer for

assistance.

171 Set the Date and Time Set the date and time on your thermostat. The date and time are required for certain

features to operate, like the program schedule.

173 Thermostat Temperature

Sensor Error

The sensor of the thermostat has encountered an error. Please contact dealer to replace

the Thermostat.

177 Indoor Temperature Sensor

Error

Wired indoor temperature sensor is not connected or there is a wiring short. Please

contact dealer for assistance.

252 AC Power Lost No AC power detected. Please check the AC circuit breaker.

405 Battery Low Battery low. Please turn the system mode to off and replace the batteries.

407 Battery Critical Battery critical. Thermostat cannot control your system. Please replace the batteries

immediately.

514 Floor Temperature Sensor

Failure

Wired floor temperature sensor is not connected or there is a wiring short. When

the thermostat has been configured for AF mode, the thermostat will still control

the ambient air temperature but will ignore the floor temperature limits. When the

thermostat has been configured to F mode, heating will stop. However, when the air

temperature drops to, or below freeze protection temperature limit, heating will be

activated and control the ambient air temperature.

535 High Floor Temperature The measured temperature is above maximum floor temperature limit.

536 Freeze Protection The measured temperature is below freeze protection temperature limit.

Active alerts are displayed via the alert symbol and alert number in the clock

area on the home screen. You can read more information about active alerts,

snooze or dismiss non-critical alerts in MENU/ALRT.

Alerts

Otros manuales para T6 Pro Hydronic

Tabla de contenidos

Otros manuales de Termostato de Honeywell

Honeywell

Honeywell Smart Series Manual de usuario

Honeywell

Honeywell T8401C1031 Manual de usuario

Honeywell

Honeywell T6360 Manual de usuario

Honeywell

Honeywell RTH2310 Manual de usuario

Honeywell

Honeywell T4800A Manual de operación

Honeywell

Honeywell VisionPRO Wi-Fi TH8320WF Manual de usuario

Honeywell

Honeywell TRADELINE T8400C Manual de usuario

Honeywell

Honeywell TL6120 Manual de usuario

Honeywell

Honeywell VisionPRO Wi-Fi TH8320WF Manual de usuario

Honeywell

Honeywell PC8900A Manual de usuario

Honeywell

Honeywell Magic Stat CT3100 Manual de usuario

Honeywell

Honeywell T7525 Manual de usuario

Honeywell

Honeywell Aube Technologies TH113-A Manual de usuario

Honeywell

Honeywell CPFILA Manual de usuario

Honeywell

Honeywell TL8230A Manual de usuario

Honeywell

Honeywell FocusPRO TH5000 Series Manual de usuario

Honeywell

Honeywell T8000C Manual de usuario

Honeywell

Honeywell RTH7600 Series Manual de usuario

Honeywell

Honeywell SUITEPRO TB6575 Manual de usuario

Honeywell

Honeywell Perfect Climate Comfort Center PC8900 Manual de usuario

Honeywell

Honeywell TH6320WF01 Manual de usuario

Honeywell

Honeywell RTH2300 series Manual de usuario

Honeywell

Honeywell Lyric T6 Manual de usuario

Honeywell

Honeywell RTH6500 Manual de usuario

Manuales populares de Termostato de otras marcas

EWELLY

EWELLY EW-181 Manual de usuario

Prolon

Prolon T1100 Instrucciones de instalación

Computherm

Computherm Q20 Manual de usuario

Heatmiser

Heatmiser neoStat Manual de usuario

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manual de usuario

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manual de usuario

Saswell

Saswell SAS920XWHB-7-S-RF Guía

Aircalo

Aircalo TFP1-ET85P2 Manual de usuario

Carrier

Carrier DEBONAIR 33CS Manual de usuario

Lennox

Lennox iHarmony Zone Thermostat Instrucciones de montaje

Gemtech

Gemtech GT7000 Manual de instrucciones

Rollei

Rollei Smartes 45000 Manual de usuario

Sinope

Sinope TH1300RF Manual de usuario

NuTone

NuTone NTBZ48 Instrucciones de funcionamiento originales

Stelpro

Stelpro MAESTRO ASMT402AD Manual de usuario

Aube Technologies

Aube Technologies TH305 Manual de usuario

Powtier Controls

Powtier Controls 505MST Manual de usuario

Kanmor

Kanmor Zone Control 369e Manual de usuario
