Installation Guide

Single Zone Thermostat

Y87RF

1. Disconnect the mains power from the Heating Appliance.

To ensure your safety, always make sure mains

power is switched off before accessing wiring.

3. Mount the wiring plate

to the wall or wallbox.

Note: the plugs and mounting

screws required are supplied.

4. Connect the Boiler Relay wiring.

Please refer

to wiring

diagram

(right).

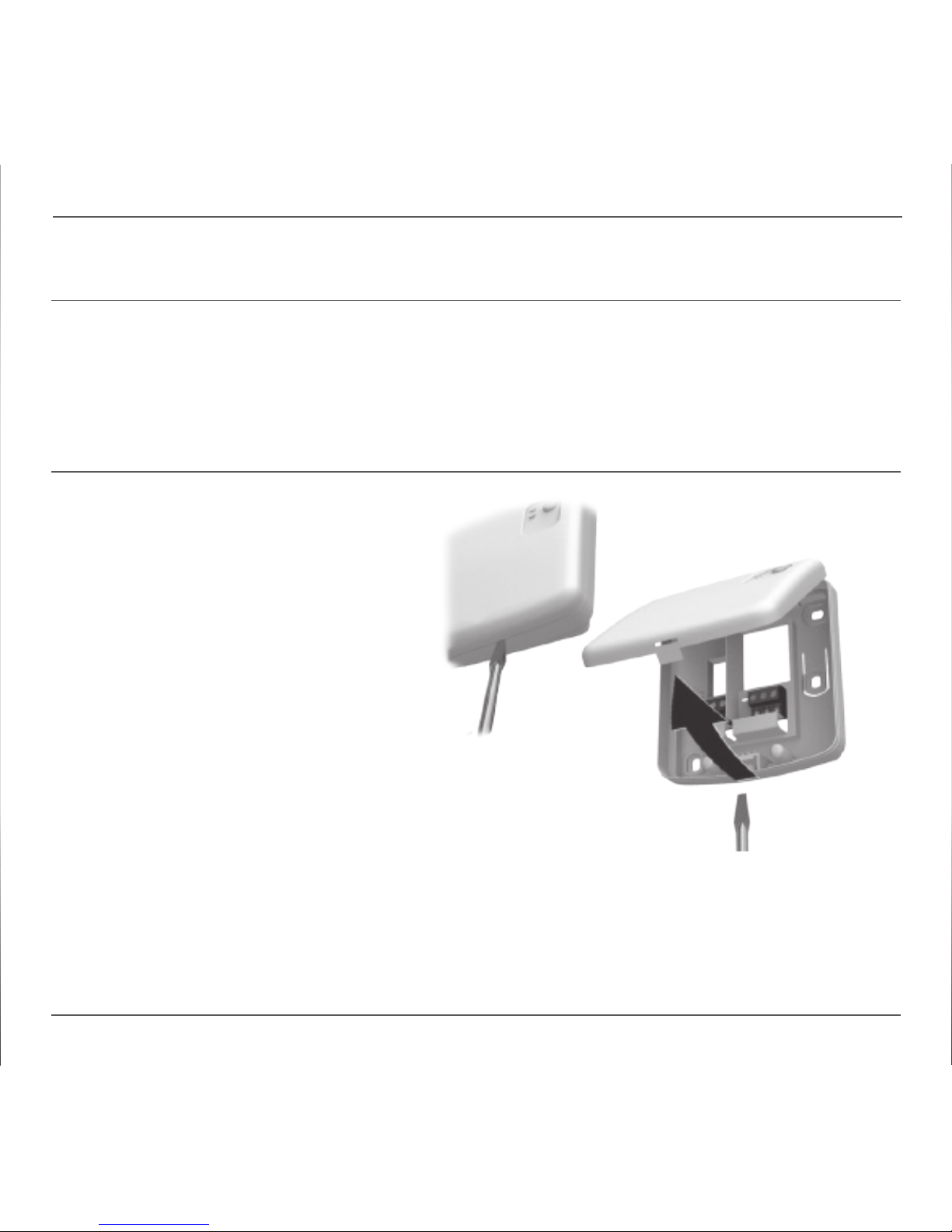

2. Remove the wiring

plate from the

Boiler Relay.

2.1 Carefully press a

screwdriver into the

opening until the

cover comes free.

2.2 Tilt the cover upwards

and remove it.

5.1 Wiring for a basic boiler (not requiring a pump overrun).

The boiler relay powers the boiler live input.

230V

50-60Hz

<5A

N L

N L

L

BDR91

Place link here

A-B:5(3)A

A-C:5(3)A

A B C

L

N

230V

50-60Hz

<5A

N L L

BDR91 A-B:5(3)A

A-C:5(3)A

A B C

L

N

N L

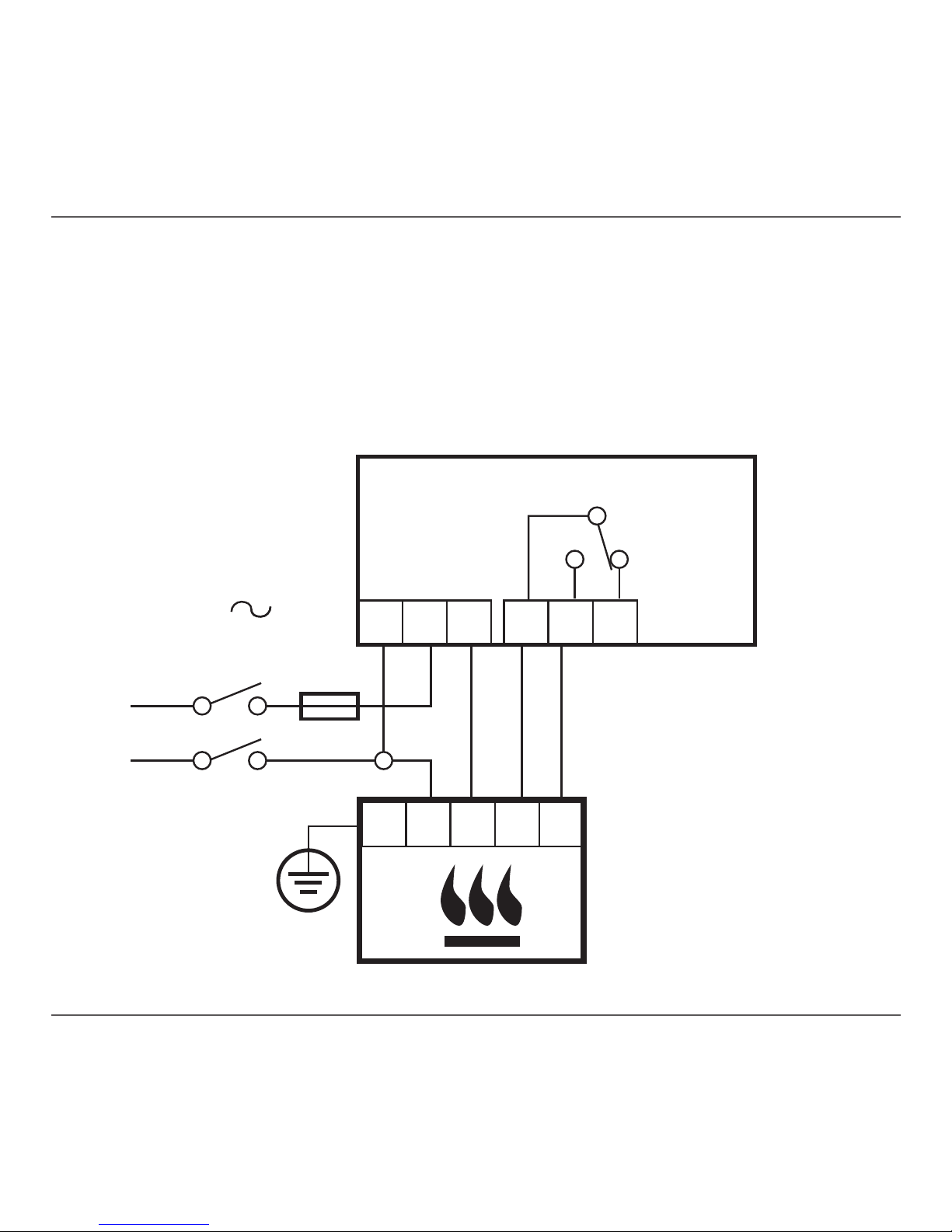

5.2 Wiring for a boiler that requires a permanent live.

For use with a boiler that requires a permanent live

(a typical Combi boiler wiring). This can be used for

boilers with low voltage or 230Vac room thermostat

inputs. Please check manufacturer’s instructions.

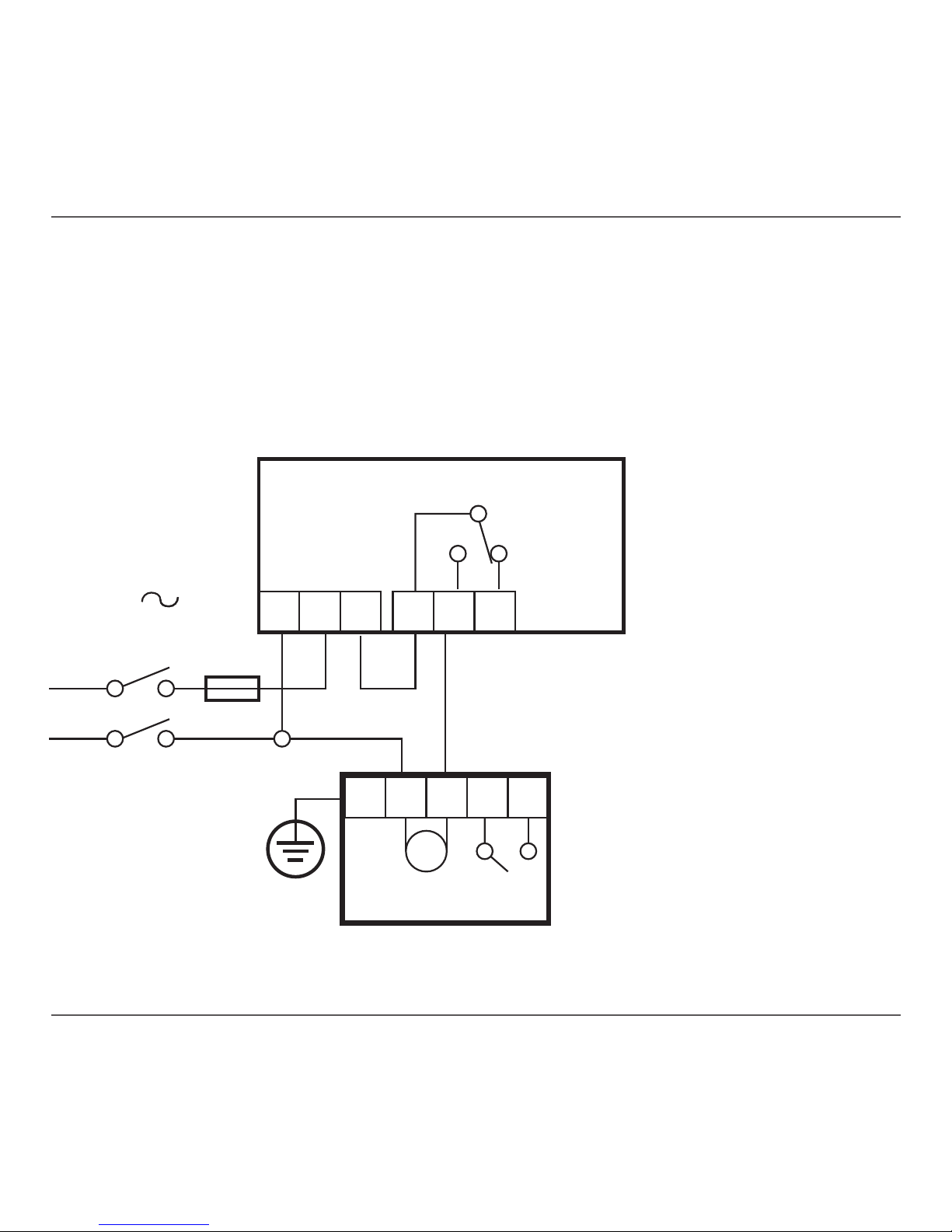

5.3 Wiring for a two-port zone valve.

For use with a boiler that requires a permanent live.

Please check manufacturer’s instructions.

230V

50-60Hz

<5A

N L L

BDR91

V4043H

A-B:5(3)A

A-C:5(3)A

A B C

L

N

BL BR

M

GR O

G

/

Y

G/Y: Green/Yellow

Earth wire

BL: Blue Motor Neutral

BR: Brown Motor Live

GR: Grey End

switch (if used)

Permanent Live

O: Orange End

switch (If used).

In wired system

this typically

feeds the boiler.

continued overleaf

7. Reconnect the mains power to the Heating Appliance.

8. Locate the thermostat.

• Away from draughts

• Away from heat sources

• Away from direct sunlight

• Positioned about 1.2m –1.5m from the oor

6. Attach the Boiler Relay

to the wiring plate.

Locate hinges rst

Hinge the housing downwards

and click into place.

Manufactured for and on behalf of the

Environmental and Combustion Controls

Division of Honeywell Technologies Sàrl,

ACS-ECC EMEA, Z.A. La Pièce 16,

1180 Rolle, Switzerland by its Authorised

Representative Honeywell Inc.

Need help? For assistance please visit:

www.honeywelluk.com

Honeywell Control Systems Ltd.

Skimped Hill Lane, Bracknell, Berkshire

RG12 1EB

WEEE Directive

2012/19/EC

Waste Electrical

and Electronic

Equipment directive

•Attheendoftheproductlifedispose

of the packaging and product in a

corresponding recycling centre.

•Donotdisposeoftheunitwith

the usual domestic refuse.

•Donotburntheproduct.

•Removethebatteries.

•Disposeofthebatteriesaccordingto

the local statutory requirements and

not with the usual domestic refuse.

Approvals

Conforms to protection requirements

of the following directives:

EMC: 2004/108/EC

LVD: 2006/95/EC

R&TTE: 1999/05/EC

Hereby, Honeywell, declares that this

Single Zone Thermostat is in compliance

with the essential requirements and other

relevant provisions of Directive 1999/5/EC.

Installation instructions

Power

supply from

fused spur

To heating appliance

1,5-2,5mm2

max 6mm

>7mm 0

<7mm 0

32301889-001 A
