Honeywell Evohome Manual de usuario

evohome

Installation Guide

evohome Controller

Digital Room Thermostat

(DTS92)

Wireless Relay Box (BDR91)Wireless Cylinder Thermostat

Transceiver (CS92)

Wireless Cylinder Thermostat

Strap-on Sensor (CS92)

Wireless Cylinder Thermostat

Insertion Sensor (CS92)

Radiator Controller (HR92)

Remote Access Gateway

(RFG100)

Radiator Controller (HR80)

Wireless OpenTherm Bridge

(R8810)

Mixing Valve Controller

(HM80)

Underﬂoor Heating Controller

(HCE80 or HCC80)

evohome Controller Wall Bracket

(ATF300 )

evohome Controller Table Stand

(ATF100 or ATF200)

Room Temperature Sensor

(HCW82)

Room Temperature Sensor

(HCF82)

Icon key

Thanks for choosing evohome

evohome means more comfort, and more control

of the heating system. It’s simple to install and easy

to use.

Follow these instructions to set up the evohome

system. Devices that need to be connected to the

mains electricity supply should be installed by a

competent person.

Before you start

Make sure you have all the devices you need

for your system. If you used our ‘Design your

evohome system’ guide, match each device to

the room or zones in your plan. It’s a good idea to

carry out all the mains electrical and other wiring

work ﬁrst.

In this guide

Step 1: Wire up the heating system 3

Step 2: Set up your evohome Controller 9

Step 3: Power up and bind devices 13

Step 4: System test 29

Conﬁguration and modiﬁcation 37

Appendix 41

1evohome Installation Guide

Step 2: Set up your evohome Controller

Power up the evohome Controller and follow the on-screen instructions for your system

Go to Installer Menu Go to Guided Conﬁguration Go to Home screen

You have…

a Base Pack or a

Connected Pack

Un-bound devices

You have…

an un-bound evohome

Controller

Un-bound devices

You have…

a Base Pack or a

Connected Pack

No additional devices

Step 3: Power up and bind devices

Power up all devices, including the battery powered ones,

and bind them to the evohome Controller

Step 1: Wire up your heating system

Connect all mains powered devices to the heating system

Step 4: Test the system

Check that all the devices are working properly

2Step 1: Wire up the heating system

In this section

Wireless Relay Box (BDR91) 4

Wireless Cylinder Thermostat (CS92) 5

Remote Access Gateway (RFG100) 7

Mixing Valve Controller (HM80), Underﬂoor Heating Controller (HCE80/HCC80),

Opentherm Bridge (R8810) 8

Step 1: Wire up the

heating system

evohome communicates using wireless on a robust 868Mhz

signal that is unaffected by common remote controls or Wiﬁ.

Some devices need mains power or to be connected to external

equipment and it's best to wire up these items ﬁrst to simplify the

binding process later in the setup. The evohome controller will

give on screen instructions when these should be powered up.

Before you power up your evohome Controller and install

the radiator controllers, it's best to install any devices which

are mains powered or need speciﬁc installation.

3evohome Installation Guide

Turn off at mains and

isolate the supply before

starting

!If you’re ﬁtting a Wireless Relay Box

(BDR91) to your boiler, zone valve or

Sundial valve

Mount the Wireless Relay Box on a non-metal surface at least

30cm from your boiler, other wireless device or metal objects

Release the clip on the bottom to open the front cover

Follow the wiring diagram (see Appendix: Figures

5-10) to connect the Wireless Relay Box to your

boiler’s thermostat terminals, zone valve or sundial

valve, and to the mains electricity supply

Replace the cover

BOILER

Refer to boiler instruction to locate the room thermostat terminals,

determine if the boiler required a permanent live supply.

MINIMUM

30CM

REPLACE

FRONT

COVER

Wireless Relay Box (BDR91)

4Step 1: Wire up the heating system

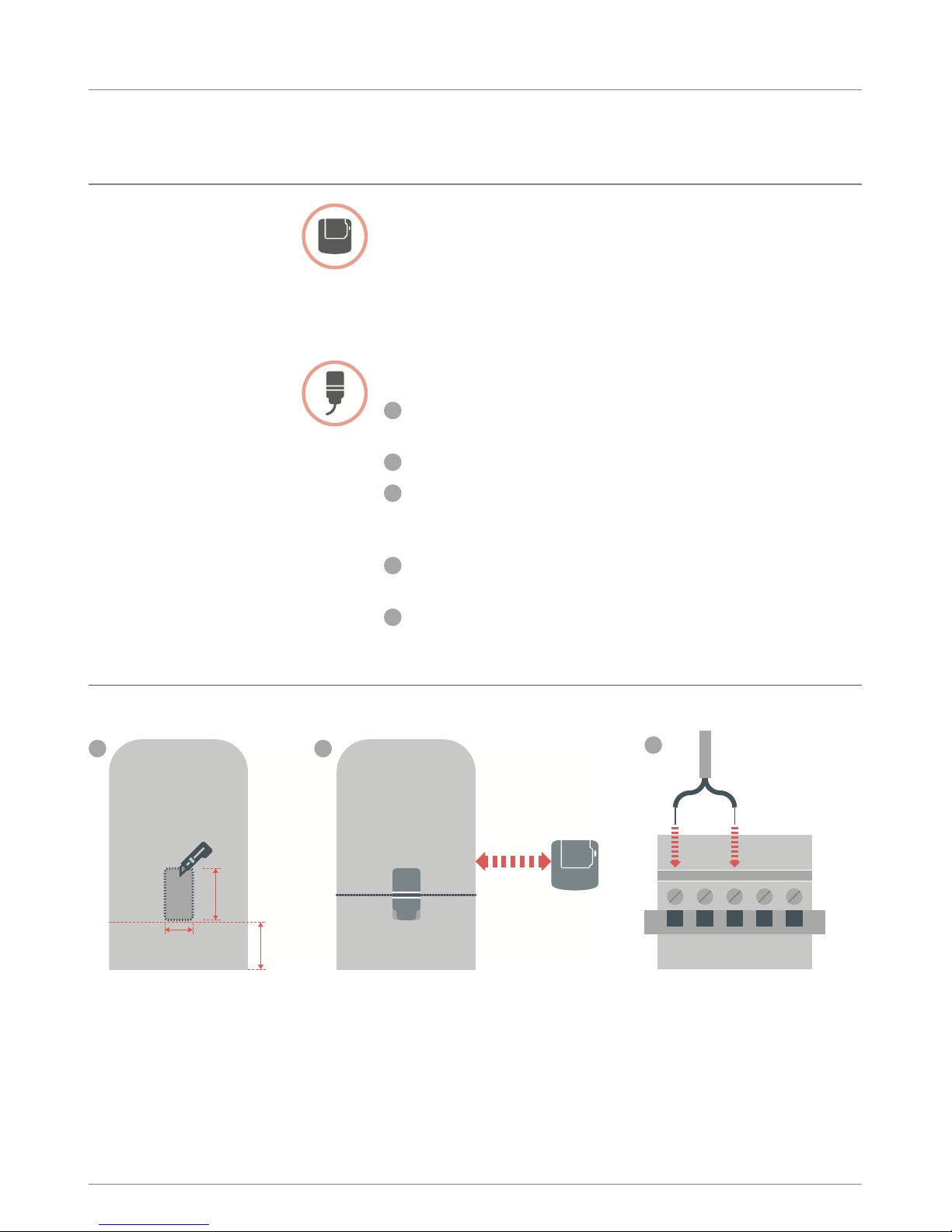

If you’re ﬁtting a Wireless Cylinder

Thermostat (CS92)

You will need to install the CS92 Transceiver

and only one of the two sensors (CS92 Strap-

on Sensor or CS92 Insertion Sensor).

To ﬁt the CS92 Strap-on Sensor

Cut away a section of cylinder insulation

slightly larger than the sensor unit

Clean the exposed cylinder surface

Place the sensor on the cylinder surface

and secure it using the ﬁxing strap – cut

the strap to size if it’s too long

Install the CS92 Transceiver in a suitable location

close enough for the cable from the sensor to reach

Connect the cable from the sensor

to the CS92 Transceiver

Position the sensor from one quarter to a

third of the way up the cylinder.

1/4 – 1/3

TOTAL

HEIGHT

45MM

80MM

MINIMUM

30CM

A x B Cy

Wire to CS92 Transceiver

Wireless Cylinder Thermostat (CS92)

5evohome Installation Guide

To ﬁt the CS92 Insertion Sensor

Fit in the cylinder immersion well with suitable ﬁttings to

provide strain relief and prevent accidental removal

If the sensor doesn’t ﬁt tightly in the immersion

well ﬁll the space with heat-conductive compound

to ensure maximum heat transfer

Install the CS92 Transceiver in a suitable location close

enough for the cable from the sensor to reach

Connect the cable from the sensor to the CS92 Transceiver

A x B Cy

Wire to CS92 Transceiver

Wireless Cylinder Thermostat (CS92) continued

6Step 1: Wire up the heating system

If you’re ﬁtting a Remote Access

Gateway (RFG100)

Connect the Remote Access Gateway to the home’s

internet router using the ethernet cable supplied

Remote Access Gateway (RFG100)

7evohome Installation Guide

If you’re ﬁtting a Mixing Valve

Controller (HM80), Underﬂoor

Heating Controller (HCE80/HCC80),

OpenTherm Bridge (R8810)

Refer to the installation instructions

supplied with each device

Mixing Valve Controller (HM80), Underﬂoor Heating

Controller (HCE80/HCC80), OpenTherm Bridge (R8810)

8Step 1: Wire up the heating system
