Honeywell VISIONPRO 69-1815EFS-06 Manual de usuario

Operating Manual

Mode d’emploi

Manual de Uso

VisionPRO® IAQ

Total Home Comfort System

69-1815EFS-06

Read and save these instructions.

Need Help?

For assistance with this product please visit http://yourhome.honeywell.com

or call Honeywell Customer Care toll-free at 1-800-468-1502

® U.S. Registered Trademark.

US Patent No. 6,208,263; 6,373,376; 6,448,901; 6,595,430;

7,012,927; 7,044,397; D509151 and other patents pending.

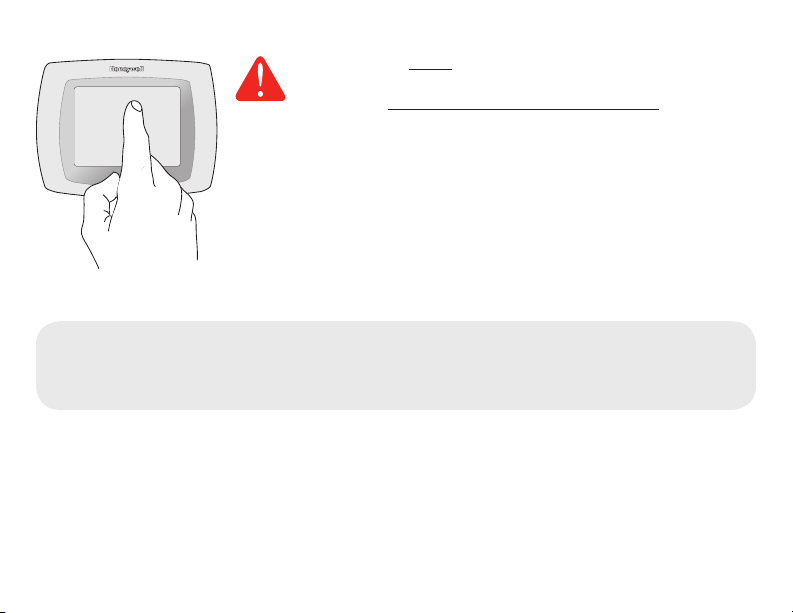

BE CAREFUL! Never use sharp instruments, such as a pencil

or pen, to press touchscreen keys. To prevent damage to the

thermostat, always press keys with your fingertip.

This thermostat contains a Lithium battery which may contain

Perchlorate material.

Perchlorate Material—special handling may apply,

See www.dtsc.ca.gov/hazardouswaste/perchlorate.

VisionPRO® IAQ

1 69-1815EFS—06

About your new thermostat

Programming at a glance ..................... 2

Quick reference to controls .................. 3

Quick reference to status display ........ 4

Programming & Operation

Clock setting.......................................... 5

Fan setting............................................. 6

System setting....................................... 7

Energy Star settings.............................. 8

Using program schedules..................... 9

Program schedule overrides .............. 10

Vacation hold....................................... 12

Special features................................... 13

Screen lock.......................................... 14

Screen cleaning................................... 15

Optional remote sensors .................... 16

Humidity control.................................. 17

Ventilation control................................ 19

Appendices

Advanced functions ............................ 20

In case of difficulty.............................. 27

Limited warranty.................................. 29

This thermostat is ready to go!

Your new thermostat is pre-

programmed and ready to go.

See page 2 to check settings.

Table of contents

CAUTION: EQUIPMENT DAMAGE

HAZARD. To prevent possible

compressor damage, do not oper-

ate cooling system when outdoor

temperature is below 50˚F (10˚C).

Operating Manual

69-1815EFS—06 2

About your new thermostat

Your new thermostat is pre-programmed and ready to go. Just set the time and day.

Then check the settings below and change if needed:

1. Set clock........................................................................................................See page 5

2. Select fan setting: Preset to Auto..............................................................See page 6

3. Select system setting: Preset to Heat ......................................................See page 7

4. Program schedules: Preset to energy-saving levels

while you’re at work or asleep (assumes you

wake at 6 am, leave at 8 am, return at 6 pm

and go to bed at 10 pm) ........................................................................ See pages 8-11

5. Set humification, dehumidification

& ventilation controls, if applicable............................................... See pages 17-19

ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time,

and manually adjust the temperature (see pages 10-11).

VisionPRO® IAQ

3 69-1815EFS—06

Press day(s) to set program schedule (see page 9)

Press to select fan

operation (see page 6)

Press to select system

type (see page 7)

Press to set program

schedule (see page 9)

Press to adjust

temperature settings

(see pages 9-11)

Press for more options

Press to override

program schedule

(see pages 10-11)

Press to set clock

(see page 5)

Press to lock keypad for 30

seconds to clean screen

(see page 14)

SCHED HOLD CLOCK SCREEN MORE

MON TUEWED THU FRI SAT SUN

FAN

AUTO

SYSTEM

HEAT

Following

Schedule

Inside Set To

OK TO PICK MULTIPLE DAYS

6:01

Quick reference to controls

Operating Manual

69-1815EFS—06 4

Current inside temperature Current day of week Temperature setting

Program schedule on

(does not display

when off)

Adaptive Intelligent

Recovery in effect

(see page 13)

Inside humidity (If

an outdoor sensor is

installed, the outdoor

temperature is shown

instead of the humidity

level. Press MORE to dis-

play the humidity level.)

Fan setting

Other display messages:

• Cool On: Cooling system is activated

• Heat On: Heating system is activated

• Aux Heat On: Auxiliary heating system is activated

• Wait: Compressor protection activated (see page 13)

• Screen Locked: See page 26 to unlock

SCHED HOLD CLOCK SCREEN MORE

WED

FAN

AUTO

SYSTEM

HEAT

Following

Schedule

Inside Set To

Recovery

Humidity

6:01

Quick reference to status display

System setting

Current time

VisionPRO® IAQ

5 69-1815EFS—06

To set the current time display, press CLOCK,

then press s or t to adjust the time. Press

and hold s or t to advance the time more

quickly.

Press DONE to save & exit (or press CANCEL to

exit without changing the time).

Note: The real-time clock should never require

adjustment since it automatically updates for

daylight savings time, and stores all date/time

information.

Note: To change the current week day display, see

page 21.

Press CLOCK

Adjust time, then press DONE

SCHED HOLD CLOCK SCREEN MORE

WED

FAN

AUTO

Inside Set To

6:01

DONE CANCEL

WED

FAN

AUTO

Inside Set To

6:02

Clock setting

Operating Manual

69-1815EFS—06 6

Press FAN to select fan operation, then press

DONE:

• On: Fan is always on.

• Auto: Fan runs only when the heating or

cooling system is on.

• Circ: Fan runs randomly, about 35% of the

time, not counting any run time with the

heating or cooling system.

You can press FAN to override the fan settings

you’ve programmed for different time periods

(see page 9). If you select On or Circ, the

setting you select will remain active until you

press FAN again to select Auto, and return

to the fan schedule (see page 28 for more

information).

Note: If a fan schedule is programmed,

“Auto” will run the fan schedule.

Press FAN

SCHED HOLD CLOCK SCREEN MORE

WED

SYSTEM

HEAT

Following

Schedule

Inside Set To

6:01

FAN

AUTO

Fan setting

VisionPRO® IAQ

7 69-1815EFS—06

Press SYSTEM

SCHED HOLD CLOCK SCREEN MORE

WED

Following

Schedule

Inside Set To

6:01

FAN

AUTO

SYSTEM

HEAT

Press the SYSTEM button to select, then press

DONE:

• Heat: Thermostat controls only the

heating system.

• Cool: Thermostat controls only the

cooling system.

• Off: Heating and cooling systems are off.

• Auto: Thermostat automatically selects

heating or cooling depending on the

indoor temperature.

• Em Heat (only for heat pumps with

auxiliary heat): Thermostat controls

Auxiliary Heat. Compressor is not used.

System setting

Operating Manual

69-1815EFS—06 8

It’s easy to program your system for maximum energy savings. You can program four

time periods each day, with different settings for each day.

This thermostat is pre-set to use EnergyStar®program settings. We recommend these

settings, since they can reduce your heating/cooling expenses by as much as 33%.

(See next page to adjust times and temperatures of each time period.)

Wake

(6:00 am)

Leave

(8:00 am)

Return

(6:00 pm)

Sleep

(10:00 pm)

Cool (Mon-Fri)Heat (Mon-Fri) Heat (Sat-Sun) Cool (Sat-Sun)

70 °78 °70 °78 °

62 °85 °62 °

[Or cancel period]

85 °

[Or cancel period]

70 °78 °70 °

[Or cancel period]

78 °

[Or cancel period]

62 °82 °62 °82 °

EnergyStar® settings for maximum cost savings
