Honeywell Fire Lite Alarms SWIFT Hoja de datos

SWIFT®

INSTALLATION QUICK START GUIDE

REQUIRED TOOLS AND EQUIPMENT TO CREATE A MESH NETWORK

Small Flathead Screwdriver Batteries

CR123A 3v

(Panasonic or Duracell)

One per each device

SWIFT Gateway and Devices

All SWIFT devices must be in the factory

default state and updated to the current

version of SWIFT Tools.

SWIFT Detector Bases

Windows® Laptop with

SWIFT Tools

Magnet

STOP! Complete a site survey, which includes a Link Test and RF Scan, before continuing.

W-USB Software Interface

W-USB software may need to be

updated before use with SWIFT

Tools. SWIFT Tools will automatically

update the software, if necessary.

WIRELESS DEVICE PREP

BEFORE WIRELESS INSTALLATION

Install the gateway

It is recommended that the gateway be completely installed and wired

before making connections to any wireless devices. The gateway is powered

by either the Fire Alarm Control Panel’s SLC or by 24V power. Refer to the

SWIFT Wireless system manual #LS10036-000FL-E for more information.

Ensure you are running the latest version of SWIFT Tools

Use SWIFT Tools to update all devices to the latest firmware version. All devices must be

running the latest firmware for proper functionality.

RESET DEVICES TO FACTORY DEFAULT

Use SWIFT Tools to reset devices to the

factory default state

1. Insert the W-USB adapter into your computer and launch

the SWIFT Tools application

2. On the home screen, select Site Survey, Create Mesh Net-

work, or Diagnostics.

3. Click Operations and select Set device to factory default.

4. You are now on the Reset Devices screen. Select the desired

device and click Reset.

Ensure devices are in the Factory Default state

With the address code wheels set to 000, insert one battery into the device.

The LED on the front will blink red if the device is in the factory default

state.

If the device is not in the factory default state, follow the directions below.

Back

Front

PREPARE WIRELESS DEVICES

1Tamper each device by removing the base or faceplate.

Use a screwdriver to set the

address on each device. Each

device must have a different

SLC address.

3Insert four batteries into the device.

4Twist detectors into their bases.

Replace faceplates on modules.

ASSIGN A PROFILE

Click Create on the Create New

Jobsite screen.

Note: An existing jobsite can also

be used.

4Click Start on the home screen

to create a mesh network.

5Click Create or Import to start profile

assignment.

Note: W-USB software

may need to be updated

before use with SWIFT

Tools. SWIFT Tools will

automatically update the

software, if necessary.

Insert the W-USB into your laptop’s

USB port. Launch SWIFT Tools.

Enter jobsite information.

1. Enter jobsite name.

2. Enter jobstite location/

description.

3. Click Create.

3Click Create New

Profile.

7Name the profile.

Assign a Mesh ID number between 1-255.

Each mesh/gateway must have a different ID number.

9Click Create.

10 In the communicator panel, select the gateway and devices to

which the profile will be assigned. When the mesh is fully formed,

devices that have the same profile, will be in the same mesh net-

work.

Note: To assign a profile to a device, it must be within 20 ft. of the

laptop/W-USB connection. It may be necessary to move the laptop/

W-USB closer to the device.

11 Once all desired devices are selected and displayed in the Assign Pro-

file table, click Assign.

Profiles are now being assigned to the selected devices. Depending

on the number of devices, profile assignment may take several min-

utes to complete.

13 If more devices need

profiles assignments,

all devices in the Assign

Profile table must be

removed first before

adding new ones. Click

the Xto remove devices

from the Assign Profile

table.

Note: Only 49 devices

can be assigned to one

gateway.

14 Install all devices in their final locations.

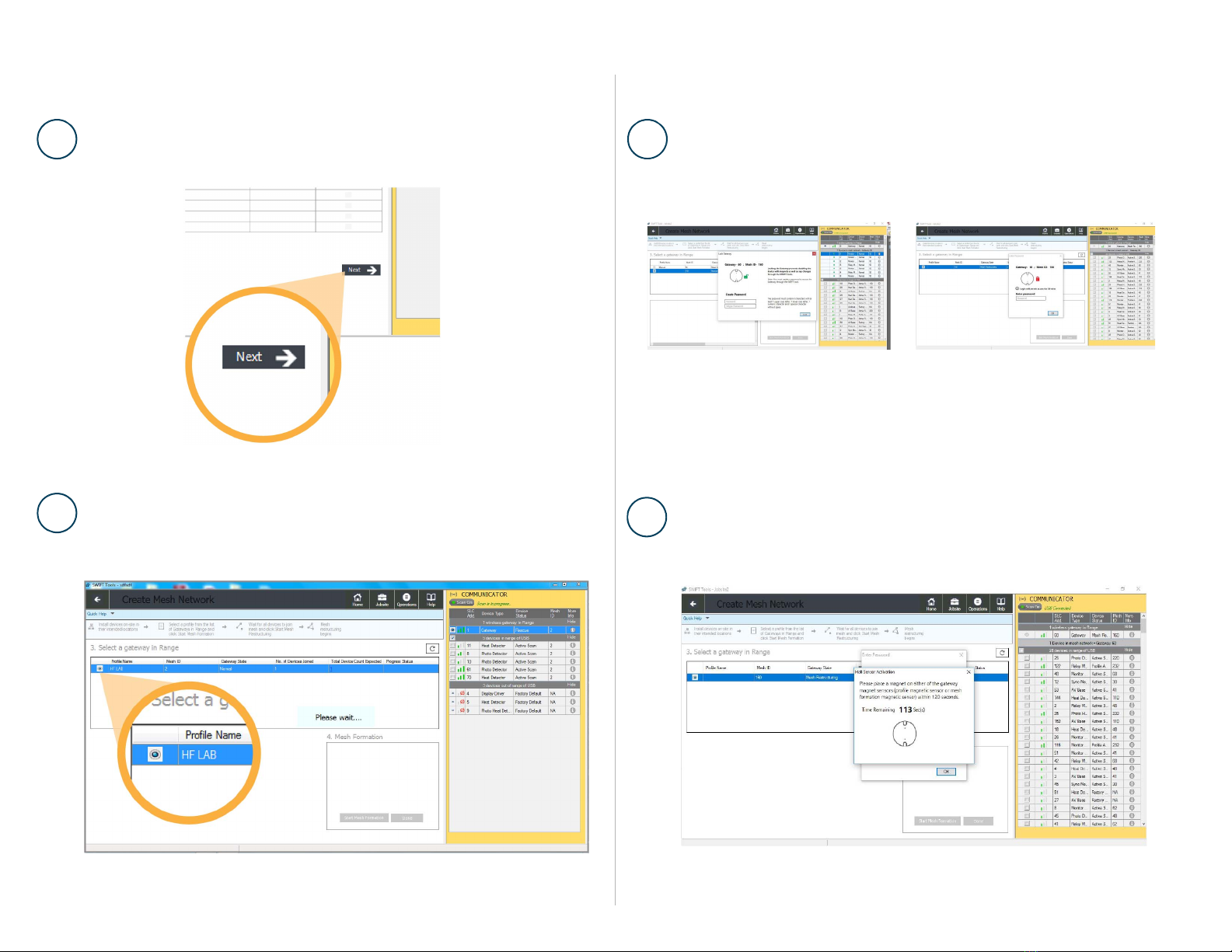

15 Once all devices are installed, open the profile assignment screen

and click Next. This will bring you to the Mesh Formation Screen.

On the Mesh Formation screen, select the profile from the Select a

Gateway in Range table.

17 For security purposes, you will be prompted for a password. If

your gateway is unlocked, a Lock Gateway prompt will display.

Conversely, if your gateway is unlocked, an Unlock Gateway

prompt will display. Enter the gateway password and click OK.

18 When the correct password is entered, a Hall Sensor Activation

window will display. You will then have 120 seconds to place a

magnet on the gateway sensors to unlock the device.

19 Click Start Mesh Formation.

The mesh network is now forming.

21 Once the mesh has formed, you can either start restructuring

the mesh manually or the system will do it automatically.

22 Mesh restructuring can take up to 6 minutes to complete.
