Honeywell FS19X Series Manual de usuario

Installation Guide and Operating Manual

FSX

™

Fire and Flame Detectors

Model FS19X™ & FS20X™ Series

FS19X & FS20X WideBand IR™/ UV

Multi-Spectrum Infrared / Ultraviolet Electro-Optical Multi-Spectral Digital

WideBand IR Sensor with Ultraviolet Phototube

Radiant Energy Fire and Flame Detector

Installation Guide and Operating Manual // Model FS19X™ & FS20X™ Series

Read and understand this manual before

installing or operating equipment.

No part of this document may be copied or reproduced without the express

written permission of Honeywell Analytics.

This manual is subject to change without notice.

While this information is presented in good faith and believed to be accurate, Honeywell disclaims the implied

warranties of merchantability and fitness for a particular purpose and makes no express warranties except as

may be stated in its written agreement with and for its customers.

In no event is Honeywell liable to anyone for any indirect, special or consequential damages. The information

and specifications in this document are subject to change without notice.

ACCTTL, ALERT-1, ALARM-2, ALERT-1: ALARM 2, ALERT-1: ALARM-2, ATAG, Clean Room Sentry, COP-i,

Complete Optical Path Integrity, CM1, CM1-A, DartLogic, FireLogic, Fire Signature Analysis, FireBusI, FireBusII,

FirePic, FirePicII, FirePicIII, FirePix, FirePicture, FSC, Fire Sentry Corporation, Fire Sentry Corp., FSX, All FSX

Nomenclature Variations (such as: FS2, FS2X, FS3, FS3X, FS4, FS4X, FS5, FS5X, FS6, FS6X, FS7, FS7X,

FS8, FS8X, FS9, FS9X, FS10X, FS10X, FS11, FS11X, FS12, FS12X, FS14, FS14X, FS15, FS15X, FS16,

FS16X, FS17, FS17X FS18, FS18X, FS19, FS19X, FS20, FS20X, FS24, FS24X, FS24XN, FS26, FS26X,

FS26XN), FS7-2173-2RP, FS System 7, FS System 10, FS7-2173, FS7-2173-RP, FS2000, FS System 2000,

High Speed Flame & Surveillance Detector, Multi-Spectrum QuadBand Triple IR, Multi-Spectrum TriBand, Multi-

Spectrum Tri-Band, Near Band Infrared, Near Band IR, NearBand IR, QuadBand IR, Room Sentry, RS, RS2,

SM2, SM3, SS, SS2, SS2X, SS2-A, SS3, SS3-A, SS3X, SS4, SS4-A, SS4X, SnapShot, SLR-BIT, SuperBus,

SuperSentry, System 2000, Tri-Mode Plot, QuadBand Triple IR Plus, TriBand, Tri-Band, “FS & FSC triangle

logo’s”, WBIR, Wide Band Infrared, WideBand IR, Wide Band IR

are registered trademarks of Honeywell International Inc.

Other brand or product names are trademarks of their respective owners.

Honeywell Analytics

Installation Guide and Operating Manual // Model FS19X™ & FS20X™ Series

Honeywell 1

TABLE OF CONTENTS

PAGE

SECTION 1: INTRODUCTION ...............................................................................................................................2

1.1 Product Overview .......................................................................................................................................2

1.2 Detector Technical Specifications ................................................................................................................3

1.2.1 Mechanical Specifications ................................................................................................................3

1.2.2 Electrical Specifications ...................................................................................................................3

1.2.3 Environmental Specifications ...........................................................................................................3

1.2.4 Performance Specifications ..............................................................................................................3

1.2.5 Hazardous Area Classifications ........................................................................................................3

1.3 Features & Benefits ....................................................................................................................................3

1.4 Applications ................................................................................................................................................5

SECTION 2: INSTALLATION ................................................................................................................................6

2.1 Mounting Instructions ..................................................................................................................................6

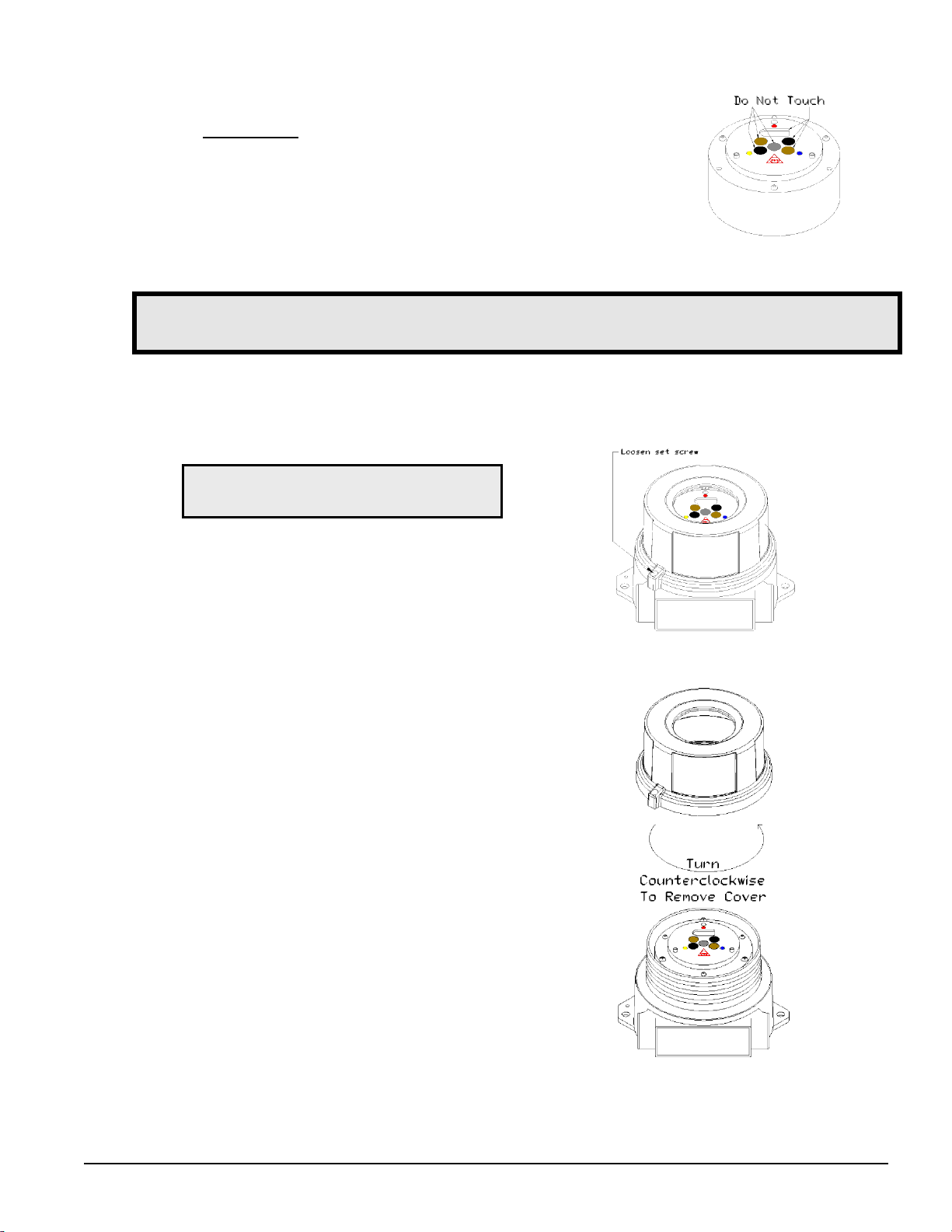

2.2 Opening the Detector ..................................................................................................................................7

2.3 Detector Connections .................................................................................................................................8

2.4 Installation Practices ...................................................................................................................................9

2.5 Start-Up and Commissioning .....................................................................................................................10

SECTION 3: OPERATION ....................................................................................................................................12

3.1 Principle of Operation ................................................................................................................................12

3.2 Configuring the Detector ............................................................................................................................12

3.3 Normal Operation ......................................................................................................................................14

3.4 Alarm Condition .........................................................................................................................................14

3.5 Fault Conditions .........................................................................................................................................15

3.6 LED Status Indicators ................................................................................................................................14

3.7 Maintenance ..............................................................................................................................................15

SECTION 4: APPENDIX .......................................................................................................................................16

4.1 Warranty Information .................................................................................................................................16

4.2 Product Variations .....................................................................................................................................16

4.3 Digital Communication Options ..................................................................................................................17

4.4 Test Lamps ................................................................................................................................................18

4.5 Field of View Restrictor ..............................................................................................................................17

4.6 Additional Performance Specifications .......................................................................................................18

4.6.1 Flame Response Sensitivity ............................................................................................................18

4.6.2 High Temperature Response ..........................................................................................................18

4.6.3 False Alarm Immunity .....................................................................................................................19

4.7 Drawings....................................................................................................................................................20

4.7.1 Outline and Dimensions ..................................................................................................................20

4.7.2 Wiring and Terminal Connections.....................................................................................................21

4.7.3 Detector Label Drawings..................................................................................................................23

INDEX...................................................................................................................................................................25

Installation Guide and Operating Manual // Model FS19X™ & FS20X™ Series

Honeywell 2

SECTION 1: INTRODUCTION

1.1 Product Overview

The Model FS19X™/FS20X™Detector senses the Ultraviolet

and WideBand IR™ radiant energy of blackbody particulate

and molecular emissions generated by both hydrocarbon and

non-hydrocarbon flames and fires. The WideBand spectral

radiant energy wavelengths sensed by the Tri (3) sensors

span approximately 0.18 to 3.5 microns for the FS19X/FS20X

Detector.

The Model FS19X/FS20X Multi-Spectrum Fire and Flame

Detector is designed and Factory Mutual approved for use in

Class I, Division 1 and 2, Class II and Class III, Ex db IIC,

Ex tb IIIC Hazardous Locations (see Figure 1-1).

The FS19X/FS20X Detector is available in copper-free

Aluminum or in 316 Stainless Steel enclosure. The

FS19X/FS20X Detector electro-optical electronics module

(puck) is enclosed in a replaceable black, hard anodized

aluminum puck that provides superior ruggedness, handling,

ease of installation, and protection against EMI/RFI.

Figure 1-1

FS19X/FS20X Detector

Shown with Copper Free Aluminum Housing

FS19X/FS20X Detector Field Connectors

The field connections feature two (2) connector choices for the installer:

1. A removable ten (10) pin screw terminal connector (J2) for hardwired relay applications.

2. A removable six (6) pin screw terminal connector (J1) for analog output or RS-485 Digital

Communication applications.

The removable connectors provide quicker installation and allows the Detector enclosure to be installed prior

to the Detector Module (puck).

UField Selectable Configuration Switches

1. The eight (8) pin DIP switch (SW2) is used to select the

Detector’s Sensitivity and Relay Options.

2. The ten (10)pin DIP switch (SW1) is used for:

•Selecting a unique digital address (128 choices).

•Enabling “Fireball” type fire response

•Factory Use

3. The ten (10) position Rotary switch allows selection of

the analog and digital communication protocol.

Figure 1-2

FS19X/FS20X Detector Puck, (rear view)

Installation Guide and Operating Manual // Model FS19X™ & FS20X™ Series

Honeywell 3

1.2 Detector Technical Specifications

1.2.1 Mechanical Specifications

Enclosure Material: Copper Free Aluminum (white)

316 Stainless Steel

Physical Dimensions: Assembly 4.35 in. (110.49 mm) Height X 4.81 in. (122.24 mm) Diameter

Mounting Holes ¼ in. (6.35 mm) Diameter, 5.50 in. (139.70 mm)Center to Center

Conduit Entries Two (2) ¾ in. NPT or Two (2) 25 mm

Weight: Aluminum 3 lbs. 11 oz. (1.7 kg) approximately

Stainless Steel 7 lbs. 7 oz. (3.4 kg) approximately

Enclosure Rating: IP66 / NEMA 4 / NEMA 4X

Vibration: Meets or exceeds Mil Spec 810C,

Method 514.2, Curve AW

1.2.2 Electrical Specifications

Input Voltage Range: 18 VDC to 32 VDC

Normal Operation Current: 85 mA (nominal) 175 mA (nominal with heater1)

Maximum Fire Alarm Current: 135 mA (maximum) 220 mA (maximum with heater1)

Relay Contact Rating: 1 Amp @ 24 VDC resistive

Analog Current Output: 0.0 to 20.0 mA (Non-Isolated Source or Sink, User Selectable)

(400 Ohms Max Load [loop resistance]) 0.0 mA (<0.6 mA)=Fault

2.0 mA (±0.6 mA) = Dirty Window Lens

4.0 mA (±0.6 mA) = Normal, Safe (no Fault, no Fire)

8.0 mA (±0.6 mA) = Background IR

12.0 mA (±0.6 mA) = Background UV

16.0 mA (±0.6 mA) = Fire Alarm

20.0 mA (±0.6 mA) = Verified Fire Alarm

Screw Terminal Wire Sizes: 12 AWG to 22 AWG (2.50 mm to 0.762 mm)

Use stranded conductors(not solid core)

1.2.3 Environmental Specifications

Operating Temperature Standard: -40° F to +185° F (-40° C to +85° C)

Extended-Temp2: -58° F to +230° F (-50° Cto +110° C) Optional

Operating Humidity Range: 0 to 95% RH,

100% RH condensing for short periods of time

Storage Temperature: -67° F to +221° F (-55° C to +105° C)

1.2.4 Performance Specifications2

Field of View: 110° Horizontal and 105° Vertical

Sensitivity One (1) sq. ft. heptane fire at 200 feet (± 45° from axis)

Speed of Response: Typically, 2 to 5 seconds

High Speed Response: Less than 0.5 seconds to “fireball” type fires

Spectral Sensitivity 0.18 to 3.5 micron wavelengths

1.2.5 Hazardous Area Classifications (See Section 4.7.3 on Pages 22 & 23)

Class I, Division 1, Groups A, B, C & D

Class II, Division 1 Groups E, F & G Class I, Zone 1, AEx / Ex d IIC

Class III Ex db IIC, Ex tb IIIC

T4: Ta = -40°C to +110°C3T4: Ta = -40°C to +110°C3

T5: Ta = -40°C to +75°C3T5: Ta = -40°C to +75°C3

T6: Ta = -40°C to +60°C T6: Ta = -40°C to +60°C

1 Heater circuit turns ON only when temperature drops below zero degrees Fahrenheit (-17° C)

2See Section 4.6 for Additional Performance Specifications

3The supply connection wiring shall be rated at least 10°C above the rated service temperature (120°C for T4 applications and 85°C for

T5 applications)

Installation Guide and Operating Manual // Model FS19X™ & FS20X™ Series

Honeywell 4

1.3 Features and Benefits

•Selectable Sensitivity (four settings)

User can set an F20SX Detector to four (4) different detection distances (see Section 3.2).

•Selectable Relay Options

User can configurable for a variety of dry contact relay interface options (see Section 3.2).

•Selectable 4 – 20 mA Output

User can set for Source or Sink output (see Section 3.2).

•Selectable Communications

User can configure for analog or digital communication outputs such as ModBus (see Section 3.2).

•Selectable Digital Communication Address

Users can select unique 7-bit code (128 addresses) (see Section 3.2).

•Lower Power Consumption

Requires smaller external power supplies and fewer system backup batteries.

•Multiple Microprocessors

Reduces the number of discrete Detector components, provides larger programming and memory

capacity, and provides redundant self-checking.

•Wider Range of Applications

Primary applications include long range, fast response to fires such as acetylene, silane, hydrogen, etc.

•Wider Operating Temperatures

-40°F to +185°F (-40°C to +85°C) Standard and -76°F to +230°F (-60°C to +110°C) Optional.

•Built-In Automatic “Through-the-Lens” Self-Test

Monitors window lens obscuration and checks the operation of the Detector’s Sensor Array and Electro-

Optical Electronics Module with Built-In IR (FS19X & FS20X) and UV (FS20X) Self-Tests.

•Anodized Removable Detector Aluminum Module (Puck)

Rugged, superior protection against EMI/RFI and handling plus easier field installation and replacement.

•Three Separate Bright LED’s (Red, Yellow, Green)

Field status indicators with individual LED’s for Alarm, Fault and Normal conditions. Provides superior

Detector status viewing in bright outdoor environments (see Section 3.6).

•FSC Windows® based PC Interface

User can perform remote FS20X Detector diagnostics, real-time status, Real-Time Graphing (RTG),

SnapShotdata recording, and downloading FirePic’swith Honeywell Analytics’ exclusive FSIM-2

USB Interface Unit and easy to use Windows®based PC Software.

•Designed to Detect both Hydrocarbon and Non-Hydrocarbon Fires with one FSXDetector

All fire and flame threats are sensed, not just hydrocarbon fires as with other Triple IR Flame Detectors.

•FM 3260 Approved

Third party tested and certified for industrial and commercial applications.

•Designed, Manufactured, and Tested by Honeywell Analytics

Over 25 years of proven fire / flame detection product excellence worldwide.

Installation Guide and Operating Manual // Model FS19X™ & FS20X™ Series

Honeywell 5

1.4 Applications

The applications for the FS19X/FS20X Fire and Flame Detectors are vast. Here is a partial list:

Refineries

Offshore Drilling and Production Platforms

Petrochemical Plants

Petroleum Product Pipelines and Pumping Stations

Gas Compressor Buildings

Gas Collection Facilities

Gas Processing Plants

Gas Turbine Enclosures

Gasoline Loading Terminals

LNG Storage/Distribution

LPG Storage/Distribution

Cogeneration Plants

Crude and Product Tank Farms

Aerosol Filling Facilities

Commercial and Military Aircraft Hangars

Engine Test Cells

Marine Engine Rooms

Marine Terminals

Paint and Solvent Storage

Power Plants

Product Storage Terminals

Rail and Truck Loading and Unloading Terminals

Silane Gas Cabinets

Silane Gas Manufacturing

Hydrogen Plants

Hydrogen Storage

General Warehouses

Installation Guide and Operating Manual // Model FS19X™ & FS20X™ Series

Honeywell 6

SECTION 2: INSTALLATION

2.1 Mounting Instructions

Consider the following guidelines when selecting Detector location:

1. As with all flame and fire Detectors, avoid areas that contain radiant energy sources (such as radiant

heaters, high intensity lamps, flare-stacks, etc.) in close proximity to the Detector’s field of view.

2. Detectors should not be mounted so that they look up or face the horizon (especially outdoors). Use

a minimum thirty degrees (30°) downward angle with the SM4 swivel mount (see Figure 2-1).

3. Make sure the Detector has a clear, unobstructed view of the threat area. Physical obstructions

between a fire and the Detector may cause the fire to be undetected.

4. The Model SM4 is a 316 Stainless Steel Swivel Mount designed for the FSC Detector housing. The

adapter plate, with the two (2) screw holes (facing away), is attached to the base of the Detector (see

Figure 2-1). The mounting plate, with the four (4) screw holes (facing towards), is used for mounting

the SM4 to a solid surface. Each adjustment increment along an axis is calibrated to 10°. For single

axis adjustments, the center section need not be installed.

5. Avoid mounting the Detectors in areas where temperatures exceeds the specified operating

temperature range (see Sections 1.2.3 & 1.2.5).

6. Detector Conduit Entries

a) If only one conduit entry is used, correctly install and seal the conduit plug on the unused entry,

¾ in. NPT or 25mm (see Figure 2-2).

b) Install an approved conduit trap or drain, if required to meet hazardous area classifications per

NFPA 70: National Electrical Code, latest revision.

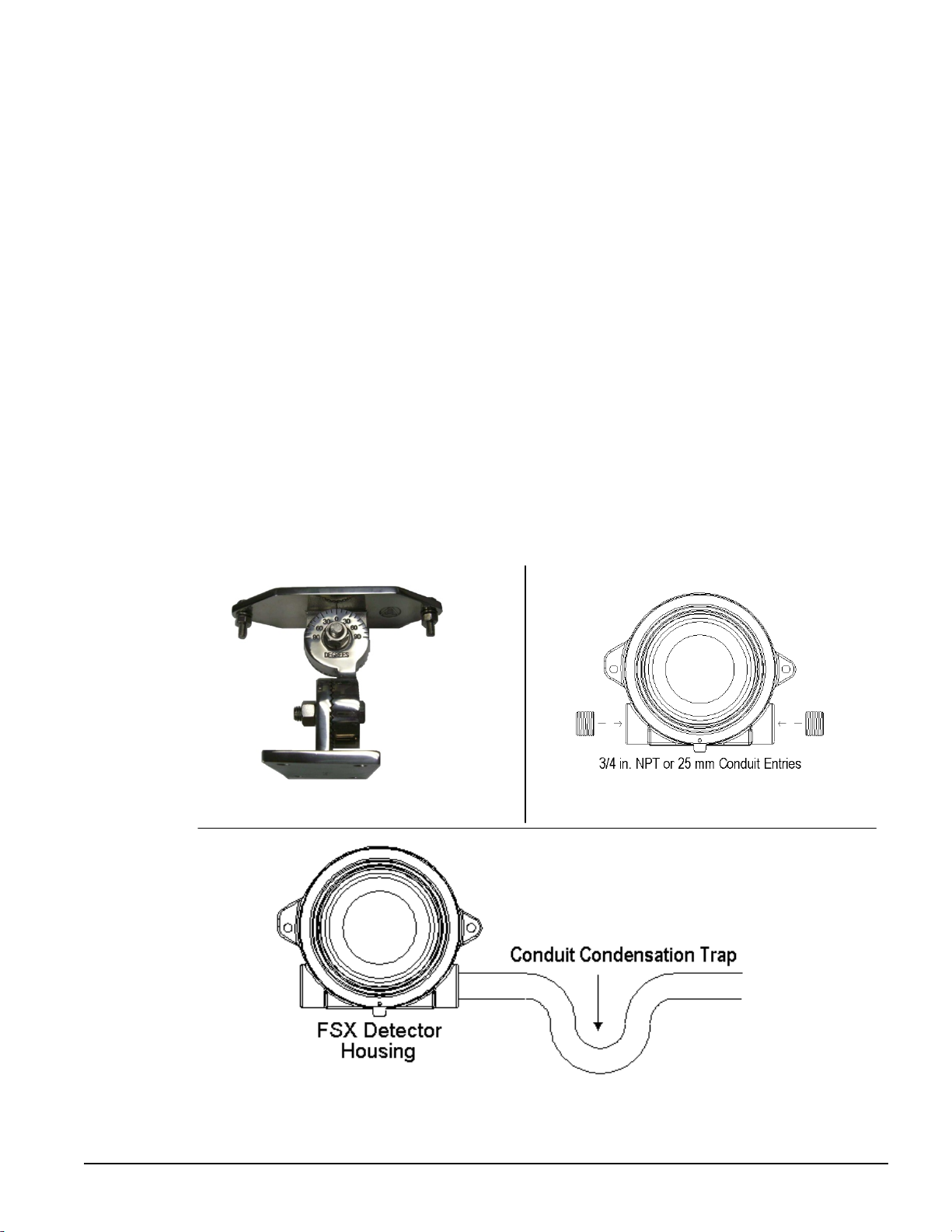

Figure 2-1 Detector (front view)

Swivel Mount Figure 2-2

Figure 2-3

Mounting Instructions (continued)

Installation Guide and Operating Manual // Model FS19X™ & FS20X™ Series

Honeywell 7

Note the following Precautions:

1. Do not touch the sensors’ windows on the front of the

Detector electro-optical electronics module (puck). If touched

accidentally, they should be cleaned following the instructions

listed below (see Figure 2-4).

2. When cleaning the Detector’s sensor windows on the puck, it

is best to use Alcohol or IPA sparingly and a cotton swab.

3. There are no serviceable parts inside the Detector puck. If the

puck is opened up or tampered with, all warranties are voided.

Detector Module “puck”

Figure 2-4

CAUTION:Follow static protection procedures while handling the connectors and the wiring

of the Module puck to the Detector. Use a wrist strap connected to earth ground.

2.2 Opening the Detector

It is necessary to remove the Detector Module “puck” from the enclosure to access the field connections.

4. Loosen the set screw on the enclosure lid

(see Figure 2-5).

Figure 2-5

5. Turn counterclockwise (CCW) to unscrew

the enclosure lid (see Figure 2-6).

Figure 2-6

Opening the Detector (continued)

CAUTION: Disconnect power before

unscrewing the Housing Lid.

Installation Guide and Operating Manual // Model FS19X™ & FS20X™ Series

Honeywell 8

6. Loosen the three captive screws on the

Detector Module “puck” (see Figure 2-7).

Figure 2-7

7. Slide the Detector Module “puck” out of the

enclosure base (see Figure 2-8).

Figure 2-8

2.3 Detector Connections

The Detector Module puck has a six (6) pin and a ten (10) pin keyed removable connector with screw terminal

female plugs that connect to the two (2) respective male connectors with analog, digital, and relay interfaces

(see Figure 2-9):

•For relay configurations, use the ten (10) pin plug (J2) and its connector.

•For digital and analog configurations, use the six (6) pin plug (J1) and its connector.

J2 Connector

Figure 2-9

Detector Module “puck” (rear view)

J1 Connector

Connection

Auxiliary NC

DC Return

Auxiliary NO

RS-485-A

Auxiliary COM

RS-485-B

Alarm NC

+24 VDC

Alarm NO

4-20mA Source

Alarm COM

4-20mA Sink

Fault NO

Fault COM

+24 VDC

DC Return

Contacts shown with

no power applied

Note: Do not attempt to open the Detector Module “puck” as this voids all warranties.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sensor de seguridad de Honeywell

Honeywell

Honeywell PEHA D-LS1000R Manual de usuario

Honeywell

Honeywell MaxLED Centralized Series Manual de usuario

Honeywell

Honeywell C7007A Manual de usuario

Honeywell

Honeywell Viewguard DUAL AM BUS-2/BUS-1 Manual de instrucciones

Honeywell

Honeywell C7061M Manual de operación

Honeywell

Honeywell SC105 Manual de operación

Honeywell

Honeywell FS20X Series Manual de usuario

Honeywell

Honeywell 5809 Manual de usuario

Honeywell

Honeywell 5800FLOOD Manual de usuario

Honeywell

Honeywell Viewguard DUAL AM FAI Manual de usuario

Honeywell

Honeywell C7915A Manual del propietario

Honeywell

Honeywell 5800CO Instrucciones de montaje

Honeywell

Honeywell EXCEL ADT-HRSI Manual de usuario

Honeywell

Honeywell PEHA D MLS2500CDRR4 Manual de instalación y operación

Honeywell

Honeywell X-ND100 Manual de usuario

Honeywell

Honeywell DUAL TEC DT8050A Manual de usuario

Honeywell

Honeywell ESSER 784763 Manual de usuario

Honeywell

Honeywell PEHA MLS Digital Hi-Bay D MLS2001AHBF Manual de instalación y operación

Honeywell

Honeywell Sensepoint XCD Manual de usuario

Honeywell

Honeywell Miller Titan TR50 Manual de usuario

Honeywell

Honeywell Miller TURBOLITE Edge Manual de instrucciones

Honeywell

Honeywell FSL100-IR3 Nota de versión

Honeywell

Honeywell Miller RACDTA-5K6/6FT Manual del operador

Honeywell

Honeywell DT7235T Manual de usuario

Manuales populares de Sensor de seguridad de otras marcas

THORLABS

THORLABS PDA10JT Manual de usuario

Waeco

Waeco UV-DETECT Manual de usuario

Intermatic

Intermatic IOS-DSIMF Manual de usuario

urmet domus

urmet domus 1083 Manual de usuario

Siemens

Siemens AZL66 Series Manual de usuario

BTI

BTI Profiline Multi Finder Manual de usuario

Challenger

Challenger SL01 Manual de usuario

DMP Electronics

DMP Electronics 1122INT Manual de usuario

Rielta

Rielta Ladoga MK-RK Manual de usuario

Mirion Technologies

Mirion Technologies ACCURAD PRD Manual de usuario

Bosch

Bosch DS835 Manual de usuario

DBI SALA

DBI SALA EZ Stop Manual del operador

Lamptime

Lamptime ST05C Manual de usuario

Ubiquiti

Ubiquiti MFI-MSC Manual de usuario

Subsite

Subsite 910R Instrucciones de instalación

Satel

Satel OPAL Pro Manual de usuario

Aleph

Aleph XC-1XTEU Manual de usuario

Pima

Pima LARIS QUAD Manual de usuario
