Honeywell HD3DS Manual de usuario

Document 800-13601V1 – Rev A – 05/2013

Configuration Guide

3 Inch Minidome

High Resolution Indoor

Minidome Camera

HD3DS HD3DSX

HD3HRS HD3HRSX

Revisions

Issue Date Revisions

A 05/2013 New document, based on 800-13601; adding HD3DS(X)

models.

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

DO NOT OPEN

RISK OF ELECTRIC SHOCK

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Programming the Camera. . . . . . . . . . . . . . . . . . . . . . . . . 4

Exposure Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Color Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Day&Night Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Function Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Motion Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Privacy Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Exit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Introduction

This document provides instructions for configuring the HD3DS(X) and HD3HRS(X) indoor

minidome camera settings. The HD3DS(X) offers true day/night functionality and the

HD3HRS(X) is a day/night version. These instructions are intended for system installers,

administrators, and operators. For information about installing the camera, refer to the 3

Inch Minidome Camera Quick Installation Guide.

Programming the Camera

The camera is programmed using the on-screen display (OSD) menus. You can connect a

portable monitor during installation using the supplied adapter cable.

To show the OSD main menu, press the OSD

controller joystick located on the camera

control board.

Move the joystick up or down to navigate

through the menu options. Move the joystick

right to change a menu setting.

When a menu option or setting is followed by

, press the joystick to access the next

screen. To go back to the main menu, select

RETURNand then press the joystick.

DOWN

RIGHTLEFT

The camera has the following OSD menu structure:

1. EXPOSURE

LENS

BACKLIGHT

AGC

SENSE-UP

3D DNR

EXIT JUMP

2. COLOR

WB MODE

RED GAIN

BLUE GAIN

COLOR GAIN

EXIT JUMP

3. DAY&NIGHT

D&N MODE

NIGHT C.

NIGHT A.

EXIT JUMP

4. FUNCTION

MIRROR

SHARPNESS

GAMMA

SLC

NIGHT-UP

EXIT JUMP

5. MOTION

AREA SET

SENSITIV.

SHOW INDI.

EXTER OUT

EXIT JUMP

6. PRIVACY

MASK 1

MASK 2

MASK 3

MASK 4

MASK 5

MASK 6

MASK 7

MASK 8

EXIT JUMP

7. SETUP

TITLE

DPC SET

MONITOR

LANGUAGE

OSD COLOR

COMMUNICA.

FACTORY SET

EXIT JUMP

8. EXIT

SAVE&EXIT

EXIT

Exposure Menu

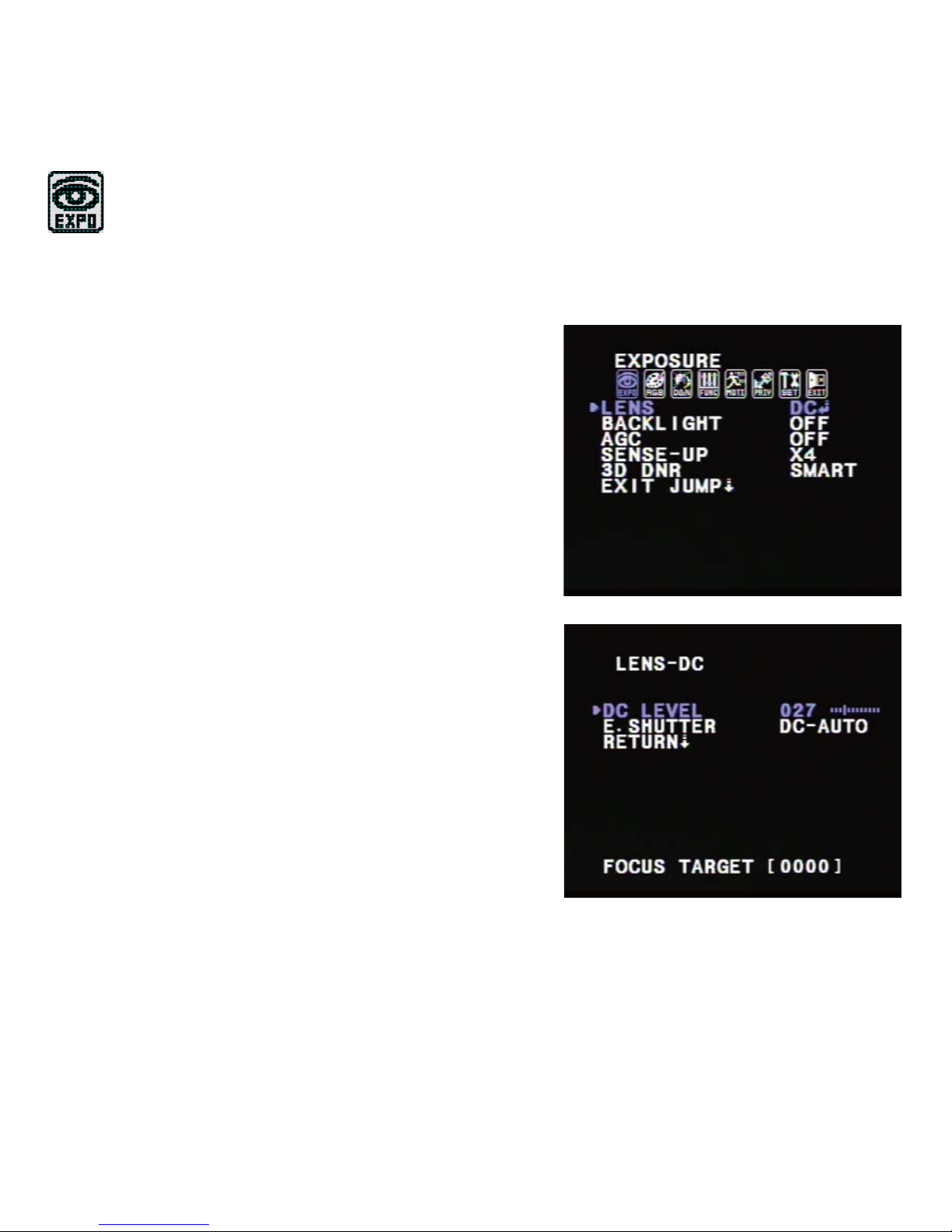

EXPOSURE LENS

Note Only DC mode is supported at this time.

Choosing MANUAL mode may cause the camera

to operate incorrectly.

1. Select DC.

2. Set the DC LEVEL to adjust the brightness

level of the monitor screen. Select a value

from 1to 100 (100 = brightest). The default

setting is 30. Set the FOCUS TARGET to

the maximum value for a clear image.

3. Select E. SHUTTER to set the shutter

speed. You can select from 22 different

shutter speeds, from X1024 to 1/100000.

DC-AUTO is the default shutter speed for

both indoor and outdoor use. Select

1/100FLC to run the camera in flickerless

mode.

Note The SENSE-UP menu cannot be

controlled if the E. SHUTTER setting is

above 1/60.

EXPOSURE BACKLIGHT

Set BACKLIGHT to BLC (Backlight Compensation), HME (Highlight Masking Exposure),

D.WDR (Digital Wide Dynamic Range), or OFF.

If BLC is selected, do the following:

1. Set BLC MODE to MANUAL or SMART

(recommended).

•IfSMART is selected, the camera

automatically adjusts the BLC.

•IfMANUAL is selected, you can adjust

the BLC level in four areas of the scene

(TOP, BOTTOM, LEFT, RIGHT).

2. Select SET LEVEL to set the BLC level to

LOWEST, LOW, MID, or HIGH.

BLC Backlight Compensation prevents subjects in defined areas of the scene from

appearing too dark when backlighting is present.

HME Highlight Masking Exposure masks bright areas of the scene to allow objects to

appear clearly on the screen.

D.WDR Digital Wide Dynamic Range provides clear images even when strong backlighting is

present.

If HME is selected, do the following:

1. Select HME_BLC SET.

2. Set SET LEVEL to LOWEST, LOW, MID,

or HIGH.

3. Define the highlight masking area

(shaded) by adjusting TOP, BOTTOM,

LEFT, and RIGHT.

4. Define MASK 1 (indicated by the outline at

the top left of the screen) by adjusting

TOP, BOTTOM, LEFT, and RIGHT.

5. Set up additional highlight masks if desired.

6. Set MODE to ALL DAY or NIGHT.

7. Select SET LEVEL to adjust the HME level. Select a value from 001 to 100.

The higher the number, the darker the mask.

If D.WDR is selected, do the following:

• Select SET LEVEL and select a value from

0to 20.

EXPOSURE AGC (Auto Gain Control)

Auto Gain Control increases picture brightness in low light conditions. However, it also

increases picture noise.

Set AGC to OFF, LOW, MID, HIGH, or HIGHEST.

EXPOSURE SENSE-UP

SENSE-UP automatically activates slow shutter function when a scene is too dark.

Select a value from X2 to X1024 to set the frame integration level. The default setting is X4.

Increasing the shutter speed beyond X4 is not recommended as it may cause lagging.

Note The SENSE-UP menu cannot be controlled if the E. SHUTTER setting

is above 1/60.

EXPOSURE 3D DNR

Digital Noise Reduction reduces the noise/distortion on the screen in night mode, allowing

clear images in low light conditions.

Set 3D DNR to OFF, LOW, MID, HIGH, or SMART (recommended).

SMART optimizes the DNR volume depending on the scene.

Color Menu

COLOR WB MODE

Set WB MODE to AWC, ATW, MANUAL, or PUSH.

AWC Auto White Balance Control mode

compensates for color temperature

changes between 2000 K and 18000 K.

ATW Auto Tracking White Balance mode

compensates for color temperature

changes between 2500 K and 9500 K.

MANUAL Manual mode lets you manually adjust

the red gain and blue gain levels (M. WB

RED and M. WB BLUE) while monitoring

the color of the image.

PUSH Push Lock mode fixes the white balance

based on current lighting. For best

results, place a white surface (such as a

piece of paper) in front of camera during

adjustment.
