Dolphin™ CT50

Quick Start Guide

CT50-AN6-EN-QS Rev A

5/16

*CT50-AN6-EN-QS*

Out of the Box

Make sure that your shipping box contains these items:

• Dolphin CT50 mobile computer (Models CT50L0N, CT50LUN, CT50LFN)

• Rechargeable 3.6 VDC Li-ion battery

• Quick start guide and other compliance documents

If you ordered accessories for your mobile computer, verify that they are also

included with the order. Be sure to keep the original packaging in case you

need to return the mobile computer for service.

Memory Card Specifications

Honeywell recommends the use of Single Level Cell (SLC) industrial grade

microSD™ or microSDHC™ memory cards with Dolphin mobile computers

for maximum performance and durability. Contact a Honeywell sales

representative for additional information on qualified memory card options.

Accessories for the CT50

These accessories are available for the CT50:

• HomeBase (Model CT50-HB)

• Ethernet HomeBase (Model CT50-EB)

• ChargeBase (Model CT50-CB)

• NetBase (Model CT50-NB)

• Quad Battery Charger (Model CT50-QBC)

• Vehicle Power Adapter (Model CT50-MC)

• Vehicle Dock (Model CT50-MB)

• USB Adapter (Model CT50-USB)

• Scan Handle

• Holster

Front Features

Speaker Good Read LED

Volume buttons

Battery status /

Notification LED

Navigation panel

Microphone

Touch panel

Power

button

Scan buttons

Back Features

Camera

button

Camera lens

Battery door

latch

microSIM and microSD door

Battery

Install a microSIM Card

Install a microSD Card

Note: Format the microSD card before initial use.

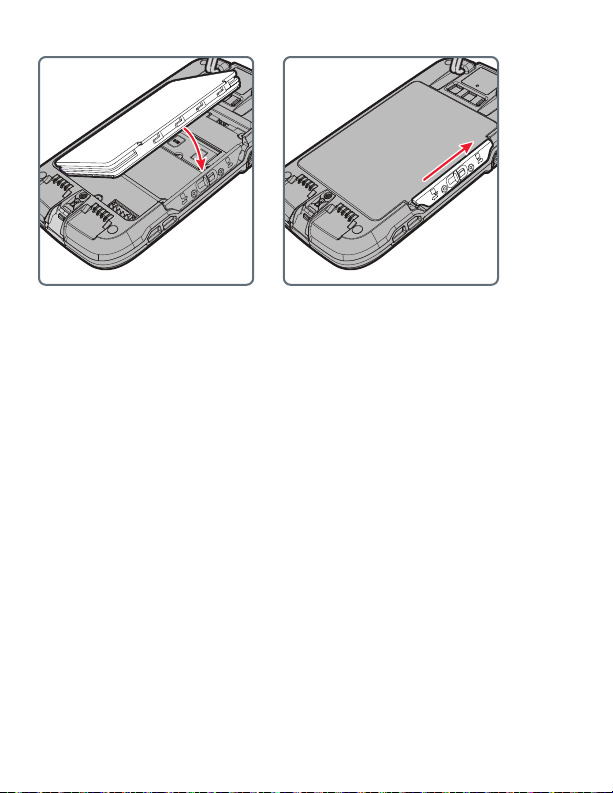

Install the Battery

The CT50 mobile computers ship with a Li-ion 3.6 VDC, 14.6 watt-hour

battery manufactured for Honeywell International Inc.

Charge the Computer

The CT50 mobile computer ships with a partially charged battery. Charge the

battery with a CT50 charging device for a minimum of 4 hours. Using the

computer while charging the battery increases the time required to reach a

full charge.

Caution: We recommend the use of Honeywell accessories and power

adapters. Use of any non-Honeywell accessories or power adapters

may cause damage not covered by the warranty.

Mise en garde : Il est recommandé d'utiliser les périphériques, les

cordons d'alimentation et les adaptateurs secteur conçus par

Honeywell. L'utilisation de tout périphérique, cordon d'alimentation ou

adaptateur secteur d'une autre marque est susceptible de provoquer

des dommages non couverts par la garantie.

The CT50 mobile computers are designed for use with the following charging

accessories: HomeBase, Ethernet HomeBase, ChargeBase, NetBase, Quad

Battery Charger, Vehicle Power Adapter, Vehicle Dock, and USB Adapter.

Caution: Make sure that all components are dry prior to using the

computers and batteries with accessories. Using wet components may

cause damage not covered by the warranty.

Mise en garde : Assurez-vous que tous les composants sont secs avant

de connecter les terminaux/batteries à des périphériques. L'insertion de

composants humides risque de provoquer des dommages non couverts

par la garantie.

Turn Power On/Off

To turn the computer on:

• Press and release the Power button.

To turn the computer off:

1. Press and hold the Power button until the options menu appears.

2. Touch Power Off.

3. When prompted to shut down the phone, touch OK.

Note: You should always power off the computer before removing the

battery.

Sleep Mode (Suspend Mode)

Sleep mode automatically turns the touch panel display off and locks the

computer to save battery power when the computer is inactive for a

programmed period of time.

1. Press and release the Power button to wake the computer.

2. Drag the toward the top of the display to unlock the computer.
