K200-09-00 1 I56-2725-003

IDP-Control Supervised

Control Module

INSTALLATION AND

MAINTENANCE INSTRUCTIONS

Before Installing

This information is included as a quick reference installa-

tion guide. Refer to the control panel installation manual

for detailed system information. If the modules will be

installed in an existing operational system, inform the

operator and local authority that the system will be tem-

porarily out of service. Disconnect power to the control

panel before installing the modules.

NOTICE: This manual should be left with the owner/

user of this equipment.

General Description

IDP-Control Supervised Control Modules are intended

for use in intelligent, two-wire systems, where the in-

dividual address of each module is selected using the

built-in rotary switches. This module is used to switch an

external power supply to notification appliances. It also

supervises the wiring to the connected loads and reports

their status to the panel as NORMAL, OPEN, or SHORT

CIRCUIT. The IDP-Control has two pairs of output ter-

mination points available for fault-tolerant wiring and a

panel-controlled LED indicator.

Figure 1A. Controls

and indicators:

Figure 2A. Module mounting with barrier:

C0219-01

C0217-01

Specifications

Normal Operating Voltage: 15 to 32 VDC

Maximum Current Draw: 6.5 mA (LED on)

Average Operating Current: 390µA (LED flashing)

Regulated External

Supply Voltage: (between Terminals T3 and T4)

Maximum: 80 Volts (RMS or DC)

Drain on External Supply: 2 mA Maximum (using

internal EOL relay)

Temperature Range: 32°F to 120°F (0°C to 49°C)

Humidity: 10% to 93% non-condensing

Dimensions: 41/2˝ H x 4” W x 11/4˝ D

(Mounts to a 4˝ square by

21/8˝ deep box.)

Accessories: SMB500 Electrical Box

Compatibility Requirements

To ensure proper operation, this module shall be con-

nected to a compatible Silent Knight system control pan-

els only (list available from Silent Knight).

Mounting

The IDP-Control mounts directly to 4 square electri-

cal boxes (see Figure 2A). The box must have a mini-

mum depth of 21/8˝. Surface mounted electrical boxes

(SMB500) are available.

Wiring

NOTE: All wiring must conform to applicable local

codes, ordinances, and regulations. When using control

modules in nonpower limited applications, UL require-

ments for the separation of power-limited and nonpower-

limited terminals and wiring must be met. The barrier

must be inserted into a 4˝ × 4˝ × 21/8˝ junction box, and

the control module must be placed into the barrier and

attached to the junction box (Figure 2A). The power-lim-

ited wiring must be placed into the isolated quadrant of

the module barrier (Figure 2B).

56789

TENS

ONES

ADDRESS

LOOP

ISOLATED

QUADRANT

TENS

ONES ADDRESS

LOOP

TENS

ONESADDRESS

LOOP

Figure 1B. Jumper location:

C0458-00

Figure 2B:

C0218-01

MODULE

FROM PANEL OR

(+)

(-)

TO NEXT

(+)

(-)

DEVICE

(+)

(-)

CONTROL

(-)

(+)

47K EOL

RESISTOR

ELR-47K

UL LISTED EOL RELAY

SHOWN ENERGIZED

24 VDC COIL

EOLR-1 TO NEXT CONTROL MODULE OR END-OF-LINE-RELAY.

ONE RELAY REQUIRED FOR EACH CIRCUIT.

MODULE POLARITIES ARE

SHOWN IN ALARM

CONNECT MODULES TO LISTED COMPATIBLE

32 VDC MAX.

IS RECOMMENDED

24 VDC CIRCUIT

3 & 4. BREAK WIRE RUN TO PROVIDE

SUPERVISION OF CONNECTIONS.

DO NOT LOOP WIRE ON TERMINALS

ALL WIRING SHOWN IS SUPERVISED AND POWER LIMITED

(-)

(+)

TWISTED PAIR

SILENT KNIGHT CONTROL PANELS ONLY

PREVIOUS DEVICE

(-)

(+)

24 VDC POWER SUPPLY

ISOLATED, REGULATED, POWER

LIMITED PER NFPA 70.

LISTED FOR FIRE PROTECTION WITH

BATTERY BACKUP.

5 4

5 6 7 8 9

TENS

ONES

ADDRESS

LOOP

7 8

SIGNAL LINE CIRCUIT (SLC)

MODULE

FROM PANEL OR

(+)

(–)

TO NEXT

(+)

(–)

DEVICE

(+)

(–)

CONTROL

(–)

(+)

(–)

(+)

UL LISTED EOL RELAY

SHOWN ENERGIZED

24VDC COIL

EOLR-1

MODULE POLARITIES ARE

SHOWN IN ALARM

CONNECT MODULES TO LISTED COMPATIBLE

24 VDC CIRCUIT

3 & 4. BREAK WIRE RUN TO PROVIDE

SUPERVISION OF CONNECTIONS.

DO NOT LOOP WIRE ON TERMINALS

ALL WIRING SHOWN IS SUPERVISED

AND POWER LIMITED

(+)

SILENT KNIGHT CONTROL PANELS ONLY

PREVIOUS DEVICE

EOL RESISTOR IS

INTERNAL AT

TERMINALS 8 & 9

32 VDC MAX.

TWISTED PAIR

IS RECOMMENDED

(–)

24 VDC POWER SUPPLY

ISOLATED, REGULATED, POWER

LIMITED PER NFPA 70.

LISTED FOR FIRE PROTECTION WITH

BATTERY BACKUP.

TO NEXT CONTROL MODULE OR END-OF-LINE-RELAY.

ONE RELAY REQUIRED FOR EACH CIRCUIT.

5 4

5 6 7 8 9

TENS

ONES

ADDRESS

LOOP

7 8

SIGNAL LINE CIRCUIT (SLC)

K200-09-00 2 I56-2725-003

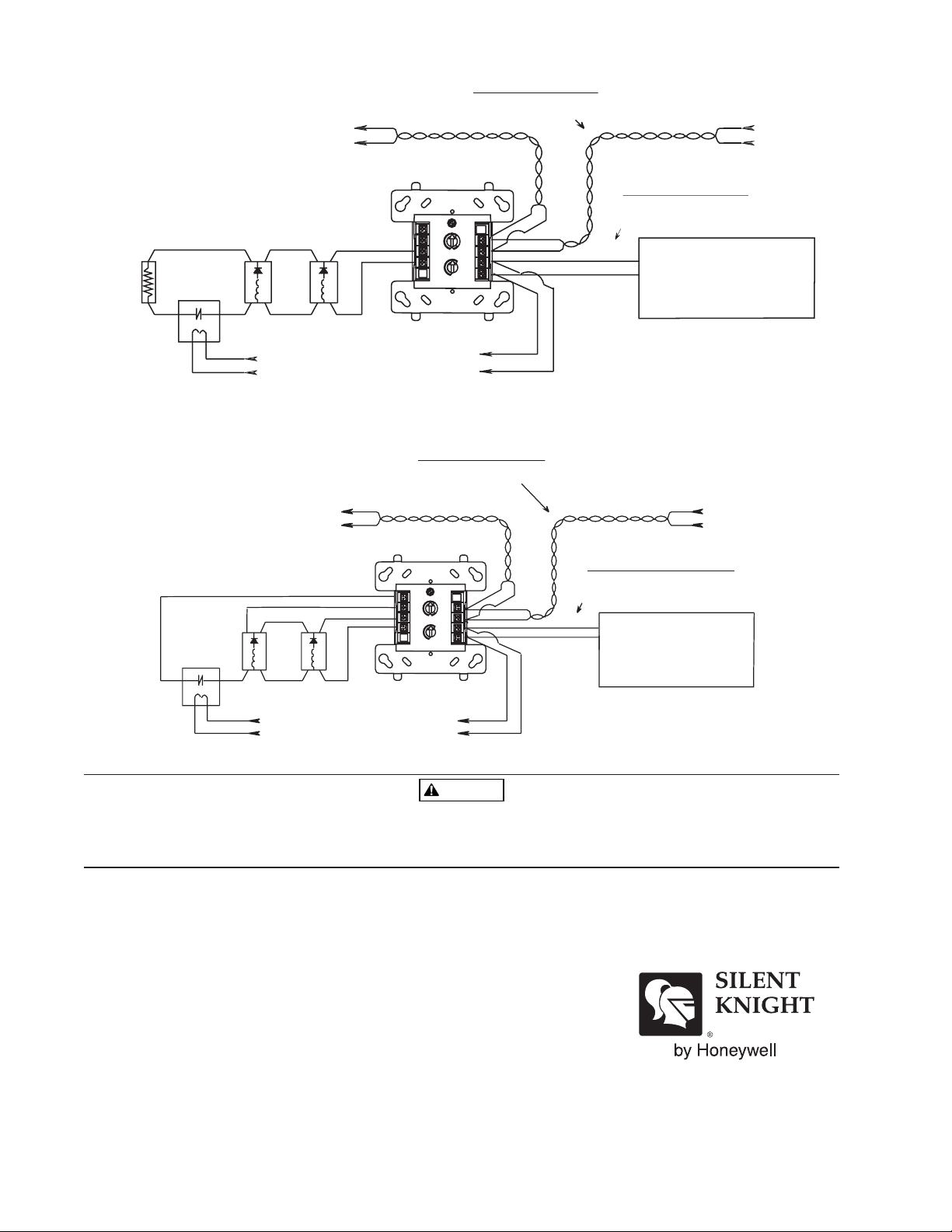

Figure 3. Typical notification appliance circuit configuration, NFPA Style Y:

Figure 4. Typical fault tolerant notification appliance circuit configuration, NFPA Style Z:

C0808-03

C0807-03

WARNING

All relay switch contacts are shipped in the standby state (open) state, but may have transferred to the activated (closed)

state during shipping. To ensure that the switch contacts are in their correct state, modules must be made to communi-

cate with the panel before connecting circuits controlled by the module.

1. Install module wiring in accordance with the job draw-

ings and appropriate wiring diagrams.

2. Set the address on the module per job drawings.

3. Secure module to electrical box (supplied by installer),

as shown in Figure 2A.

IMPORTANT: When using the IDP-Control for fire

fighter telephone applications, remove Jumper (J1) and

discard. The Jumper is located on the back under the

product label as shown in Figure 1B. 7550 Meridian Circle

Maple Grove, MN 55369-4927

763-493-6455; 800-328-0103

Fax: 763-493-6475

http://www.silentknight.com
