ANN-LC Lite-Connect Module

Product Installation Document

PN LS10158-000FL-E:C 7/28/2015 15-416

1Overview

The ANN-LC Lite-Connect module provides a multi-FACP system solution where a single communicator and phone line

for Alarm, Supervisory, and Trouble reporting to a central station are shared using fiber-optic cables. Compatible panels

include the MS-9050UD Series software version 4.0 or later and the MS-9200UDLS Series software version 7.0 or later.

Each FACP requires its own ANN-LC. The FACP/ANN-LC pair are referred to as a node on the fiber circuit. One hub and

16 nodes are allowed. The hub must be an MS-9050UD panel. This FACP acts as a centralized communicator to all other

nodes. Each node requires a unique node address that is assigned in FACP programming. Refer to the appropriate FACP

manual for programming information. The hub communicates with the nodes via fiber-optic media from one ANN-LC to

the next. All ANN-LC boards must be running the same version of Lite-Connect module software. The circuit can be

wired in either Class A or Class B.

2 Specifications

• Operating voltage: 24 VDC

• Maximum current: 150 mA @ 24 VDC

• Maximum attenuation of the optical signal between any two ANN-LC cards for 62.5/125 or 50/125 multi-mode fiber

optic cable: 5 dB.

For uninterrupted cable runs, this will equate to a maximum fiber optic cabling distance of 3.1 miles (5km) between

each Lite-Connect card.

3Installation

The ANN-LC ships with a hardware kit containing a ground cable, a 21” long ribbon cable, 2 hex nuts, and 1 self-tapping

screw.

NOTE: When using the IPGSM-DP(C) or IPGSM-COM Commercial Fire Communicator, node address

settings 10 or above should not be used.There are no restrictions with the IPGSM-4G(C).

NOTE: Any attenuation incurred through the use of cable splicing, optical patch connections, or other loss

inducing equipment in the fiber cable path between Lite-Connect cards shall be included in the overall

attenuation calculation, along with the fiber cable, and shall not exceed in total the 5db attenuation limit.

NOTE: Installation and wiring of this device must be done in accordance with NFPA 72 and local ordinances.

2ANN-LC Product Installation Document — P/N LS10158-000FL-E:C 7/28/2015

1. Place the ANN-LC flat against the inside back wall of the FACP backbox. Position both bracket mounting tabs above

the two embossed protrusions in the backbox and slide the tabs down into the protrusions.

2. Secure the mounting bracket to the backbox by installing the supplied self-tapping screw into the top embossed

protrusion/tab as illustrated below.

3. Attach the grounding cable from the left corner of the mounting bracket to the backbox grounding stud, securing it

with hex nuts as illustrated below.

IMPORTANT! Only 7 AH or 18 AH batteries will fit in front of the ANN-LC when installed inside the FACP backbox.

If 12 AH batteries are to be used, they must be installed vertically and sit on the left side of the bottom of the backbox.

ANN-LC

backbox

protrusions

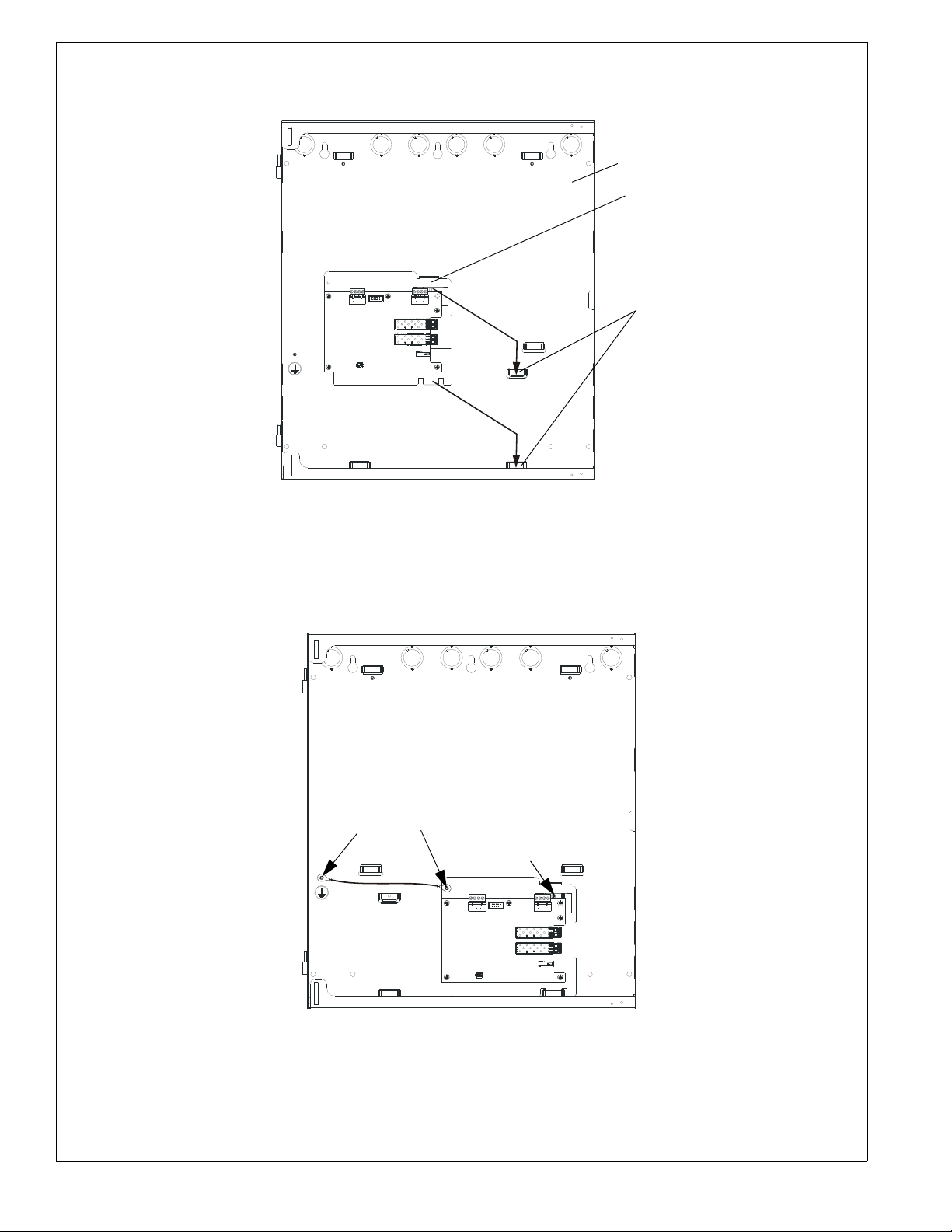

Figure 1 Mounting the ANN-LC into the Backbox

FLLCmnttabs.wmf

self-tapping

screw

grounding cable

(p/n 1120-0709)

secured with hex nuts

Figure 2 Securing the ANN-LC to the Backbox

FLLCmnt.wmf

Note: When securing the ANN-LC

to ground, ensure that the ground

cable for the AC mains is installed

first, closest to the backbox.

ANN-LC Product Installation Document — P/N LS10158-000FL-E:C 7/28/2015 3

4 Wiring

4.1 FACP Wiring

Refer to the MS-9050UD Series (#52413) and MS-9200UDLS Series (#52750) Manuals for wiring the ANN-LC to the

FACP.

4.2 Fiber-Optic Cables

Multi-mode fiber-optic cables must be used. Connections must be made using duplex LC connectors (per IEC 61754-20).

The over-bending of fiber-optic cables can cause breakage. Consult manufacturer’s guidelines for minimum radius of

bend for fiber-optic media.

4.3 Class B Wiring

Class B wiring begins at the MS-9050UD being used as the hub and ends with the last node on the circuit.

Figure 3 LC Connector

LCconnector2side.wmf

ANN-LC

mounted

hub

1111112

First

circuit

node

Last

circuit

node

Figure 4 Class B Wiring

FLLCclassB.wmf

node node node

Consult manufacturer’s guidelines for minimum

radius of bend for fiber-optic media

4ANN-LC Product Installation Document — P/N LS10158-000FL-E:C 7/28/2015

4.4 Class A Wiring

Class A wiring begins at the MS-9050UD being used as the hub and returns to the hub after wiring to the last node on the

circuit. In class A wiring, a single open will not result in fragmentation of the circuit. Communication will continue while

the hub and every installed node display a trouble condition on their host FACP..

ANN-LC

mounted

hub

1 111

122

First

circuit

node

Last

circuit

node

Figure 5 Class A Wiring

FLLCclassA.wmf

1212

node node

node

Consult manufacturer’s

guidelines for minimum

radius of bend for fiber-

optic media
