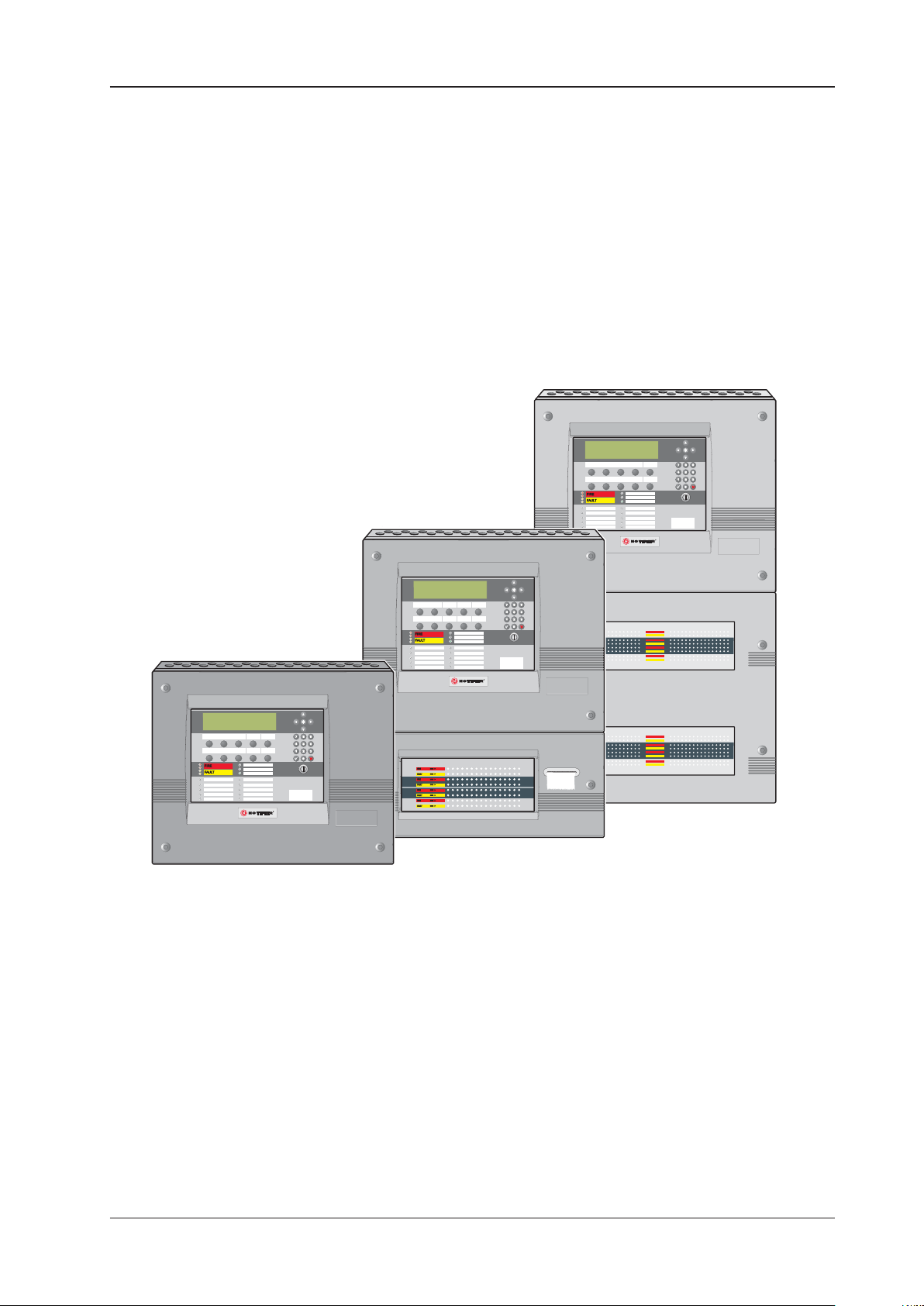

The ID3000 Series Range of Fire Control Panels

ID3000 Series Installation & Commissioning Manual

Contents

997-274-000-6, Issue 6

September 2009

Contents

1 Introduction 1

1.1 CE Marking 1

1.2 System Design and Planning 1

1.3 Personnel 1

1.4 General 1

1.5 Date-dependent Functions 2

Installation: Sections 2-6

2 Installation Guide 3

2.1 How to Use this Guide 3

2.1.1 Related Documents 3

2.1.2 Warnings and Cautions 3

2.1.3 Tips 3

2.1.4 Glossary of Icons 4

2.2 Pre-Installation Check List 5

2.2.1 Some DO’s and DONT’s 5

2.3 Transient Protection 6

2.4 Installation 7

2.4.1 Checking Your Panel for Damage 7

2.4.2 What to do if Your Module is Damaged 8

2.4.3 Back Box Fixing 9

2.4.4 Electronics Modules 10

2.5 Replacing the Electronics Modules 11

2.6 Flush Mounting Bezel (Optional) 11

2.7 Moulded Front Covers 12

3 Cabling 14

3.1 Cabling Instructions 14

3.1.1 Cable Terminations 15

3.2 Cable Installation Notes 16

3.2.1 Introduction 16

3.2.2 Quality of Cable and of Cable Installation 16

3.3 EMC Considerations 17

3.3.1 Screen Termination 17

3.3.2 Ferrite Sleeves (Optional) 17

3.4 MICC Cables 17

WARNING: Risk of electric shock. Before

working on mains connections, ensure

mains power supply to the panel is

disconnected.

CAUTION: Refer to the accompanying

documentation. (When used in the

documentation, this marking is normally

associated with additional instructions).’

The following markings are used either on

the panel hardware or in the

documentation. They have the following

meaning:

ID3000 Series Installation & Commissioning Manual

Contents

iii 997-274-000-6, Issue 6

September 2009

4 Sensors and Modules 18

4.1 EN54 Requirements 18

4.1.1 Loop Devices - Sensors and MCPs 18

4.1.2 Loop Devices - Isolators 18

4.2 Loop Wiring Testing 18

5 Panel Electronics Modules 19

5.1 Introduction 19

5.2 Kit PSU3A 20

5.2.1 Procedure 20

5.3 Dual Transmission Path/Booster Module 23

5.3.1 Procedure 23

5.4 Main Chassis 25

5.4.1 Main Chassis Configurations 25

5.4.2 Procedure 25

5.5 Zonal LED & Printer Options 26

5.5.1 64 Zone LED Extension Chassis 26

5.5.2 PRN-ID Printer 27

5.5.3 LEDs for up to 256 Zones 29

5.6 Display PCB 31

5.7 Base PCB 32

5.7.1 Fitting the Replacement Base PCB 33

5.7.2 Cables and Wiring 33

5.8 Processor PCB 34

5.9 Loop Interface PCB 35

5.9.1 Cables and Wiring 35

5.10 Enhanced Loop Interface PCB 36

5.10.1 Cables and Wiring 37

5.11 Isolated RS232 Interface PCB 38

5.11.1 Cables and Wiring 39

5.12 Isolated RS485 Interface PCB 40

5.12.1 Cables and Wiring 40

5.13 Label Inserts 41

6 Repeaters and Master/Slave Network 42

6.1 Connecting Repeaters 42

6.2 Master/Slave Network Connections 43

7 Commissioning 44

7.1 Introduction 44

7.2 Preliminary Checks 44

ID3000 Series Installation & Commissioning Manual

Contents

997-274-000-6, Issue 6

September 2009

7.3 Powering the Panel 45

7.4 External Wiring 45

7.4.1 Introduction 45

7.4.2 Loop Checks Before Connecting Wiring 46

7.4.3 Connecting the Loop Wiring to the Panel 47

7.4.4 Loop Checks After Connecting Wiring 47

7.4.5 24V Auxiliary Outputs Check 48

7.4.6 Sounder Circuits Check 48

7.4.7 Fault Relay Wiring 48

7.5 Batteries 49

7.5.1 Connecting the Batteries 49

7.5.2 Battery Disposal 50

7.6 Earth Fault Monitoring 50

7.7 Volt-free Contact Output Option 51

7.8 Repeaters 52

7.9 Configuration and Handover 52

7.10 System Test 52

7.10.1 Zone Walk Test 52

7.10.2 Control Output Test 52

8 Maintenance 53

8.1 Routine Testing 53

8.2 Batteries 53

8.3 Cleaning 53

Appendices:

Appendix 1 - Fault Messages A1-1 to A1-5

Appendix 2 - Specifications A2-1 to A2-5

Appendix 3 - System Design Guide A3-1 to A3-6

Appendix 4 - ID2net Network A4-1 to A4-8

XLS80e Fire Alarm Control Panels

1 Honeywell, Issue 7

September 2009

1 Introduction

The purpose of this manual is to provide the user with all

recommended procedure descriptions and full technical

details for the successful installation and commissioning

of HONEYWELL’s XLS80e Series stand-alone fire alarm

controllers and repeaters, or for a complete XLS80e Series

integrated Fire Control System.

Procedures described in this manual include appropriate

warnings and cautions to guide the user towards adopting

safe and methodical work practices during the installation

and commissioning phases.

1.1 CE Marking

This panel is CE Marked to show that it conforms to the

requirements of the following European Community

Directives:

The EMC Directive 2004/108/EEC, by the application of

the following EMC Standards:

EN 61000-6-3: Electromagnetic Compatibility (EMC)

Generic emission standard for Residential, Commercial

and Light industrial environments

EN 50130-4: EMC Product family standard: Immunity

requirements for components of fire, intruder and social

alarm systems.

Low Voltage Directive 2006/95/EC, by the application of

the safety standard:.

EN 60950-1: Safety of information technology

equipment.

The Constructive Products Directive 89/1-6/EC, by the

application of the following standards:

EN 54-2: Fire detection and fire alarm systems - Control

and indicating equipment.

EN 54-4: Fire detection and fire alarm systems - Power

supply equipment.

1.2 System Design and Planning

It is assumed that the system, of which the XLS80e Series

fire control equipment is a part, has been designed by a

competent fire alarm system designer in accordance with

the requirements of EN54 Part 14 and any other local codes

of practice that are applicable.

The design drawings should clearly show the positions of

all the XLS80e Series control equipment and field devices.

XLS80e Fire Alarm Control Panels

2Honeywell, Issue 7

September 2009

Only fit the electronics

modules after all the other

trades have completed

their tasks!

1.3 Personnel

Installation of this product must be carried out only by

suitably-qualified electrical engineers.

1.4 General

The XLS80e Series of intelligent fire alarm controllers are

designed for use with HONEYWELL’s range of addressable

analogue sensors, control and monitoring modules and

addressable call points.

The XLS80e Series control panel design complies with the

requirements of EN54 Part 2 and Part 4.

The design of the XLS80e Series fire control panels is based

on a modular build concept which offers the user completely

flexible system solutions. Each control panel comprises a

number of separate build modules to simplify the installation

process. The electronic components are contained in an

easy-to-fit module called the main chassis.

The control panel can be used with either an internal or

external Power Supply Unit (PSU).

Each control panel has space provision for two sealed,

lead-acid batteries.

The panel has a built-in Master/Slave network serial

communications interface which operates under RS485

protocol. Alternatively, the panel can be connected to an

XLSnet fault-tolerant peer-to-peer network.

While every effort is made to ensure the accuracy of the

content of this manual, the manufacturer reserves the right

to change the information without notice.

Installation

The XLS80e Series modules are easy to install providing

the recommended procedures described in this manual

are followed. To avoid inadvertant contamination of the main

chassis (comprising the PCBs) and of the PSU (if mounted

internally), the manufacturer recommends that these items

are installed in the back box only after all other trades

have completed their tasks.

1.5 Date-dependent Functions

It should be noted that the calendar end date for this

product is 31/12/2099 (two thousand and ninety nine) and

it will perform correctly up to this date.

The calendar function has not been tested beyond this

date.

ID3000 Series Installation & Commissioning Manual

Installation Guide

3 997-274-000-6, Issue 6

September 2009

2 Installation Guide

2.1 How to Use this Guide

This Installation Guide is intended to provide you with

simple guidelines on how to install an ID3000 Series fire

control panel or system, quickly and safely.

For each stage in the ID3000 Series panel installation

and commissioning procedures a brief description is given

of its purpose, complete with detail drawings, flow

diagrams and/or other graphics to make the instructions

easy to follow. Where required, procedures may be broken

down into one or more related flow diagrams, the number

being dependent upon the complexity of the defined task.

2.1.1 Related Documents

The guide does not describe any of the panel operating

or configuration stages, as these are covered by other

related manuals. For more information refer to:

ID3000 Series Operating Manual (ref. 997-505-000-X)

ID3000 Series Panel Configuration Manual

(ref. 997-506-000-X)

2.1.2 Warnings and Cautions

Where appropriate, this guide and the remainder of the

manual include advisory warnings and cautions to remind

you to consider safety at all times, especially when

following the procedures described in this manual.

You are alerted to any areas where high voltage [i.e. non-

Safety Extra-low Voltage (SELV)] is present, or where

there may be a risk of damage to static-sensitive devices

if the recommended procedures described in this manual

are not followed. An example of a high voltage warning

and anti-static caution is provided to the left of this

paragraph.

The ID3000 Series control panel has many powerful built-

in features which, if used inappropriately, may contravene

the requirements of EN54. Where there is a possibility

of such an occurence, a suitable warning is given with

brief details of the EN54 requirement. A typical EN54

non-compliance warning is illustrated at left.

2.1.3 Tips

‘Handy tips’ are included, where appropriate, to assist

you in following quick and safe procedures for fire

detection system installation and integration.

Look for the ‘TIP!’ icon and supporting text, typically

illustrated at left.

WARNING High Voltage!

Take suitable precautions

to avoid electric shock.

EN54-2: 12.5.2

Maximum of 32

Sensors and/or MCPs

between isolators.

Magnetise the tip of your

screwdriver to help when

offering small screws to

holes in confined spaces.

ID3000 Series Installation & Commissioning Manual

Installation Guide

4997-274-000-6, Issue 6

September 2009

2.1.4 Glossary of Icons

Throughout this Installation and Commissioning Manual

and other supplied user documentation a number of

simple icons are used, either on their own or together

with larger illustrations, to simplify a particular task or

process.

The following icons are used to advise or indicate:

a. DO follow the recommended procedure or method

b. DO NOT use this procedure or method

c. Inspection of an item or sub-assembly is required at

this point

d. Following a defined process meets the required

approval/inspection criteria or standards

e. Following a defined process does not meet the

required approval/inspection criteria or standards

f. Additional items to be considered

g. This icon placed next to a pushbutton requires you to

press it as part of a described process, such as isolate

or test, or while programming the panel. Where two or

more icons are used, a number may be placed on or

near each hand to indicate the order of selection: 1

coming before 2, etc.

h. Activity process step - flow arrow for single action or

iterative actions

i. Leader arrow - used with activity processes

j. Sounder operating

k. Sounder not-operating or silenced

l. Digital clock timer - press and hold the applicable

pushbutton for the time indicated

ID3000 Series Installation & Commissioning Manual

Installation Guide

5 997-274-000-6, Issue 6

September 2009

2.2 Pre-installation Check List

Before installing the ID3000 equipment or fitting sensors,

you must first ensure that the following criteria have been

met. Failure to do this may not only result in damage to

the equipment, but may also cause problems when

commissioning the equipment or adversely affect its

performance.

2.2.1 Some DO’s and DON’T’s

Before selecting a location for the control panel and

devices, DO make sure that:

a. The operating ambient temperature is in the

recommended range:

5°C to 35°Cand

b. The relative humidity is between:

5% and 95%

c. The panel is wall mounted in a position which allows

clear visibility of displays and easy access to operating

controls. The height above floor level should be chosen

such that the LCD is just above normal eye level

(approximately 1.5 metres)

d. DO NOT locate the panel where it is exposed to high

levels of moisture

e. DO NOT locate the panel where there are high levels

of vibration or shock

1.5m

Otros manuales para Notifier ID3000 Series

Tabla de contenidos

Otros manuales de Panel de control de Honeywell

Honeywell

Honeywell MINI-ZONE 69-1361 Guía de inicio rápido

Honeywell

Honeywell Vigilon Plus Manual de usuario

Honeywell

Honeywell NOTIFIER RP1r Manual de usuario

Honeywell

Honeywell Lynx Touch L5100 Guía de instalación

Honeywell

Honeywell Galaxy Dimension series Guía del usuario

Honeywell

Honeywell Fire-Lite Alarms ES-200X Manual de usuario

Honeywell

Honeywell Domonial CMI 800++ Guía del usuario

Honeywell

Honeywell GALAXY 16103 Manual de usuario

Honeywell

Honeywell VARIODYN D1 Comprio Manual técnico

Honeywell

Honeywell PL-1000 Manual de usuario

Honeywell

Honeywell NOTIFIER SFP-5UD Series Manual de usuario

Honeywell

Honeywell NOTIFIER AM-8200 Manual del propietario

Honeywell

Honeywell Notifier NFS-320/E/C Manual de usuario

Honeywell

Honeywell Notifier NFS-320 Manual de usuario

Honeywell

Honeywell NOTIFIER INSPIRE E10 Manual de capacitación

Honeywell

Honeywell Ademco Accord Manual de usuario

Honeywell

Honeywell Pro-Watch 7000 Manual de usuario

Honeywell

Honeywell Notifier LCD6000N Manual de usuario

Honeywell

Honeywell NOTIFIER NFW-100X Manual de usuario

Honeywell

Honeywell AQ255 Series Manual de operación

Honeywell

Honeywell Gamewell Flex 402 Manual de usuario

Honeywell

Honeywell Galaxy Flex Guía del usuario

Honeywell

Honeywell HPZC10 Series Manual de usuario

Honeywell

Honeywell Galaxy 2 Series Manual de usuario

Manuales populares de Panel de control de otras marcas

RDZ

RDZ PC-HRX Manual de usuario

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manual técnico

Efka

Efka Variocontrol V810 Manual de usuario

Cebora

Cebora 208-10 Manual de usuario

AMX

AMX AutoPatch CP-15 Manual de usuario

Satel

Satel CA-6 KLED-S Manual de usuario

Evolution

Evolution IQ plus 800 Manual de usuario

Fagor

Fagor 8040 TCO CNC Manual de usuario

Trane

Trane ComfortLink II XL950 Control Manual de usuario

AKO

AKO PROCool AKO-17635-2 Manual de usuario

ABB

ABB 6136/30M-101 Manual de usuario

Telikou

Telikou BK-603 Belt Pack Manual de usuario

Mapei

Mapei Mapeheat Thermo Touch Manual de usuario

Bosch

Bosch D9412GV4 Manual de usuario

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manual de usuario

Sminn

Sminn BOX L VF1L EI Manual de usuario

Balboa

Balboa TP600 Manual de usuario

Nice

Nice HSCU1 Especificaciones técnicas
